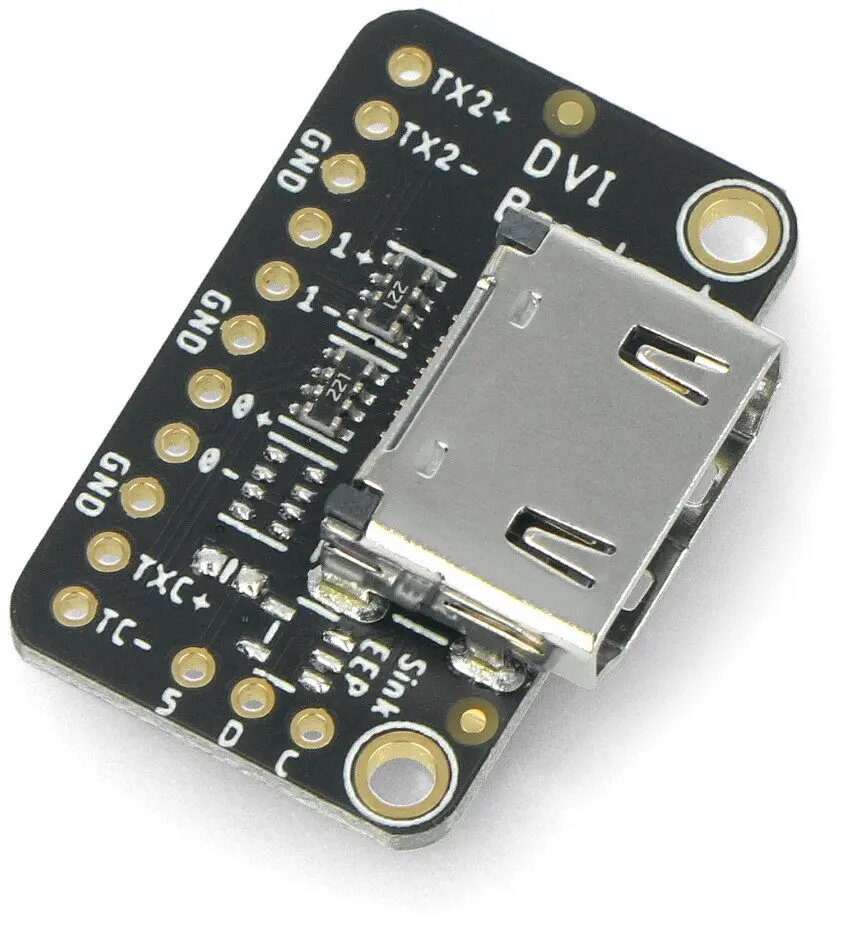

DVI Breakout Board adapter with HDMI/DVI connector for Raspberry Pi Pico - Green Cell

The Green Cell DVI Breakout Board adapter with HDMI/DVI connector for Raspberry Pi Pico is a compact interface that simplifies connecting HDMI or DVI displays to a Pico-based project. The board routes the video signal pins and exposes the relevant connector and GPIO-compatible pads, making it easier to prototype video output solutions, test display modules, or integrate external monitors with the Pico.

Advantages

This adapter provides a small, solder-friendly breakout that converts the Pico’s GPIO video-related signals into a standard HDMI/DVI connector footprint, reducing wiring complexity and saving development time. The design keeps signal paths short and accessible, and the board’s pin labeling supports straightforward integration with typical Pico headers and jumper wiring. The adapter is suitable for breadboard and custom PCB prototyping where a compact display interface is required.

Suitable for

• Prototyping HDMI/DVI video output from Raspberry Pi Pico projects
• Testing small HDMI/DVI monitors or panels with a Pico
• Educational projects and development of display drivers or interfaces
• Custom embedded designs that require a compact display connector

Key specifications

• Connector type: HDMI/DVI-compatible connector footprint suitable for video signal lines
• Target platform: Designed for use with Raspberry Pi Pico GPIO header
• Board form factor: Compact breakout suitable for prototyping and small enclosures
• Signal access: Exposed pads/pins for video signal routing and grounding
• Mounting and wiring: Solder pads and through-holes for header or wire connections

How to use

Mount the adapter near the Raspberry Pi Pico and connect the Pico’s GPIO pins to the adapter’s exposed pads or header according to the video signal mapping required by your display code or driver. Secure the HDMI/DVI cable to the adapter’s connector and ensure proper ground connections between the Pico and the display. Verify power requirements for the display separately; the adapter routes video signals but does not substitute for the display’s power source. Test signals using known-good cables and a compatible monitor, and confirm the Pico firmware is configured to output the expected timing and signal levels.

Usage recommendations

Use short, well-shielded HDMI/DVI cables where possible and keep signal wiring between the Pico and the adapter minimal to reduce interference. When prototyping, double-check pin mappings and grounding before applying power. For permanent installations, consider soldering headers or wires securely and using strain relief for the display cable.
