Signal generator Grothe SG 851 — electronic chime/doorbell module, 8–12 V AC input

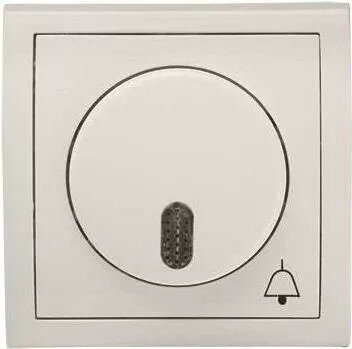

Grothe SG 851 is an electronic signal generator designed for door chimes and small signaling systems. The unit accepts 8–12 V AC input and produces electronic tones suitable for connection to compatible chime speakers or doorbell transducers. Its compact form factor and straightforward electrical interface allow installation in residential and light commercial doorbell circuits where reliable audible signalling is required.

Advantages

The SG 851 offers stable tone generation across the specified AC supply range and a compact enclosure that fits into common mounting locations. It simplifies replacement or upgrade of mechanical chime modules by providing an electronic alternative with consistent sound output. Installation requires minimal wiring changes when integrated with existing low-voltage doorbell transformers and push-button circuits.

Suitable for

• Replacement of mechanical door chime modules in homes
• Small office or retail doorbell and entry alert systems
• Integration into multi-button chime systems with compatible speakers
• Retrofit projects where a compact electronic module is needed

Key specifications

• Input voltage: 8–12 V AC
• Function: electronic tone generation for chime/doorbell use
• Output type: audio signal for connection to chime speakers or transducers
• Mounting: compact enclosure suitable for flush or concealed installation
• Application: residential and light commercial signalling

How to use

Connect the SG 851 to the low-voltage AC supply (8–12 V AC) provided by a doorbell transformer and wire the push-button circuit to the module input according to the installation environment. Attach the audio output to the compatible chime speaker or transducer. Verify wiring polarity and secure mounting before applying power. After installation, test the unit by pressing the doorbell push-button and confirm the tone generation and audibility level.
