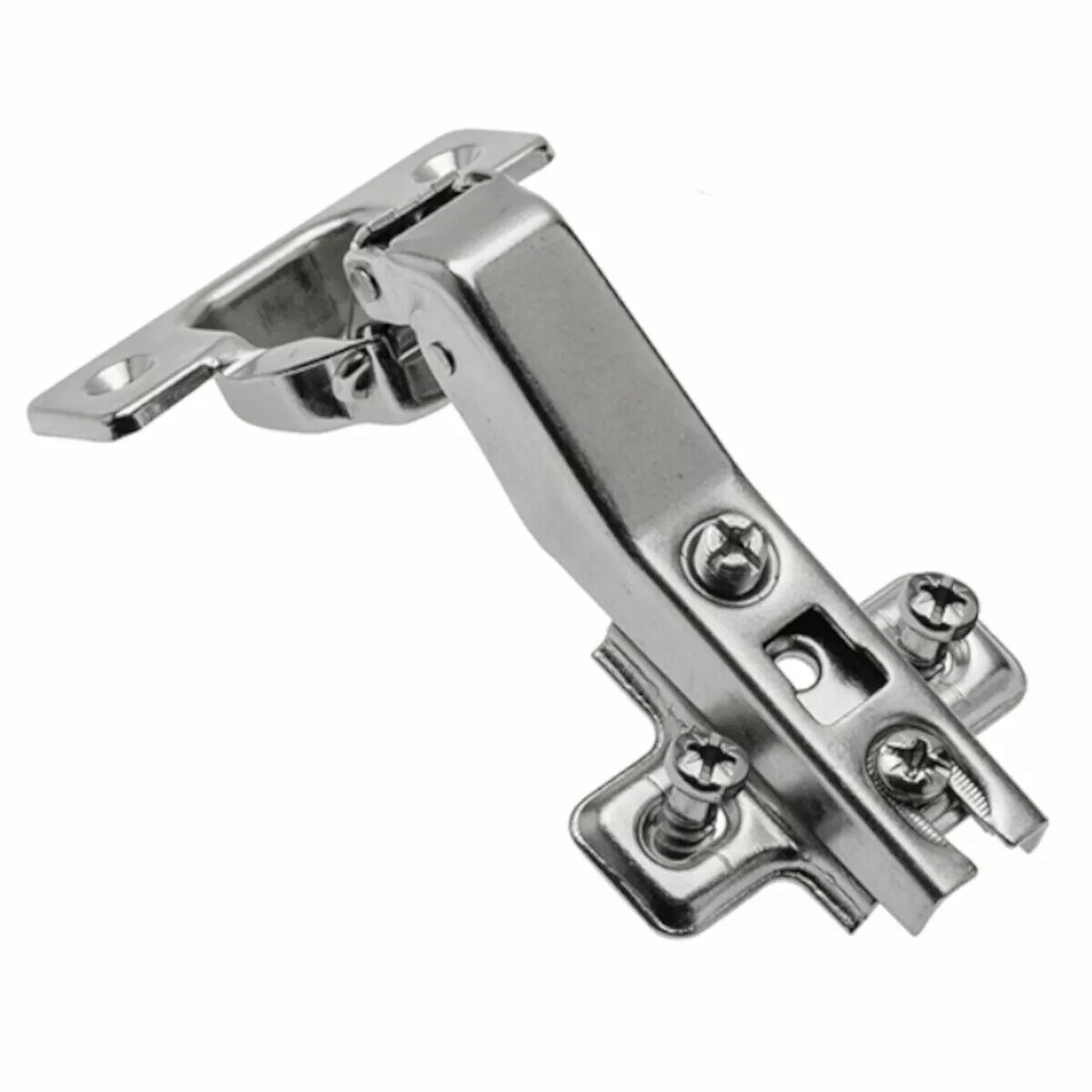

Hinge GTV DN35/2 45° surface mounted – GTV DN35/2 45° hinge for 35 mm doors

Surface-mounted hinge GTV DN35/2 45° is designed for furniture and cabinet doors with a 35 mm bore. The hinge uses a built-in closing mechanism with a tension spring and sliding guides. Thanks to its two-stage action, the hinge provides a free movement in the final opening phase, preventing the door front from hitting adjacent walls or furniture. The product is adjustable in three planes and complies with PN-EN 15570:2010 / EN 15570:2008. It is intended for mounting the door front relative to the carcass at a 45° angle.

Advantages

The GTV DN35/2 45° hinge offers controlled closing with a tension spring and smooth sliding guides, plus a two-stage action that ensures a soft free-movement finish. Three-plane adjustability simplifies alignment during installation. Compliance with PN-EN 15570:2010 / EN 15570:2008 certifies it meets relevant safety and performance requirements for furniture hinges. Surface-mounted design allows use on doors with a 35 mm bore and straightforward fitting to cabinet fronts.

Suitable for

• Kitchen cabinet doors with 35 mm bore
• Wardrobe and closet doors requiring a 45° opening
• Furniture fronts where a surface-mounted hinge is preferred
• Renovation projects where non-recessed mounting is needed

Key specifications

• Model: GTV DN35/2 45° (MPN: 1307934, EAN: 5908231307934)
• Door bore: 35 mm
• Opening angle: 45°
• Mounting: surface mounted, front relative to carcass at 45°
• Adjustment: three planes
• Standards: PN-EN 15570:2010 / EN 15570:2008

How to use

Position the hinge on the door front and the carcass so that the door is mounted at a 45° angle relative to the cabinet side. Fasten the hinge to the door and cabinet following the manufacturer’s recommended screw positions. Adjust the hinge in three planes to achieve correct alignment and gap. The built-in tension spring and sliding guides provide controlled closing and a two-stage action; no additional mechanisms are required for the intended operation.

Usage recommendations

For reliable performance, use screws of appropriate length and diameter for the cabinet material, check alignment after installation, and ensure the 35 mm bore is accurate. Regularly inspect the hinge for wear and retain compliance with the specified standards during use.
