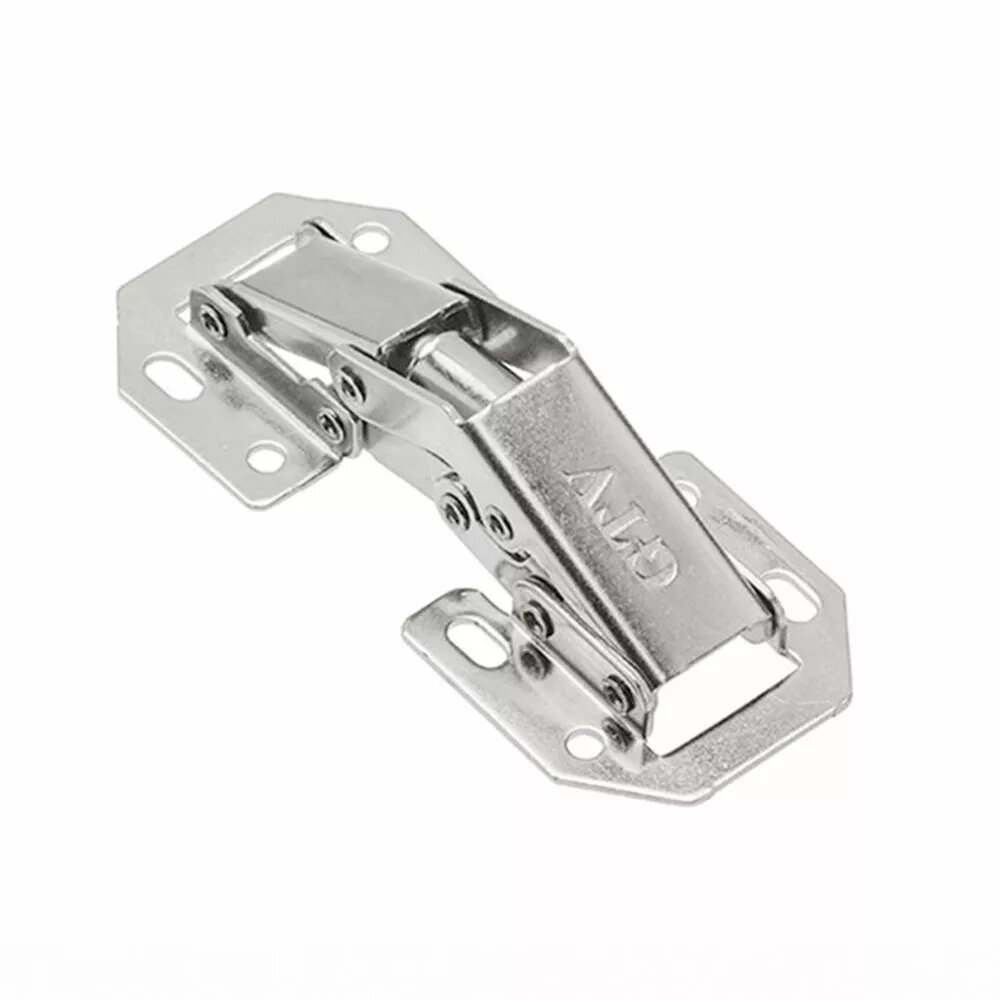

Cabinet hinge piston GTV 2 pcs, model 1475139

Set of 2 GTV cabinet hinge pistons, model 1475139, designed for small over-head style mechanisms on wooden cabinet fronts. These quick-fit pistons require no routing for installation and have a center-to-center distance of 23.5 mm. The front angle in the closed position is 90° and the opening angle is 90°, providing controlled dampening and smoother door movement for retrofit or replacement in compatible hinges.

Advantages

Quick installation without the need for milling, compact design suitable for small over-head hinge mechanisms, and precise dimensions (23.5 mm center-to-center) that facilitate straightforward replacement. The pistons offer controlled closing and dampening to reduce noise and wear on cabinet doors.

Suitable for

• Kitchen cabinet doors
• Wardrobe doors
• Small furniture doors and retrofits
• Replacement of compatible hinge pistons

Key specifications

• Brand: GTV
• Model / MPN: 1475139
• Quantity: 2 pieces
• Type: Quick-fit hinge piston for over-head style mechanism
• Material: for wooden fronts (as intended for cabinet/furniture hinges)
• Center-to-center distance: 23.5 mm
• Front angle (closed): 90°
• Opening angle: 90°
• EAN: 5902801475139

How to use

Remove the existing hinge piston (if present) and align the new GTV piston so that the 23.5 mm center-to-center spacing matches the hinge fittings. Press the quick-fit piston into place according to the hinge manufacturer’s guidance until it clicks or feels secured. Test the door movement and ensure the piston provides the expected dampening and controlled closing at a 90° range.

Usage recommendations

For best results, use these pistons on hinges specified for over-head style mechanisms on wooden cabinet fronts and verify compatibility with existing hinge fittings before installation. Replace pistons in pairs for balanced dampening and check regularly for wear.
