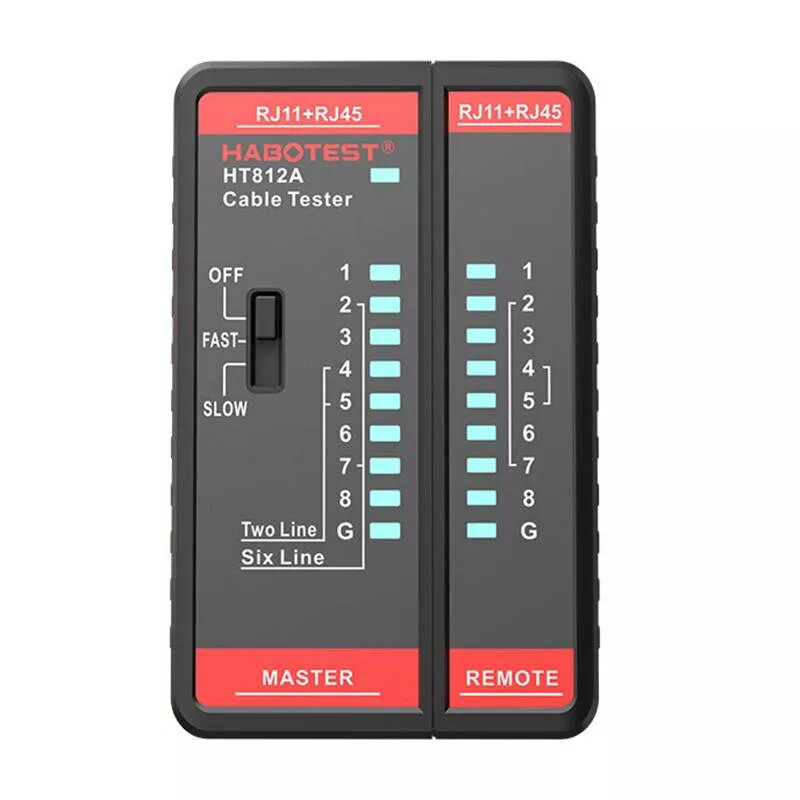

Network cable tester Habotest HT812A — RJ45, RJ14, RJ12, RJ9 compatibility

Habotest HT812A cable tester checks continuity and wiring for cables with RJ45, RJ14, RJ12 and RJ9 (RJ11) connectors. Designed for technicians and installers, the tester verifies pin-to-pin connections, detects open or shorted pairs and can indicate shielding status. The compact fold-out design and battery power make it suitable for on-site troubleshooting of network, telephone and serial cabling.

Advantages

The Habotest HT812A offers support for 8P/6P/4P/2P cable types and includes both RJ45 and RJ11-compatible ports. It provides two test speeds (slow and fast), live-line detection and shielding measurement. A set of LEDs clearly indicates test results, and the removable battery cover eases replacement of the 2 × AAA batteries. The unit features automatic shutdown and a low-power indicator to extend battery life.

Suitable for

• Testing Ethernet network cables (RJ45)
• Testing telephone and serial cables (RJ14/RJ12/RJ9/RJ11)
• Verifying pin-to-pin continuity and pair integrity
• Detecting short circuits and checking shielding
• Portable field diagnostics for technicians and installers

Key specifications

• Manufacturer: Habotest
• Model: HT812A
• Connector compatibility: RJ45, RJ14, RJ12, RJ9 (RJ11)
• Supported pins: 8P / 6P / 4P / 2P
• Shielding measurement: Yes
• Live measurements: Yes
• Test modes: Slow and Fast
• Automatic shutdown: Yes
• Low power indicator: Yes
• Power supply: 2 × AAA batteries
• Weight: Approximately 71 g
• Dimensions: 96 × 62 × 24 mm
• Safety standards: EN61326, EN60825

How to use

Connect one end of the cable to the main unit and the other end to the remote/test connector as appropriate for the cable type. Select the desired test mode (slow or fast) and start the test; the LEDs will sequence to show pin-to-pin continuity, open pairs or shorts. Use the live measurement feature when checking cables connected to active circuits, and observe the low-power indicator to ensure reliable results. Replace the two AAA batteries via the removable battery cover when the low-power indicator is shown.

Usage recommendations

For accurate diagnosis, test cables with both ends accessible and avoid testing within environments with strong electrical interference. Use the shielding measurement to verify screened cabling and follow safety standards when performing live measurements.
