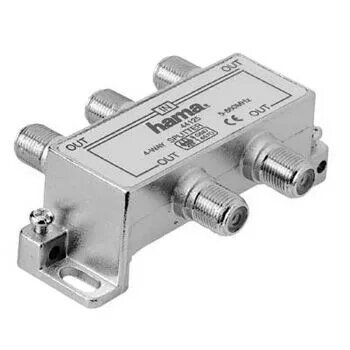

HAMA CATV Splitter 4-way Silver, coaxial cable signal splitter

HAMA CATV Splitter 4-way Silver is a passive coaxial signal splitter that divides a single CATV or antenna input into four outputs. Designed for basic distribution of RF signals in home AV setups and small installations, the compact metal-coloured housing and F-type connections allow straightforward integration with cable TV, antenna systems and simple broadband distribution networks.

Advantages

The splitter redistributes a CATV/broadband signal to up to four televisions or receivers while maintaining shielding and impedance matching for stable signal flow. It supports HDTV and common cable TV applications and features F-type compatible connectors for easy connection. Its frequency handling and specified transmission and return loss values make it suitable for standard RF distribution tasks in domestic environments.

Suitable for

• Distributing a cable TV signal to multiple TVs or set-top boxes
• Splitting an antenna signal for several receivers
• Basic in-home broadband or RF distribution where passive splitting is acceptable
• Small AV installations requiring four F-type outputs

When it may not be suitable

This passive 4-way splitter introduces inherent insertion loss and is not suitable when signal strength is marginal without amplification. It does not provide active amplification or signal equalization, so installations requiring long cable runs, very high-frequency RF performance beyond the specified range, or professional headend-level distribution may need an amplified splitter or amplifier system.

Key specifications

• Number of outputs: 4-way
• Connector type: F-type compatible connections
• Frequency range: 5 - 862 MHz
• Nominal impedance: 75 ohms
• Transmission loss: 8 dB ± 1 dB
• Return loss: > 20 dB
• Decoupling/isolation between outputs: > 20 dB
• Housing colour/finish: Silver metal-coloured housing

How to use

Connect the incoming coaxial cable from the cable TV feed or antenna to the splitter's input F-type connector. Attach up to four coaxial cables to the output F-type connectors leading to televisions, set-top boxes or receivers. Ensure all connections are tightened securely to maintain shielding and impedance continuity. Place the splitter in a dry, ventilated area and avoid coiling cables tightly around the unit. If signal levels are weak after splitting, consider adding a compatible amplifier or using a different distribution approach.

What to consider before purchase

• Check incoming signal strength; passive splitting reduces signal level by the specified transmission loss.
• Ensure connected equipment uses 75 ohm F-type connectors and is compatible with the splitter's frequency range.
• Decide whether an amplified splitter is required for long cable runs or weak source signals.
• Confirm that four outputs meet current and future distribution needs.

Usage recommendations

For best results use short, high-quality coaxial cables and keep connections tight; if multiple rooms or long distances are involved, measure signal levels after installation and add an inline amplifier if levels fall below acceptable thresholds for HDTV reception.
