Hikvision DS-2CD2346G2H-IU 4mm Turret IP Camera

Name: IP security camera Hikvision Pro 1760534
Brand: Hikvision
SKU: 12248222
Price: 148.99 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

IP security camera Hikvision Pro Series DS-2CD2346G2H-IU (4mm) Turret Outdoor 2688×1520, 30 fps, 81.1° H

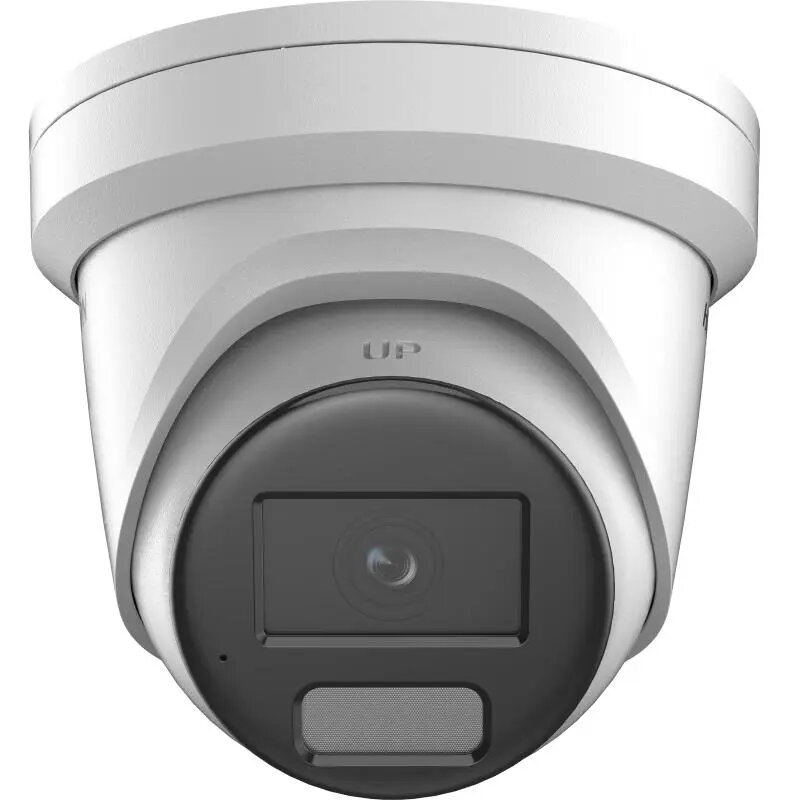

Hikvision DS-2CD2346G2H-IU 4mm Turret IP Camera Photo 1

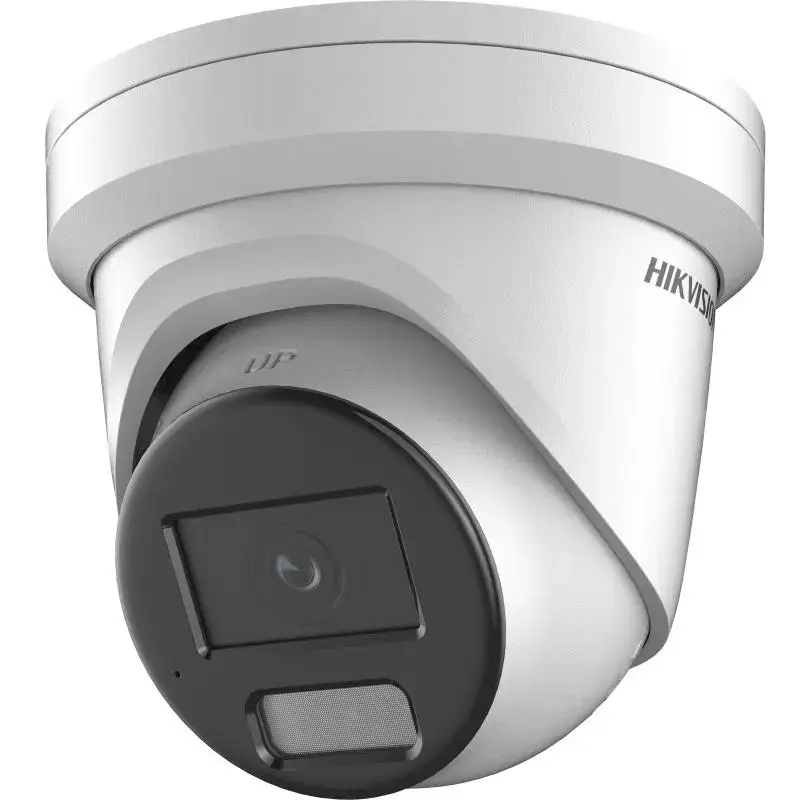

Hikvision DS-2CD2346G2H-IU 4mm Turret IP Camera Photo 2

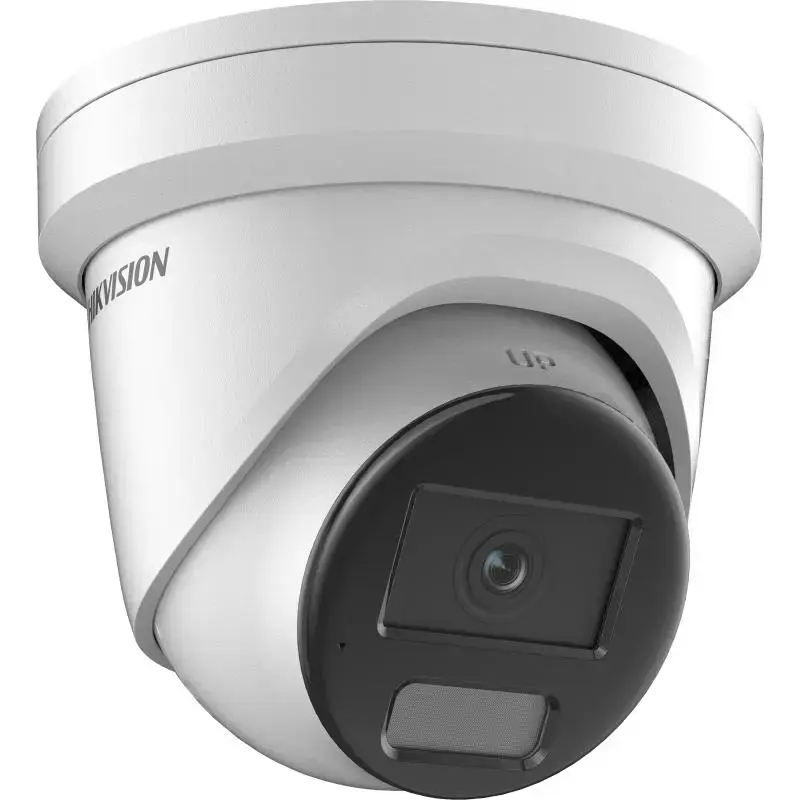

Hikvision DS-2CD2346G2H-IU 4mm Turret IP Camera Photo 3

Short description

Hikvision Pro Series DS-2CD2346G2H-IU is an outdoor turret IP security camera with AcuSense intelligent detection. It records at 2688×1520 resolution and 30 fps using a 1/3" CMOS sensor and 4 mm lens (81.1° horizontal, 44.7° vertical). Wired Ethernet connectivity, ceiling/wall mounting, 360° rotation, detection up to 78 m and recognition up to 15 m. White housing, weather-suitable for perimeter and property surveillance.

Warranty: 2 Years

SKU: 12248222

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision Pro Series with AcuSense DS-2CD2346G2H-IU (4mm) is an outdoor turret IP security camera designed for ceiling or wall mounting. It captures 4 MP (2688 x 1520) resolution video with a 4 mm lens and a horizontal field of view of about 81.1° and vertical 44.7°. The camera uses a CMOS sensor and Hikvision’s AcuSense deep-learning algorithm to classify human and vehicle targets, reducing false alarms. It supports wired Ethernet connectivity and is built for outdoor use with IP67 dust and water resistance and a white turret form factor weighing approximately 0.55 kg.

Advantages

The camera provides high-quality imaging at 4 MP resolution and improved low-light sensitivity with DarkFighter technology. Wide Dynamic Range (120 dB WDR) helps maintain clear images in scenes with strong backlight, while H.265+ compression reduces bandwidth and storage usage. AcuSense target classification focuses alarms on people and vehicles to increase detection efficiency. Additional features include up to 30 m IR night vision, built-in microphone on the -IU model for audio monitoring, and robust outdoor protection (IP67).

Suitable for

Perimeter and exterior building surveillance
Parking lots and driveways monitoring
Business entrances and outdoor walkways
Sites where human/vehicle alarm classification is required to reduce false alarms

When it may not be suitable

This turret camera is intended for outdoor fixed installations on ceilings or walls; it is not designed as a pan-tilt-zoom (PTZ) unit and therefore cannot actively track moving targets. Environments without wired Ethernet infrastructure will require additional cabling or PoE switches because the camera does not provide Wi‑Fi connectivity.

Key specifications

Image sensor: CMOS, optical size 1/3" (25.4 / 3 mm)
Resolution: 4 MP (2688 x 1520)
Lens: 4 mm, horizontal view ~81.1°, vertical ~44.7°
Frame rate: up to 30 fps
Night vision: IR up to 30 m
Video compression: H.265+
Low-light tech: DarkFighter
Wide Dynamic Range: 120 dB WDR
Target classification: Human and vehicle (AcuSense)
Ingress protection: IP67 (dust and water resistant)
Mounting: ceiling or wall turret
Connectivity: wired Ethernet (PoE compatible)
Weight: approx. 0.55 kg

How to use

Mount the turret camera on a suitable ceiling or wall surface using the supplied hardware. Connect the camera to a PoE-capable Ethernet switch or injector for power and network connectivity, then configure network settings and recording parameters using Hikvision’s software or a compatible VMS. Enable AcuSense classification and adjust sensitivity and detection zones to match the monitored area. Test night performance and IR range after installation to ensure adequate coverage.

What to consider before purchase

Availability of wired Ethernet and PoE at the installation site
Required field of view and whether 4 mm lens meets coverage needs
Need for human/vehicle classification to reduce false alarms
Whether ceiling/wall fixed mounting suits the surveillance plan (no PTZ)
Environmental exposure (IP67 rated for outdoor use)

Usage recommendations

For reliable detection, mount the camera at a height and angle that keeps people or vehicles within the recommended observe/recognize distances (observe ~31 m, recognize ~15 m). Use PoE for simplified installation, configure AcuSense zones to avoid non-relevant motion sources, and schedule regular firmware updates and maintenance checks to ensure continuous performance.

Specifications

Number of cameras: The quantity of cameras that product can support.: 1
Built-in HDD: The product has a hard drive built into it.: No
Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.: No
Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.: No
Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.: Yes
Total megapixels: A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).: 4 MP
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 2688 x 1520
Night vision: Night vision is technology which allows you to see in low light conditions.: Yes
Number of lenses: The number of lenses installed in the device.: 1
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.: CMOS
Mounting type: Type of mounting e.g. wall mounting.: Ceiling/Wall
Form factor: The shape or design of the product.: Turret
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired
Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.: Outdoor
Type: Characteristics of the device.: IP security camera
Power source type: What the power source is.: DC, PoE
Product colour: The colour e.g. red, blue, green, black, white.: White

All features

Other features

Browser supported: List of supported browsers for this product.: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+

Technical details

Lens mount interface: A lens mount is an interface — mechanical and often also electrical — between a photographic camera body and a lens. It is confined to cameras where the body allows interchangeable lenses, most usually the rangefinder camera, single lens reflex type or any movie camera of 16 mm or higher gauge.: M12
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: CB, CE, Low Voltage Directive (LVD), RoHS, UL

Packaging data

Package weight: Weight of the packaged product.: 800 g
Package height: The distance from the top to the bottom of the packaging.: 160 mm
Package depth: The distance from the front to the back of the packaging.: 170 mm
Package width: The distance from one side of the packaging to the other.: 170 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.55 kg
Diameter: Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.: 138.3 mm
Height: The measurement of the product from head to foot or from base to top.: 115.4 mm

Features

Number of cameras: The quantity of cameras that product can support.: 1

Operational conditions

Storage relative humidity (H-H):: 0 - 95
Operating relative humidity (H-H):: 0 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -30 - 60
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -30 - 60

Power

DC output current:: 0.6 A
DC output voltage:: 12
Power consumption (Power over Ethernet (PoE)):: 9 W
Power consumption (max): The maximum amount of power used by the device.: 7.2 W
Power source type: What the power source is.: DC, PoE

Management features

Reset button:: Yes
Behavior analysis:: Intrusion detection, Line crossing detection
Web-based management: Using a website/web application to manage something.: Yes

Security

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.: HTTPS, TLS
Mirror:: Yes
Audit log:: Yes
Video motion detection:: Yes
Active tampering alarm:: Yes
IP address filtering:: Yes
HTTPS encryption:: Yes
Privacy protection:: Yes
Intelligent Video Surveillance (IVS) system features:: Face detection
Heartbeat:: Yes
Password reset via email:: Yes
Pixel counter:: Yes
Flash log:: Yes
Human and vehicle targets classification:: Yes
Automatic Network Replenishment (ANR):: Yes
Digest authentication:: Yes
Network access storage (NAS):: Yes
Password protection: The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.: Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 1

Storage

Maximum memory card size: The maximum size of memory card that can be used with this device.: 512 GB
Compatible memory cards: Types of memory cards which can be used with this product.: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated: A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.: Yes
Built-in HDD: The product has a hard drive built into it.: No

Network

Client interoperability:: iVMS-4200, Hik-Connect, Hik-Central
Quality of Service (QoS) support:: Yes
Live view:: Yes
Number of simultaneous live view channels:: 6 channels
Number of users: The number of people that use or can use this product.: 32 user(s)
User access level:: Administrator, Operator, User
Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3af
Ethernet interface type:: Fast Ethernet
Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.: No
Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.: No
Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.: Yes

Audio

Sample rates:: 8 - 48
Bit rate range:: 8 - 320
Built-in microphone: Microphone that is found inside the product.: Yes
Signal-to-Noise Ratio (SNR): This is the ratio of signal intensity to noise intensity.: 52 dB
Audio formats supported: The audio formats which this device or software can read/use e.g. MP3, MP4.: AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM

Video

Bit rate:: 32 Kbps - 8192 Kbps
Image quality adjustment:: Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC):: Yes
Privacy masking:: Yes
Highlight Compensation (HLC):: Yes
Bit rate control:: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding:: Yes
Smart IR:: Yes
Noise reduction technology:: 3D noise reduction
Noise reduction:: Yes
Video streaming:: Yes
Frame rate:: 30 fps
Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Video compression formats:: H.264, H.264+, H.265, H.265+, M-JPEG
Total megapixels: A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).: 4 MP
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 2688 x 1520

Night vision

Infra-red wavelength:: 850 nm
LED type:: IR
Night vision distance:: 30
Night vision: Night vision is technology which allows you to see in low light conditions.: Yes

Lens system

Fixed focal length:: 4 mm
Maximum aperture number:: 1
Identify distance:: 7 m
Recognize distance:: 15 m
Observe distance:: 31 m
Detect distance:: 78 m
Number of lenses: The number of lenses installed in the device.: 1

Image sensor

Progressive scan: Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).: Yes
Optical sensor size: Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.: 25.4 / 3
Number of sensors:: 1
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.: CMOS

Camera

Number of Privacy masking areas:: 4
Camera shutter speed: Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.: 1/3 - 1/100000
Pan range:: 0 - 360
Tilt angle range:: 0 - 75
Lens viewing angle, diagonal:: 94.6
Lens viewing angle, vertical:: 44.7
Lens viewing angle, horizontal:: 81.1
Angle of rotation:: 360 °
Minimum illumination: Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.: 0 lx

Design

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP67
Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.: Dust resistant, Water resistant
Housing material: What the casing of the product is made of.: Aluminium
Product colour: The colour e.g. red, blue, green, black, white.: White
Mounting type: Type of mounting e.g. wall mounting.: Ceiling/Wall
Form factor: The shape or design of the product.: Turret

Performance

Dynamic range:: 120 dB
Languages support: The product has support (help) for languages.: Multi
Number of languages:: 33
Day/night mode:: Yes
Infrared (IR) cut-off filter:: Yes
Wide Dynamic Range (WDR):: Yes
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired
Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.: Outdoor
Type: Characteristics of the device.: IP security camera

Hide Show all

Instructions

mmo_120982357_1718918239_0933_3112393.pdf

hikvision-1760534-12248222.pdf

Description

Instructions

mmo_120982357_1718918239_0933_3112393.pdf

hikvision-1760534-12248222.pdf

Machine translation. Load original

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Hikvision products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Hikvision service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: number of cameras, built-in hdd, bluetooth, wi-fi, ethernet lan, total megapixels, maximum resolution, night vision, number of lenses, sensor type, mounting type, form factor, connectivity technology, placement supported, type, power source type, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Hikvision DS-2CD2346G2H-IU 4mm Turret IP Camera?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions

IP security camera Hikvision Pro Series DS-2CD2346G2H-IU (4mm) Turret Outdoor 2688×1520, 30 fps, 81.1° H

Short description

Product information

Description

Advantages

Suitable for

When it may not be suitable

Key specifications

How to use

What to consider before purchase

Usage recommendations

Specifications

Other features

Technical details

Packaging data

Weight & dimensions

Features

Operational conditions

Power

Management features

Security

Ports & interfaces

Storage

Network

Audio

Video

Night vision

Lens system

Image sensor

Camera

Design

Performance

Instructions

Description

Instructions

Similar products

Product comparison

Customer reviews

Customer questions

What payment options are available?

Can this product be purchased for a company (with VAT)?

What is the warranty period?

Can the product be returned after purchase?

Where should I contact for warranty service?

How can I tell if this product suits my needs?

Where can I download the instructions for Hikvision DS-2CD2346G2H-IU 4mm Turret IP Camera?
