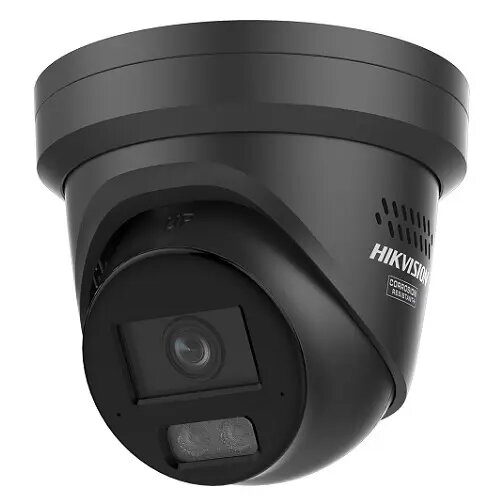

Hikvision DS-2CD2387G3-LIS2UY/SRB is a fixed turret network surveillance camera with an 8 MP (3840 × 2160) 1/1.8" Progressive Scan CMOS sensor and a 2.8 mm fixed focal lens. The camera supports ColorVu for full‑time colour imaging in very low light, Smart Hybrid Light (integrated IR and white lights) with up to 30 m illumination range, scene‑adaptive WDR (130 dB), and deep‑learning based person and vehicle classification. It is designed for indoor and outdoor use with IP67 protection, anti‑corrosion metal housing and optional PoE (IEEE 802.3at) or 12 VDC power.
Advantages
The camera delivers high-resolution 4K imaging with advanced noise reduction (HikAI‑ISP) and enhanced low‑light colour detail via ColorVu. Smart Hybrid Light provides selectable IR and white light modes plus active strobe and audio alarm for deterrence. Built‑in arrayed dual microphones and a 2 W speaker enable two‑way audio and audible warnings. Robust network and security features include H.265+/H.264+ compression, wide protocol support, TLS/HTTPS and 802.1X authentication, on‑board microSD storage up to 512 GB and NAS/ANR for reliable recording.
Suitable for
- Perimeter and property monitoring (outdoor entrances, fences)
- Parking lots and vehicle access points
- Storefronts and building facades
- Warehouses and loading areas
- Areas requiring audio warning and deterrence
Key specifications
- Image sensor: 1/1.8" Progressive Scan CMOS, max resolution 3840 × 2160
- Lens: Fixed 2.8 mm, horizontal FOV 108.8°; aperture F1.0
- Illumination: Color 0.0005 Lux (F1.0, AGC ON), 0 Lux with light; IR/White light up to 30 m
- WDR: 130 dB; SNR ≥ 52 dB; 3D DNR, BLC, HLC, Defog, Distortion Correction
- Video streams: Main/Sub/Third; up to 25/30 fps at 4K depending on region; H.265+/H.265/H.264+/H.264
- Audio: Built‑in arrayed dual‑microphone, mono audio, multiple compression formats, built‑in speaker (max 2 W)
- Network: PoE (IEEE 802.3at) or 12 VDC; protocols include TCP/IP, RTSP, ONVIF Profile S/G/T, HTTPS, TLS
- Storage: microSD/microSDHC/microSDXC up to 512 GB, NAS (NFS, SMB/CIFS), ANR
- Power consumption: Max ~17 W (PoE) / 15.5 W (12 VDC)
- Ingress protection: IP67; material: metal; dimensions Ø138.3 × 115.4 mm; weight ≈ 820 g
How to use
Mount the camera on a stable surface using suitable screws and cabling; connect power via PoE (IEEE 802.3at) or 12 VDC and an Ethernet cable to your network. Access the camera through Hik‑Connect, iVMS‑4200, Hik‑Central or a web browser (plugin‑free on supported versions) to configure network settings, image parameters, recording and alarm rules. Use the client or web interface to enable ColorVu, Smart Hybrid Light modes, set WDR and exposure, and configure smart events (person/vehicle classification, perimeter protection). Insert a microSD card or configure NAS for local storage and ANR to ensure recording during network interruptions.
Usage recommendations
Install the camera at a height and angle that capture the intended coverage area without obstructing the lens; ensure the Smart Hybrid Light and alarm settings are adjusted to local regulations. For reliable night colour imaging, keep the lens area free of direct bright light sources and perform periodic firmware updates and password changes to maintain security.
