Bracket Hikvision DS-K4T100-U2 Aluminium 58mm Width 205mm Depth

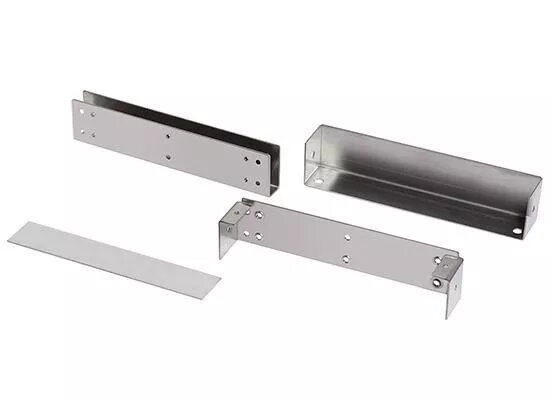

The Hikvision DS-K4T100-U2 aluminium bracket is a mounting accessory engineered for the DS-K4T100 electromagnetic lock. Constructed from aluminium, the bracket provides a stable support platform with a width of 58 mm, depth of 205 mm and height of 46 mm. It is intended to secure the lock in place and maintain correct alignment between armature and magnet to ensure consistent locking performance in door access control installations.

Advantages

The bracket’s aluminium construction combines light weight with corrosion resistance, reducing the load on door frames while offering long-term durability. Its compact dimensions are suitable for installations where space is limited, and the flat mounting surface helps achieve correct spacing and alignment for reliable electromagnet engagement. The bracket is compatible with standard installation practices for magnetic locks, simplifying the mechanical integration into a range of door frames and mullions.

Suitable for

• Mounting the DS-K4T100 electromagnetic lock on single and double doors
• Retrofit installations where existing hardware requires a compact mounting adapter
• Indoor access control systems in offices, server rooms, and utility doors
• Situations requiring corrosion-resistant aluminium hardware

When it may not be suitable

This bracket is designed specifically for use with the DS-K4T100 electromagnetic lock; it may not fit other lock models or non-standard door profiles without additional adapters. It is not a load-bearing structural bracket for heavy architectural elements and should not be used where mechanical reinforcement or high shear resistance beyond the lock’s normal specification is required.

Key specifications

• Material: aluminium
• Width: 58 mm
• Depth: 205 mm
• Height: 46 mm
• Purpose: mounting bracket for electromagnetic lock installations

How to use

Position the bracket to provide correct spacing between the electromagnetic lock and its armature plate, ensuring the faces align evenly when the door is closed. Secure the bracket to the door frame or mounting surface using appropriate fasteners for the substrate material, then attach the electromagnetic lock according to the lock manufacturer’s installation instructions. Verify alignment and tightness, then test the locking and release cycle as part of commissioning the access control system.

What to consider before purchase

• Confirm compatibility with the DS-K4T100 electromagnetic lock model
• Verify door frame material and thickness to select appropriate fasteners
• Check available mounting space for the bracket dimensions (58 × 205 × 46 mm)
• Assess environmental conditions to ensure aluminium is suitable for the location

Usage recommendations

During installation, follow the electromagnetic lock manufacturer’s alignment and torque specifications. Use corrosion-resistant fasteners for humid environments and perform a functional test of the lock under normal door operation to confirm correct engagement.
