IP security camera Hikvision DS-2CD2346G2-I(2.8MM)(C)

Name: IP security camera Hikvision DS-2CD2346G2-I(2.8MM)(C) 311315138
Brand: Hikvision
SKU: 4487529
Price: 125.99 EUR
Availability: OutOfStock

Aquaphor

Filters you can trust. Pure water every day.

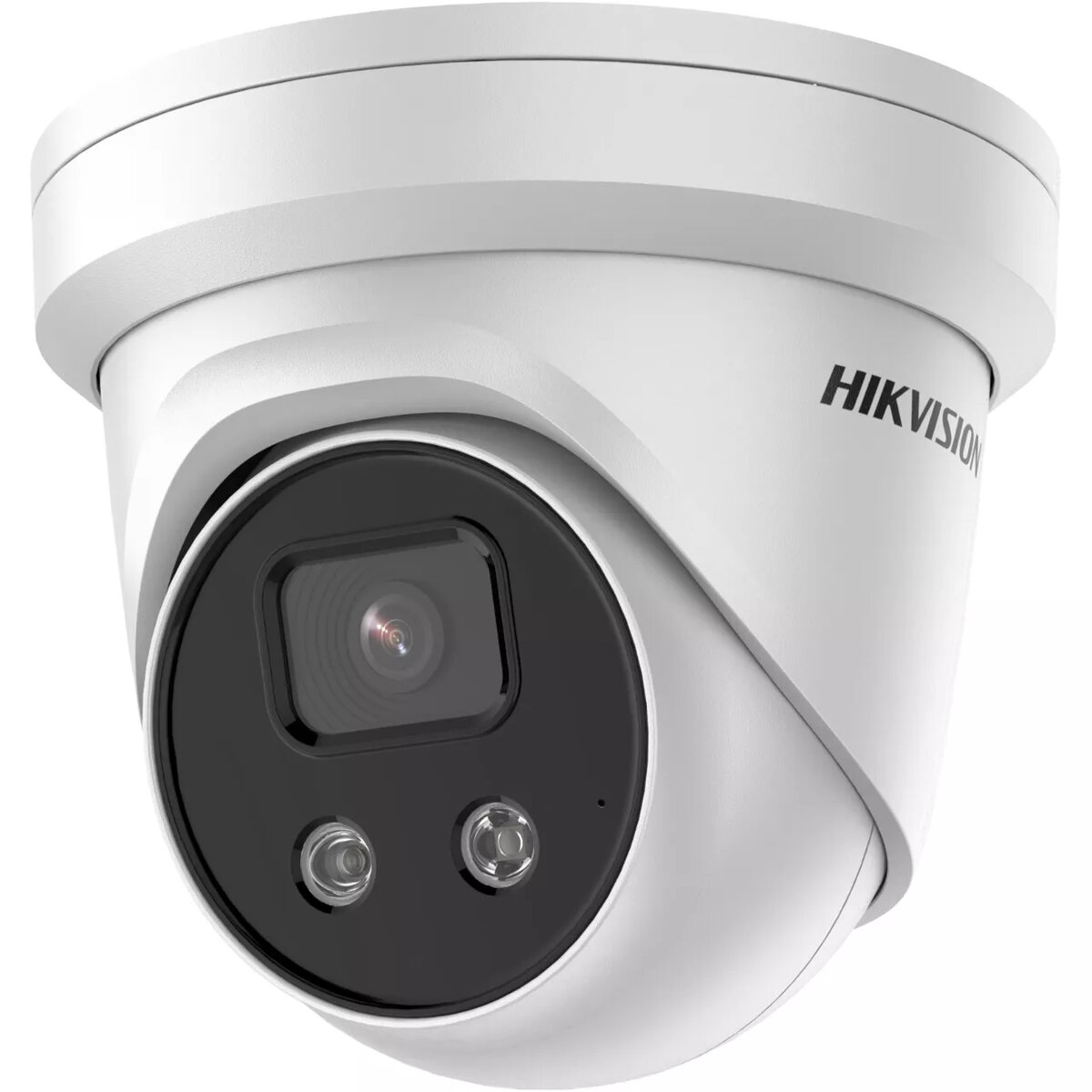

IP security camera Hikvision DS-2CD2346G2-I(2.8MM)(C) Turret

Short description

The Hikvision DS-2CD2346G2-I(2.8MM)(C) is a turret IP security camera designed for both indoor and outdoor use. It features a high resolution of 2688 x 1520 pixels, providing clear images. With a 360° rotation angle and a horizontal viewing angle of 103° and vertical of 55°, it ensures comprehensive coverage. The camera uses a CMOS sensor with a fixed focal length of 2.8 mm, capable of detecting up to 60 m and observing at 23.8 m. Its wired connectivity and white color make it suitable for various installations.

Warranty: 3 Years

SKU: 4487529

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision DS-2CD2346G2-I(2.8MM)(C) is a high-performance turret IP security camera engineered for reliable surveillance in both indoor and outdoor environments. Equipped with advanced AcuSense technology, this camera utilizes deep learning algorithms to accurately classify human and vehicle targets, significantly reducing false alarms and enhancing overall security monitoring efficiency. Its robust construction and high-resolution imaging capabilities make it a versatile choice for professional security setups.

Advantages

This camera offers exceptional image clarity with a resolution of 2688 x 1520 pixels, ensuring that critical details are captured effectively. The integration of AcuSense technology allows the system to distinguish between people, vehicles, and other moving objects, which streamlines incident response and reduces unnecessary notifications. With a wide horizontal viewing angle of 103 degrees and a 360-degree rotation capability, the camera provides extensive area coverage, while its durable design ensures consistent performance in various weather conditions.

Suitable for

Residential property monitoring
Commercial building security
Parking lot and perimeter surveillance
Retail store loss prevention

This camera may not be suitable for environments requiring wireless connectivity, as it relies exclusively on a wired Ethernet connection. Additionally, it is not designed for environments where audio recording is a primary requirement, as it focuses primarily on high-definition visual surveillance.

Key specifications

Resolution: 2688 x 1520 pixels
Frame rate: 30 fps
Lens focal length: 2.8 mm
Connectivity: Wired Ethernet LAN
Placement: Indoor and outdoor
Mounting: Ceiling or wall
Weight: 0.73 kg
Color: White

How to use

To install the camera, mount it securely to a ceiling or wall using the provided hardware. Connect the device to your network infrastructure using a standard Ethernet cable to ensure stable data transmission and power delivery if using Power over Ethernet. Once physically installed, access the camera's web interface via a browser to configure network settings, motion detection zones, and AcuSense target classification parameters to suit your specific security needs.

What to consider before purchase

Ensure your network infrastructure supports wired Ethernet connections.
Verify that the mounting location provides a clear line of sight for the 2.8 mm lens.
Check if your recording system is compatible with Hikvision AcuSense alarm protocols.

Usage recommendations

For optimal performance, regularly clean the camera lens with a soft, non-abrasive cloth to maintain image clarity and ensure that the motion detection sensitivity is calibrated according to the specific activity levels of the monitored area.

Specifications

Number of cameras: The quantity of cameras that product can support.: 1
Built-in HDD: The product has a hard drive built into it.: No
Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.: No
Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.: No
Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.: Yes
Total megapixels: A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).: 4 MP
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 2688 x 1520
Night vision: Night vision is technology which allows you to see in low light conditions.: Yes
Number of lenses: The number of lenses installed in the device.: 1
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.: CMOS
Mounting type: Type of mounting e.g. wall mounting.: Ceiling/Wall
Form factor: The shape or design of the product.: Turret
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired
Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.: Indoor & outdoor
Type: Characteristics of the device.: IP security camera
Power source type: What the power source is.: DC, PoE
Product colour: The colour e.g. red, blue, green, black, white.: White

All features

Packaging data

Package weight: Weight of the packaged product.: 1035 g
Package height: The distance from the top to the bottom of the packaging.: 150 mm
Package depth: The distance from the front to the back of the packaging.: 170 mm
Package width: The distance from one side of the packaging to the other.: 170 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.73 kg
Length: The measurement or extent of something from end to end.: 126.3 mm
Diameter: Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.: 138.3 mm

Features

Number of cameras: The quantity of cameras that product can support.: 1

Operational conditions

Storage relative humidity (H-H):: 0 - 95
Operating relative humidity (H-H):: 0 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -30 - 60
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -30 - 60

Power

DC output current:: 0.48 A
DC output voltage:: 12
Power consumption (Power over Ethernet (PoE)):: 6.8 W
Power consumption (max): The maximum amount of power used by the device.: 5.8 W
Power source type: What the power source is.: DC, PoE

Management features

Reset button:: Yes
Behavior analysis:: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Web browser:: Yes

Security

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.: TLS
Mirror:: Yes
Video motion detection:: Yes
Active tampering alarm:: Yes
IP address filtering:: Yes
HTTPS encryption:: Yes
Alert notification type:: E-mail
Intelligent Video Surveillance (IVS) system features:: Face detection, Scene change
Anti-flicker:: Yes
Heartbeat:: Yes
Password protection: The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.: Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 1

Storage

Maximum memory card size: The maximum size of memory card that can be used with this device.: 256 GB
Compatible memory cards: Types of memory cards which can be used with this product.: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated: A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.: Yes
Built-in HDD: The product has a hard drive built into it.: No

Network

Quality of Service (QoS) support:: Yes
Number of users: The number of people that use or can use this product.: 32 user(s)
Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3af
Ethernet interface type:: Fast Ethernet
Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.: No
Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.: No
Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.: Yes

Audio

Signal-to-Noise Ratio (SNR): This is the ratio of signal intensity to noise intensity.: 52 dB

Video

Bit rate:: 32 Kbps - 8 Mbps
Image quality adjustment:: Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC):: Yes
Privacy masking:: Yes
Highlight Compensation (HLC):: Yes
Bit rate control:: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding:: Yes
Gain control type:: Auto
Noise reduction technology:: 3D noise reduction
Noise reduction:: Yes
Video streaming:: Yes
Frame rate:: 30 fps
Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Video compression formats:: H.264, H.264+, H.265, H.265+, M-JPEG
Total megapixels: A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).: 4 MP
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 2688 x 1520

Night vision

LED type:: IR
Night vision distance:: 30
Night vision: Night vision is technology which allows you to see in low light conditions.: Yes

Lens system

Fixed focal length:: 2.8 mm
Detect distance (wide):: 60 m
Observe distance (wide):: 23.8 m
Recognize distance (wide):: 12 m
Identify distance (wide):: 6 m
Maximum aperture number:: 1.4
Number of lenses: The number of lenses installed in the device.: 1

Image sensor

Progressive scan: Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).: Yes
Optical sensor size: Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.: 25.4 / 3
Number of sensors:: 1
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.: CMOS

Camera

Camera shutter speed: Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.: 1/3 - 1/100000
Pan range:: 0 - 360
Tilt angle range:: 0 - 75
Lens viewing angle, diagonal:: 123
Lens viewing angle, vertical:: 55
Lens viewing angle, horizontal:: 103
Angle of rotation:: 360 °
Minimum illumination: Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.: 0 lx
Camera tilt control:: Yes
Camera pan control:: Yes

Design

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP67
Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.: Dust resistant, Water resistant
Product colour: The colour e.g. red, blue, green, black, white.: White
Mounting type: Type of mounting e.g. wall mounting.: Ceiling/Wall
Form factor: The shape or design of the product.: Turret

Performance

Certification:: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Languages support: The product has support (help) for languages.: Multi
Number of languages:: 33
Day/night mode:: Yes
Infrared (IR) cut-off filter:: Yes
Wide Dynamic Range (WDR):: Yes
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired
Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.: Indoor & outdoor
Type: Characteristics of the device.: IP security camera

Hide Show all

Instructions

mmo_89440755_1626858912_6391_35.pdf

Description

Instructions

mmo_89440755_1626858912_6391_35.pdf

Machine translation. Load original

Reasons to buy

Advanced Deep Learning Algorithms

Experience superior security with Hikvision AcuSense technology. By utilizing sophisticated deep learning algorithms, this camera intelligently distinguishes between people, vehicles, and other moving objects, ensuring highly accurate detection.

Human and Vehicle Intrusion Detection

Focus on the events that truly matter. AcuSense technology is specifically designed to identify trespassing and vehicle break-ins, triggering alarms only for preset intrusion types and organizing footage by category for effortless searching.

Precision Alarms for Enhanced Security

Minimize false alerts caused by small animals or irrelevant movement. By focusing exclusively on human and vehicle activity, this intelligent system—compatible with VCA and motion detection—ensures you are only notified about genuine security threats.

Visual and Auditory Deterrence

Add an extra layer of protection with active on-site response. The camera features visual and customizable auditory warnings to deter intruders, complemented by a two-way audio function for real-time communication.

Efficient Target Searching

Save time with intelligent video management. Video clips are automatically sorted into human and vehicle categories, significantly improving search efficiency and allowing you to locate specific events in seconds.

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Hikvision products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Hikvision service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: number of cameras, built-in hdd, bluetooth, wi-fi, ethernet lan, total megapixels, maximum resolution, night vision, number of lenses, sensor type, mounting type, form factor, connectivity technology, placement supported, type, power source type, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for IP security camera Hikvision DS-2CD2346G2-I(2.8MM)(C)?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
