IP security camera Hikvision Pro Series DS-2CD2047G2H-LI(4mm)(eF)

Name: IP security camera Hikvision Pro 311323630
Brand: Hikvision
SKU: 11437266
Price: 184.49 EUR
Availability: OutOfStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

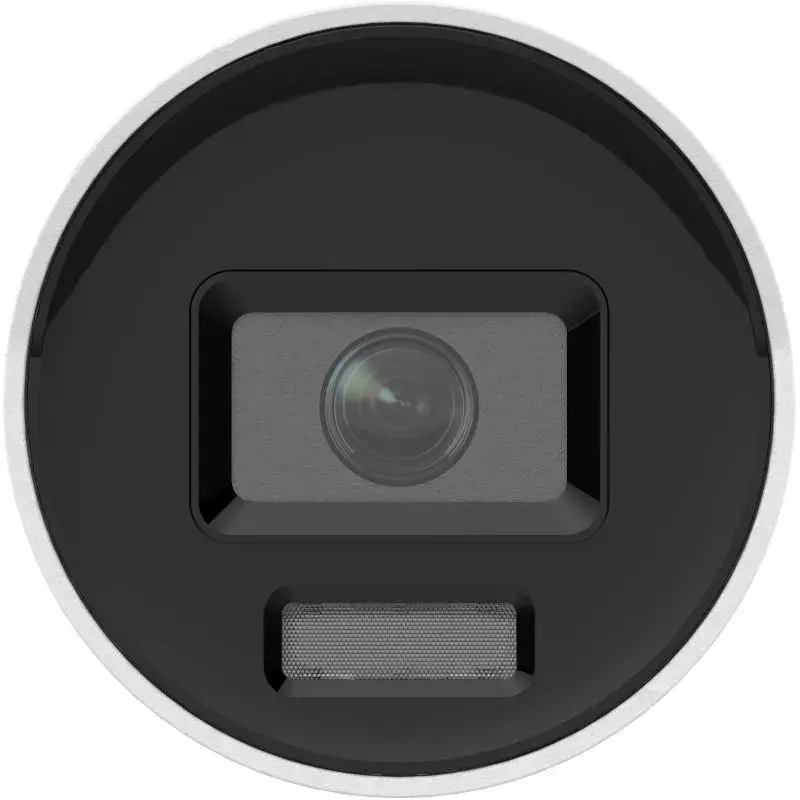

IP security camera Hikvision Pro Series DS-2CD2047G2H-LI(4mm)(eF) Photo 3

Short description

The Hikvision Pro Series DS-2CD2047G2H-LI(4mm)(eF) is an outdoor bullet IP security camera with a resolution of 2688 x 1520 pixels. It features a 360° rotation angle, horizontal viewing angle of 89.2°, and vertical viewing angle of 45.5°. The CMOS sensor allows for effective monitoring with a detection distance of up to 75 m, observation distance of 30 m, and recognition distance of 15 m. This wired camera is designed for wall mounting and comes in white, ensuring reliable surveillance for outdoor environments.

Warranty: 2 Years

SKU: 11437266

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

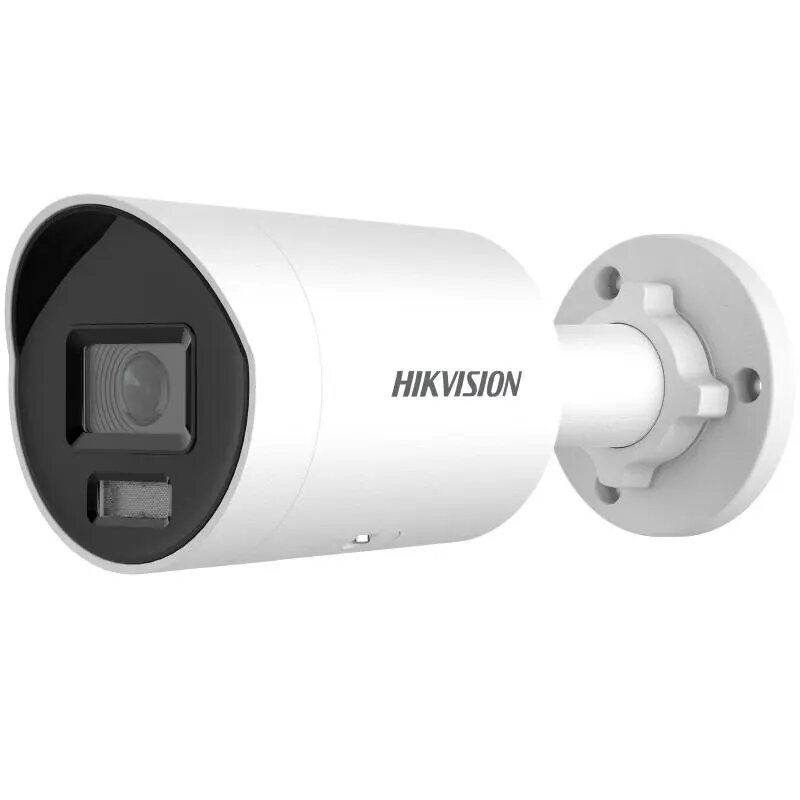

The Hikvision Pro Series DS-2CD2047G2H-LI(4mm)(eF) is a 4 MP Smart Hybrid Light fixed mini bullet network camera designed for outdoor surveillance. It captures video at a resolution of 2688 x 1520 pixels and supports up to 30 fps for smooth motion. The camera uses a CMOS sensor and a 4 mm lens to deliver a horizontal field of view of approximately 89.2° and a vertical field of view of 45.5°. Built for wired Ethernet connectivity and wall mounting, the device is finished in white and provides detection, observation and recognition ranges suitable for perimeters, building facades and entrances.

Advantages

The camera offers high-resolution imaging with Smart Hybrid Light and ColorVu technology to improve visibility in varied lighting conditions while keeping storage and bandwidth use efficient. A compact bullet form factor and wall-mount design simplify installation on outdoor structures. Video motion detection and reliable wired Ethernet connectivity support continuous monitoring and integration with network video recorders or management platforms. The camera’s detection distance up to 75 m and observation distance up to 30 m provide layered situational awareness for common outdoor scenes.

Suitable for

Perimeter and fence monitoring
Building entrances, exits and loading bays
Parking areas and driveways
Retail storefronts and outdoor walkways

Key specifications

Image sensor: CMOS, 4 MP resolution (2688 x 1520)
Frame rate: up to 30 fps
Lens: fixed 4 mm providing ~89.2° horizontal and ~45.5° vertical view
Smart illumination: Smart Hybrid Light / ColorVu for improved low-light color imaging
Detection distance: up to 75 m; observation distance: up to 30 m; recognition distance: up to 15 m
Connectivity: wired Ethernet (LAN)
Video analytics: video motion detection supported
Mounting: wall-mounted outdoor bullet housing
Operating environment: outdoor placement supported; weather-resistant housing
Color: white; weight: 0.525 kg

How to use

Install the camera on a suitable wall surface using the included mounting bracket and hardware, positioning it to cover the intended scene within the specified field of view and detection ranges. Connect the device to a PoE-capable switch or to a power source and Ethernet network as required by your setup. Configure the camera through Hikvision’s web interface or management software to set resolution, frame rate, exposure and Smart Hybrid Light parameters. Enable motion detection and adjust sensitivity and detection zones to reduce false alarms. Integrate the camera with a network video recorder or VMS for continuous recording, event management and remote access.

Usage recommendations

For optimal results place the camera at a height and angle that aligns the primary area of interest within the 4 mm lens field of view, avoid direct exposure to strong light sources, and use PoE for simplified cabling. Regularly verify firmware updates from the manufacturer and test motion detection zones after installation to ensure reliable performance.

Specifications

Frame rate:: 30 fps
Weight:: 0.525 kg
Ethernet LAN:: Yes
Wi-Fi:: No
Video motion detection:: Yes
Placement supported:: Outdoor
Connectivity technology:: Wired
Mounting type:: Wall
Type:: IP security camera
Product colour:: White

All features

Performance

Type:: IP security camera
Connectivity technology:: Wired
Dynamic range:: 130 dB
Languages support:: Multi
Placement supported:: Outdoor
Number of languages:: 33
Built-in light:: Yes
Wide Dynamic Range (WDR):: Yes
Day/night mode:: Yes
Infrared (IR) cut-off filter:: Yes

Camera

Camera shutter speed:: 1/3 - 1/100000
Minimum illumination:: 0 lx
Tilt angle range:: 0 - 90
Angle of rotation:: 360 °
Pan range:: 0 - 360
Lens viewing angle, horizontal:: 89.2
Lens viewing angle, vertical:: 45.5
Lens viewing angle, diagonal:: 108.2
Number of Privacy masking areas:: 4

Image sensor

Sensor type:: CMOS
Optical sensor size:: 25.4 / 1.8
Progressive scan:: Yes
Number of sensors:: 1

Lens system

Maximum aperture number:: 1
Fixed focal length:: 4 mm
Number of lenses:: 1
Fixed focus:: Yes
Observe distance:: 30 m
Detect distance:: 75 m
Recognize distance:: 15 m
Identify distance:: 7 m

Night vision

LED type:: IR/White
Night vision:: Yes
Night vision distance:: 40
Infra-red wavelength:: 850 nm

Video

Maximum resolution:: 2688 x 1520
Video compression formats:: H.264, H.264+, H.265, H.265+, M-JPEG
Bit rate:: 32 Kbps - 8 Mbps
Noise reduction:: Yes
Frame rate:: 30 fps
Supported graphics resolutions:: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Total megapixels:: 4 MP
Image quality adjustment:: Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC):: Yes
Video streaming:: Yes
Privacy masking:: Yes
Highlight Compensation (HLC):: Yes
Bit rate control:: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding:: Yes
Noise reduction technology:: 3D noise reduction

Network

Supported network protocols:: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Ethernet LAN:: Yes
Number of users:: 32 user(s)
Bluetooth:: No
Wi-Fi:: No
Quality of Service (QoS) support:: Yes
Live view:: Yes
Client interoperability:: iVMS-4200, Hik-Connect, Hik-Central
Ethernet interface type:: Fast Ethernet
Number of simultaneous live view channels:: 6 channels
User access level:: Administrator, Operator, User

Storage

Compatible memory cards:: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated:: Yes
Maximum memory card size:: 512 GB
Built-in HDD:: No

Ports & interfaces

Ethernet LAN (RJ-45) ports:: 1

Power

DC output voltage:: 12
DC output current:: 0.45 A
Power source type:: DC, PoE
Power consumption (max):: 5.5 W
Power consumption (Power over Ethernet (PoE)):: 7 W

Weight & dimensions

Weight:: 0.525 kg
Length:: 179.2 mm
Diameter:: 74.4 mm

Packaging data

Package weight:: 750 g
Package depth:: 120 mm
Package height:: 117 mm
Package width:: 234 mm

Features

Number of cameras:: 1

Security

Security algorithms:: EAP-LEAP, EAP-MD5, EAP-TLS
Mirror:: Yes
Audit log:: Yes
Video motion detection:: Yes
Active tampering alarm:: Yes
IP address filtering:: Yes
HTTPS encryption:: Yes
Password protection:: Yes
Privacy protection:: Yes
Digital watermark:: Yes
Heartbeat:: Yes
Password reset via email:: Yes
Pixel counter:: Yes
Human and vehicle targets classification:: Yes
Automatic Network Replenishment (ANR):: Yes
Digest authentication:: Yes
Network access storage (NAS):: Yes

Management features

Web-based management:: Yes
Reset button:: Yes
Behavior analysis:: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Technical details

Lens mount interface:: M16
Iris:: Yes
Compliance certificates:: CB, CE, KC, RoHS

Sustainability

Sustainability compliance:: Yes

Design

Form factor:: Bullet
Product colour:: White
Housing material:: Metal
Mounting type:: Wall
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP67
Protection features:: Dust resistant, Water resistant

Operational conditions

Operating relative humidity (H-H):: 0 - 95
Storage temperature (T-T):: -30 - 60
Operating temperature (T-T):: -30 - 60
Storage relative humidity (H-H):: 0 - 95
