IP Security Camera Hikvision Value Series DS-2CD1643G2-LIZU

Name: IP Security Camera Hikvision Value 311327296
Brand: Hikvision
SKU: 11155786
Price: 166.99 EUR
Availability: OutOfStock

Shop for gifts early

Save time and money with our discounts!

IP Security Camera Hikvision Value Series DS-2CD1643G2-LIZU 1920x1080

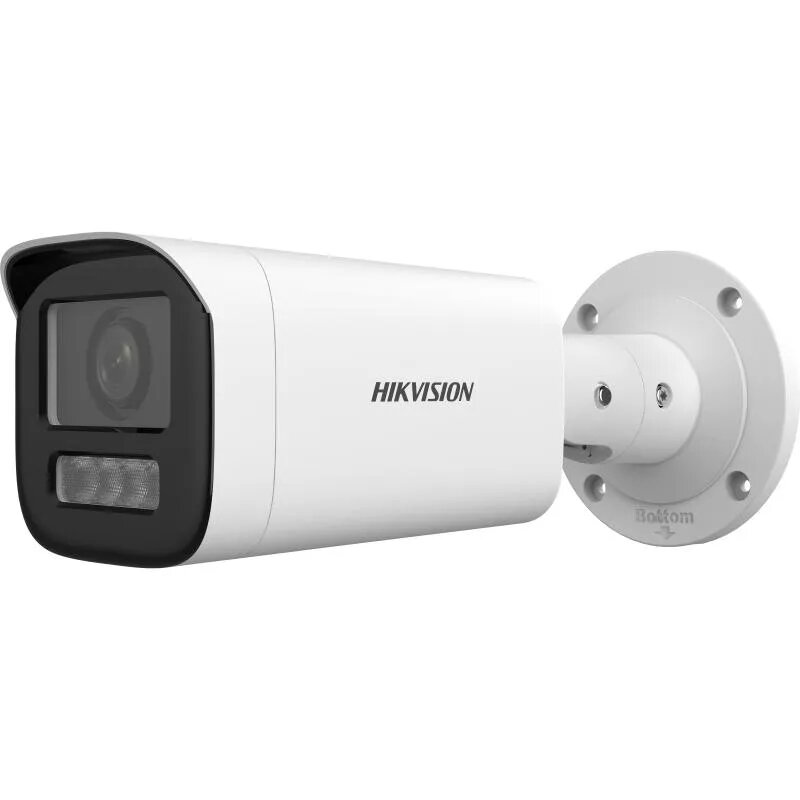

IP Security Camera Hikvision Value Series DS-2CD1643G2-LIZU Photo 1

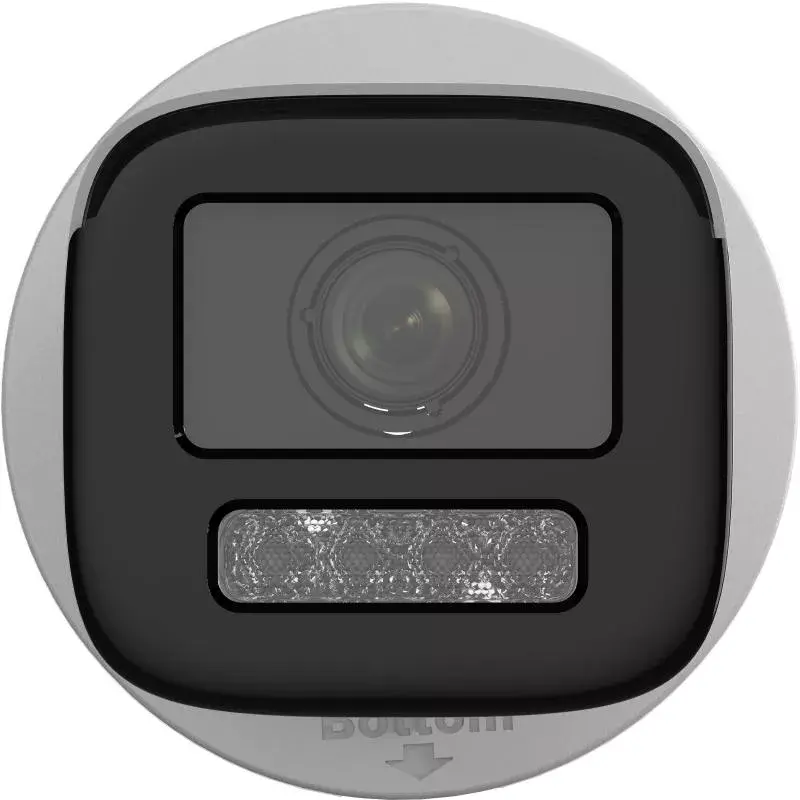

IP Security Camera Hikvision Value Series DS-2CD1643G2-LIZU Photo 2

IP Security Camera Hikvision Value Series DS-2CD1643G2-LIZU Photo 3

Short description

The Hikvision Value Series DS-2CD1643G2-LIZU is a versatile bullet IP security camera suitable for both indoor and outdoor use. With a resolution of 1920 x 1080 pixels, it provides clear images. The camera features a motorized focus with a focal length range of 2.8 - 12 mm and a wide detection distance of up to 64 m. It supports 360° rotation and has a horizontal viewing angle of 96.7° to 29.7° and a vertical angle of 51.7° to 16.7°. This wired camera is easy to mount on walls and comes in a sleek white design.

Warranty: 2 Years

SKU: 11155786

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision Value Series DS-2CD1643G2-LIZU 1920x1080 is a wired bullet IP security camera designed for both indoor and outdoor installation. It outputs Full HD (1920 x 1080) video at up to 30 fps and comes in a white housing with wall-mount capability. The camera has a motorized varifocal lens with a focal length range of 2.8–12 mm, a horizontal field of view from 96.7° to 29.7° and a vertical field of view from 51.7° to 16.7°. It supports 360° rotation for flexible orientation and offers detection coverage up to 64 m. The model integrates wired Ethernet connectivity and built-in video motion detection, and it is part of Hikvision’s Value Series that includes low-light imaging and intelligent motion analytics.

Advantages

The DS-2CD1643G2-LIZU delivers reliable Full HD imagery and a motorized zoom/focus mechanism that simplifies remote framing. Its wide focal range and adjustable viewing angles allow versatile scene coverage while the 360° rotation capability helps align the camera precisely during installation. Wired Ethernet connectivity provides stable network performance, and built-in motion detection supports event-driven recording and alerts. The compact white bullet design is suitable for discrete placement on walls both indoors and outdoors.

Suitable for

Perimeter monitoring of small commercial properties and retail storefronts
Entrance and doorway coverage for office and residential buildings
Parking area observation with long-range detection needs
Indoor corridors and common areas where fixed, high-resolution monitoring is required

Key specifications

Resolution: 1920 x 1080 (Full HD)
Frame rate: up to 30 fps
Lens: motorized varifocal 2.8–12 mm
Horizontal field of view: 96.7°–29.7°
Vertical field of view: 51.7°–16.7°
Rotation: 360° adjustable
Detection distance: up to 64 m
Connectivity: wired Ethernet (LAN)
Motion detection: built-in video motion detection
Placement: indoor and outdoor
Mounting type: wall mount
Color: white
Weight: 0.585 kg

How to use

Mount the camera on a stable wall surface using appropriate anchors and align the housing so the lens faces the area to be monitored. Connect the camera to power and your network via Ethernet and configure IP settings through your network video recorder (NVR) or Hikvision-compatible management software. Use the motorized lens controls to adjust focal length and focus remotely to obtain a clear, well-framed image. Enable motion detection and configure sensitivity and notification settings to suit the monitored scene.

Usage recommendations

Position the camera at a height and angle that reduce direct backlighting and avoid aiming it toward strong light sources. For outdoor installations, ensure seals and cable entries are properly weatherproofed. When monitoring long distances, start with a narrower focal length setting within the 2.8–12 mm range and fine-tune focus to balance field of view and subject detail. Regularly check firmware updates and integrate the camera into retention and backup policies for recorded footage.

Specifications

Number of cameras: The quantity of cameras that product can support.: 1
Built-in HDD: The product has a hard drive built into it.: No
Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.: No
Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.: No
Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.: Yes
Total megapixels: A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).: 2 MP
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 1920 x 1080
Night vision: Night vision is technology which allows you to see in low light conditions.: Yes
Number of lenses: The number of lenses installed in the device.: 1
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.: CMOS
Mounting type: Type of mounting e.g. wall mounting.: Wall
Form factor: The shape or design of the product.: Bullet
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired
Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.: Indoor & outdoor
Type: Characteristics of the device.: IP security camera
Power source type: What the power source is.: DC, PoE
Product colour: The colour e.g. red, blue, green, black, white.: White

All features

Other features

Focus:: Motorized

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: BIS, CB, CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Industry Canada (IC), Low Voltage Directive (LVD), RCM, REACH, RoHS, UL, WEEE

Packaging content

Manual:: Yes

Packaging data

Package weight: Weight of the packaged product.: 910 g
Package height: The distance from the top to the bottom of the packaging.: 141 mm
Package depth: The distance from the front to the back of the packaging.: 137 mm
Package width: The distance from one side of the packaging to the other.: 315 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.585 kg
Length: The measurement or extent of something from end to end.: 252 mm
Diameter: Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.: 105 mm

Features

Number of cameras: The quantity of cameras that product can support.: 1

Operational conditions

Storage relative humidity (H-H):: 0 - 95
Operating relative humidity (H-H):: 0 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -30 - 60
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -30 - 60

Power

DC output current:: 0.88 A
DC output voltage:: 12
Power consumption (Power over Ethernet (PoE)):: 12 W
Power consumption (max): The maximum amount of power used by the device.: 10.5 W
Power source type: What the power source is.: DC, PoE

Management features

Reset button:: Yes
Web-based management: Using a website/web application to manage something.: Yes

Security

Mirror:: Yes
Audit log:: Yes
Video motion detection:: Yes
Active tampering alarm:: Yes
HTTPS encryption:: Yes
Privacy protection:: Yes
Digital watermark:: Yes
Heartbeat:: Yes
Password reset via email:: Yes
Digest authentication:: Yes
Password protection: The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.: Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 1

Storage

Maximum memory card size: The maximum size of memory card that can be used with this device.: 512 GB
Compatible memory cards: Types of memory cards which can be used with this product.: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated: A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.: Yes
Built-in HDD: The product has a hard drive built into it.: No

Network

Client interoperability:: iVMS-4200, Hik-Connect
Quality of Service (QoS) support:: Yes
Live view:: Yes
Number of simultaneous live view channels:: 6 channels
Number of users: The number of people that use or can use this product.: 32 user(s)
User access level:: Administrator, Operator, User
Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3af
Ethernet interface type:: Fast Ethernet
Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.: No
Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.: No
Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.: Yes

Audio

Sample rates:: 8 - 16
Bit rate range:: 16 - 160
Built-in microphone: Microphone that is found inside the product.: Yes
Signal-to-Noise Ratio (SNR): This is the ratio of signal intensity to noise intensity.: 52 dB
Audio formats supported: The audio formats which this device or software can read/use e.g. MP3, MP4.: AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM

Video

Bit rate:: 32 Kbps - 16 Mbps
Image quality adjustment:: Brightness, Contrast, Sharpness
Back Light Compensation (BLC):: Yes
Privacy masking:: Yes
Highlight Compensation (HLC):: Yes
Bit rate control:: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Region of Interest (ROI) encoding:: Yes
Noise reduction technology:: 3D noise reduction
Noise reduction:: Yes
Video streaming:: Yes
Frame rate:: 30 fps
Video recording: Recording moving visual images.: Yes
Supported video modes: The video modes that can be displayed by the device.: 360p, 480p, 720p, 1080p, 1440p
Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440
Video compression formats:: H.264, H.264+, H.265, H.265+
Video formats supported: The type of video formats that can be used by this device.: H.264, H.264+, H.265, H.265+
Total megapixels: A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).: 2 MP
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 1920 x 1080

Night vision

Infra-red wavelength:: 850 nm
LED type:: IR/White
Night vision distance:: 50
Night vision: Night vision is technology which allows you to see in low light conditions.: Yes

Lens system

Detect distance (wide):: 64 m
Detect distance (tele):: 198 m
Observe distance (wide):: 25.4 m
Observe distance (tele):: 78.6 m
Recognize distance (wide):: 12.8 m
Recognize distance (tele):: 39.6 m
Identify distance (wide):: 6.4 m
Identify distance (tele):: 19.8 m
Maximum aperture number:: 1.6
Focal length range: Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).: 2.8 - 12
Number of lenses: The number of lenses installed in the device.: 1

Image sensor

Progressive scan: Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).: Yes
Optical sensor size: Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.: 25.4 / 3
Number of sensors:: 1
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.: CMOS

Camera

Number of Privacy masking areas:: 4
Camera shutter speed: Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.: 1/3 - 1/100000
Pan range:: 0 - 360
Tilt angle range:: 0 - 90
Lens viewing angle, diagonal:: 114.3 - 34
Lens viewing angle, vertical:: 51.7 - 16.7
Lens viewing angle, horizontal:: 96.7 - 29.7
Angle of rotation:: 360 °
Minimum illumination: Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.: 0 lx

Design

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP67
Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.: Dust resistant, Water resistant
Housing material: What the casing of the product is made of.: Metal, Plastic
Product colour: The colour e.g. red, blue, green, black, white.: White
Mounting type: Type of mounting e.g. wall mounting.: Wall
Form factor: The shape or design of the product.: Bullet

Performance

Dynamic range:: 120 dB
Languages support: The product has support (help) for languages.: English, Ukrainian
Number of languages:: 2
Built-in light: There is a light which is inside/on the outside of the product.: Yes
Day/night mode:: Yes
Infrared (IR) cut-off filter:: Yes
Wide Dynamic Range (WDR):: Yes
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired
Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.: Indoor & outdoor
Type: Characteristics of the device.: IP security camera
