Dome IP security camera Hikvision Pro DS-2CD2766G2HT-IZS (2.8–12mm) Outdoor, 3200×1800, 1/1.8" CMOS, 355° rotation

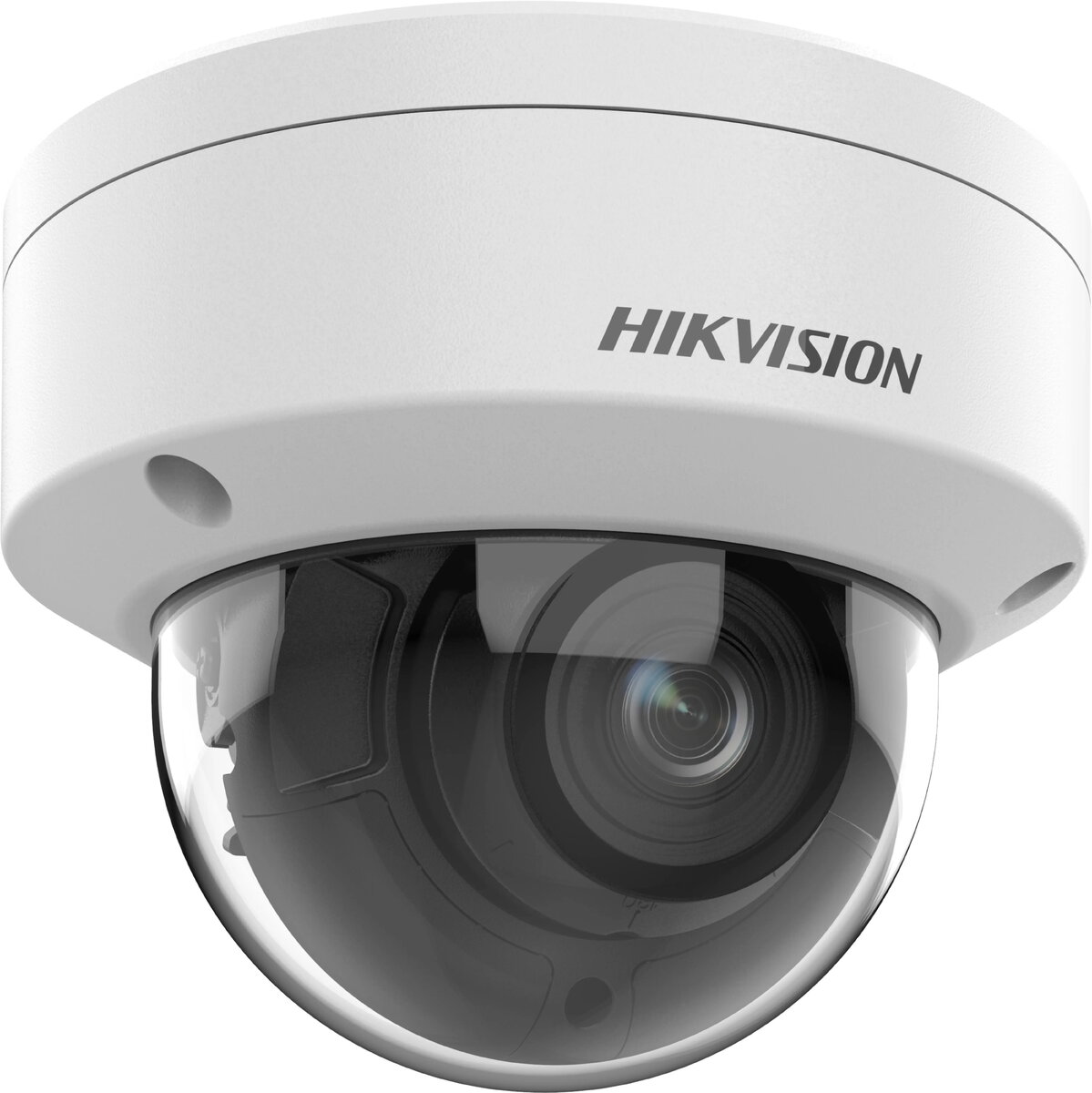

Hikvision DS-2CD2766G2HT-IZS Dome IP camera Photo 1
Hikvision DS-2CD2766G2HT-IZS Dome IP camera Photo 1
Dome IP security camera Hikvision Pro DS-2CD2766G2HT-IZS (2.8–12mm) Outdoor, 3200×1800, 1/1.8" CMOS, 355° rotation
Out of stock.
View similar!
Out of stock.
View similar!

Short description

Hikvision Pro Series DS-2CD2766G2HT-IZS is a wired dome IP security camera for outdoor ceiling or wall mounting. It offers 3200×1800 resolution, 1/1.8" CMOS sensor and a 2.8–12 mm varifocal lens (horizontal view 112.3–41.2°). Pan rotation up to 355°, detection ranges up to 74.3 m (wide) and 183.3 m (tele), 30 fps, and built-in video motion detection for reliable perimeter surveillance.
Warranty: 2 Years
SKU: 11268185
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Hikvision Pro DS-2CD2766G2HT-IZS is a wired dome IP security camera designed for outdoor ceiling or wall mounting. It captures video at 3200×1800 resolution using a 1/1.8" CMOS sensor and a motorized 2.8–12 mm varifocal lens that provides a horizontal field of view from 112.3° (wide) to 41.2° (tele). The camera supports up to 30 fps, built-in video motion detection, and pan rotation up to 355°, enabling flexible orientation and reliable perimeter surveillance for commercial and residential installations.

Advantages

The camera delivers high-resolution images suitable for identification and situational awareness while limiting bandwidth and storage needs through efficient video handling. Its motorized varifocal lens simplifies adjustment during installation, and the wide pan rotation allows broad coverage without multiple fixed units. Built for outdoor use, the camera supports ceiling or wall mounting and uses wired Ethernet connectivity for stable network operation.

Suitable for

  • Perimeter monitoring of commercial properties
  • Outdoor surveillance of residential complexes and parking areas
  • Entrance and access control observation
  • Monitoring driveways and approach roads

Key specifications

  • Image sensor: 1/1.8" CMOS
  • Effective resolution: 3200 × 1800 pixels (6 MP)
  • Lens: Motorized varifocal 2.8–12 mm (horizontal view 112.3°–41.2°)
  • Maximum frame rate: 30 fps
  • Rotation (pan): up to 355°
  • Video analytics: built-in video motion detection
  • Connectivity: Wired Ethernet LAN
  • Placement: Outdoor, ceiling or wall mounting
  • Product colour: White
  • Weight: 0.84 kg

How to use

Mount the dome camera on a suitable outdoor ceiling or wall location that provides the desired field of view and access to wired Ethernet. Use the motorized varifocal lens to set focal length between 2.8 mm and 12 mm and adjust the pan rotation up to 355° to cover the target area. Connect the camera to your network for power and data according to your installation practice (PoE or separate power as applicable), configure resolution and frame rate to 3200×1800 at up to 30 fps, and enable video motion detection through the camera's configuration interface or network video recorder.

Usage recommendations

For consistent image quality and reliable operation, install the camera in a weather-protected position following local mounting guidelines, use stable wired Ethernet infrastructure, and regularly verify lens alignment and motion detection zones to match changing site conditions.

Specifications

Frame rate:
30 fps
Weight:
0.84 kg
Ethernet LAN:
Yes
Wi-Fi:
No
Video motion detection:
Yes
Placement supported:
Outdoor
Connectivity technology:
Wired
Mounting type:
Ceiling/Wall
Type:
IP security camera
Product colour:
White
All features

Performance

Type:
IP security camera
Connectivity technology:
Wired
Dynamic range:
120 dB
Languages support:
Multi
Placement supported:
Outdoor
Number of languages:
33
Wide Dynamic Range (WDR):
Yes
Day/night mode:
Yes
Infrared (IR) cut-off filter:
Yes

Camera

Camera shutter speed:
1/3 - 1/100000
Minimum illumination:
0 lx
Tilt angle range:
0 - 75
Angle of rotation:
355 °
Pan range:
0 - 355
Lens viewing angle, horizontal:
112.3 - 41.2
Lens viewing angle, vertical:
58.1 - 23.1
Lens viewing angle, diagonal:
137.4 - 47.3
Number of Privacy masking areas:
4

Image sensor

Sensor type:
CMOS
Optical sensor size:
25.4 / 1.8
Progressive scan:
Yes
Number of sensors:
1

Lens system

Focal length range:
2.8 - 12
Maximum aperture number:
1.2
Number of lenses:
1
Detect distance (wide):
74.3 m
Detect distance (tele):
183.3 m
Observe distance (wide):
29.9 m
Observe distance (tele):
72.8 m
Recognize distance (wide):
14.9 m
Recognize distance (tele):
36.7 m
Identify distance (wide):
7.4 m
Identify distance (tele):
18.3 m

Night vision

LED type:
IR
Night vision:
Yes
Night vision distance:
40
Infra-red wavelength:
850 nm

Video

Maximum resolution:
3200 x 1800
Video compression formats:
H.264, H.264+, H.265, H.265+, M-JPEG
Bit rate:
32 Kbps - 16 Mbps
Noise reduction:
Yes
Frame rate:
30 fps
Supported graphics resolutions:
640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800
Total megapixels:
6 MP
Image quality adjustment:
Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC):
Yes
Video recording:
Yes
Video streaming:
Yes
Privacy masking:
Yes
Gain control type:
Auto
Highlight Compensation (HLC):
Yes
Bit rate control:
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding:
Yes
Smart IR:
Yes
Noise reduction technology:
3D noise reduction

Audio

Signal-to-Noise Ratio (SNR):
52 dB
Audio output channels:
1.0
Audio formats supported:
AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM
Audio input channels:
10
Sample rates:
8 - 48
Bit rate range:
8 - 320

Network

Supported network protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Ethernet LAN:
Yes
Number of users:
32 user(s)
Networking standards:
IEEE 802.3af
Bluetooth:
No
Wi-Fi:
No
Quality of Service (QoS) support:
Yes
Live view:
Yes
Client interoperability:
iVMS-4200, Hik-Connect, Hik-Central
Ethernet interface type:
Fast Ethernet
Number of simultaneous live view channels:
6 channels
User access level:
Administrator, Operator, User

Storage

Compatible memory cards:
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated:
Yes
Maximum memory card size:
512 GB
Built-in HDD:
No

Ports & interfaces

Ethernet LAN (RJ-45) ports:
1
Terminal block port:
Yes

Security

Security algorithms:
EAP-LEAP, EAP-MD5, EAP-TLS
Mirror:
Yes
Audit log:
Yes
Video motion detection:
Yes
Active tampering alarm:
Yes
IP address filtering:
Yes
HTTPS encryption:
Yes
Password protection:
Yes
Alarm input channels:
1
Alarm output channels:
1
Privacy protection:
Yes
Digital watermark:
Yes
Intelligent Video Surveillance (IVS) system features:
Face detection
Heartbeat:
Yes
Password reset via email:
Yes
Pixel counter:
Yes
Human and vehicle targets classification:
Yes
Automatic Network Replenishment (ANR):
Yes
Digest authentication:
Yes
Network access storage (NAS):
Yes

Power

DC output voltage:
12
DC output current:
0.9 A
Power source type:
DC, PoE
Power consumption (max):
10.8 W
Power consumption (Power over Ethernet (PoE)):
12.9 W

Weight & dimensions

Weight:
0.84 kg
Height:
112 mm
Diameter:
141 mm

Packaging data

Package weight:
1450 g
Package depth:
203 mm
Package height:
230 mm
Package width:
203 mm

Features

Number of cameras:
1

Management features

Web-based management:
Yes
Reset button:
Yes
Behavior analysis:
Intrusion detection, Line crossing detection

Design

Form factor:
Dome
Product colour:
White
Housing material:
Metal
Mounting type:
Ceiling/Wall
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP67
Protection features:
Dust resistant, Water resistant
IK code:
IK10

Operational conditions

Operating relative humidity (H-H):
0 - 95
Storage temperature (T-T):
-30 - 60
Operating temperature (T-T):
-30 - 60
Storage relative humidity (H-H):
0 - 95

Other features

Browser supported:
IE 10, IE 11, Chrome 57.0+, Firefox 52.0+

Technical details

Compliance certificates:
CB, CE, Low Voltage Directive (LVD), RoHS, UL
