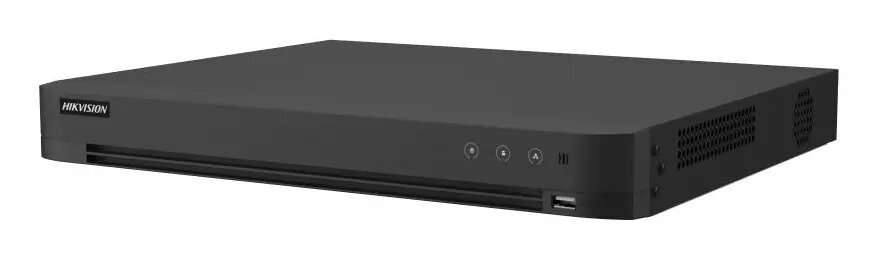

Hikvision Pro Series 16‑ch 5 MP 1U H.265 AcuSense DVR

Name: DVR Hikvision Pro Series 16‑ch 52635
Brand: Hikvision
SKU: 11105981
Price: 596.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

DVR Hikvision Pro Series 16‑ch 5 MP 1U H.265 AcuSense — 16 inputs, 3840×2160, 12 TB, 12V DC

Hikvision Pro Series 16‑ch 5 MP 1U H.265 AcuSense DVR Photo 1

Hikvision Pro Series 16‑ch 5 MP 1U H.265 AcuSense DVR Photo 2

Hikvision Pro Series 16‑ch 5 MP 1U H.265 AcuSense DVR Photo 3

Hikvision Pro Series 16‑ch 5 MP 1U H.265 AcuSense DVR Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Hikvision Pro Series 16‑channel AcuSense DVR supports up to 5 MP cameras with maximum capture resolution 3840×2160. Encodings include H.264/H.264+/H.265/H.265 Pro/H.265 Pro+. Provides 16 video inputs, Gigabit Ethernet, USB 2.0 and two USB 3.2 Type‑A ports, and supports TCP/IP, ONVIF and Hik‑Connect. Up to 12 TB SATA storage, 128 users, 12 V DC power; suitable for commercial and multi‑camera residential surveillance.

Available at price 596.99 €: 3 pcs.

Total available for order: 9 pcs.

Warranty: 2 Years

SKU: 11105981

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

01.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 3.05 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

01.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 199 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 16.58 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision Pro Series 16‑ch 5 MP 1U H.265 AcuSense DVR provides 16 analog/video inputs with support for up to 5 MP camera capture and a maximum local preview resolution of 3840×2160. It supports multiple encoding formats including H.264, H.264+, H.265, H.265 Pro and H.265 Pro+, and implements AcuSense deep‑learning features for human and vehicle detection to speed up search and reduce false alarms. The recorder integrates Gigabit Ethernet, one USB 2.0 port and two USB 3.2 Type‑A ports, and supports TCP/IP, ONVIF and Hik‑Connect connectivity. Local storage supports up to 12 TB via SATA drives and the unit operates from a 12 V DC power source.

Advantages

The device combines 16-channel input capacity with efficient H.265 compression to reduce bandwidth and storage requirements without altering capture resolution. Built‑in AcuSense analytics enable targeted searches for humans and vehicles and support perimeter protection and facial recognition features on selected channels, improving investigation speed. Multiple interface options, including Gigabit Ethernet and USB 3.2 ports, allow faster data transfer and flexible integration with networks and external storage or backup devices.

Suitable for

Commercial premises with multi-camera analog/IP systems
Multi‑unit residential buildings and property complexes
Retail stores and warehouse monitoring
Sites requiring human/vehicle filtering for faster event search

Key specifications

16 video input channels with support for up to 5 MP capture and 3840×2160 resolution
Supported video encodings: H.264 / H.264+ / H.265 / H.265 Pro / H.265 Pro+
AcuSense deep‑learning features for human and vehicle detection; support for perimeter protection and facial recognition on designated channels
Recording and decoding capability compatible with multi‑format inputs (HDTVI/AHD/CVI/CVBS/IP)
Network: Gigabit Ethernet interface; supports TCP/IP and ONVIF
USB connectivity: 1 × USB 2.0 port and 2 × USB 3.2 Gen 1 Type‑A ports
Local storage: up to 12 TB via SATA hard drives
Max user accounts: up to 128 users (management and access control)
Physical: 1U form factor, product colour black, weight approximately 2.1 kg
Power: 12 V DC supply

How to use

Install the DVR in a secure rack or cabinet following the 1U form factor and connect compatible cameras using the appropriate video inputs. Connect the DVR to the local network using the Ethernet port and configure network settings to enable remote access via ONVIF or Hik‑Connect. Install SATA hard drive(s) up to the supported capacity for local recording. Use the built‑in menu to configure recording schedules, enable AcuSense human/vehicle filters, and assign channels for facial recognition or perimeter protection where required. Back up important footage using the available USB ports or via network transfer.

Usage recommendations

For reliable detection and efficient searches, calibrate AcuSense settings to match scene characteristics and set proper detection zones to reduce false positives. Use Gigabit network connections and USB 3.2 ports for faster file exports, and plan HDD capacity based on retention needs and chosen recording quality and frame rates.

Specifications

USB 2.0 ports quantity:: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 2
Ethernet LAN (RJ-45) ports:: 1
Weight:: 2.1 kg
Ethernet interface type:: Fast Ethernet, Gigabit Ethernet
Product colour:: Black

All features

Hard drive

Supported HDD interfaces:: Serial ATA
Number of HDDs supported:: 2
Maximum HDD capacity:: 12000 GB

Ports & interfaces

Audio input:: 4
Audio output:: 1
USB 2.0 ports quantity:: 1
BNC input ports:: 16
BNC output ports:: 1
RS-485 ports:: 1
Number of HDMI outputs:: 1
VGA (D-Sub) output ports:: 1
Video input channels:: 16 channels
Alarm input channels:: 16
Alarm output channels:: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 2

Network

Supported network protocols:: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, ISUP
Ethernet LAN:: Yes
Number of users:: 128 user(s)
Ethernet LAN (RJ-45) ports:: 1
Ethernet LAN data rates:: 10, 100, 1000
Ethernet interface type:: Fast Ethernet, Gigabit Ethernet

Performance

Internal:: No
Audio system:: 2-way
Analog signal format system:: PAL, NTSC
Product colour:: Black
Audio output channels:: 1.0
Audio formats supported:: G.711u
Video compression formats:: H.265 Pro+, H.265 Pro, H.265, H.264, H.264+
Video motion detection:: Yes
Maximum video resolution:: 3840 x 2160
Audio input channels:: 16
Bit rate:: 10000 Kbit/s
USB connectivity:: Yes
Video streaming:: Yes
Number of simultaneously playbacked channels:: 16 channels
Audio streaming:: Yes
Dual stream support:: Yes
Total bandwidth:: 256 Mbit/s
Audio bitrate:: 64 Kbit/s

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 60 W
Power supply type:: DC
DC voltage:: 12
DC current (max):: 5 A

Weight & dimensions

Weight:: 2.1 kg
Height:: 52 mm
Width:: 385 mm
Depth:: 315 mm

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Operating temperature (T-T):: -10 - 55
