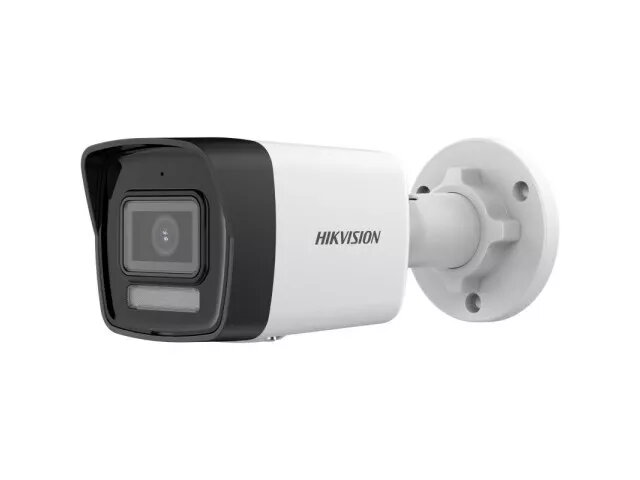

Surveillance Camera Hikvision DS-2CD1063G2-LIU(2.8mm) PL

The Hikvision DS-2CD1063G2-LIU(2.8mm) PL is a compact 2MP IP surveillance camera designed to deliver clear high-definition video with a fixed 2.8mm wide-angle lens. Built for both indoor and outdoor deployment, the unit integrates infrared illumination for night-time visibility, motion detection for event-triggered recording, and a weather-resistant enclosure suitable for varied environmental conditions. The camera supports typical IP camera connectivity and is intended for continuous monitoring of small to medium areas where reliable image capture is required.

Advantages

This camera provides 2MP resolution for detailed video while keeping storage and bandwidth requirements moderate. The 2.8mm lens offers a wide field of view for general surveillance needs. Infrared night vision extends monitoring capability after dark, and motion detection allows for event-based alerts and recording. The weatherproof design enables installation in exposed outdoor locations as well as indoor areas, and the compact form factor simplifies mounting in constrained spaces.

Suitable for

• Monitoring residential properties: entrances, driveways, and gardens
• Small business surveillance: retail shops, offices, and reception areas
• Common areas in apartment buildings: corridors, lobbies, and parking zones
• Indoor public spaces requiring discreet fixed monitoring

Key specifications

• Image sensor: 2 megapixel resolution suitable for HD video
• Lens: fixed 2.8 mm wide-angle lens for broad scene coverage
• Night vision: built-in infrared illumination for low-light and no-light conditions
• Motion detection: on-device detection to trigger recording or alerts
• Environmental protection: weatherproof housing for outdoor use
• Form factor: compact, wall- or ceiling-mountable design

How to use

Mount the camera on a stable surface using appropriate screws and anchors, orienting the 2.8mm lens toward the primary area of interest. Connect the device to a compatible PoE switch or provide power and network connectivity according to installation requirements. Configure basic settings such as time, network parameters, and video encoding via the camera's web interface or supported management software. Adjust motion detection zones and sensitivity to reduce false triggers, and set recording schedules or event-triggered recording as needed. Verify night-mode performance by testing the camera in low-light conditions and making any exposure or IR-related adjustments offered by the device firmware.

Usage recommendations

For reliable operation, install the camera under a small overhang or use a weatherproof junction box in exposed locations to further protect cable entries. Position the camera to minimize direct sunlight or strong backlighting in the field of view. Regularly check firmware updates and verify recording integrity; store footage on a network video recorder or backed-up storage to maintain retention and evidence availability.
