Access control reader Hikvision DS-K1T804AMF Black — 2.4" TFT-LCD, 320x240, Ethernet 10/100 Mbps, 12V DC

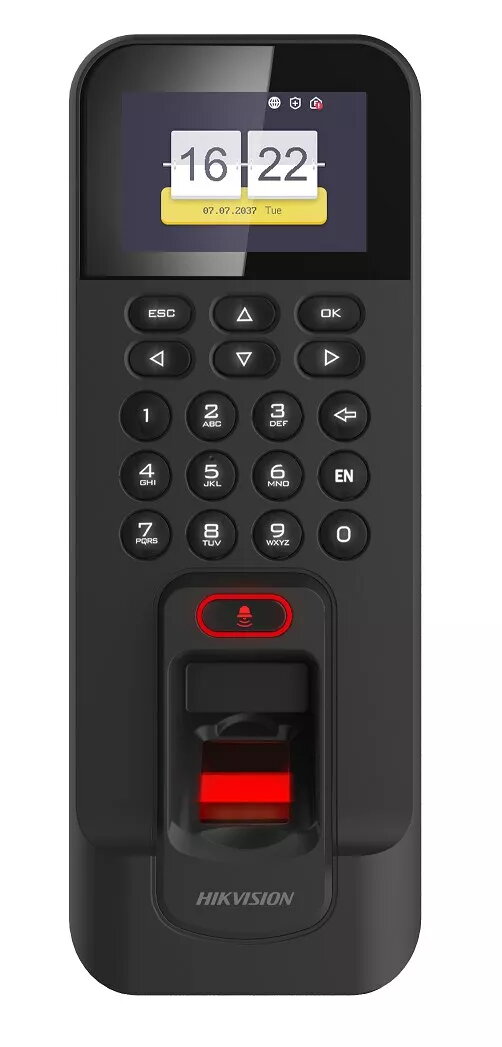

Hikvision DS-K1T804AMF Black is a wall-mounted access control reader with a 2.4" TFT-LCD display (320 x 240 px) designed for integration into door entry and access management systems. The device provides visual feedback on a compact screen while supporting wired network connection via Ethernet 10/100 Mbps. Powered by 12 V DC (maximum 1 A), its compact dimensions (205 × 76.5 × 37 mm) suit installation on door frames or nearby walls in offices, small businesses and residential access points where clear status indication and stable network communication are required.

Advantages

The reader combines a clear 2.4" color display with a compact housing that minimizes installation footprint. Ethernet 10/100 Mbps connectivity enables integration with centralized access control systems and remote management. Low-voltage 12 V DC power supports common access control power supplies and keeps current draw within typical small-site limits. The device’s unobtrusive design and readable display allow straightforward user interaction and visual confirmation of access events.

Suitable for

• Office interior and exterior door access control
• Small business premises requiring networked entry points
• Residential buildings with centralized access management
• Reception or concierge-controlled entry points
• Retrofit installations where space is limited

Key specifications

• Display: 2.4" TFT-LCD, 320 × 240 pixels
• Network interface: Ethernet 10/100 Mbps
• Power supply: 12 V DC, maximum 1 A
• Form factor: wall-mounted reader, compact housing
• Dimensions: 205 × 76.5 × 37 mm
• Color: black

How to use

Mount the reader on a solid surface at an appropriate height for users, following standard access control installation practices. Connect the device to the building network using a Cat5/6 Ethernet cable to enable communication with the central access controller. Supply power from a compatible 12 V DC source rated to provide up to 1 A. After physical installation and power-up, configure network settings and access control parameters through the management software or controller to register users and define access rules. The 2.4" display provides status information and user prompts during operation.

Usage recommendations

For reliable operation, use shielded Ethernet cabling for longer runs, ensure the power supply can provide stable 12 V DC under load, and place the reader in a location protected from direct weather exposure unless installed within a weatherproof enclosure. Regularly verify firmware and controller compatibility as part of routine maintenance.
