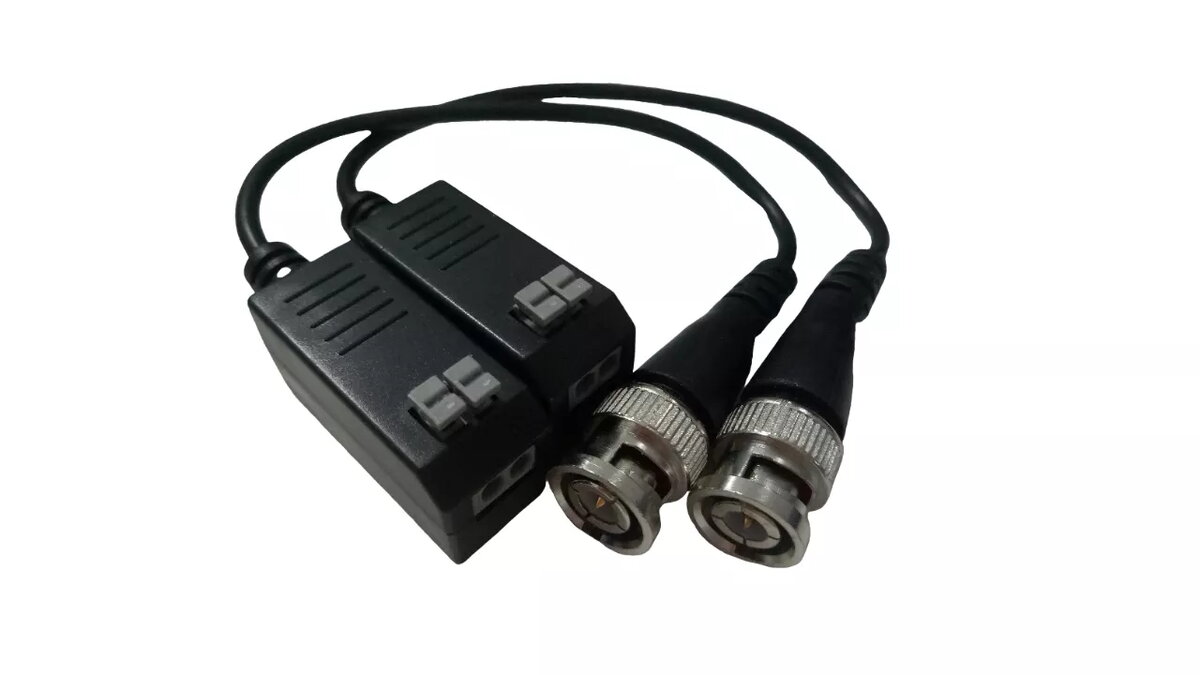

Passive video converter Hikvision DS-1H18S/E

Name: Passive video converter Hikvision DS-1H18S/E DS-1H18S/E(C)
Brand: Hikvision
SKU: 6253174
Price: 5.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Passive video converter Hikvision DS-1H18S/E 720p 1080p BNC RJ-45

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Hikvision DS-1H18S/E is a passive video converter supporting 720p and 1080p video modes. It features BNC host interface and RJ-45 output interface. Compact dimensions of 39mm width, 19mm depth, and 17mm height make it suitable for various installations.

Available at price 5.49 €: 23 pcs.

Total available for order: 46 pcs.

Warranty: 2 Years

SKU: 6253174

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 7.99 €: 23 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision DS-1H18S/E passive video converter supports 720p and 1080p video modes and provides BNC host input with an RJ-45 output interface. Its compact housing with dimensions of 39 mm width, 19 mm depth and 17 mm height is designed for space-constrained installations and simple signal conversion between coaxial BNC connections and twisted-pair network cabling. The device is passive, requiring no external power, and is suitable for short-distance video transmission where active conversion or signal amplification is not needed.

Advantages

The converter supports common HD analog resolutions (720p and 1080p) and offers a straightforward physical interface change from BNC to RJ-45 without configuration. Its passive design eliminates the need for a power source and reduces installation complexity. The small footprint and low profile make it easy to place near cameras, recorders, or inside junction boxes where space is limited.

Suitable for (tasks / use cases)

Connecting an analog HD camera to a network-style twisted-pair run for short-distance video routing
Converting BNC camera outputs to RJ-45 for consolidation in patch panels or distribution points
Temporary signal rerouting during maintenance or system reconfiguration

Key specifications

Supported video modes: 720p, 1080p
Host interface: BNC (coaxial)
Output interface: RJ-45 (twisted-pair)
Device type: passive video converter (no external power required)
Dimensions: 39 mm (width) × 19 mm (depth) × 17 mm (height)

How to use

Connect the BNC cable from the camera or video source to the converter’s BNC host connector and attach the RJ-45 terminated cable to the converter’s RJ-45 output. Ensure cable terminations and pinouts are compatible with the receiving equipment; the converter performs a physical interface mapping only and does not alter video encoding or perform signal amplification. Use within recommended distance limits for passive transmission over twisted-pair cable to maintain acceptable video quality.

Usage recommendations

For reliable results, use quality coaxial and twisted-pair cables with proper shielding and avoid long passive runs—install active baluns or powered converters for longer distances or when signal integrity issues are observed. Verify connector pinouts and grounding to prevent video artifacts or interference.

All features

Weight:: 0.0386 kg
Operating relative humidity (H-H):: 0 - 95
Storage temperature (T-T):: -20 - 70
Operating temperature (T-T):: -10 - 55
Storage relative humidity (H-H):: 0 - 95
Height:: 17 mm
Width:: 39 mm
Depth:: 19 mm
Product colour:: Black
Host interface:: BNC
Supported video modes:: 720p, 1080p
Output interface:: RJ-45
Converter type:: Passive video converter
