IP security camera Hikvision DS-2CD2143G2-IU Dome 2680 x 1520 pixels

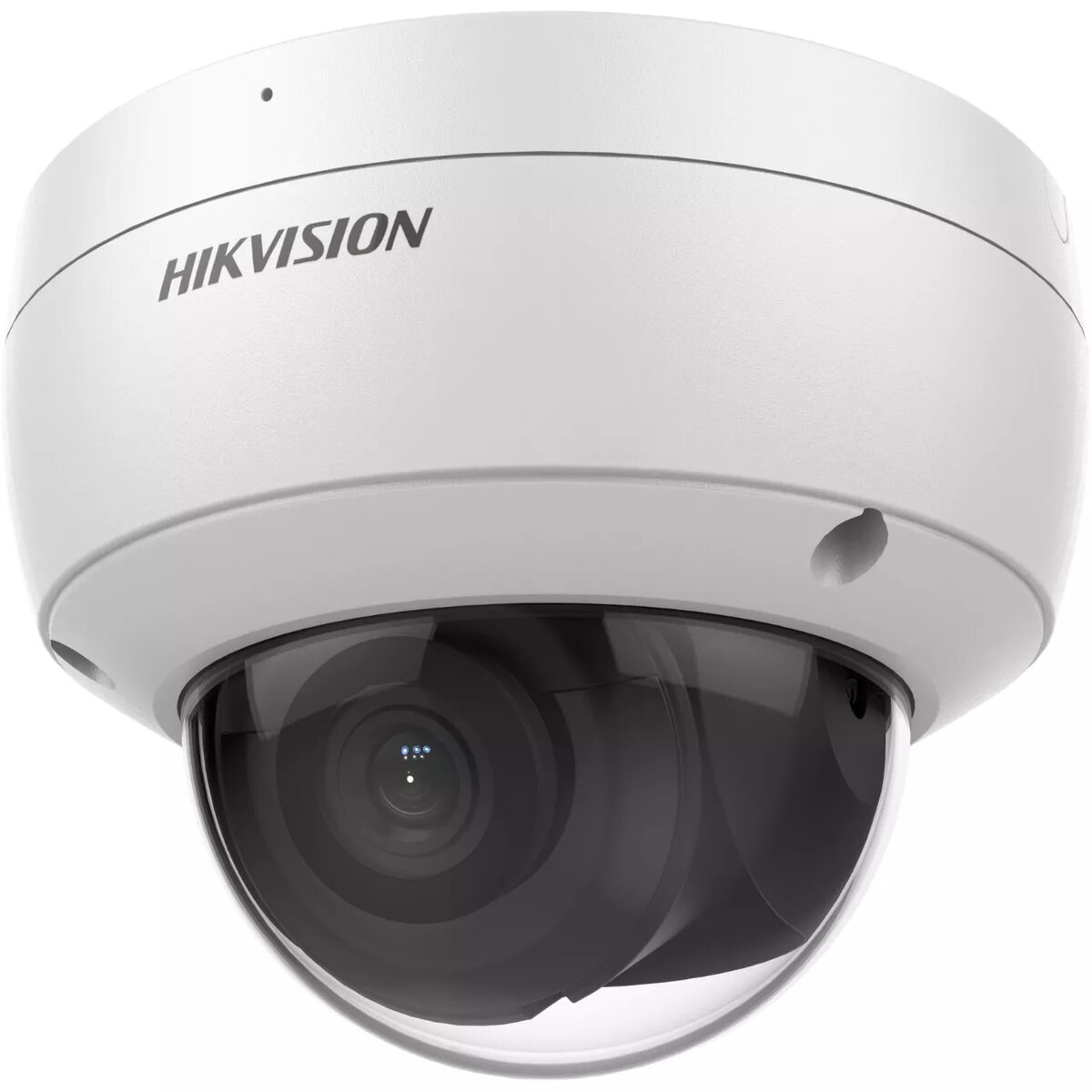

IP security camera Hikvision DS-2CD2143G2-IU Dome Photo 1

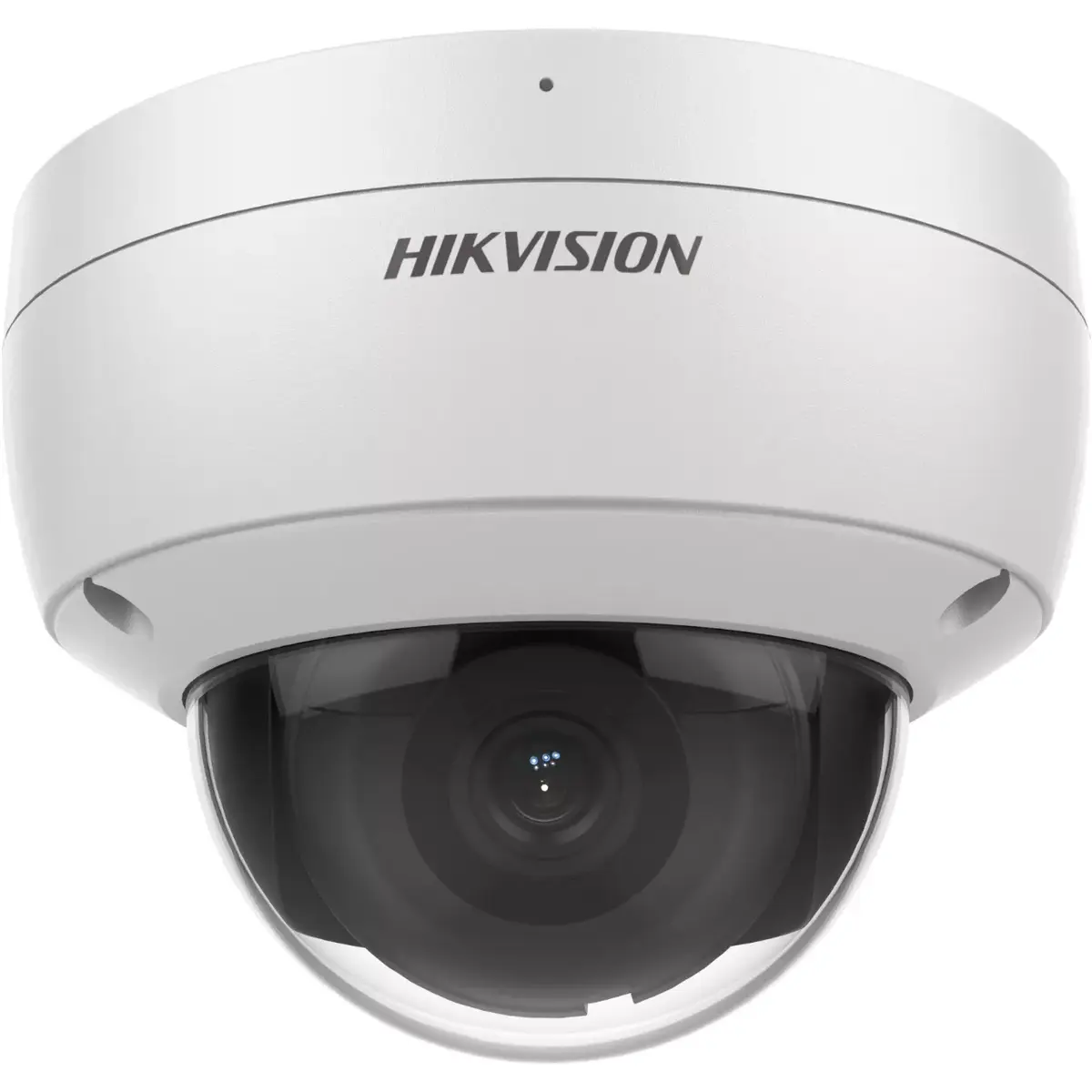

IP security camera Hikvision DS-2CD2143G2-IU Dome Photo 2
IP security camera Hikvision DS-2CD2143G2-IU Dome Photo 1
IP security camera Hikvision DS-2CD2143G2-IU Dome Photo 2
IP security camera Hikvision DS-2CD2143G2-IU Dome Photo 1
IP security camera Hikvision DS-2CD2143G2-IU Dome Photo 2
IP security camera Hikvision DS-2CD2143G2-IU Dome Photo 1
IP security camera Hikvision DS-2CD2143G2-IU Dome Photo 2
IP security camera Hikvision DS-2CD2143G2-IU Dome 2680 x 1520 pixels
Out of stock.
View similar!
Out of stock.
View similar!

Short description

The Hikvision DS-2CD2143G2-IU is an outdoor dome IP security camera with a resolution of 2680 x 1520 pixels. It features a 355° rotation angle and a lens viewing angle of 84° horizontally and 45° vertically. With a CMOS sensor and a fixed focal length of 4 mm, it can detect up to 80 m and observe up to 31 m. This wired camera is designed for ceiling or wall mounting and comes in white, making it a reliable choice for outdoor surveillance.
Warranty: 2 Years
SKU: 10824856
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision DS-2CD2143G2-IU Dome 2680 x 1520 pixels is an outdoor IP security camera designed for wired surveillance installations. It delivers a 2680 x 1520 pixel resolution from a CMOS sensor and uses a fixed 4 mm lens to provide an 84° horizontal and 45° vertical field of view. The dome housing supports ceiling or wall mounting and the unit is finished in white. The camera supports Ethernet LAN connectivity and provides up to 30 fps frame rate for smooth video capture.

Advantages

This camera combines high-resolution imaging with a compact dome form factor suitable for outdoor use. The fixed 4 mm lens and the specified viewing angles allow for medium-range coverage with clear detail. A wide rotation range of 355° in its mounting enables flexible alignment during installation, and built-in motion detection helps reduce storage and monitoring load by flagging activity. Wired Ethernet connectivity ensures a stable network link for continuous recording and remote viewing.

Suitable for

  • Perimeter monitoring of small to medium outdoor areas
  • Entrance and driveway surveillance
  • Monitoring of building facades and parking lots
  • Outdoor retail or commercial property surveillance

Key specifications

  • Image sensor: CMOS, resolution 2680 x 1520 pixels
  • Lens: fixed focal length 4 mm; horizontal view 84°, vertical view 45°
  • Frame rate: up to 30 fps
  • Detection range: motion detection effective up to approximately 80 m (detection) and observation up to approximately 31 m
  • Connectivity: wired Ethernet LAN
  • Mounting: suitable for ceiling or wall installation with 355° rotation for positioning
  • Placement: designed for outdoor use; product colour white
  • Weight: 0.53 kg

How to use

Install the dome camera on a stable ceiling or wall location that gives an unobstructed view of the monitored area. Use the camera's rotation and mounting adjustments to align the 4 mm lens to the intended field of view. Connect the camera to the local network using an Ethernet cable and configure network settings and user accounts through the Hikvision management software or compatible NVR. Adjust motion detection parameters and frame rate to balance between recording quality and storage use. Ensure the camera is positioned and sealed according to outdoor installation best practices to prevent water ingress.

Usage recommendations

For reliable outdoor performance, mount the camera under an overhang when possible, route Ethernet cables through weatherproof conduits, and use a surge protector on the power/network supply. Calibrate motion detection sensitivity to the specific environment to reduce false alerts and schedule regular lens cleaning and firmware updates to maintain image quality and security.

Specifications

Frame rate:
30 fps
Weight:
0.53 kg
Ethernet LAN:
Yes
Wi-Fi:
No
Video motion detection:
Yes
Placement supported:
Outdoor
Connectivity technology:
Wired
Mounting type:
Ceiling/Wall
Type:
IP security camera
Product colour:
White
All features

Performance

Type:
IP security camera
Certification:
FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Connectivity technology:
Wired
Placement supported:
Outdoor
Number of languages:
33
Wide Dynamic Range (WDR):
Yes
Day/night mode:
Yes
Infrared (IR) cut-off filter:
Yes

Camera

Camera shutter speed:
1/3 - 1/100000
Minimum illumination:
0 lx
Tilt angle range:
0 - 75
Angle of rotation:
355 °
Pan range:
0 - 355
Camera pan control:
Yes
Camera tilt control:
Yes
Lens viewing angle, horizontal:
84
Lens viewing angle, vertical:
45
Lens viewing angle, diagonal:
100

Image sensor

Sensor type:
CMOS
Optical sensor size:
25.4 / 3
Progressive scan:
Yes
Number of sensors:
1

Lens system

Maximum aperture number:
1.6
Fixed focal length:
4 mm
Number of lenses:
1
Detect distance (wide):
80 m
Observe distance (wide):
31 m
Recognize distance (wide):
16 m
Identify distance (wide):
8 m

Night vision

LED type:
IR
Night vision:
Yes
Night vision distance:
30
Infra-red wavelength:
850 nm

Video

Maximum resolution:
2680 x 1520
Video compression formats:
H.264, H.264+, H.265, H.265+, M-JPEG
Bit rate:
32 Kbps - 8 Mbps
Noise reduction:
Yes
Frame rate:
30 fps
Supported graphics resolutions:
640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Total megapixels:
4 MP
Image quality adjustment:
Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC):
Yes
Video streaming:
Yes
Privacy masking:
Yes
Highlight Compensation (HLC):
Yes
Bit rate control:
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding:
Yes
Noise reduction technology:
3D noise reduction

Audio

Built-in microphone:
Yes
Voice codecs:
G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Audio output channels:
1
Audio formats supported:
AAC, MP3, PCM
Audio input channels:
1
Sample rate:
48 kHz

Network

Supported network protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
Ethernet LAN:
Yes
Number of users:
32 user(s)
Networking standards:
IEEE 802.1x, IEEE 802.3af
Bluetooth:
No
Wi-Fi:
No
Quality of Service (QoS) support:
Yes
Ethernet interface type:
Fast Ethernet

Storage

Compatible memory cards:
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated:
Yes
Maximum memory card size:
256 GB
Built-in HDD:
No

Ports & interfaces

Ethernet LAN (RJ-45) ports:
1

Power

DC output voltage:
12
DC output current:
0.4 A
Power source type:
DC, PoE
Power consumption (max):
5 W
Power consumption (Power over Ethernet (PoE)):
6.5 W

Weight & dimensions

Weight:
0.53 kg
Height:
84.7 mm
Diameter:
110.8 mm

Packaging data

Package weight:
806 g
Package depth:
150 mm
Package height:
141 mm
Package width:
150 mm

Features

Number of cameras:
1

Security

Mirror:
Yes
Video motion detection:
Yes
IP address filtering:
Yes
HTTPS encryption:
Yes
Password protection:
Yes
Intelligent Video Surveillance (IVS) system features:
Face detection
Anti-flicker:
Yes
Heartbeat:
Yes

Management features

Web-based management:
Yes
Reset button:
Yes
Web browser:
Yes
Behavior analysis:
Intrusion detection, Line crossing detection

Design

Form factor:
Dome
Product colour:
White
Housing material:
Aluminium
Mounting type:
Ceiling/Wall
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP65
IK code:
IK10

Operational conditions

Operating relative humidity (H-H):
0 - 95
Storage temperature (T-T):
-30 - 60
Operating temperature (T-T):
-30 - 60
Storage relative humidity (H-H):
0 - 95
