Dome IP security camera Hikvision DS-2CD2146G2-ISU Outdoor 2688 x 1520 pixels

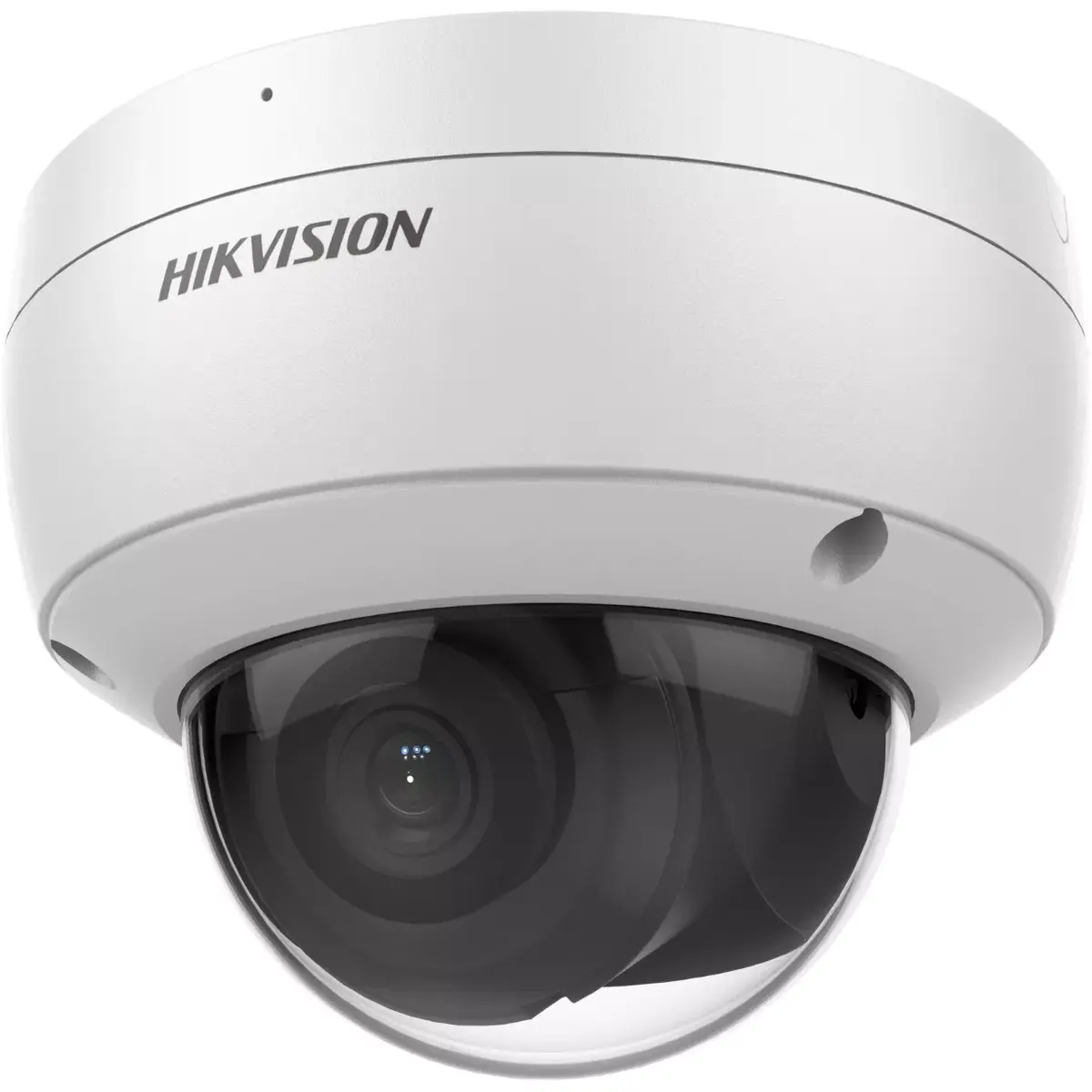

Dome IP security camera Hikvision DS-2CD2146G2-ISU Photo 1

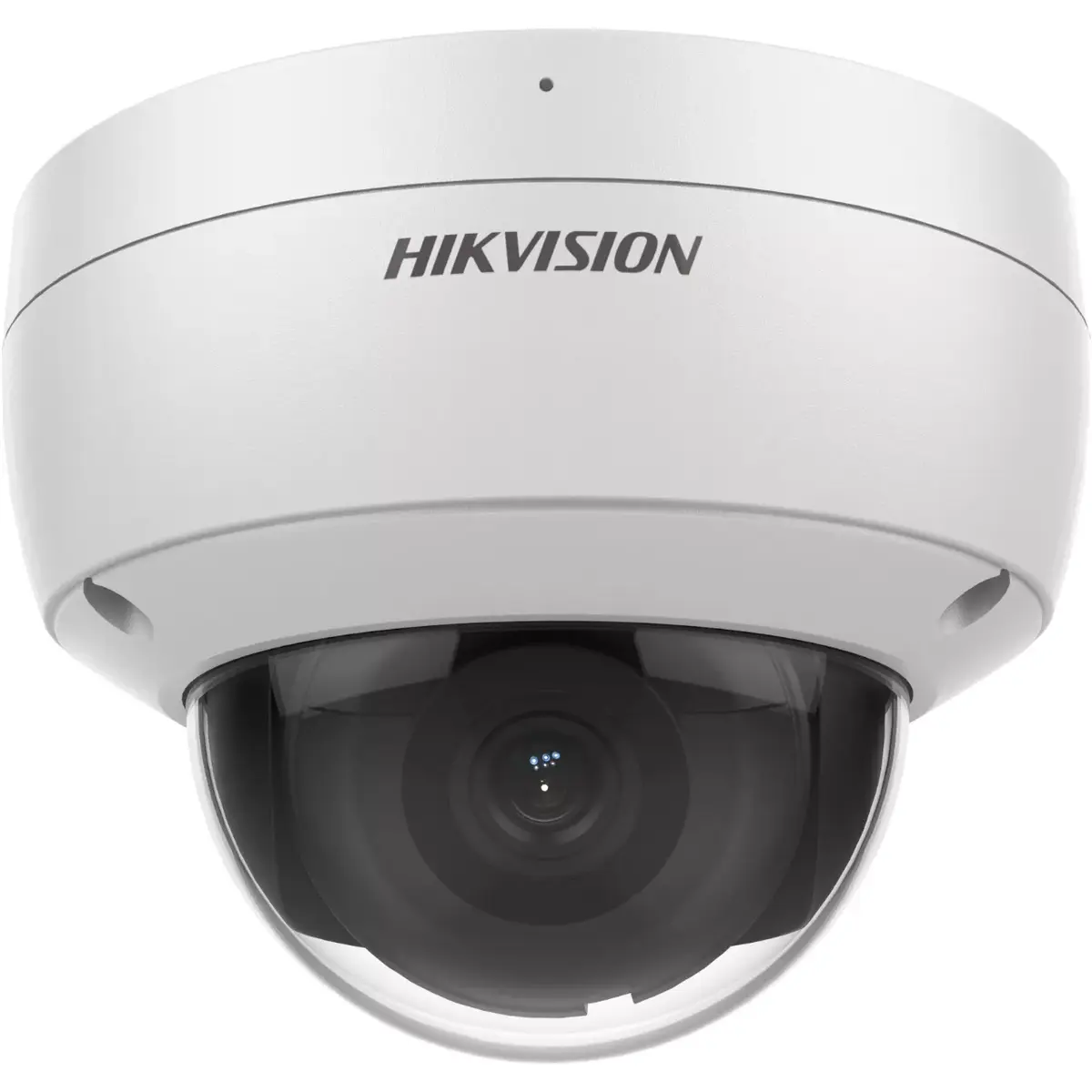

Dome IP security camera Hikvision DS-2CD2146G2-ISU Photo 2
Dome IP security camera Hikvision DS-2CD2146G2-ISU Photo 1
Dome IP security camera Hikvision DS-2CD2146G2-ISU Photo 2
Dome IP security camera Hikvision DS-2CD2146G2-ISU Photo 1
Dome IP security camera Hikvision DS-2CD2146G2-ISU Photo 2
Dome IP security camera Hikvision DS-2CD2146G2-ISU Photo 1
Dome IP security camera Hikvision DS-2CD2146G2-ISU Photo 2
Dome IP security camera Hikvision DS-2CD2146G2-ISU Outdoor 2688 x 1520 pixels
Out of stock.
View similar!
Out of stock.
View similar!

Short description

The Hikvision DS-2CD2146G2-ISU is an outdoor dome IP security camera with a resolution of 2688 x 1520 pixels. It features advanced image processing, ensuring clear and detailed video footage. Designed for ceiling or wall mounting, it offers flexibility in installation. With its weather-resistant design, it is suitable for various outdoor environments. The camera supports remote access and monitoring, making it ideal for security applications.
Warranty: 2 Years
SKU: 4286079
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision DS-2CD2146G2-ISU Outdoor dome IP security camera provides 2688 x 1520 pixel resolution video suitable for perimeter and site surveillance. Designed for ceiling or wall mounting, this wired camera delivers continuous 30 fps capture and includes on-board image processing and video motion detection to support clear, detailed footage in a variety of outdoor environments. The weather-resistant housing and white finish make it compatible with many exterior installations while wired Ethernet connectivity enables remote access and integration with network video recorders or VMS platforms.

Advantages

This outdoor dome camera combines high-resolution imaging with a compact, vandal-resistant form factor to capture identifiable details across mid-range distances. The unit records at up to 30 frames per second for smoother motion rendering, and built-in video motion detection reduces the need for continuous manual monitoring. Wired Ethernet connectivity ensures stable data transfer and remote monitoring capabilities, while a design suited for ceiling or wall mounting simplifies installation choices.

Suitable for (tasks / use cases)

  • Perimeter and entrance monitoring for small to medium commercial properties
  • Outdoor residential surveillance of driveways, yards and garages
  • Parking lot and pathway observation where weather resistance is required
  • Integration with network video recorders and video management systems for continuous recording

Key specifications

  • Image resolution: 2688 x 1520 pixels
  • Maximum frame rate: 30 fps
  • Placement: outdoor-rated dome for ceiling or wall mounting
  • Connectivity: wired Ethernet LAN
  • Motion detection: on-board video motion detection
  • Color: white
  • Weight: 0.58 kg

How to use

Mount the camera on a stable ceiling or wall surface using appropriate fasteners for the installation substrate. Connect the camera to a PoE-capable switch or injectors if power over Ethernet is supported by your system, otherwise provide separate power according to local wiring standards. Configure network settings and remote access via the camera’s web interface or supported VMS, set detection zones and sensitivity for video motion detection, and verify framing and focus to ensure the target area is fully covered. Test remote streaming and recording to confirm correct integration with your NVR or cloud service.

Usage recommendations

For reliable outdoor performance, install the camera under modest eaves where possible to reduce direct exposure to rain and sun. Use a secure network configuration and keep firmware updated to maintain security. Adjust motion detection zones to avoid frequent false alarms from vegetation or busy roads, and combine this camera with additional cameras to cover blind spots and provide overlapping fields of view.

Specifications

Frame rate:
30 fps
Weight:
0.58 kg
Ethernet LAN:
Yes
Wi-Fi:
No
Video motion detection:
Yes
Placement supported:
Outdoor
Connectivity technology:
Wired
Mounting type:
Ceiling/Wall
Type:
IP security camera
Product colour:
White
All features

Performance

Type:
IP security camera
Certification:
FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ( (EC) No 1907/2006)
Connectivity technology:
Wired
Languages support:
BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, UKR, VIE
Placement supported:
Outdoor
Number of languages:
33
Wide Dynamic Range (WDR):
Yes
Day/night mode:
Yes
Alarm input/output:
Yes
Infrared (IR) cut-off filter:
Yes

Camera

Camera shutter speed:
1/3 - 1/100000
Tilt angle range:
0 - 75
Angle of rotation:
355 °
Pan range:
0 - 355
Camera pan control:
Yes
Camera tilt control:
Yes
Lens viewing angle, horizontal:
103
Lens viewing angle, vertical:
55
Lens viewing angle, diagonal:
123

Image sensor

Sensor type:
CMOS
Optical sensor size:
25.4 / 3
Progressive scan:
Yes
Number of sensors:
1

Lens system

Maximum aperture number:
1.4
Fixed focal length:
2.8 mm
Number of lenses:
1
Detect distance (wide):
60 m
Observe distance (wide):
23.8 m
Recognize distance (wide):
12 m
Identify distance (wide):
6 m

Night vision

LED type:
IR
Night vision:
Yes
Night vision distance:
30
Infra-red wavelength:
850 nm

Video

Maximum resolution:
2688 x 1520
Video compression formats:
H.264, H.264+, H.265, H.265+, M-JPEG
Bit rate:
32 Kbps - 8 Mbps
Noise reduction:
Yes
Frame rate:
30 fps
Supported graphics resolutions:
640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Total megapixels:
4 MP
Image quality adjustment:
Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC):
Yes
Video streaming:
Yes
Privacy masking:
Yes
Highlight Compensation (HLC):
Yes
Region of Interest (ROI) encoding:
Yes
Noise reduction technology:
3D noise reduction

Audio

Built-in microphone:
Yes
Voice codecs:
AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio formats supported:
MP3
Sample rate:
48 kHz

Network

Supported network protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Ethernet LAN:
Yes
Number of users:
32 user(s)
Networking standards:
IEEE 802.1x, IEEE 802.3af
Bluetooth:
No
Wi-Fi:
No
Quality of Service (QoS) support:
Yes
Ethernet interface type:
Fast Ethernet

Storage

Compatible memory cards:
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated:
Yes
Maximum memory card size:
256 GB
Built-in HDD:
No

Ports & interfaces

Ethernet LAN (RJ-45) ports:
1

Power

DC output voltage:
12
DC output current:
0.4 A
Power source type:
DC, PoE
Power consumption (max):
5 W
Power consumption (Power over Ethernet (PoE)):
6.5 W

Weight & dimensions

Weight:
0.58 kg
Height:
92.2 mm
Diameter:
121.4 mm

Packaging data

Package weight:
820 g
Package depth:
150 mm
Package height:
141 mm
Package width:
150 mm

Features

Number of cameras:
1

Security

Mirror:
Yes
Video motion detection:
Yes
IP address filtering:
Yes
HTTPS encryption:
Yes
Password protection:
Yes
Intelligent Video Surveillance (IVS) system features:
Scene change
Anti-flicker:
Yes
Heartbeat:
Yes

Management features

Web-based management:
Yes
Reset button:
Yes
Behavior analysis:
Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Design

Form factor:
Dome
Product colour:
White
Housing material:
Metal
Mounting type:
Ceiling/Wall
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP67
IK code:
IK10

Operational conditions

Operating relative humidity (H-H):
0 - 95
Storage temperature (T-T):
-30 - 60
Operating temperature (T-T):
-30 - 60
Storage relative humidity (H-H):
0 - 95

Sustainability

Sustainability certificates:
CE, REACH
