IP security camera Hikvision DS-2CD2146G2-ISU Dome

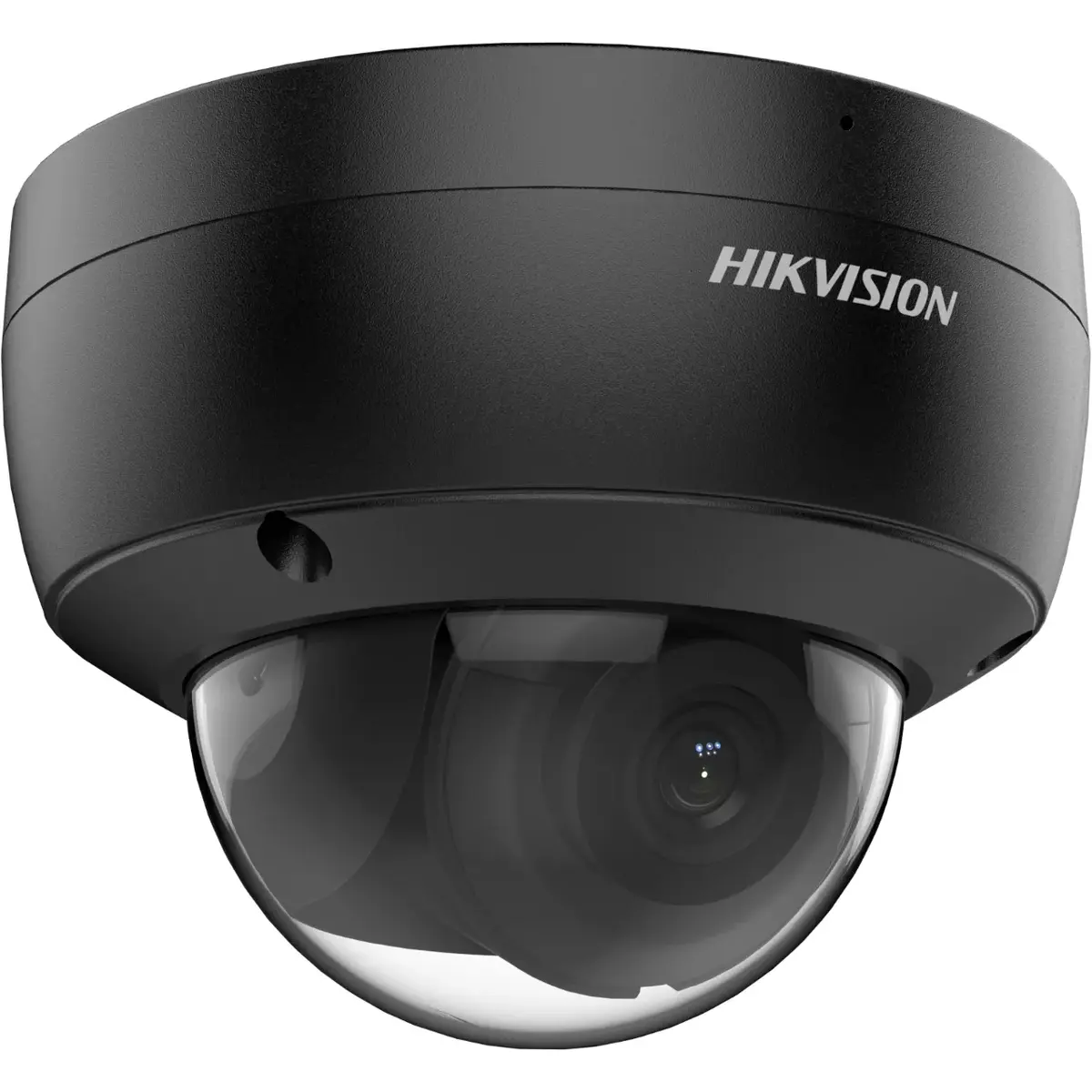

IP security camera Hikvision DS-2CD2146G2-ISU Dome Photo 1
IP security camera Hikvision DS-2CD2146G2-ISU Dome Photo 1
IP security camera Hikvision DS-2CD2146G2-ISU Dome
Out of stock.
View similar!
Out of stock.
View similar!

Short description

The Hikvision DS-2CD2146G2-ISU is an outdoor IP security camera with a resolution of 2688 x 1520 pixels. It features a dome form factor, supports ceiling or wall mounting, and has a black finish. The camera offers a 355° rotation angle and a horizontal viewing angle of 103° and vertical of 55°. With a CMOS sensor and a fixed focal length of 2.8 mm, it can detect up to 60 m and observe at 23.8 m, ensuring comprehensive surveillance coverage.
Warranty: 3 Years
SKU: 4749197
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision DS-2CD2146G2-ISU Dome is an outdoor IP security camera delivering 2688 x 1520 resolution in a compact black dome housing. Designed for ceiling or wall mounting, the camera provides a wide horizontal field of view and substantial vertical coverage. It uses a CMOS sensor with a fixed 2.8 mm focal length, supports wired Ethernet connectivity, and is built to monitor outdoor areas with a detection range up to 60 m and clear observation up to 23.8 m. The device integrates Hikvision AcuSense deep-learning algorithms for human and vehicle classification, improving alarm accuracy and reducing false alerts.

Advantages

The camera combines high-resolution imaging with AcuSense target classification to prioritise human and vehicle alarms, which increases event relevance while reducing unnecessary notifications. Its dome form factor and black finish are suitable for discreet outdoor installation on ceilings or walls. Wired Ethernet connectivity ensures stable data transmission and 30 fps frame rate supports smooth video for typical security monitoring. The fixed 2.8 mm lens and wide viewing angles enable broad scene coverage from a single mounting point.

Suitable for

  • Perimeter monitoring of residential and small commercial properties
  • Monitoring driveways, entrances and parking areas
  • Outdoor surveillance of walkways and building facades
  • Sites where human and vehicle classification is required to reduce false alarms

Key specifications

  • Image resolution: 2688 x 1520 pixels
  • Sensor type: CMOS
  • Fixed focal length: 2.8 mm
  • Field of view: horizontal 103°, vertical 55°
  • Rotation angle: 355°
  • Maximum detection distance: up to 60 m; effective observation up to 23.8 m
  • Frame rate: 30 fps
  • Placement: outdoor-ready dome
  • Connectivity: wired Ethernet (LAN)
  • Colour: black
  • Weight: 0.58 kg
  • Video motion detection with AcuSense human/vehicle classification

How to use

Mount the camera on a suitable ceiling or wall surface using appropriate fasteners and ensure the device is pointed to cover the intended field of view. Connect the camera to a network switch or PoE-enabled injector for power and data over Ethernet, then complete configuration via the recorder or Hikvision software/web interface. Set detection zones and enable AcuSense classification to prioritise human and vehicle events. Verify image framing and focus at the chosen fixed 2.8 mm lens position and confirm network and recording settings.

Usage recommendations

For reliable outdoor performance, install the camera under an overhang or use a weatherproof junction box to reduce direct exposure to precipitation. Position the camera at a height that balances broad coverage and identification detail—typically 2.5–5 m for perimeter and entrance monitoring—and configure AcuSense sensitivity and notification rules to suit site-specific traffic patterns.

Specifications

Frame rate:
30 fps
Weight:
0.58 kg
Ethernet LAN:
Yes
Wi-Fi:
No
Video motion detection:
Yes
Placement supported:
Outdoor
Connectivity technology:
Wired
Mounting type:
Ceiling/Wall
Type:
IP security camera
Product colour:
Black
All features

Performance

Type:
IP security camera
Certification:
FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ( (EC) No 1907/2006)
Connectivity technology:
Wired
Languages support:
BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, UKR, VIE
Placement supported:
Outdoor
Number of languages:
33
Wide Dynamic Range (WDR):
Yes
Day/night mode:
Yes
Alarm input/output:
Yes
Infrared (IR) cut-off filter:
Yes

Camera

Camera shutter speed:
1/3 - 1/100000
Minimum illumination:
0 lx
Tilt angle range:
0 - 75
Angle of rotation:
355 °
Pan range:
0 - 355
Camera pan control:
Yes
Camera tilt control:
Yes
Lens viewing angle, horizontal:
103
Lens viewing angle, vertical:
55
Lens viewing angle, diagonal:
123

Image sensor

Sensor type:
CMOS
Optical sensor size:
25.4 / 3
Progressive scan:
Yes
Number of sensors:
1

Lens system

Maximum aperture number:
1.4
Fixed focal length:
2.8 mm
Number of lenses:
1
Detect distance (wide):
60 m
Observe distance (wide):
23.8 m
Recognize distance (wide):
12 m
Identify distance (wide):
6 m

Night vision

LED type:
IR
Night vision:
Yes
Night vision distance:
30
Infra-red wavelength:
850 nm

Video

Maximum resolution:
2688 x 1520
Video compression formats:
H.264, H.264+, H.265, H.265+, M-JPEG
Bit rate:
32 Kbps - 8 Mbps
Noise reduction:
Yes
Frame rate:
30 fps
Supported graphics resolutions:
640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Total megapixels:
4 MP
Image quality adjustment:
Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC):
Yes
Video streaming:
Yes
Privacy masking:
Yes
Highlight Compensation (HLC):
Yes
Region of Interest (ROI) encoding:
Yes
Noise reduction technology:
3D noise reduction

Audio

Built-in microphone:
Yes
Voice codecs:
AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio formats supported:
MP3
Sample rate:
48 kHz

Network

Supported network protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Ethernet LAN:
Yes
Number of users:
32 user(s)
Networking standards:
IEEE 802.1x, IEEE 802.3af
Bluetooth:
No
Wi-Fi:
No
Quality of Service (QoS) support:
Yes
Ethernet interface type:
Fast Ethernet

Storage

Compatible memory cards:
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated:
Yes
Maximum memory card size:
256 GB
Built-in HDD:
No

Ports & interfaces

Ethernet LAN (RJ-45) ports:
1

Power

DC output voltage:
12
DC output current:
0.4 A
Power source type:
DC, PoE
Power consumption (max):
5 W
Power consumption (Power over Ethernet (PoE)):
6.5 W

Weight & dimensions

Weight:
0.58 kg
Height:
92.2 mm
Diameter:
121.4 mm

Packaging data

Package weight:
820 g
Package depth:
150 mm
Package height:
141 mm
Package width:
150 mm

Features

Number of cameras:
1

Security

Mirror:
Yes
Video motion detection:
Yes
IP address filtering:
Yes
HTTPS encryption:
Yes
Password protection:
Yes
Intelligent Video Surveillance (IVS) system features:
Scene change
Anti-flicker:
Yes
Heartbeat:
Yes

Management features

Web-based management:
Yes
Reset button:
Yes
Behavior analysis:
Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Design

Form factor:
Dome
Product colour:
Black
Housing material:
Metal
Mounting type:
Ceiling/Wall
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP67
IK code:
IK10

Operational conditions

Operating relative humidity (H-H):
0 - 95
Storage temperature (T-T):
-30 - 60
Operating temperature (T-T):
-30 - 60
Storage relative humidity (H-H):
0 - 95

Technical details

Compliance certificates:
CE, REACH
