Hikvision DS-2CD2326G2-IU Turret IP Camera 2.8mm

Name: Hikvision Turret IP Security Camera DS-2CD2326G2-IU(2.8mm)(C)
Brand: Hikvision
SKU: 6253205
Price: 145.99 EUR
Availability: OutOfStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Hikvision Turret IP Security Camera DS-2CD2326G2-IU 2.8mm, 1080p, 30 fps, Wired, Ceiling/Wall, Indoor/Outdoor

Hikvision DS-2CD2326G2-IU Turret IP Camera 2.8mm Photo 1

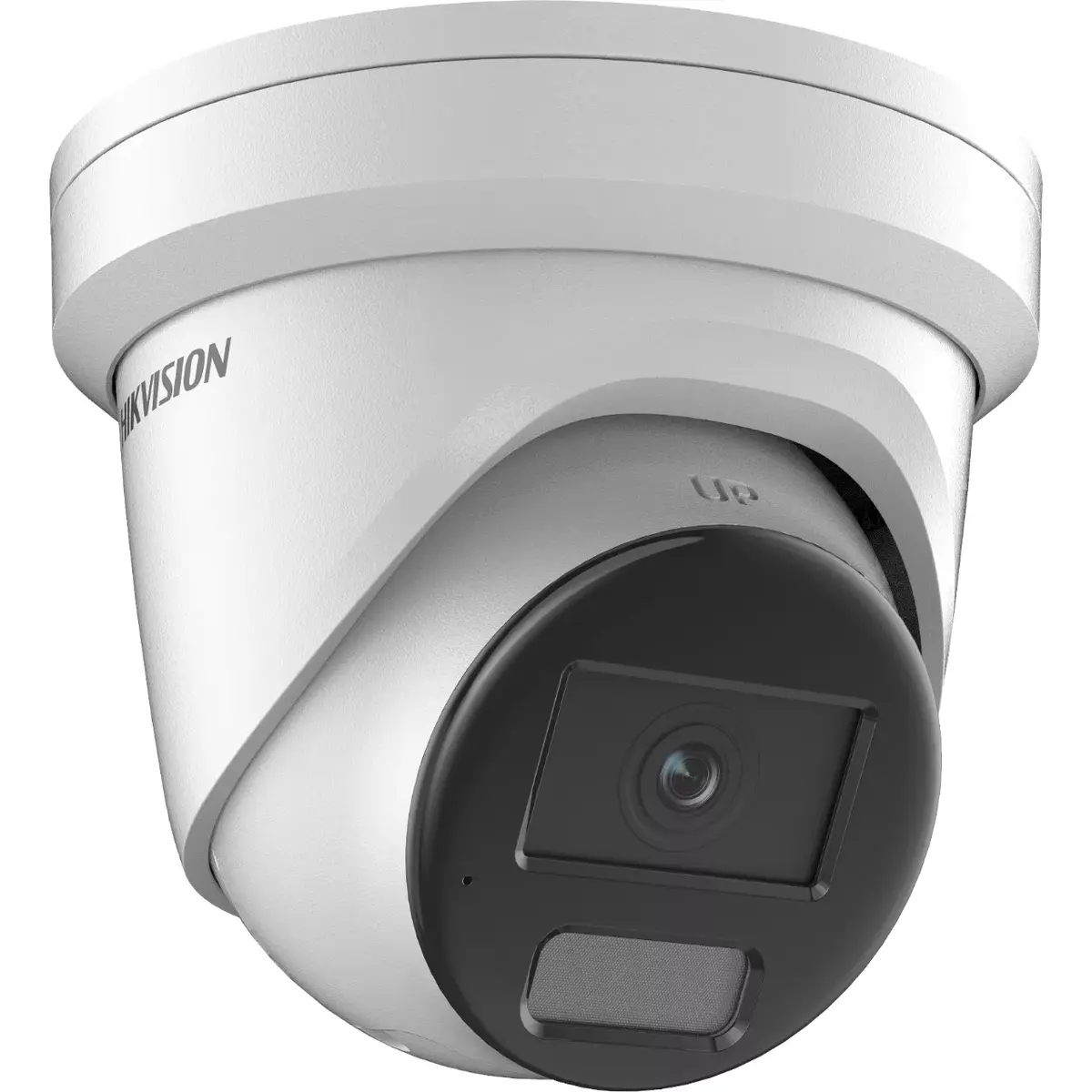

Hikvision DS-2CD2326G2-IU Turret IP Camera 2.8mm Photo 2

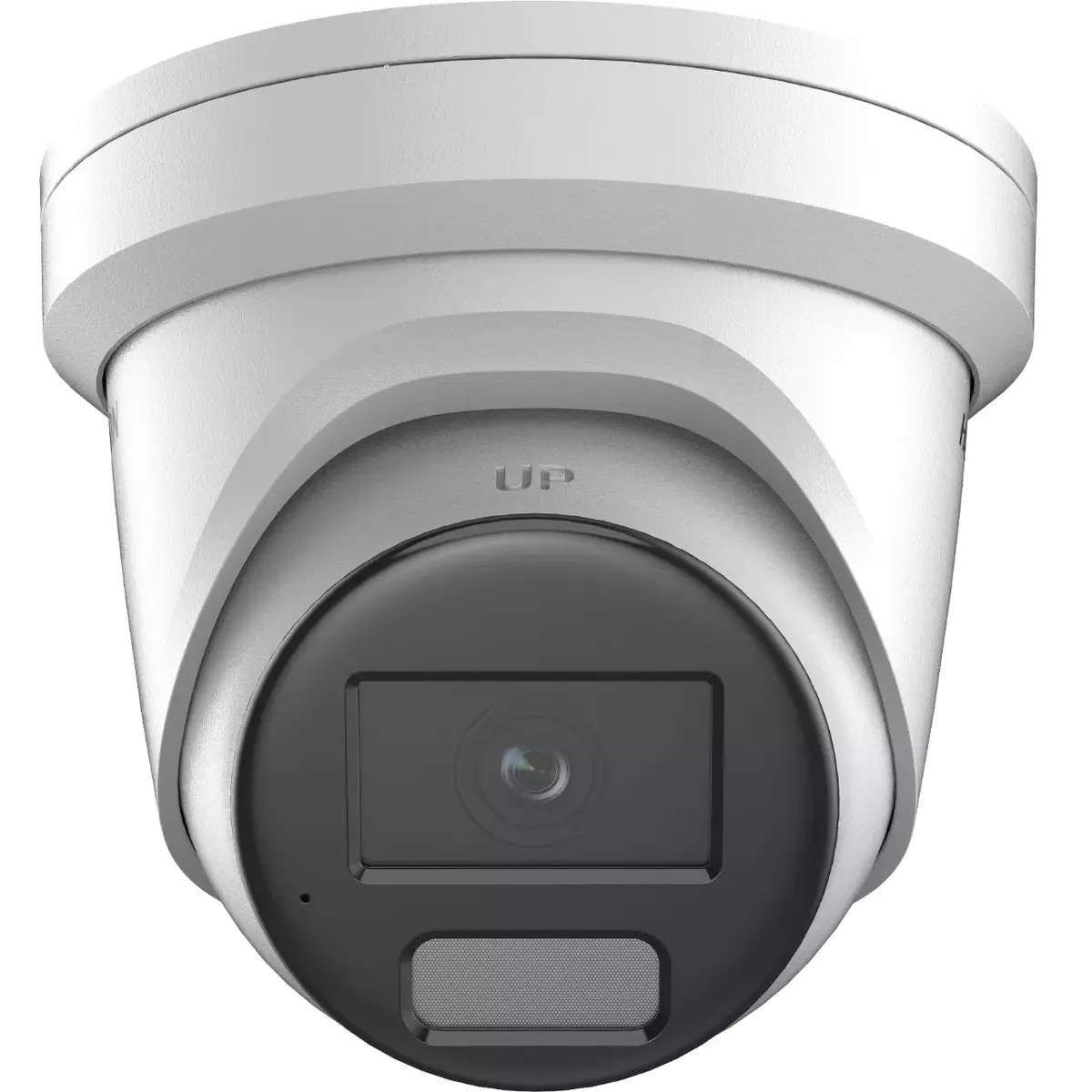

Hikvision DS-2CD2326G2-IU Turret IP Camera 2.8mm Photo 3

Short description

Hikvision DS-2CD2326G2-IU is a turret-style IP security camera for indoor and outdoor use with wired Ethernet. It records 1920×1080 video at up to 30 fps using a 1/2.8" CMOS sensor and fixed 2.8 mm lens (107° horizontal, 57° vertical). Metal housing supports ceiling or wall mounting, 360° rotation, motion detection and detection/observation ranges up to 44.3 m / 17.6 m.

Warranty: 2 Years

SKU: 6253205

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Hikvision Turret IP Security Camera DS-2CD2326G2-IU is a wired turret-style surveillance camera designed for both indoor and outdoor installation. It captures Full HD 1920×1080 video at up to 30 fps using a 1/2.8" CMOS sensor and a fixed 2.8 mm lens that provides a wide field of view (approximately 107° horizontal). The camera comes in a metal housing with support for ceiling or wall mounting and can be rotated through 360° for flexible positioning. Built-in video motion detection and Hikvision AcuSense deep-learning based human and vehicle classification improve alarm relevance and reduce false alerts.

Advantages

The camera delivers consistent 1080p video at 30 fps, ensuring smooth, clear footage for general surveillance needs. Its fixed 2.8 mm lens offers a broad coverage area suitable for monitoring larger scenes without frequent repositioning. The metal housing and support for ceiling or wall mounting provide robust, tamper-resistant installation options for indoor and outdoor environments. Wired Ethernet connectivity ensures reliable network transmission and power options when used with compatible PoE systems. AcuSense-enabled target classification separates human and vehicle events from other motion, enhancing alarm accuracy.

Suitable for

Monitoring entrances, hallways and reception areas in commercial buildings
Perimeter surveillance and parking area observation
Indoor coverage for retail spaces and offices
Exterior monitoring of residential and small business properties

Key specifications

Image sensor: 1/2.8" CMOS
Resolution: 1920 × 1080 (Full HD)
Maximum frame rate: 30 fps
Lens: fixed 2.8 mm, approx. 107° horizontal field of view
Housing: metal, supports ceiling and wall mounting with 360° rotation
Connectivity: wired Ethernet (PoE compatible when used with PoE switch/injector)
Motion detection: built-in video motion detection
Intelligent features: human and vehicle classification (AcuSense)
Placement: indoor and outdoor use
Weight: 0.76 kg

How to use

Mount the turret camera on a ceiling or wall using the included mounting hardware and adjust the rotation to frame the desired area. Connect the camera to a network switch or NVR via Ethernet cable; if PoE is available, it supplies both power and data over a single cable. Configure the camera through compatible Hikvision software or the NVR interface to set resolution, frame rate, motion detection zones and AcuSense classification thresholds. Verify day/night settings and exposure to ensure clear images in varying light conditions.

Usage recommendations

Position the camera to minimize direct exposure to bright light sources and keep the viewing angle free of obstructions for optimal detection. Use a PoE switch or injector for simplified cabling, and enable AcuSense human/vehicle filtering to reduce false alarms from animals or foliage. Regularly check firmware updates and perform periodic lens cleaning and physical inspection to maintain reliable operation.

Specifications

Frame rate:: 30 fps
Weight:: 0.76 kg
Ethernet LAN:: Yes
Wi-Fi:: No
Video motion detection:: Yes
Placement supported:: Indoor & outdoor
Connectivity technology:: Wired
Mounting type:: Ceiling/Wall
Type:: IP security camera

All features

Performance

Type:: IP security camera
Certification:: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Connectivity technology:: Wired
Languages support:: Multi
Placement supported:: Indoor & outdoor
Number of languages:: 33
Wide Dynamic Range (WDR):: Yes
Day/night mode:: Yes
Infrared (IR) cut-off filter:: Yes

Camera

Camera shutter speed:: 1/3 - 1/100000
Tilt angle range:: 0 - 75
Angle of rotation:: 360 °
Pan range:: 0 - 360
Camera pan control:: Yes
Camera tilt control:: Yes
Lens viewing angle, horizontal:: 107
Lens viewing angle, vertical:: 57
Lens viewing angle, diagonal:: 129

Image sensor

Sensor type:: CMOS
Optical sensor size:: 25.4 / 2.8
Progressive scan:: Yes
Number of sensors:: 1

Lens system

Maximum aperture number:: 1.4
Fixed focal length:: 2.8 mm
Number of lenses:: 1
Detect distance (wide):: 44.3 m
Observe distance (wide):: 17.6 m
Recognize distance (wide):: 8.9 m
Identify distance (wide):: 4.4 m

Night vision

LED type:: IR
Night vision:: Yes
Night vision distance:: 30
Infra-red wavelength:: 850 nm

Video

Maximum resolution:: 1920 x 1080
Video compression formats:: H.264, H.264+, H.265, H.265+, M-JPEG
Bit rate:: 32 Kbps - 8 Mbps
Noise reduction:: Yes
Frame rate:: 30 fps
Supported graphics resolutions:: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Total megapixels:: 2 MP
Image quality adjustment:: Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC):: Yes
Video streaming:: Yes
Privacy masking:: Yes
Gain control type:: Auto
Highlight Compensation (HLC):: Yes
Bit rate control:: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding:: Yes
Noise reduction technology:: 3D noise reduction

Audio

Built-in microphone:: Yes
Signal-to-Noise Ratio (SNR):: 52 dB
Voice codecs:: AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Sample rates:: 8 - 48

Network

Supported network protocols:: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Ethernet LAN:: Yes
Number of users:: 32 user(s)
Networking standards:: IEEE 802.3af
Bluetooth:: No
Wi-Fi:: No
Quality of Service (QoS) support:: Yes
Ethernet interface type:: Fast Ethernet

Storage

Compatible memory cards:: MicroSD (TransFlash)
Card reader integrated:: Yes
Maximum memory card size:: 256 GB
Built-in HDD:: No

Ports & interfaces

Ethernet LAN (RJ-45) ports:: 1

Power

DC output voltage:: 12
DC output current:: 0.5 A
Power source type:: DC, PoE
Power consumption (max):: 6 W
Power consumption (Power over Ethernet (PoE)):: 7 W

Weight & dimensions

Weight:: 0.76 kg
Length:: 115.4 mm
Diameter:: 138.3 mm

Packaging data

Package weight:: 990 g
Package depth:: 170 mm
Package height:: 150 mm
Package width:: 170 mm

Features

Number of cameras:: 1

Security

Security algorithms:: TLS
Mirror:: Yes
Video motion detection:: Yes
Active tampering alarm:: Yes
IP address filtering:: Yes
HTTPS encryption:: Yes
Password protection:: Yes
Alert notification type:: E-mail
Intelligent Video Surveillance (IVS) system features:: Face detection, Scene change
Anti-flicker:: Yes
Heartbeat:: Yes

Management features

Firmware upgradeable:: Yes
Web browser:: Yes
Behavior analysis:: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Design

Form factor:: Turret
Housing material:: Metal
Mounting type:: Ceiling/Wall
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP67
Protection features:: Dust resistant, Water resistant

Operational conditions

Operating relative humidity (H-H):: 0 - 95
Storage temperature (T-T):: -30 - 60
Operating temperature (T-T):: -30 - 60
Storage relative humidity (H-H):: 0 - 95

Hide Show all

Instructions

mmo_92989291_1626864618_0528_57507.pdf

hikvision-DS-2CD2326G2-IU(2.8mm)(C)-6253205

Description

Instructions

mmo_92989291_1626864618_0528_57507.pdf

hikvision-DS-2CD2326G2-IU(2.8mm)(C)-6253205

Machine translation. Load original

Reasons to buy

Advanced Deep Learning Detection

Powered by Hikvision AcuSense deep learning algorithms, this camera accurately distinguishes people and vehicles from irrelevant motion. That intelligence reduces false alarms and ensures alerts focus on what matters for perimeter protection.

Prioritized Human and Vehicle Intrusion Alerts

Customize intrusion monitoring so alarms trigger only for preset human or vehicle events. Recorded incidents are categorized to help you quickly review the most important security events.

Highly Accurate Alarm Filtering

Focus on genuine threats: the system emphasizes alarms caused by people and vehicles while greatly reducing triggers from small animals or irrelevant objects using VCA and motion detection.

On-site Visual and Audible Deterrence

Enhance on-site response with configurable visual and auditory warnings, plus two-way audio capability for real-time interaction and deterrence.

Faster Search by Target Type

Video clips are automatically sorted into human and vehicle categories, making event search and review significantly faster and more efficient.

Integrated AcuSense for Improved Accuracy and Efficiency

Hikvision AcuSense integrates automatic triggering and intelligent classification to boost alarm accuracy and streamline incident search — ideal for the DS-2CD2326G2-IU turret camera used indoors or outdoors.
