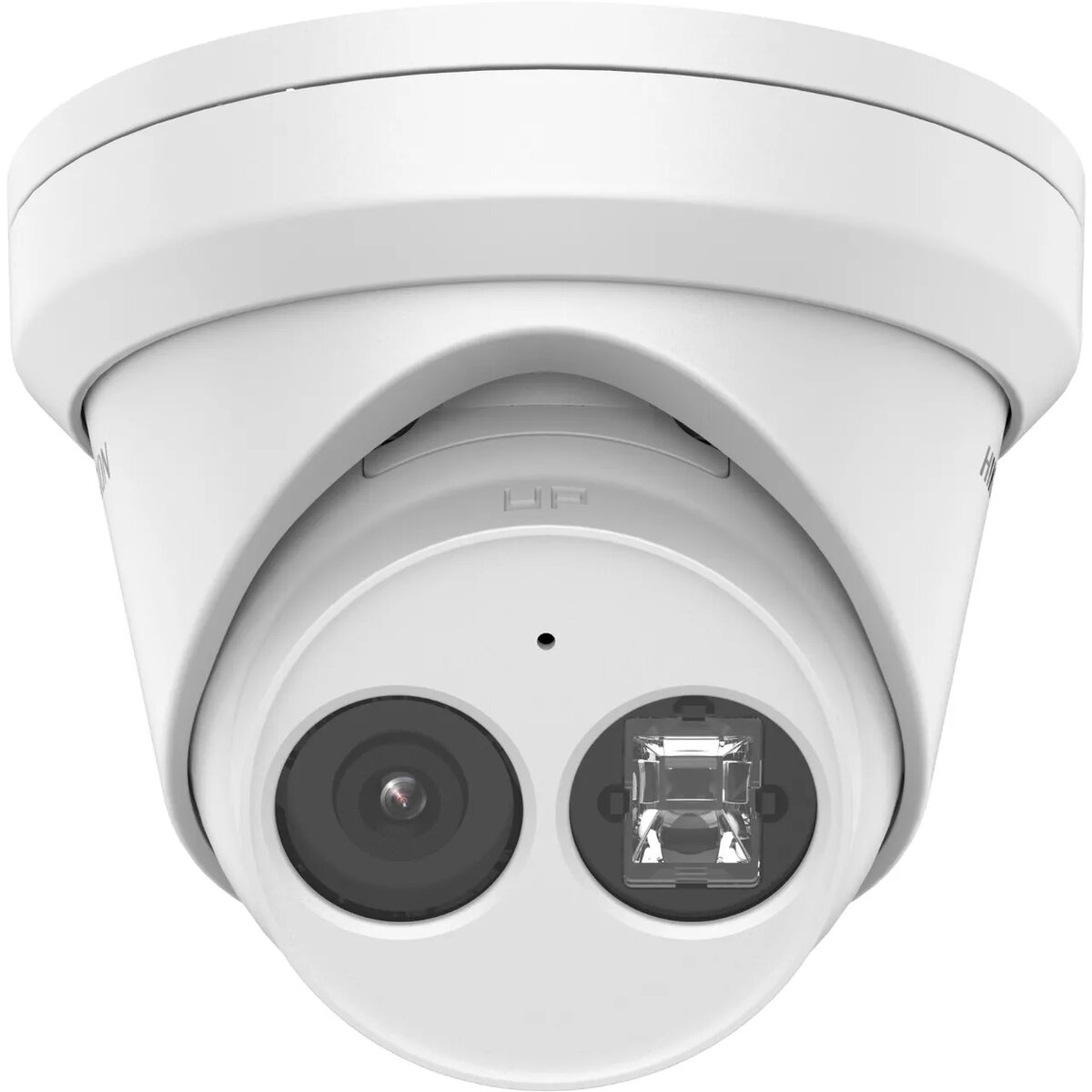

IP security camera Hikvision DS-2CD2343G2-IU Dome Outdoor

IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 1

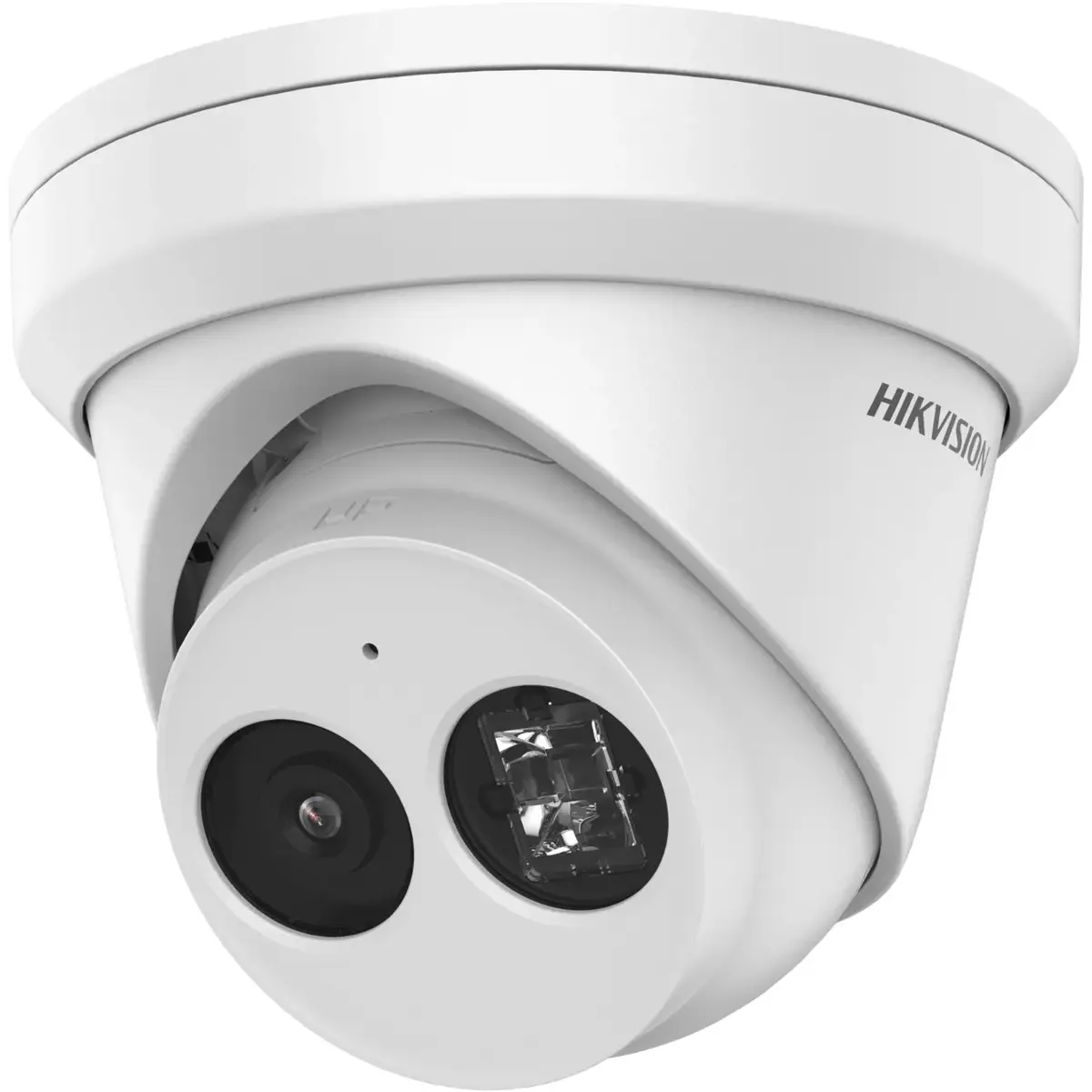

IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 2

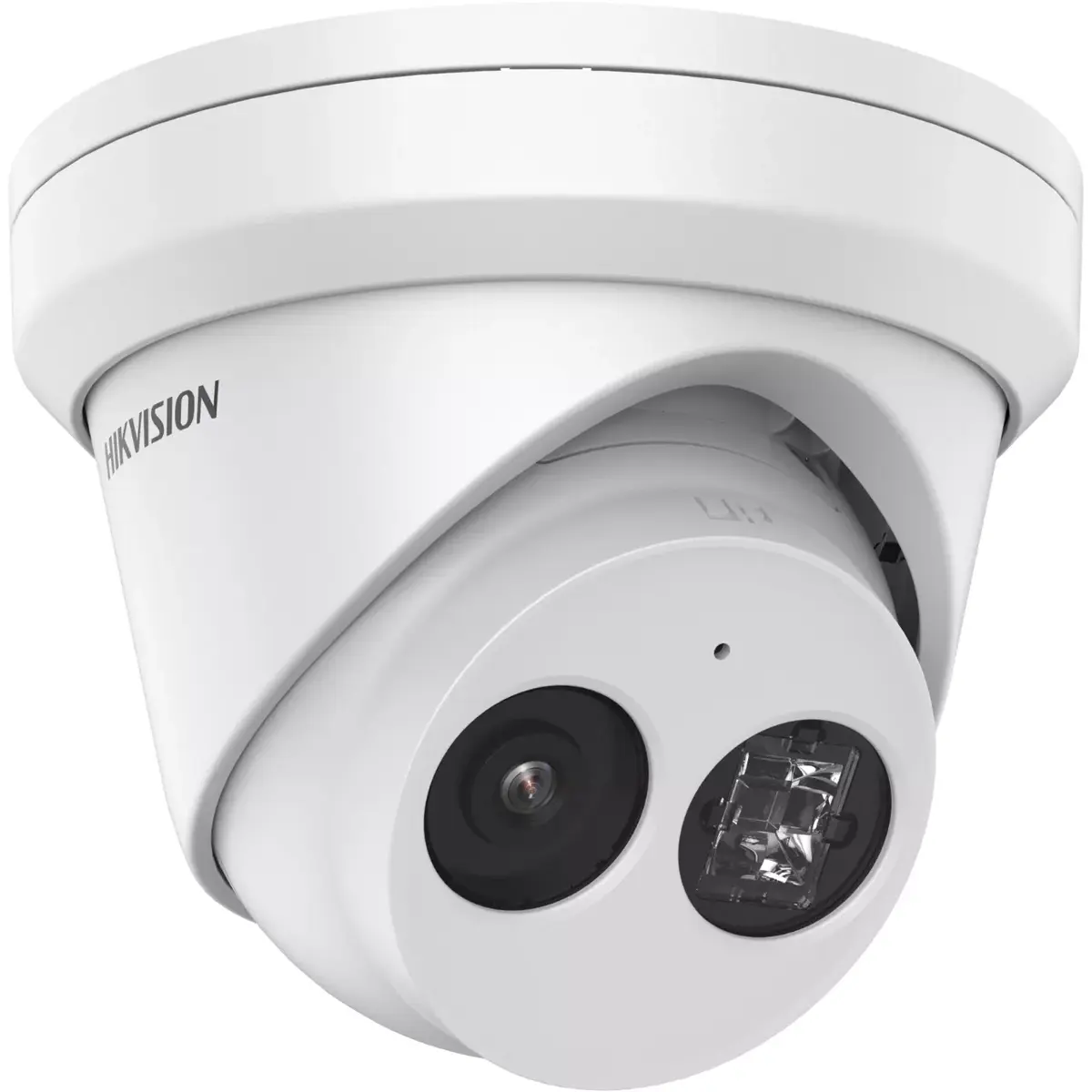

IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 3
IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 1
IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 2
IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 3
IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 1
IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 2
IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 3
IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 1
IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 2
IP security camera Hikvision DS-2CD2343G2-IU Dome Photo 3
IP security camera Hikvision DS-2CD2343G2-IU Dome Outdoor
Out of stock.
View similar!
Out of stock.
View similar!

Short description

The Hikvision DS-2CD2343G2-IU is an outdoor dome IP security camera with a resolution of 2688 x 1520 pixels. It features a 360° rotation angle and a horizontal lens viewing angle of 103° and vertical of 55°. The camera is designed for ceiling or wall mounting and is equipped with a CMOS sensor with a fixed focal length of 2.8 mm. Its wired connectivity ensures reliable performance, making it ideal for outdoor surveillance.
Warranty: 2 Years
SKU: 4355170
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision DS-2CD2343G2-IU Dome Outdoor is an IP security camera designed for outdoor surveillance with a resolution of 2688 x 1520 pixels (approx. 4 MP). The compact white dome housing supports ceiling or wall mounting and houses a CMOS sensor with a fixed 2.8 mm focal length lens that provides a wide horizontal field of view. The camera connects via wired Ethernet for reliable network transmission and supports video motion detection for basic intelligent monitoring. With a 360° rotation angle and wide vertical and horizontal viewing angles, this camera is configured for general-purpose perimeter and entrance monitoring.

Advantages

The camera delivers clear 4 MP resolution images suitable for identifying people and objects at short to medium ranges. Its fixed 2.8 mm focal length yields a wide 103° horizontal and 55° vertical viewing angle, reducing the number of cameras required to cover a given area. Wired Ethernet connectivity ensures a stable network link and consistent frame rates up to 30 fps. The dome form factor and white finish are suitable for discreet outdoor placement on ceilings or walls while the built-in video motion detection helps reduce storage and review workload by flagging motion events.

Suitable for

  • Outdoor perimeter and entrance surveillance
  • Building façades, parking areas and pathways
  • Ceiling or wall-mounted monitoring of small to medium outdoor spaces
  • Sites requiring wired, reliable networked video

Key specifications

  • Image sensor: CMOS, fixed focal length 2.8 mm
  • Resolution: 2688 x 1520 pixels (approx. 4 MP)
  • Frame rate: up to 30 fps
  • Horizontal viewing angle: 103°; Vertical viewing angle: 55°
  • Rotation capability: 360° rotation angle
  • Connectivity: wired Ethernet LAN
  • Mounting options: ceiling or wall
  • Placement: outdoor-rated dome housing
  • Product colour: white
  • Weight: 0.6 kg
  • Video motion detection: supported

How to use

Mount the dome camera on a suitable ceiling or wall surface using the provided mounting template and hardware, ensuring a stable, weatherproof installation location. Connect the camera to your network using an Ethernet cable and assign network settings via your NVR or Hikvision configuration utility. Position the camera to cover the intended area using its wide-angle lens and 360° rotation for framing; then adjust image settings, exposure and motion detection sensitivity in the camera web interface or management software. Verify the live stream and recording behaviour at different times of day to confirm coverage and image clarity.

Usage recommendations

For reliable outdoor operation, install the camera under an overhang or use additional sealing around cable entries to minimise direct exposure to driving rain. Use a wired network connection and, if available, a PoE-enabled switch to simplify power and data cabling. Regularly check lens cleanliness and firmware updates to maintain image quality and security.

Specifications

Frame rate:
30 fps
Weight:
0.6 kg
Ethernet LAN:
Yes
Wi-Fi:
No
Video motion detection:
Yes
Placement supported:
Outdoor
Connectivity technology:
Wired
Mounting type:
Ceiling/Wall
Type:
IP security camera
Product colour:
White
All features

Performance

Type:
IP security camera
Certification:
FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Connectivity technology:
Wired
Placement supported:
Outdoor
Number of languages:
33
Wide Dynamic Range (WDR):
Yes
Day/night mode:
Yes
Infrared (IR) cut-off filter:
Yes

Camera

Camera shutter speed:
1/3 - 1/100000
Tilt angle range:
0 - 90
Angle of rotation:
360 °
Pan range:
0 - 360
Camera pan control:
Yes
Camera tilt control:
Yes
Lens viewing angle, horizontal:
103
Lens viewing angle, vertical:
55
Lens viewing angle, diagonal:
122

Image sensor

Sensor type:
CMOS
Optical sensor size:
25.4 / 3
Progressive scan:
Yes
Number of sensors:
1

Lens system

Maximum aperture number:
1.6
Fixed focal length:
2.8 mm
Number of lenses:
1

Night vision

LED type:
IR
Night vision:
Yes
Night vision distance:
30
Infra-red wavelength:
850 nm

Video

Maximum resolution:
2688 x 1520
Video compression formats:
H.264, H.264+, H.265, H.265+, M-JPEG
Bit rate:
32 Kbps - 8 Mbps
Noise reduction:
Yes
Frame rate:
30 fps
Supported graphics resolutions:
640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Total megapixels:
4 MP
Image quality adjustment:
Brightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC):
Yes
Video streaming:
Yes
Privacy masking:
Yes
Highlight Compensation (HLC):
Yes
Bit rate control:
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding:
Yes
Noise reduction technology:
3D noise reduction

Audio

Built-in microphone:
Yes
Voice codecs:
G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Audio formats supported:
AAC, MP3, PCM
Sample rate:
48 kHz

Network

Supported network protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
Ethernet LAN:
Yes
Number of users:
32 user(s)
Networking standards:
IEEE 802.1x, IEEE 802.3af
Bluetooth:
No
Wi-Fi:
No
Quality of Service (QoS) support:
Yes
Ethernet interface type:
Fast Ethernet

Storage

Compatible memory cards:
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated:
Yes
Maximum memory card size:
256 GB
Built-in HDD:
No

Ports & interfaces

Ethernet LAN (RJ-45) ports:
1

Power

DC output voltage:
12
DC output current:
0.5 A
Power source type:
DC, PoE
Power consumption (max):
6 W
Power consumption (Power over Ethernet (PoE)):
7 W

Weight & dimensions

Weight:
0.6 kg
Height:
95.9 mm
Diameter:
127.3 mm

Packaging data

Package weight:
816 g
Package depth:
150 mm
Package height:
141 mm
Package width:
150 mm

Features

Number of cameras:
1

Security

Mirror:
Yes
Video motion detection:
Yes
IP address filtering:
Yes
HTTPS encryption:
Yes
Password protection:
Yes
Intelligent Video Surveillance (IVS) system features:
Face detection
Anti-flicker:
Yes
Heartbeat:
Yes

Management features

Web-based management:
Yes
Reset button:
Yes
Web browser:
Yes
Behavior analysis:
Intrusion detection, Line crossing detection

Design

Form factor:
Dome
Product colour:
White
Housing material:
Aluminium
Mounting type:
Ceiling/Wall
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP67

Operational conditions

Operating relative humidity (H-H):
0 - 95
Storage temperature (T-T):
-30 - 60
Operating temperature (T-T):
-30 - 60
Storage relative humidity (H-H):
0 - 95

Logistics data

Harmonized System (HS) code:
85258900

Sustainability

Sustainability certificates:
REACH, RoHS
Hide Show all

Instructions

mmo_88656422_1611140521_5554_19454.pdf
hikvision-DS-2CD2343G2-IU(2.8mm)-4355170

Description

Instructions

mmo_88656422_1611140521_5554_19454.pdf
hikvision-DS-2CD2343G2-IU(2.8mm)-4355170
Machine translation. Load original

Reasons to buy

Deep learning core for reliable detection

Powered by Hikvision AcuSense deep learning algorithms, this IP camera accurately distinguishes people and vehicles from other moving objects—reducing irrelevant alerts and ensuring you only get meaningful security events.

Deep learning core for reliable detection

Focus on human and vehicle intrusion

Designed for perimeter protection, the camera triggers alarms only for the intrusion type you set (human or vehicle) and automatically classifies related footage—making it faster to find and review critical incidents.

Focus on human and vehicle intrusion

Accurate alarms with fewer false positives

By prioritizing humans and vehicles, the system sharply reduces false alarms from small animals or irrelevant motion. Use VCA or standard motion detection to enjoy precise, actionable alerts.

Accurate alarms with fewer false positives

Deterrence with visual and audible warnings

Enhance on-site response with customizable visual and auditory warnings; two-way audio support lets you communicate in real time to deter intruders or verify events remotely.

Deterrence with visual and audible warnings

Fast search by target type

Recorded clips are organized into human and vehicle categories so you can quickly filter results and review only the footage that matters—saving time during investigations.

Fast search by target type

Integrated AcuSense intelligence for better efficiency

Hikvision AcuSense technology automates alarm triggering and classification to improve both detection accuracy and search efficiency—perfect for the DS-2CD2343G2-IU outdoor dome camera used in ceiling or wall installations.

Integrated AcuSense intelligence for better efficiency
