Hikvision DS-9664NI-M8 64-Channel Network Video Recorder

Name: Hikvision DS-9664NI-M8 64-Channel Network Video DS-9664NI-M8(STD)
Brand: Hikvision
SKU: 10825212
Price: 2552.99 EUR
Availability: OutOfStock

Shop for gifts early

Save time and money with our discounts!

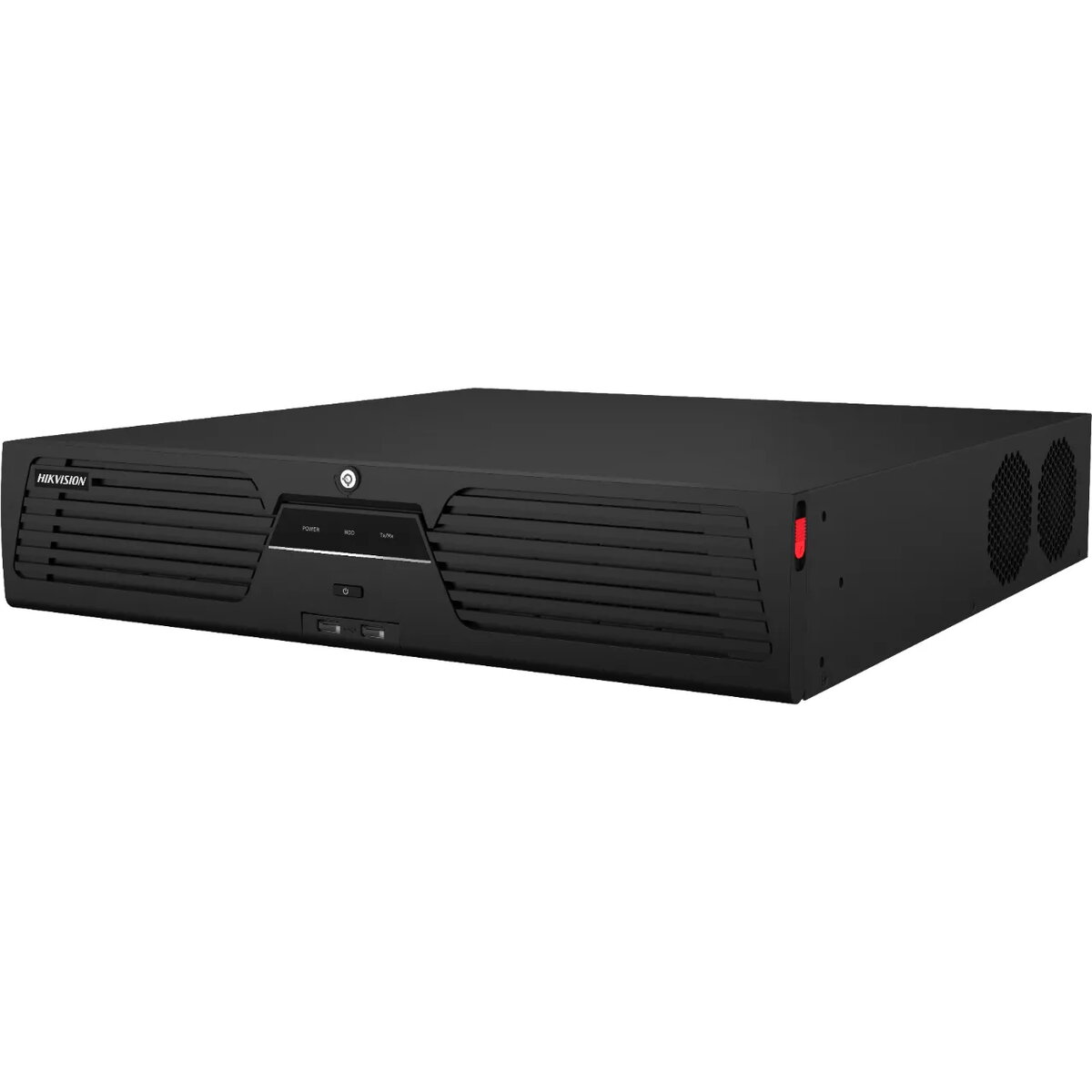

Hikvision DS-9664NI-M8 64-Channel Network Video Recorder, 8-Bay SATA, 8K Resolution Support

Short description

The Hikvision DS-9664NI-M8 is a professional 64-channel network video recorder designed for large-scale surveillance systems. It supports resolutions up to 8K and features 8 SATA interfaces for high-capacity storage with RAID 0, 1, 5, 6, and 10 support. Equipped with dual Gigabit Ethernet ports and 16-channel simultaneous playback, this 2U rack-mountable unit ensures reliable video management and high-performance data processing for complex security infrastructures.

Warranty: 2 Years

SKU: 10825212

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision DS-9664NI-M8 is a high-performance 64-channel network video recorder engineered for demanding, large-scale surveillance environments. This professional-grade NVR supports advanced video resolutions up to 8K, ensuring exceptional image clarity for critical monitoring tasks. Designed for reliability and scalability, the unit features 8 SATA interfaces that support RAID 0, 1, 5, 6, and 10 configurations, allowing for robust data redundancy and high-capacity storage management. The system is built into a 2U rack-mountable chassis, making it an ideal choice for centralized security control rooms and complex infrastructure projects.

Advantages

This network video recorder offers significant benefits for enterprise-level security, primarily through its support for the H.265+ compression codec, which drastically reduces bandwidth consumption and storage requirements without compromising video quality. The inclusion of dual Gigabit Ethernet ports ensures stable network connectivity and high-speed data transmission. With the capability to handle 16-channel simultaneous playback, security personnel can efficiently review multiple camera feeds at once. The hardware is specifically optimized for long-term, continuous operation in professional settings, providing a stable foundation for extensive camera networks.

Suitable for

Large-scale commercial and industrial surveillance systems
Centralized security monitoring centers
Infrastructure projects requiring high-resolution 8K video recording
Environments needing long-term data retention with RAID redundancy

This device may not be suitable for small residential setups or home security systems where the 64-channel capacity and 2U rack-mount form factor would be excessive. It is also not intended for users who do not have experience with enterprise-level network configuration and RAID storage management.

Key specifications

64-channel IP camera support
8K resolution recording capability
8 SATA interfaces for high-capacity storage
RAID 0, 1, 5, 6, and 10 support
Dual Gigabit Ethernet ports
2U rack-mountable design
H.265+ compression support
2 USB 3.2 Gen 1 and 2 USB 2.0 ports

To use the Hikvision DS-9664NI-M8, install the unit into a standard 19-inch server rack and connect it to your local network via the provided Ethernet ports. Install your hard drives into the SATA bays, ensuring they are compatible with the RAID configurations you intend to use. Once powered on, access the device through the web interface or a connected monitor to configure camera channels, recording schedules, and network settings. The system allows for intuitive management of all connected video streams through the Hikvision software ecosystem.

What to consider before purchase

Ensure your server rack has sufficient space for a 2U device
Verify that your hard drives are compatible with the NVR's SATA/eSATA interfaces
Confirm that your network infrastructure can handle the bandwidth requirements of 64 high-resolution streams
Check if your existing cameras are compatible with the Hikvision protocol

Regularly monitor the health status of your hard drives and ensure the firmware is updated to the latest version to maintain optimal security and performance.

Specifications

Maximum storage capacity: The maximum amount of data that can be stored in the device.: 14 TB
Video input channels: The number of channels for video input that the device features.: 64 channels
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 7680 x 4320
Product colour: The colour e.g. red, blue, green, black, white.: Black

All features

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -10 - 55

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 10 kg
Height: The measurement of the product from head to foot or from base to top.: 93 mm
Depth: The distance from the front to the back of something.: 465 mm
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes
Width: The measurement or extent of something from side to side.: 445 mm

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.: 50 W
AC input frequency:: 50 - 60
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 100 - 240

Hard drive

RAID levels: RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.: 10, 6, 5, 1
RAID support: The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.: Yes
HDD interface: The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.: SATA, eSATA
Maximum storage capacity: The maximum amount of data that can be stored in the device.: 14 TB

Network

Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.: 1000, 10, 100
Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 2

Ports & interfaces

eSATA ports quantity: The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives.: 1
eSATA:: Yes
RS-232 interface:: Yes
RS-485 ports:: 1
Internal SATA ports quantity:: 8
BNC audio output:: Yes
USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.: 2
Audio output: The type of audio output that the device produces, and the connector(s).: 2-way
VGA (D-Sub) output ports:: 2
HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.: 2
Alarm input channels:: 16
Alarm output channels:: 9
Audio RCA outputs:: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 2
HDMI output: The device features an HDMI output.: Yes
Video input channels: The number of channels for video input that the device features.: 64 channels

Performance

Certification:: CE, FCC Part 15 Subpart B, ANSI C63.4-2014 EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Rack capacity: The spase that device fill in rack.: 2U
Product colour: The colour e.g. red, blue, green, black, white.: Black
Audio codecs:: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Video codecs:: H.265+/H.265/H.264+/H.264
Number of simultaneously playbacked channels:: 16 channels
Input bandwidth:: 400 Mbit/s
Output bandwidth:: 400 Mbit/s
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 7680 x 4320
Supported resolutions:: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Features

Brand compatibility: What other brands this brand can be used with.: Hikvision Digital Technology
