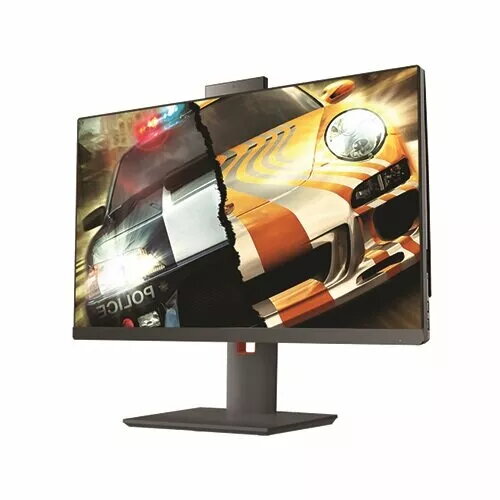

All-in-One PC HiSmart 23.8" FHD, Intel Core i5-10400, 8GB RAM, 512GB SSD

HiSmart All-in-One PC with a 23.8" Full HD display combines an integrated monitor and desktop components in a single compact unit. Powered by a 10th generation Intel Core i5-10400 processor, 8GB of DDR4 memory and a 512GB M.2 SSD, this AIO is designed for everyday productivity, office workflows, web browsing and multimedia playback. The 23.8" 1920x1080 screen offers a 5 ms response time, 250 cd/m² typical brightness and wide 178°/178° viewing angles, while Intel UHD Graphics 630 handles basic graphics tasks. The system runs Windows 10 and includes built-in Wi‑Fi, Bluetooth, stereo speakers, a pop-up webcam and an integrated microphone for conferencing and video calls.

Advantages

The integrated all-in-one design reduces desk clutter by combining display, storage and processing in one chassis and simplifies setup. Fast boot and application loading are supported by the 512GB M.2 SSD, while the Intel Core i5 processor provides consistent performance for office applications and multitasking. Multiple connectivity options including Gigabit Ethernet, HDMI, USB 3.0 ports and SD card reader make it easy to connect peripherals and external displays. Built-in audio, camera and microphone provide immediate out-of-the-box functionality for remote meetings and media playback.

Suitable for

• Office productivity: word processing, spreadsheets and email
• Home use: web browsing, video streaming and casual multimedia
• Remote work and video conferencing with built-in webcam and microphone
• Point-of-sale or kiosk setups requiring a compact desktop with RS232 support

Key specifications

• Display: 23.8" IPS-like panel, 1920×1080 Full HD, 5 ms response, 250 nits brightness, 178°/178° viewing angles, 1000:1 contrast
• Processor: Intel Core i5-10400 (10th generation)
• Memory: 8GB DDR4 3200 MHz (two SO-DIMM slots, supports up to 32GB)
• Storage: 512GB M.2 SSD; additional M.2 SATA 2242/2280 and 2×SATA 3.0 available for expansion
• Graphics: Integrated Intel UHD Graphics 630
• Networking: Integrated Wi‑Fi (802.11 b/g/n/AC), Bluetooth, Gigabit Ethernet (RTL8111H)
• Audio & camera: Built-in stereo speakers, microphone and pop-up webcam
• Ports: 4×USB 3.0 Type-A, 2×USB 2.0 (front), HDMI output, RJ45, RS232 (COM), SD card reader, Line out and Mic in
• Operating system: Windows 10
• Power: 19V DC, 4.74A; input 100–240V, 50/60Hz
• Physical: Dimensions 541×476×56 mm, colour: black
• Warranty: 24 months

How to use

Place the HiSmart AIO on a stable desk surface and connect the external power supply to an appropriate mains outlet. Connect keyboard, mouse and any external storage or display via the available USB and HDMI ports, and if required insert an SD card into the reader. Power on the system and follow the Windows 10 initial setup prompts to create user accounts and configure network settings. Use the built-in webcam and microphone for video calls; adjust volume and display settings through Windows sound and display control panels. For additional RAM or storage, power down and disconnect the unit before accessing expansion slots according to the service manual.

Usage recommendations

For stable day-to-day performance, keep the system software and drivers up to date, periodically free space on the SSD, and avoid blocking ventilation areas. When using resource-heavy applications, consider upgrading RAM to the supported maximum of 32GB and, if needed, add an additional M.2 or SATA drive for more storage. Use a surge protector for the power adapter to protect the unit from voltage spikes.
