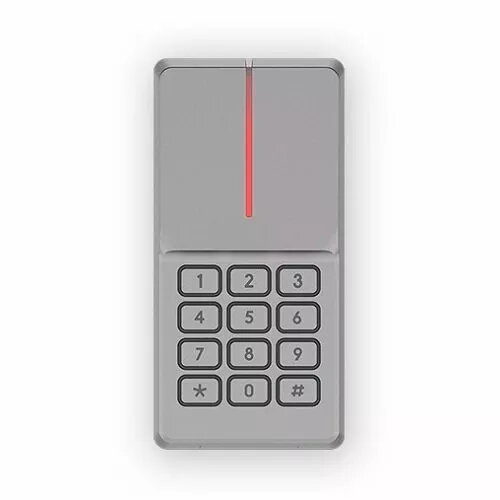

Standalone access control keypad and card reader HiSmart sKey 2 — EM, HID, MIFARE, NFC support, CPU-based standalone unit

HiSmart sKey 2 is a standalone access control keypad with an integrated card reader, suitable for single-door or small-site installations. The unit supports multiple card technologies (EM, HID, MIFARE, NFC, CPU) and PIN entry, and is built for outdoor use with IP65 protection and an operating temperature range from -20°C to +60°C. It is a compact zinc-alloy wall-mount device intended for local access management without a central controller.

Advantages

The HiSmart sKey 2 combines keypad and card reader functions in one compact, weatherproof housing, supporting both 125 kHz (EM/HID) and 13.56 MHz (MIFARE/NFC/CPU) credential types. It offers three access modes—card, PIN or card+PIN—allows up to 2,000 users (cards/PINs), and provides adjustable relay output time for lock control. The device supports standard Wiegand output (26/37 bit) and includes common connections such as relay, exit button, door sensor, doorbell and alarm.

Suitable for

• Single-door entrances in small offices
• Storage rooms and server closets
• Residential buildings and gated entries

Key specifications

• Users (cards/PINs): 2,000
• PIN length: 4–6 digits
• Operating frequencies: 125 kHz / 13.56 MHz
• Card types: EM, HID, MIFARE, NFC, CPU (optional selection)
• Operating voltage: DC 12–24 V
• Idle current: <50 mA
• Card reading distance: 2–5 cm
• Doors supported: 1
• Output protocol: 26/37 bit Wiegand
• Relay: 1 (NO, NC, COM), adjustable 0–99 s
• Protection class: IP65
• Material: zinc alloy
• Operating temperature: -20°C to +60°C
• Relative humidity: 0–95% RH
• Dimensions: 170 x 83 x 26 mm
• Warranty: 24 months

How to use

Mount the HiSmart sKey 2 on a wall at the desired door and wire the device to the lock, exit button, door sensor and alarm according to the supplied connection diagram. Power the unit with DC 12–24 V. Program user cards and PINs through the device interface following the included setup instructions. Choose the preferred access mode (card, PIN or card+PIN) and set the relay output time (0–99 seconds) for lock activation. Test card reading distance (2–5 cm) and confirm correct operation of exit button and sensors before regular use.

Usage recommendations

For reliable outdoor operation, install the unit under a small overhang where possible to reduce direct exposure to heavy rain and sunlight. Regularly back up user credentials if your workflow requires reprogramming, and use the appropriate card type (EM/HID or MIFARE/NFC/CPU) that matches your credential inventory.
