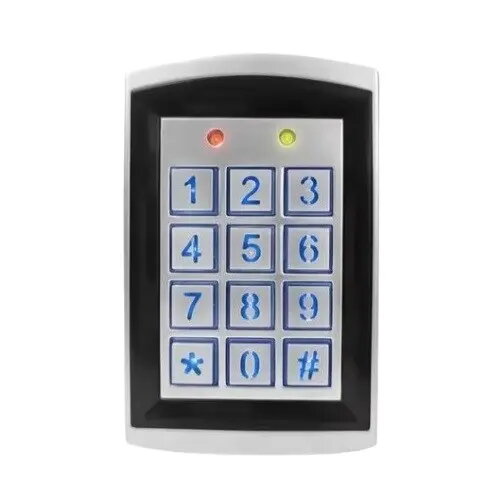

Standalone Access Control Unit HiSmart TV993635 with Keypad and 125 kHz EM Card Reader

The HiSmart TV993635 standalone access control unit combines a numeric keypad with a 125 kHz EM card reader to provide offline door entry management for single-door or small-site installations. The compact device is built for indoor and outdoor use with IP66 protection and an operating temperature range from -30°C to +70°C. Its die-cast zinc alloy housing and epoxy-encapsulated electronics increase durability and resistance to moisture, dust, vibration and tampering.

Advantages

The unit supports three access modes — card, PIN, or card+PIN — and stores up to 1,010 users across two zones. Backlit keys (selectable on/off) ensure usability in low light, and two relay outputs enable control of both a door and an additional device such as a garage gate. Anti-tamper alarm and robust construction make it suitable for intensive use in harsh environments.

Suitable for

• Standalone door control for small offices and retail premises
• Residential buildings and gated properties requiring offline access
• Outdoor or indoor entrances exposed to harsh weather
• Installations needing simple PIN and 125 kHz EM card authentication

When it may not be suitable

This device is not intended for large-scale, networked access control systems or installations requiring centralized user management and real-time auditing over IP. It only supports 125 kHz EM cards and cannot read higher-frequency or different-format smart cards without compatible hardware.

Key specifications

• User capacity: 1,010 (zone1: 1,000; zone2: 10)
• Access modes: card, PIN (2–6 digits), card+PIN
• Operating frequency: 125 kHz (EM)
• Power supply: 12–24 V DC or 12–24 V AC
• Idle current: <30 mA; Active current: <160 mA
• Card reading distance: approximately 5 cm
• Relays: 2 (NO/NC/COM), adjustable output time 1–99 s (default 5 s)
• Supported doors: up to 2
• Protection class: IP66
• Material: die-cast zinc alloy; electronics epoxy encapsulated
• Operating temperature: -30°C to +70°C
• Dimensions: 120 x 76 x 22 mm; Weight: 455 g
• Mounting: wall mount
• Connections: terminal block for relay outputs, exit buttons and doorbell
• Warranty: 24 months

How to use

Mount the unit on a wall near the controlled entrance and connect power (12–24 V AC/DC) and wiring for relays, exit button and doorbell using the terminal block. Enroll user cards and set PINs according to the included programming procedure. Choose required access mode (card, PIN or card+PIN) per user or zone, configure relay output time and anti-tamper settings, and test operation by presenting a card or entering a PIN and verifying that the corresponding relay activates.

What to consider before purchase

• Only supports 125 kHz EM cards — verify card compatibility
• Intended for standalone (offline) use; not for centralized network management
• Requires 12–24 V AC/DC power supply and proper wiring for relays and exit devices
• Check mounting location for IP66-rated exposure and ambient temperature range

Usage recommendations

For reliable operation, use compatible 125 kHz EM cards, install the unit where wall mounting is secure and protected from direct impact, configure appropriate relay timings for your lock hardware, and perform regular functional checks of the anti-tamper alarm and backup power if used.
