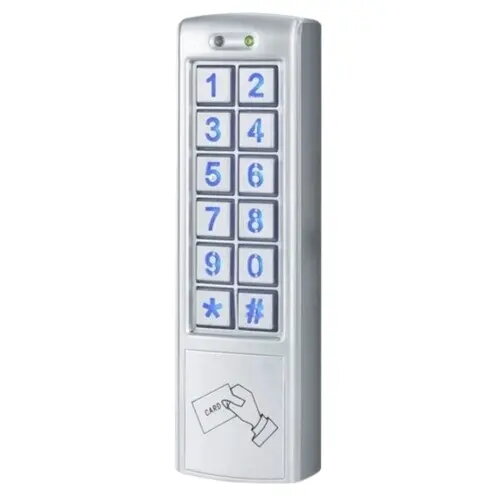

Standalone Access Control Unit HiSmart TV993642 with Keypad and 125KHz EM Card Reader

Standalone Access Control Unit HiSmart TV993642 combines a numeric keypad and a 125 kHz EM card reader in a compact wall-mount housing for local door entry control. The unit stores up to 1,010 users and operates independently without a central server, making it suitable for small offices, storage rooms, residential entrances and single-door installations. The die-cast zinc alloy case and IP66 protection rating allow use in both outdoor and indoor environments across a wide temperature range.

Advantages

The controller offers three authentication modes — card, PIN, or card+PIN — and supports two separate relay outputs for controlling a door and an additional gate or device. Electronics are encapsulated in epoxy resin for protection against moisture, dust, vibration and tampering, while the anti-tamper alarm adds extra security. A backlit keypad (switchable) enables operation in low light, and the robust zinc alloy housing provides reliable performance under intensive use.

Suitable for

• Small offices and administrative rooms
• Storage rooms and warehouses
• Residential building entrances and gated homes
• Single-door installations with local access control needs

When it may not be suitable

This standalone unit is not designed for large-scale, networked access systems that require centralized management, advanced event logging or remote configuration. It also uses 125 kHz EM proximity cards, which are lower-security compared with modern MIFARE/DESFire solutions, so it may not be appropriate where higher-level card encryption is required.

Key specifications

• Users (cards/PINs): 1,010 (zone1: 1,000; zone2: 10)
• Access modes: card, PIN, card+PIN
• PIN length: 2–6 digits
• Operating frequency: 125 kHz (EM)
• Operating voltage: 12–24 V DC or 12–24 V AC
• Idle current: <30 mA; Active current: <160 mA
• Card reading distance: ~5 cm
• Number of doors supported: 2
• Relay outputs: 2 (NO/NC/COM), adjustable output time 1–99 s (default 5 s)
• Ingress protection: IP66
• Housing material: die-cast zinc alloy; electronics encapsulated in epoxy
• Operating temperature: -30 °C to +70 °C
• Dimensions: 152 x 44 x 24 mm; Weight: 406 g

How to use

Mount the unit on a wall near the controlled door and connect power (12–24 V DC or AC), relay outputs to the lock and any auxiliary devices, and wiring for exit buttons or doorbells as required. Program user cards and PINs via the keypad following the manufacturer's setup sequence, assign users to zones if needed, and configure relay timing and other basic settings directly on the device. Test card reading, PIN entry and relay activation after installation to confirm correct operation.

What to consider before purchase

• Required authentication type: 125 kHz EM cards and PIN codes
• Need for centralized management or network integration (not supported)
• Environmental conditions: IP66 and -30 °C to +70 °C suitability
• Number of users and whether 1,010 local users is sufficient
• Compatibility with existing locks, gates and wiring

Usage recommendations

Use the HiSmart TV993642 for standalone installations where local control and simple PIN/card authentication suffice. For improved security, pair the unit with monitored locks, enable the anti-tamper alarm, and regularly review user access lists. Consider higher-security card technologies if encryption and centralized management are required.
