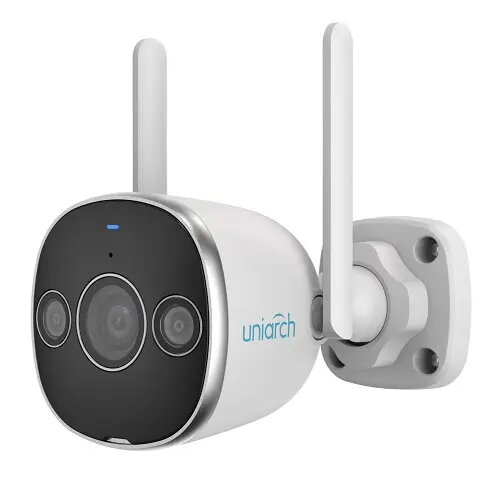

Surveillance Camera UNIARCH UHOB2DM5F4D 5MP HD

The UNIARCH UHOB2DM5F4D 5MP HD outdoor bullet camera offers high-resolution surveillance for homes, offices and small shops. It provides 2880×1620 video, dual-light illumination with warm LED and smart IR, two-way audio, motion and tamper detection, Wi‑Fi connectivity and local recording to a microSD card up to 128 GB. The camera is IP67‑rated for weather resistance and includes a power adapter, mounting bracket and screw set; the microSD card is sold separately.

Advantages

This surveillance camera delivers 5MP clarity (2880×1620) and a 4.0 mm F1.6 lens with a 79° horizontal field of view. Dual Light mode switches between warm LED illumination (up to 10 m) and IR night vision (up to 20 m) for clear images in varied lighting. Built‑in microphone and speaker enable two‑way talk, while multiple detection types (motion, ultra motion, audio, tamper) and support for up to 6 concurrent users provide flexible monitoring. Onboard microSD storage supports up to 128 GB for local recording, and 2.4 GHz Wi‑Fi plus Ethernet (RJ45) enable remote access and integration with supported systems.

Suitable for

• Residential property perimeter and entry monitoring
• Small retail shops and offices surveillance
• Outdoor areas requiring weatherproof cameras (IP67)

Key specifications

• Image sensor: 1/3" 5MP CMOS; max resolution 2880×1620 at 25 fps
• Lens: 4.0 mm, F1.6; horizontal FOV 79°
• Illumination: warm LED up to 10 m; IR up to 20 m (850 nm); ICR day/night
• Video compression: Ultra265, H.265, H.264, MJPEG; bitrate 128–6144 Kbps
• Detection: motion, ultra motion, audio, tampering; ROI up to 8 areas; privacy mask up to 4 areas
• Audio: built‑in microphone and speaker; two‑way audio; G.711 audio
• Storage: microSD (TF) up to 128 GB (card not included)
• Connectivity: 2.4 GHz Wi‑Fi (IEEE802.11b/g/n), RJ45 10/100 Mbps
• Power: DC 12 V, max consumption 5.7 W; Ø5.5 mm power plug
• Mechanical: 3‑axis adjustment (Pan 0°–360°, Tilt 0°–90°, Rotation 0°–360°); dimensions 148×78×78 mm; weight 0.31 kg
• Environment & protection: IP67, operating temperature −30 °C to +60 °C, surge protection 4 kV
• Certifications: CE EMC, CE RED, FCC, CE LVD, RoHS, WEEE
• Warranty: 24 months

How to use

Mount the UNIARCH UHOB2DM5F4D on a stable surface using the supplied bracket and screws, adjust the camera angle with the 3‑axis mechanism, and connect power via the DC 12 V adapter. For network access, connect to a 2.4 GHz Wi‑Fi network or use the Ethernet port. Insert a compatible microSD card (up to 128 GB) for local recording. Configure detection zones, Dual Light mode, and video settings through the compatible app or web interface; enable two‑way audio to communicate through the camera. Follow on‑screen instructions in the app for user accounts and remote access setup.

Usage recommendations

Install the camera at a height that balances field of view and tamper protection, avoid aiming directly at strong light sources, and use a Class 10 or higher microSD card from a reputable brand. For reliable remote access, place the camera within good 2.4 GHz Wi‑Fi range or use wired Ethernet. Regularly check firmware and app updates and store important footage off‑device if long‑term retention is required.
