header-product Glass wall thermostat Homematic IP 161570A0 — digital, black, 230 V, IP20

Glass wall thermostat Homematic IP 161570A0 — digital, black, 230 V, IP20

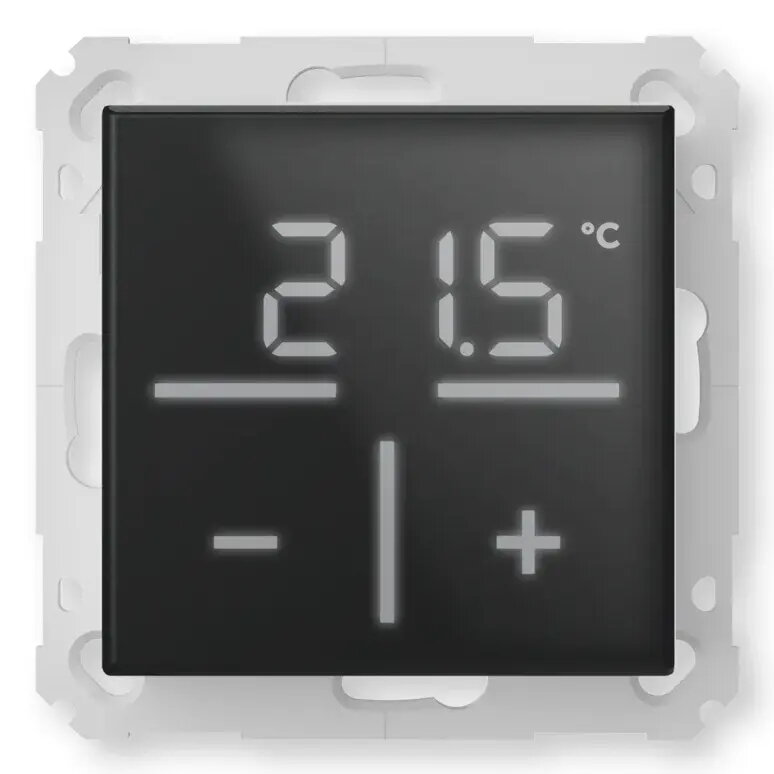

Glass wall thermostat Homematic IP 161570A0 Photo 1
Out of stock.
View similar!

Short description

HomeMatic Glass wall thermostat (model 161570A0) is a digital room thermostat in a black glass front designed for wall mounting. Operates on 230 V AC at 50 Hz, rated IP20 for indoor use. Compact and lightweight (113 g), it provides precise temperature control for heating systems and room climate regulation in homes and offices.
Warranty: 2 Years
SKU: 12046664
Manufacturer: Homematic IP
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Homematic IP Glass wall thermostat 161570A0 is a digital room thermostat with a black glass front designed for wall mounting. The device operates on 230 V AC (50 Hz) and is rated IP20 for indoor use. Compact and lightweight, it provides precise temperature control for heating systems and room climate regulation in homes and offices. The glass surface incorporates touch-sensitive controls and a discrete integrated display that shows current room temperature and relative humidity.

Advantages

The glass front offers a durable, easy-care surface that retains a high‑quality appearance over time and is suitable for frequent use. Precise temperature measurement and an integrated relay output allow direct control of 230 V drive valves or alternative loads such as lighting. The thermostat supports local touch control and can be integrated into a Homematic IP system for scheduling and remote operation, enabling individualized climate control for separate zones.

Suitable for

  • Underfloor heating systems with 230 V drive valves
  • Conventional radiators with electric drive valves
  • Electric heaters and direct 230 V loads such as lighting
  • Residential rooms and office spaces where a compact, wall‑mounted thermostat is required

Key specifications

  • Power supply: 230 V AC, 50 Hz
  • Protection rating: IP20 (indoor use)
  • Front material: black glass with touch-sensitive areas
  • Integrated display: shows room temperature and relative humidity
  • Relay output: switchable 230 V output for drive valves or other loads
  • Weight: approximately 113 g
  • Mounting: wall-mounted, compact form factor

How to use

Mount the thermostat on a suitable interior wall at typical sensor height, avoiding direct sunlight, drafts and heat sources for accurate measurements. Connect the device to the 230 V supply and wire the relay output to the intended 230 V drive valve or load following applicable electrical regulations. Use the touch-sensitive surface to set the desired temperature directly on the unit. When integrated into a Homematic IP system, use the app to configure schedules, link with other Homematic IP devices and adjust settings remotely.

Usage recommendations

For reliable temperature sensing, install the thermostat on an interior wall away from windows, radiators and doors. Use the Homematic IP app to create heating schedules for different zones and to combine the thermostat with radiator thermostats or switching actuators for energy-efficient climate control. Ensure electrical connections are performed by a qualified electrician and follow local safety standards.

All features
Type: Characteristics of the device.
Digital thermostat
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.113 kg
Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
No
Quantity: The number of products there are.
1
Product colour: The colour e.g. red, blue, green, black, white.
Black
Control type: The way in which the device is controlled.
Touch
Backlight: Product has a built-in light source for its illuminating.
Yes
Voltage:
230
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP20
AC input frequency:
50
Maximum indoor range: The maximum distance to which the signals are transmitted, when the device is used indoors.
130 m
Smart thermostat:
Yes
