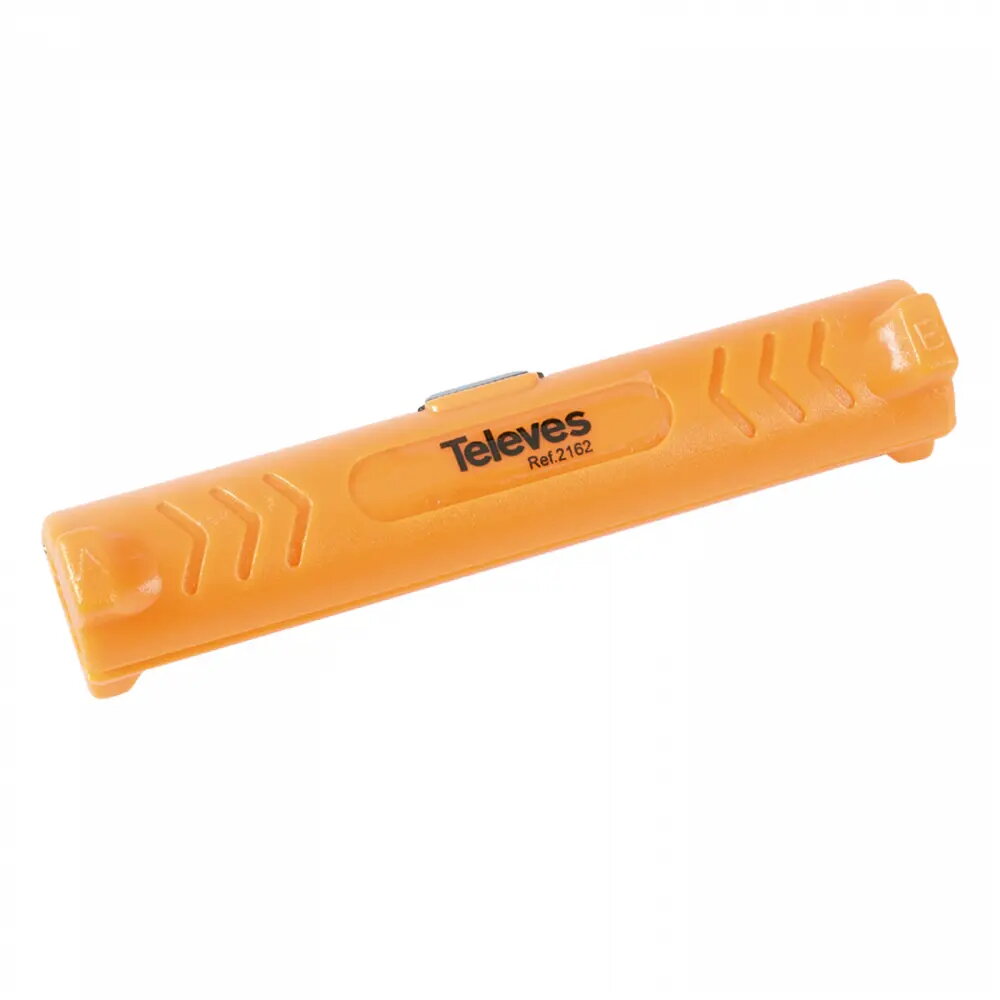

Cable stripper HP model 2162 — hand tool for insulation removal

The Cable stripper HP model 2162 is a compact handheld tool designed for removal of insulation from electrical and communication cables. It features two separate blades — one to cut the outer sheath and a second to cut the dielectric — enabling a controlled two-step stripping process. The tool is intended for precision work on single-core and multi-core wires and is suitable for on-site cable preparation, maintenance and repair where repeatable insulation stripping is required.

Advantages

The HP 2162 provides a simple mechanical design that delivers consistent stripping results without the need for power. Its two-blade configuration separates sheath cutting from dielectric cutting, reducing risk of conductor damage and improving repeatability. The compact size and lightweight construction make it easy to handle in confined spaces and convenient to carry in a technician's tool kit. The tool accommodates common sheath materials and supports cables up to a moderate outer diameter.

Suitable for

• Stripping insulation from single-core electrical wires
• Preparing multi-core communication cables for termination
• On-site maintenance and repair tasks where controlled stripping is required
• Working with coaxial cables and other cables with outer diameters up to 7.5 mm

Key specifications

• Maximum stripping capacity (insulation thickness): 1 mm
• Maximum cable outer diameter: 7.5 mm
• Two separate blades for sheath and dielectric cutting
• Suitable for PVC and PE sheaths
• Compact handheld design in orange color

How to use

Position the cable in the stripper so the outer sheath aligns with the first blade, then rotate or slide the tool according to the tool's built-in guidance to cut the sheath. After removing the outer sheath, align the dielectric with the second blade and perform the second cut to expose the conductor without nicking it. Perform stripping in small increments and inspect the conductor visually after each cut to confirm no damage. Use steady hand pressure and maintain the correct alignment between the cable and blades for repeatable results.

Usage recommendations

For best results, use the HP 2162 on cables within the specified diameter and insulation thickness limits and on recommended sheath materials (PVC, PE). Clean blades periodically and inspect them for wear; replace the tool if blades show significant damage. When working with live circuits, ensure power is disconnected and follow appropriate safety procedures.
