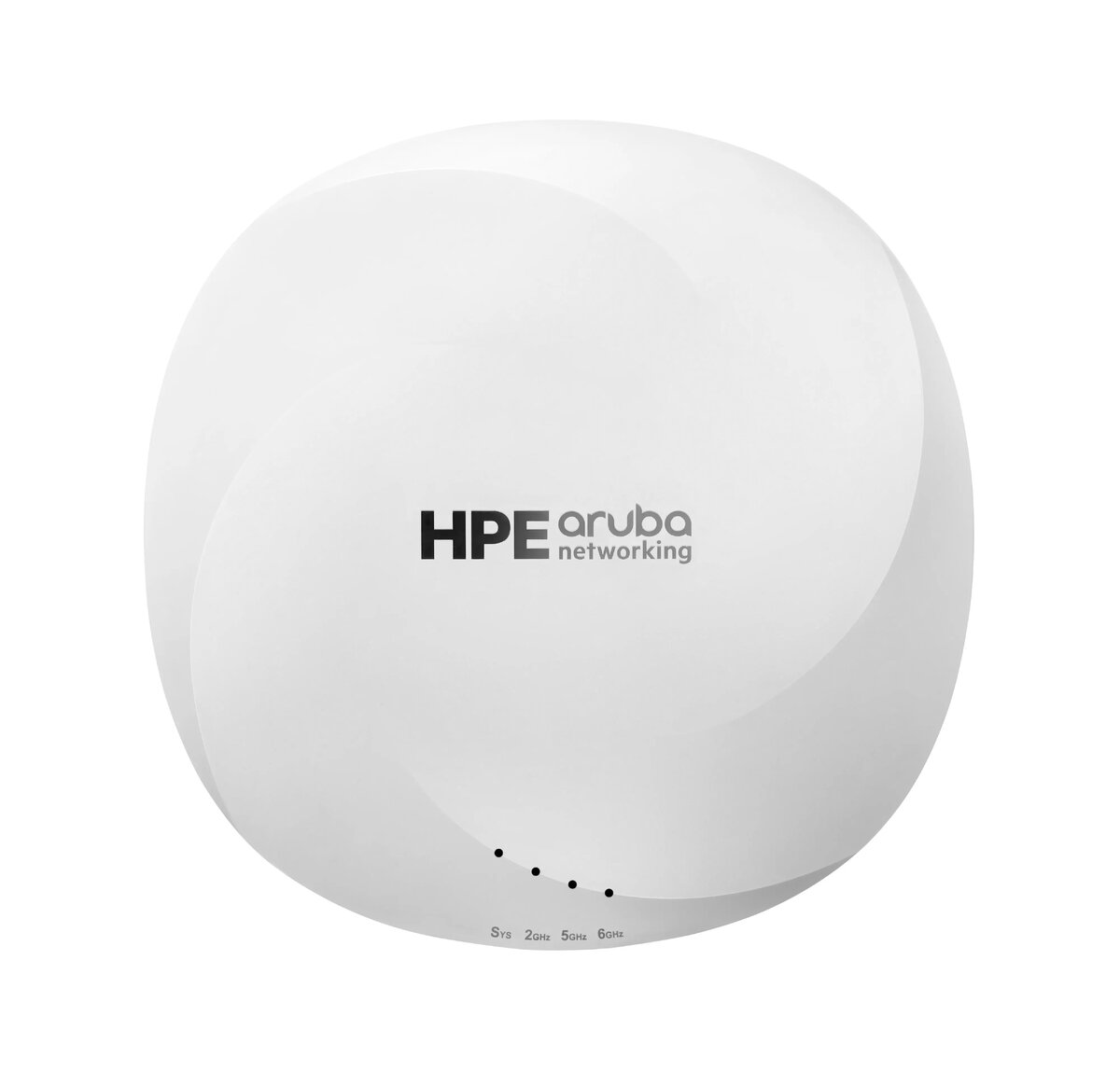

Wireless Access Point HP Enterprise Aruba AP-615-RW Dual-Radio Tri-Band Wi‑Fi 6E 2x2 Internal Antennas

The HP Enterprise Aruba AP-615-RW is a dual‑radio, tri‑band Wi‑Fi 6E campus access point designed for ceiling or wall installation in enterprise environments. It supports the 2.4 GHz, 5 GHz and 6 GHz bands and delivers up to 2400 Mbit/s wireless throughput on supported bands. The AP includes internal 2x2 MU‑MIMO antennas, a single RJ‑45 Ethernet port with Power over Ethernet (PoE) support, and enterprise-grade security and location capabilities.

Advantages

Support for the 6 GHz band increases available capacity and enables more wide channels for bandwidth‑intensive applications, while dual‑radio operation lets the device be tuned to any two of the three Wi‑Fi bands for flexible coverage. Built‑in GPS receivers and fine time measurement allow automatic self‑location to serve as reference points for accurate indoor positioning. The AP is energy efficient and can operate from a standard 802.3af (Class 3) PoE source.

Suitable for

• Enterprise offices and campus buildings requiring modern Wi‑Fi 6E coverage
• Environments with high density of client and IoT devices
• Indoor deployments prioritizing low latency and high bandwidth (video streaming, AR/VR)
• Ceiling or wall mounting in corporate, education, or healthcare facilities

Когда не подходит

Устройство ориентировано на внутренние настенные или потолочные установки и не предназначено для использования в условиях открытой уличной среды без дополнительной защиты. Для сетей, где требуется большее количество одновременных пространственных потоков или внешние направленные антенны, модель с большим числом радиоинтерфейсов или внешними антеннами может быть предпочтительнее.

Key specifications

• Wireless standard: IEEE 802.11ax (Wi‑Fi 6E) with IEEE 802.11mc support
• Radio configuration: Dual‑radio, tri‑band capable (2.4 GHz, 5 GHz, 6 GHz)
• Throughput: up to 2400 Mbit/s wireless
• Antennas: internal 2x2 MU‑MIMO
• Security: WPA, WPA2, WPA3, WPA3‑SAE
• Ethernet: 1 × RJ‑45 port with PoE support (802.3af Class 3 compatible)
• Physical colour: white
• Weight: 0.72 kg

How to use

Mount the AP on a ceiling or wall at a central location for optimal coverage, connect the RJ‑45 Ethernet port to a PoE switch or injector to provide both network connectivity and power, and adopt your chosen Aruba or HP Enterprise management platform to provision SSIDs, security (WPA2/WPA3), band assignment and location services. For multi‑AP deployments enable tri‑band coverage across access points so that full 2.4/5/6 GHz coverage is available to clients.

What to consider before purchase

• Ensure client devices support Wi‑Fi 6E (6 GHz) to benefit from the additional capacity
• Confirm PoE source meets 802.3af (Class 3) requirements for operation
• Plan antenna coverage and AP density for areas with high device density or bandwidth needs
• Verify management and controller compatibility with your existing Aruba/HP Enterprise network systems

Usage recommendations

Place APs to avoid physical obstructions and group high‑bandwidth clients near APs using the 6 GHz band; enable enterprise security (WPA3) and use centralised management for firmware updates, channel planning and location services to maximise performance and accurate indoor positioning.
