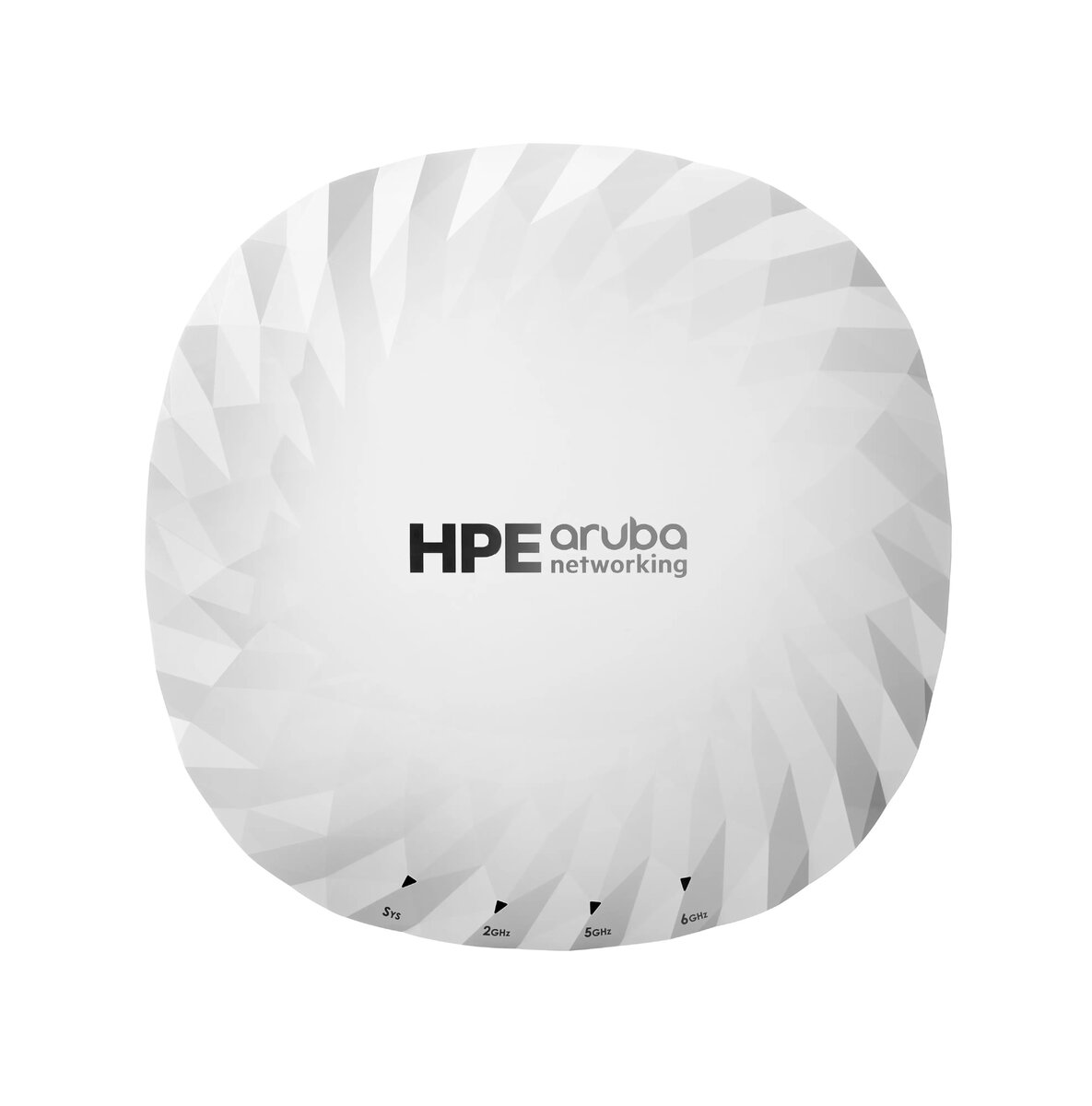

Access Point HP Enterprise Aruba AP-725 Tri-Radio Wi‑Fi 7 2x2 Internal Antennas 10-pack

HP Enterprise Aruba AP-725 Tri-Radio Wi‑Fi 7 2x2 Internal Antennas 10-pack is a compact indoor campus access point bundle designed for dense enterprise and campus deployments. The AP-725 supports Wi‑Fi 7 (IEEE 802.11be) and provides tri-band operation across 2.4 GHz, 5 GHz and 6 GHz with three 2x2 MIMO radios and internal antennas. Supplied as a 10-pack, this unit is intended for multi-location coverage where high capacity, client segmentation and simplified management are required. The AP includes a 2.5 Gbps Ethernet port and a configurable IoT radio that can operate as Bluetooth or 802.15.4/Zigbee, and it supports Power over Ethernet (IEEE 802.3af/at).

Advantages

The AP-725 delivers Wi‑Fi 7 performance with up to 4.7 Gbps aggregate throughput across its three bands, enabling higher per-client data rates and improved network efficiency in high-density environments. Tri-radio design separates client traffic and scanning functions to maintain consistent service while supporting location-aware features and IoT connectivity. Integrated 2x2 radios and internal antennas provide a compact footprint suitable for indoor mounting. The access point integrates with HPE Aruba Networking Central for AI-driven orchestration, automation and monitoring to streamline deployment and ongoing operations.

Suitable for

• Enterprise and campus indoor coverage in high-density areas (lecture halls, office floors)
• Multi-SSID environments requiring client segmentation and secure access
• Deployments needing concurrent support for Wi‑Fi 6/6E/7 clients and IoT devices (Bluetooth or Zigbee)
• Locations requiring centralized management and AI-based network insights

Key specifications

• Wireless standard: IEEE 802.11be (Wi‑Fi 7) with backward compatibility
• Radio configuration: Tri‑radio, three 2x2 MIMO radios covering 2.4 GHz, 5 GHz and 6 GHz
• Maximum aggregate data rate: Up to 4.7 Gbps across all bands
• Ethernet: 2.5 Gbps wired port (supports PoE IEEE 802.3af/at)
• IoT radio: Flexible integrated radio configurable for Bluetooth or 802.15.4/Zigbee
• Antennas: Internal antennas, compact indoor form factor
• Deployment: Fixed indoor access point, part of low power indoor (LPI) device class
• Management: Compatible with HPE Aruba Networking Central for orchestration and AI insights

How to use

Install the AP-725 on indoor ceilings or walls following the manufacturer’s mounting instructions and connect to the wired network using the 2.5 Gbps Ethernet port. Power the device via PoE (IEEE 802.3af/at) or compatible power injector. Use Aruba Networking Central or on-premises controllers to provision SSIDs, security policies and IoT radio configuration. Configure the IoT radio for Bluetooth or Zigbee operation as required for connected sensors or asset-tracking devices. Apply VLANs and access policies to separate client traffic and enable location services and monitoring features through the management platform.

Usage recommendations

For optimized performance in high-density campus areas, position access points to ensure overlapping but not excessive coverage, enable proper band steering and airtime fairness, and use Aruba Networking Central for AI-driven channel and power optimization. Ensure PoE provisioning on switches meets the device power requirements and configure the IoT radio only where IoT services are needed to reduce interference in the 2.4 GHz band.
