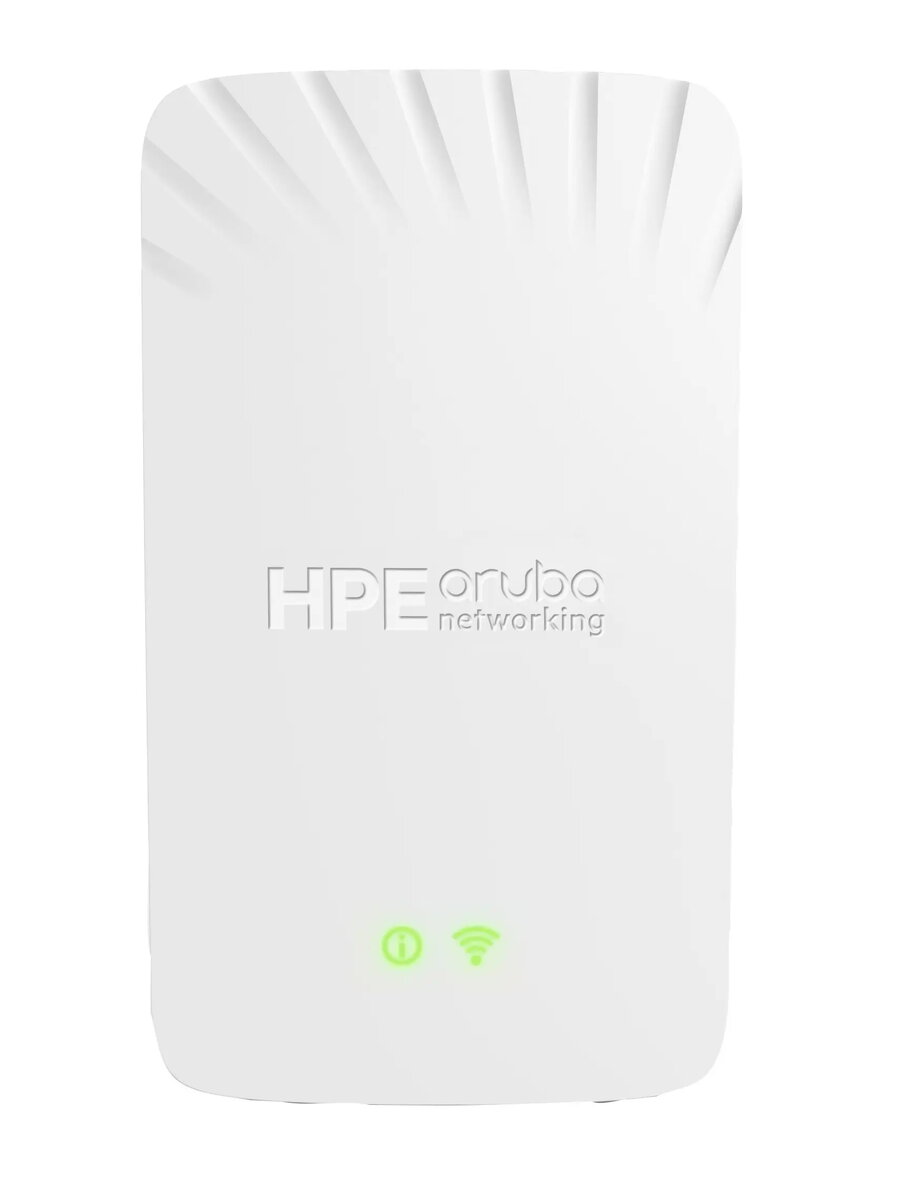

Access Point HPE Aruba AP-505H Dual‑Radio 802.11ax 2x2 Hospitality with 1+4 Ethernet PSE and USB

HPE Aruba AP-505H Dual‑Radio 802.11ax 2x2 Hospitality is a compact Wi‑Fi 6 access point designed for hospitality and other high‑density indoor deployments. The device supports dual‑band operation on 2.4 GHz and 5 GHz with 2x2 spatial streams and a combined maximum data rate up to 1.49 Gbps. Built for hotels, residence halls and remote offices, the AP-505H integrates wired connectivity with 1+4 Ethernet ports that include Power Sourcing Equipment (PSE) functionality, a USB port, Bluetooth 5 and Zigbee readiness, plus support for modern security standards including WPA3 and Enhanced Open.

Advantages

The AP-505H delivers cost‑effective Wi‑Fi 6 performance with OFDMA and Target Wake Time for improved multi‑user efficiency and longer battery life of connected IoT devices. Its built‑in security features such as WPA3 and Enhanced Open increase protection for guests and open networks. Zero touch provisioning (ZTP) simplifies large or distributed rollouts, while integrated PSE on Ethernet ports and PoE power support reduce the need for extra power infrastructure. The compact form factor and optional deployment accessories allow flexible installation in hospitality environments.

Suitable for (tasks / use cases)

• Guest Wi‑Fi in hotels, motels and resorts
• Residence halls, serviced apartments and short‑stay accommodation
• Small branch offices and remote workspaces requiring managed Wi‑Fi
• Meeting rooms and common areas with moderate to high device density
• IoT device connectivity using Bluetooth 5 and Zigbee

When it may not be suitable

This access point is optimized for hospitality and similar indoor scenarios with moderate to high user density; it is a 2x2 Wi‑Fi 6 device and therefore does not provide the higher spatial stream counts or peak throughput of enterprise multi‑radio models designed for very large open spaces or outdoor coverage. Environments that require advanced antenna arrays, outdoor-rated enclosures, or multi‑gigabit wired backhaul may need a different AP model.

Key specifications

• Wireless standard: IEEE 802.11ax (Wi‑Fi 6) with backward compatibility
• Spatial streams: 2x2 (2 transmit, 2 receive)
• Frequency bands: 2.4 GHz and 5 GHz
• Maximum combined data rate: up to 1.49 Gbps
• Per‑band nominal rates: 2.4 GHz up to 287 Mbps, 5 GHz up to 1200 Mbps
• Security: WPA, WPA2, WPA3, Enhanced Open (OWE)
• Multi‑user features: OFDMA, Target Wake Time (TWT)
• Wired connectivity: 1+4 Ethernet ports with PSE support; PoE powered
• USB port: available for accessory or wired device connectivity
• IoT: Bluetooth 5 and Zigbee support (IoT‑ready)
• Antennas: 2 internal integrated antennas

How to use

Install the AP-505H in a central indoor location near the wired network backbone and connect it to the network using PoE or a local power source. Use the vendor provisioning tools or Zero Touch Provisioning to enroll the device into the Aruba management platform and apply site policies and SSID configurations. Configure SSIDs, security settings (WPA3/Enhanced Open as required), and any VLAN or dynamic segmentation policies for guest and staff networks. Optionally connect USB accessories or provision the Ethernet PSE ports for downstream powered devices. Monitor performance and adjust channel and power settings from the central management console to maintain coverage and capacity.

What to consider before purchase

• Confirm site backhaul capacity and switch PoE budget to support AP and any downstream PSE power requirements
• Check expected client density and throughput needs — a 2x2 AP is suited for moderate to high density, not extreme high‑capacity arenas
• Plan for indoor mounting locations with good RF coverage and minimal obstructions
• Decide whether Bluetooth/Zigbee IoT support and USB connectivity are required for your deployment

Usage recommendations

For hospitality environments, deploy AP-505H units in corridors, lobbies and guest rooms to provide consistent Wi‑Fi 6 coverage; use central management to enable WPA3 for private networks and Enhanced Open for guest access. Reserve VLANs or dynamic segmentation for guest traffic and leverage OFDMA/TWT features to improve multi‑user performance and battery life of connected IoT devices.
