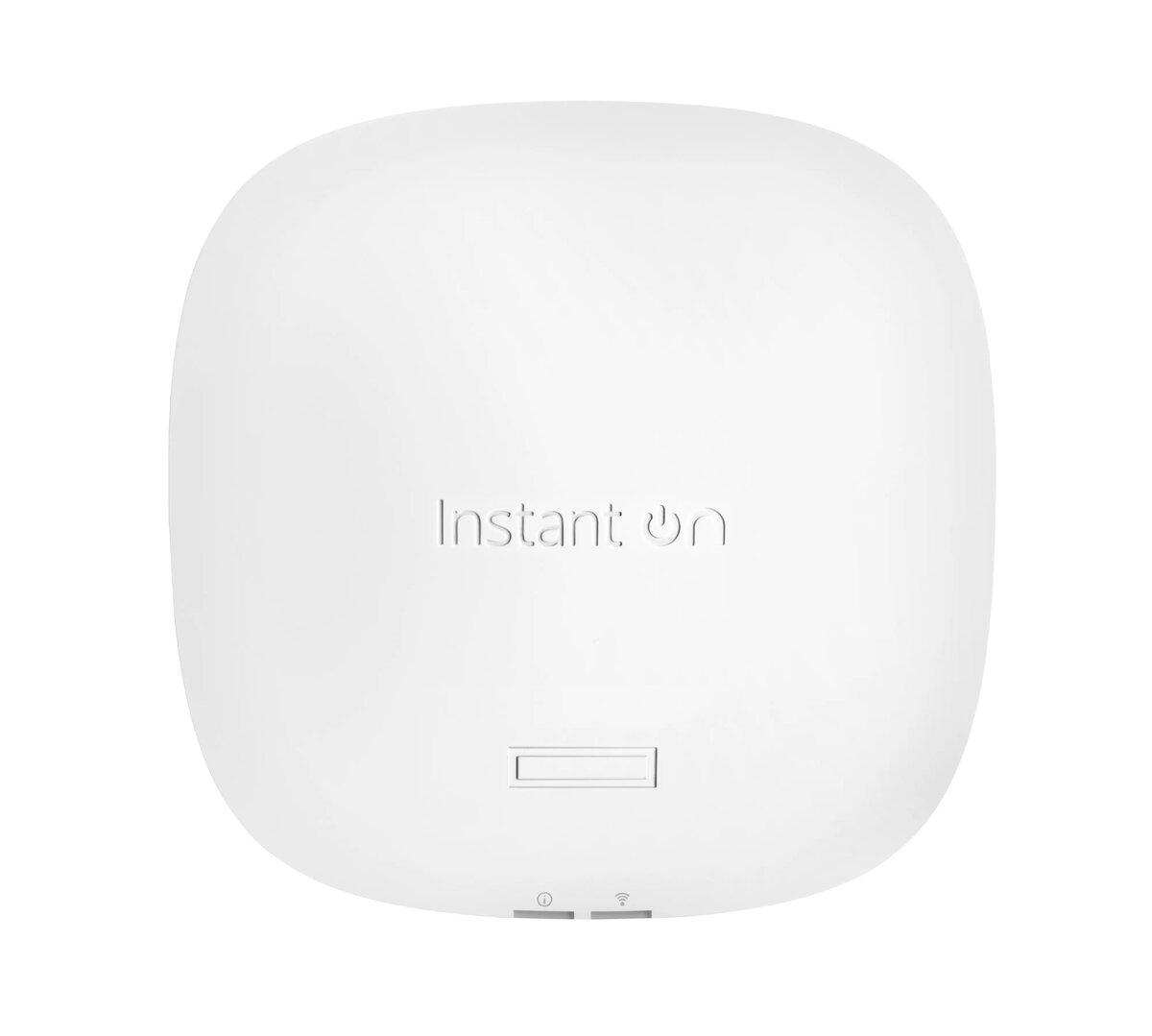

Indoor Wi‑Fi 6 Access Point HP Aruba Instant On AP25 — 4x4, Dual‑Band 2.4/5 GHz, 4800 Mbps, 2.5GbE, PoE

HP Aruba Instant On AP25 is an indoor Wi‑Fi 6 access point designed to deliver higher throughput, increased client capacity and lower latency for small offices, retail locations and hospitality environments. The AP25 supports dual‑band 2.4/5 GHz operation with up to four spatial streams (4x4) and Wi‑Fi 6 features such as OFDMA, MU‑MIMO and Target Wake Time, enabling improved performance for mixed client types and future mobile or IoT deployments. The unit includes a 2.5 GbE uplink and Power over Ethernet support in a white internal housing with typical power consumption up to 20.1 W.

Advantages

The AP25 provides increased wireless capacity and higher per‑client throughput through Wi‑Fi 6 technologies including OFDMA and MU‑MIMO, and supports wider channel bandwidths for greater aggregate data rates. Integrated 2.5 GbE uplink and PoE simplify installation and reduce the need for separate power cabling. Multiple security options are supported, including WPA2, WPA3 and Enhanced Open (OWE) for flexible employee and guest access. Management is available locally via the Instant On mobile app or remotely through the cloud‑based web portal, enabling straightforward setup and ongoing administration.

Suitable for

• Small office networks requiring higher capacity and low latency wireless
• Retail stores with multiple customer devices and point‑of‑sale terminals
• Hospitality areas such as hotel lobbies and meeting rooms
• Environments preparing for increased mobile and IoT device density

Key specifications

• Wireless standard: IEEE 802.11ax (Wi‑Fi 6)
• Radio configuration: Dual‑band 2.4 GHz and 5 GHz, 4x4 spatial streams
• Peak data rates: up to 574 Mbps on 2.4 GHz and up to 4800 Mbps on 5 GHz (aggregate throughput quoted by vendor)
• Channel bandwidth support: up to 160 MHz (HE160)
• Advanced features: OFDMA, MU‑MIMO, Target Wake Time (TWT)
• Security: Enhanced Open (OWE), WPA2, WPA3
• Uplink: 2.5 Gigabit Ethernet port
• Power: Power over Ethernet (PoE) support; typical max power consumption ~20.1 W
• Mounting: Indoor, ceiling or wall placement in white internal housing

How to use

Unpack the AP25 and mount it indoors on a ceiling or wall in a central location for optimal coverage. Connect the 2.5 GbE uplink to your network switch or router and provide power via a compatible PoE switch or injector. Use the Instant On mobile app for initial setup or configure remotely via the cloud web portal to create SSIDs, define security settings (WPA2/WPA3/OWE) and apply guest access policies. Monitor device health, client associations and throughput through the app or portal and apply firmware updates when available.

Usage recommendations

Place access points to minimize physical obstructions and avoid locating them near large metal surfaces or sources of RF interference. For environments with dense client populations, enable Wi‑Fi 6 features such as OFDMA and TWT, and consider using 160 MHz channel width in the 5 GHz band only where regulatory constraints and neighboring networks permit. Use a PoE switch that provides sufficient power budget and a 2.5 GbE capable uplink where higher backhaul throughput is required.
