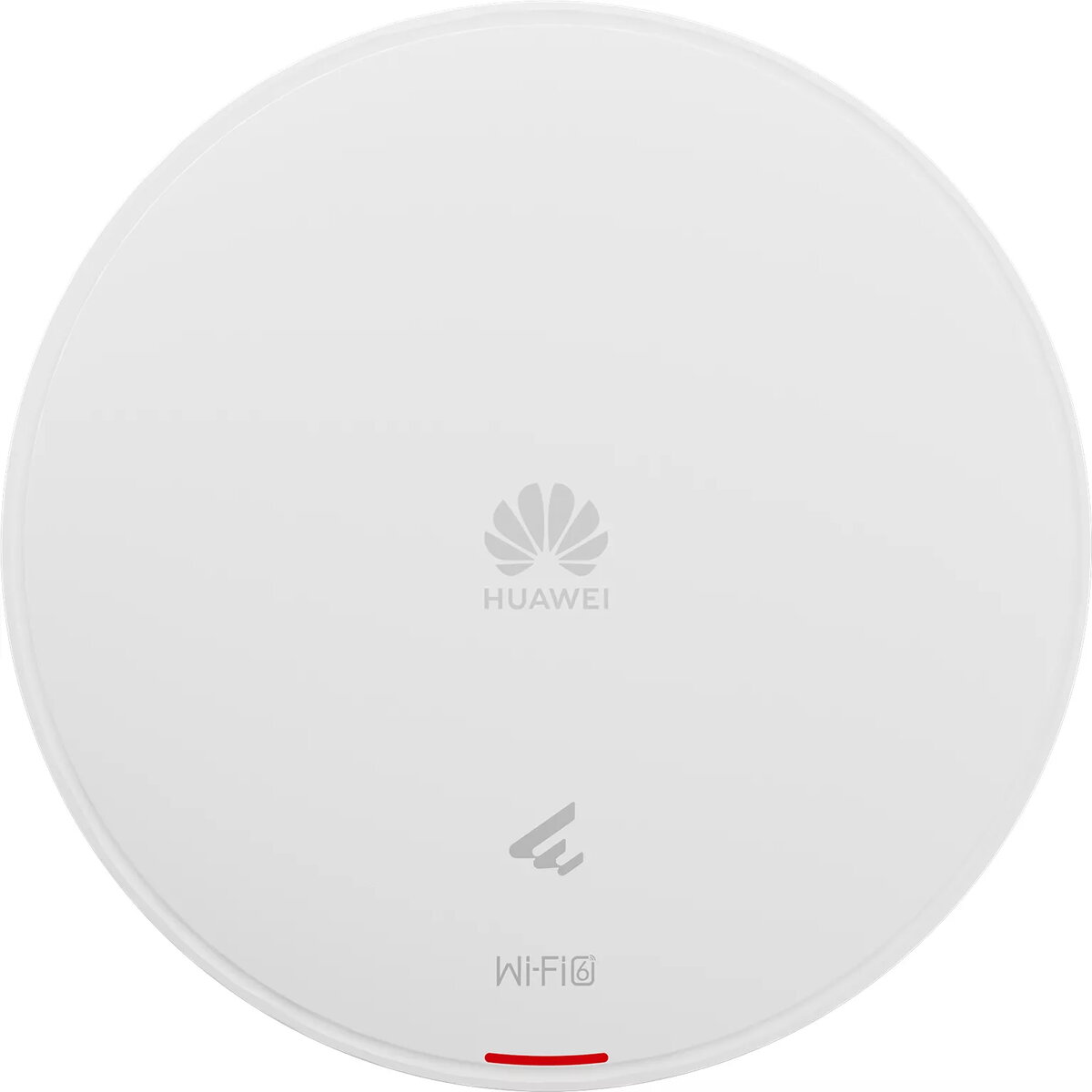

Access Point HUAWEI eKit AP661

Name: Access Point HUAWEI eKit AP661 02355VFC
Brand: HUAWEI
SKU: 10923785
Price: 180.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Access Point HUAWEI eKit AP661 2.4 GHz 5 GHz Wi-Fi 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The HUAWEI eKit AP661 is a high-performance access point supporting dual-band Wi-Fi 6 with a maximum data transfer rate of 6575 Mbit/s. It features advanced security protocols including WPA3, ensuring secure connections. With Power over Ethernet (PoE) capability, it simplifies installation and reduces cable clutter. Ideal for high-density environments, it offers Ethernet LAN data rates of 1000 and 2500 Mbit/s, making it perfect for demanding applications.

Available for order: 23 pcs.

Warranty: 2 Years

SKU: 10923785

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

08.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

08.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 60.16 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 5.01 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The HUAWEI eKitEngine AP661 is an indoor access point that supports Wi‑Fi 6 (IEEE 802.11ax) and delivers combined multi‑band throughput up to 6.575 Gbps. It operates simultaneously on 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO) and a second 5 GHz (4x4 MIMO) radio, and includes built‑in smart antennas to maintain stable wireless coverage for high‑density environments. The device supports modern security protocols and offers Power over Ethernet (PoE) and multi‑gigabit Ethernet ports for flexible deployment.

Advantages

The AP661 provides high aggregated device bandwidth (up to 6575 Mbit/s) across multiple radios, reducing congestion in dense user scenarios. Built‑in smart antennas improve signal consistency and user experience. Dual Ethernet LAN ports including multi‑gigabit capability and PoE support simplify installation and backhaul connectivity. Compliance with Wi‑Fi 6 and backward compatibility with earlier 802.11 standards ensures broad client support.

Suitable for

Mobile offices and corporate workspaces
Educational facilities and lecture halls
Stadiums, arenas and other high‑density public venues
Retail spaces and conference rooms

Key specifications

Wireless standard: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
Maximum data transfer rate: 6575 Mbit/s
Radio configuration: 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO) and 5 GHz (4x4 MIMO)

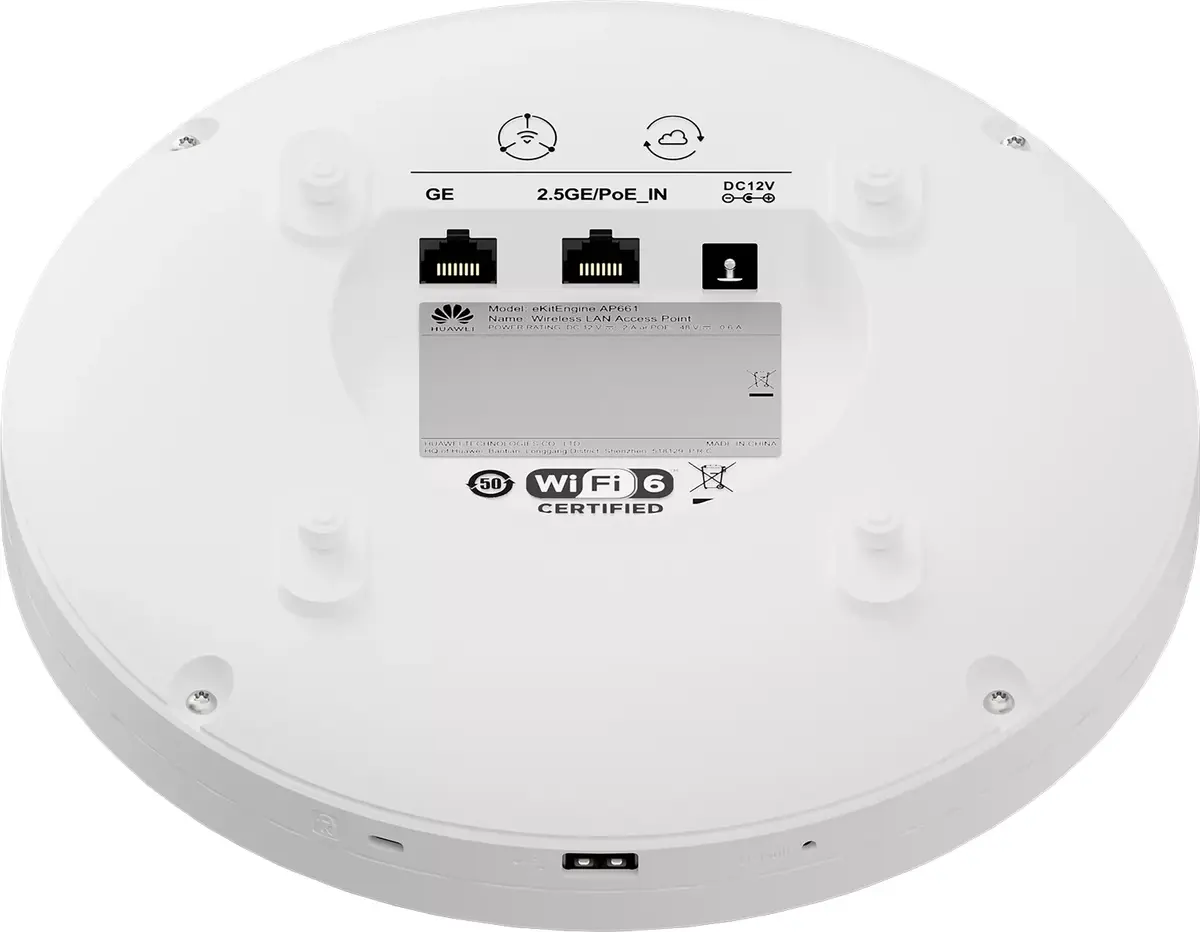

Ethernet LAN (RJ‑45) ports: 2 (including multi‑gigabit support)
Product colour: White
Weight: 1.08 kg
MPN / EAN: 02355VFC / 6901443451272

How to use

Mount the AP661 in an indoor location with good line of sight to client devices and connect it to network power via a compatible PoE switch or injector. Attach the Ethernet cable to the RJ‑45 port and complete initial configuration using the vendor management interface or central controller according to site network policies. Configure SSIDs, security (for example WPA3), VLANs and QoS settings as required for the deployment.

Usage recommendations

Place the access point centrally in coverage areas and avoid large metal obstacles. For high‑density deployments, plan channel and power settings, and use controller‑based management to optimise roaming, load balancing and interference mitigation.

Specifications

Ethernet LAN (RJ-45) ports:: 2
Weight:: 1.08 kg
Maximum data transfer rate:: 6575 Mbit/s
Networking standards:: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11a
Product colour:: White

All features

Power

Power over Ethernet (PoE):: Yes
DC voltage range:: 12

Ports & interfaces

USB 2.0 ports quantity:: 1
Ethernet LAN (RJ-45) ports:: 2
DC-in jack:: Yes

Management features

Web-based management:: Yes

Protocols

DHCP client:: Yes

Security

Security algorithms:: 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2, WPA3
MAC address filtering:: Yes
Access Control List (ACL):: Yes
IP address filtering:: Yes
Whitelist:: Yes
Blacklist:: Yes
DHCP snooping:: Yes

Design

LED indicators:: Y
Product colour:: White
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP41
Placement:: Ceiling, Wall

Features

Maximum data transfer rate:: 6575 Mbit/s
Networking standards:: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11a
Bluetooth:: Yes
Flow control support:: Yes
Quality of Service (QoS) support:: Yes
Ethernet LAN data rates:: 1000, 2500
Auto MDI/MDI-X:: Yes
VLAN support:: Yes
2.4 GHz:: Yes
5 GHz:: Yes
Wi-Fi Multimedia (WMM)/(WME):: Yes
MIMO:: Yes
Maximal-Ratio Combining (MRC):: Yes
Cyclic Delay Diversity (CDD):: Yes
Cyclic Shift Diversity (CSD):: Yes
Dynamic Frequency Selection (DFS):: Yes
Automatic channel scanning:: Yes
Fast roaming:: Yes
Duplex mode auto-negotiation:: Yes
Maximum data transfer rate (2.4 GHz):: 575 Mbit/s
Maximum data transfer rate (5 GHz):: 6000 Mbit/s
Bluetooth Low Energy (BLE):: Yes
BeamForming:: Yes
6 GHz:: No
Spatial streams:: 8

Antenna

Antenna type:: Internal
Antenna gain level (max):: 5 dBi

Operational conditions

Operating altitude:: -60 - 5000
Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: -10 - 50

Weight & dimensions

Weight:: 1.08 kg
Height:: 50 mm
Width:: 220 mm
Depth:: 220 mm

Packaging content

Quantity per pack:: 1 pc(s)
