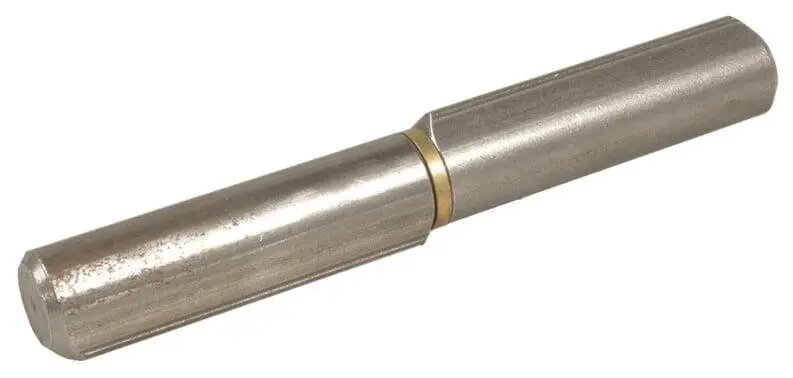

IBFM 414 Weld-on Door Hinge 120mm

The IBFM 414 weld-on door hinge is a high-quality hardware solution engineered for the secure mounting of metal doors and gates. Measuring 120mm in length, this hinge is constructed from durable steel and brass, ensuring long-lasting performance and structural reliability in demanding environments. Its weldable design allows for a permanent attachment to metal surfaces, providing a stable pivot point that facilitates smooth and consistent operation for heavy-duty applications.

Advantages

This hinge offers exceptional durability due to its robust metal construction, which is specifically designed to withstand the stresses of frequent use in both industrial and residential settings. The weld-on installation method creates a seamless and tamper-resistant connection, ensuring that the door or gate remains securely fixed to its frame over time. With its universal opening direction, the hinge provides versatile installation options, while its precise engineering ensures that doors operate quietly and efficiently without sagging or misalignment.

Suitable for

• Metal entrance doors
• Industrial gates and barriers
• Residential metal fencing
• Heavy-duty workshop doors

This product may not be suitable for installation on wooden or PVC doors, as the weld-on design requires a metal substrate for proper attachment. It is also not intended for lightweight interior doors where a screw-in hinge would be more appropriate and easier to install.

Key specifications

• Length: 120mm
• Diameter: 16mm
• Material: Steel and brass
• Load capacity: Up to 60 kg per pair
• Mounting type: Weld-on
• Opening direction: Universal

To install the IBFM 414 hinge, ensure the metal surfaces of the door and the frame are clean and free of paint or rust. Position the hinge accurately to ensure proper alignment, then use professional welding equipment to attach the hinge leaves to the metal structure. It is essential to verify that the hinges are perfectly vertical to prevent binding during operation. Once welded, allow the metal to cool completely before applying any protective coating or paint to the weld area.

What to consider before purchase

• Verify that the door frame and door material are suitable for welding.
• Ensure the total weight of the door does not exceed the 60 kg limit for a pair of hinges.
• Confirm that you have access to appropriate welding tools and safety equipment.

For optimal performance and longevity, it is recommended to apply a suitable anti-corrosion paint or finish to the weld points immediately after installation to prevent oxidation.
