Pixel pitch:
-
0.43 x 0.43
-
Contrast ratio (typical):
-
5000:1
-
Horizontal scan range:
-
30 - 135
-
Viewing angle, horizontal:
-
178 °
-
Viewing angle, vertical:
-
178 °
-
Weight:
-
54.6 kg
-
Wi-Fi standards:
-
Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n), 802.11b, 802.11a
-
Power consumption (typical):
Power consumption in switched-on state expressed in W.
-
191 W
-
User controls:
-
personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device)
-
Power supply type:
-
Internal
-
Mean time between failures (MTBF):
-
50000 h
-
Compatible memory cards:
-
MicroSD (TransFlash)
-
Products per pallet:
-
4 pc(s)
-
Storage temperature (T-T):
-
-20 - 60
-
Package weight:
-
67600 g
-
Display diagonal:
iagonal of the visible part of the screen expressed in centimeters and inches.
-
75 "
-
Built-in microphone:
-
Yes
-
Operating temperature (T-T):
-
0 - 40
-
Bluetooth version:
-
5.0
-
Ethernet LAN:
-
Yes
-
Display brightness:
-
550 cd/m²
-
Height:
-
1036.3 mm
-
Response time:
-
6.5 ms
-
Display resolution:
-
3840 x 2160
-
Width:
-
1710.2 mm
-
Depth:
-
87.1 mm
-
Remote control included:
-
Yes
-
USB connector type:
-
USB Type-A, USB Type-C, USB Type-B
-
Product colour:
-
Black
-
Cables included:
-
AC, USB, HDMI
-
Number of built-in speakers:
-
2
-
RMS rated power:
-
60 W
-
Power consumption (off):
-
0.3 W
-
Power consumption (standby):
-
0.5 W
-
Bluetooth:
-
Yes
-
Ethernet LAN (RJ-45) ports:
-
2
-
Built-in speaker(s):
-
Yes
-
Compatible operating systems:
-
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
-
Purpose:
-
Education
-
On Screen Display (OSD):
-
Yes
-
Picture-in-Picture:
-
Yes
-
Operating system installed:
-
Android
-
Wi-Fi:
-
Yes
-
Card reader integrated:
-
Yes
-
Placement supported:
-
Indoor
-
HDMI ports quantity:
-
3
-
Ethernet LAN data rates:
-
1000
-
Package depth:
-
185 mm
-
Package height:
-
1125 mm
-
Package width:
-
1860 mm
-
Quick start guide:
-
Yes
-

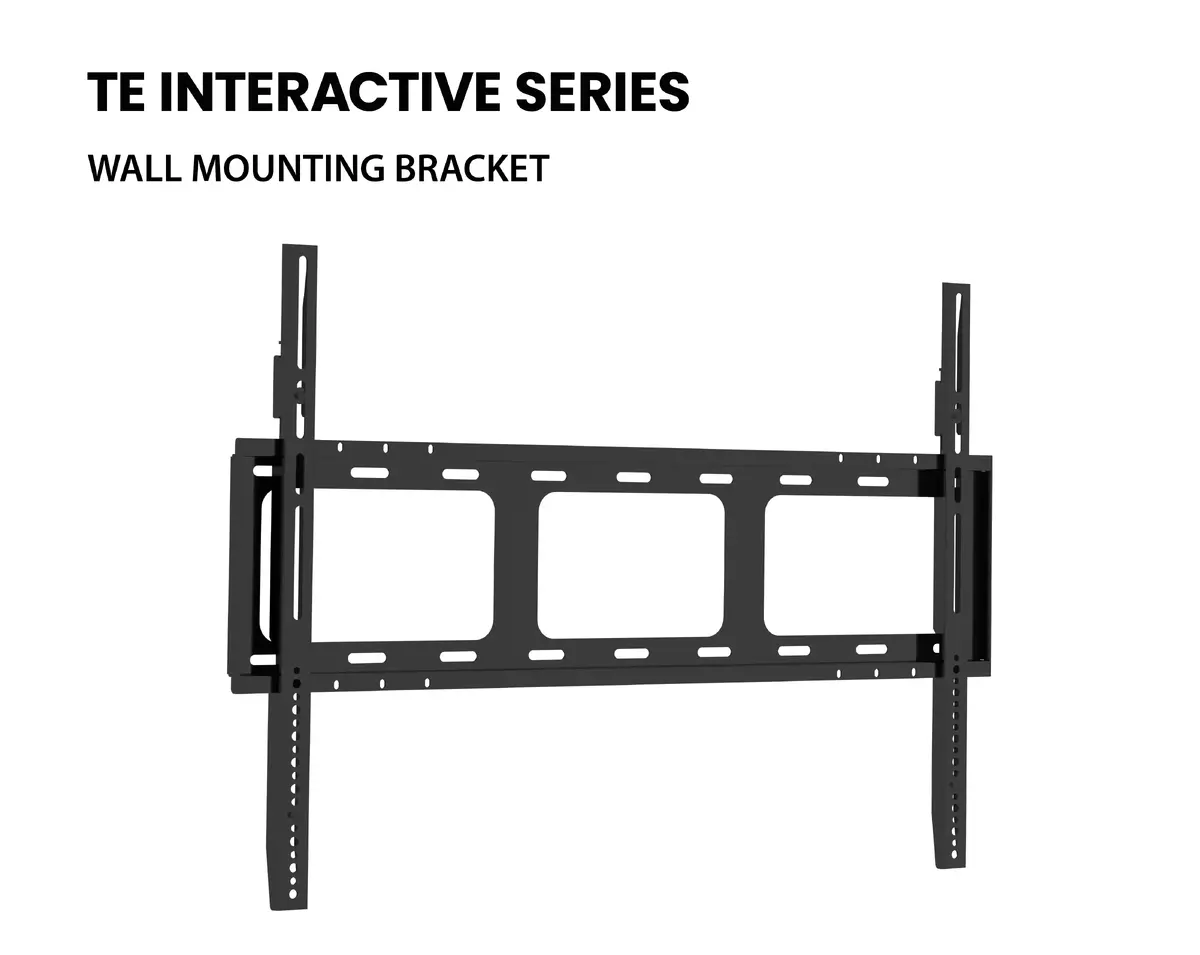

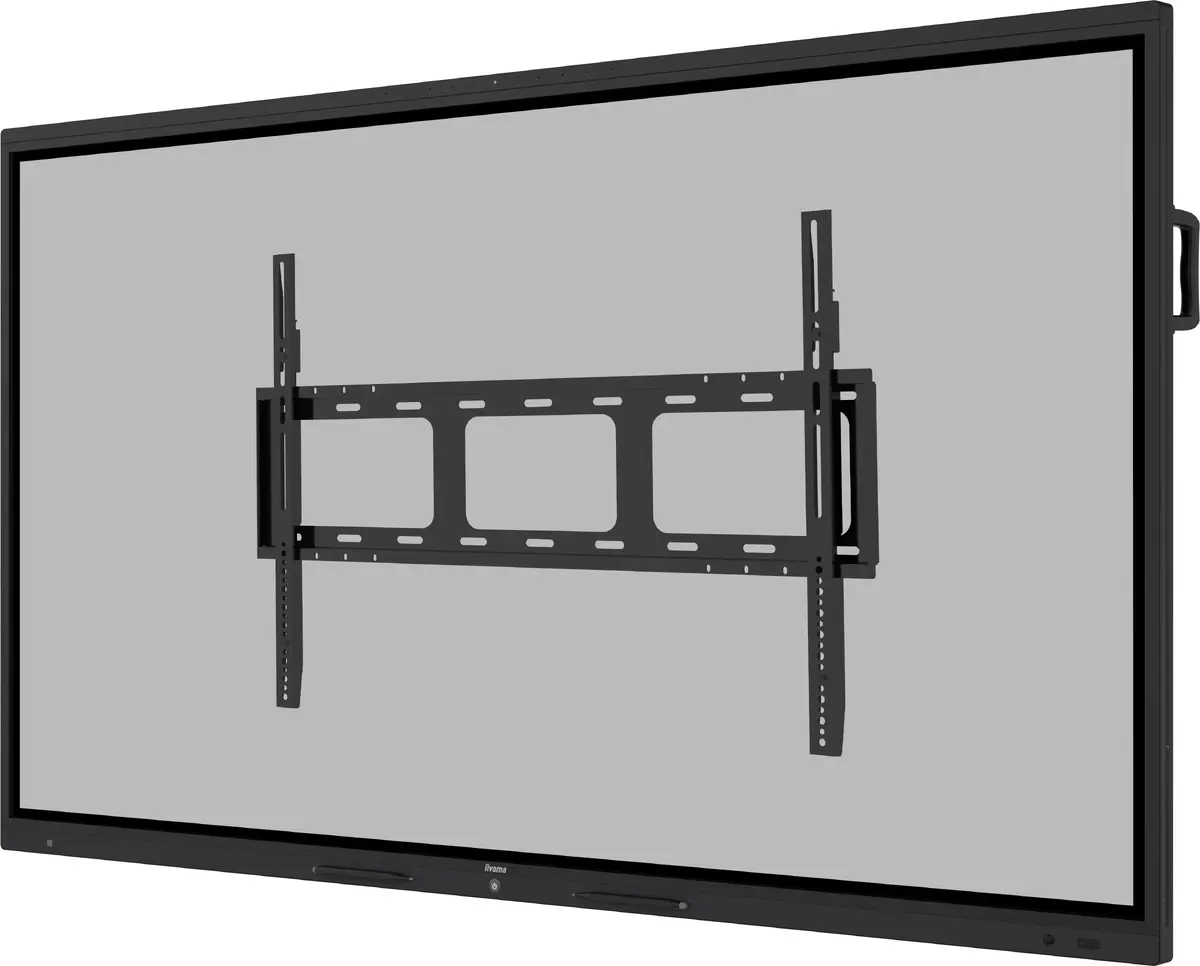

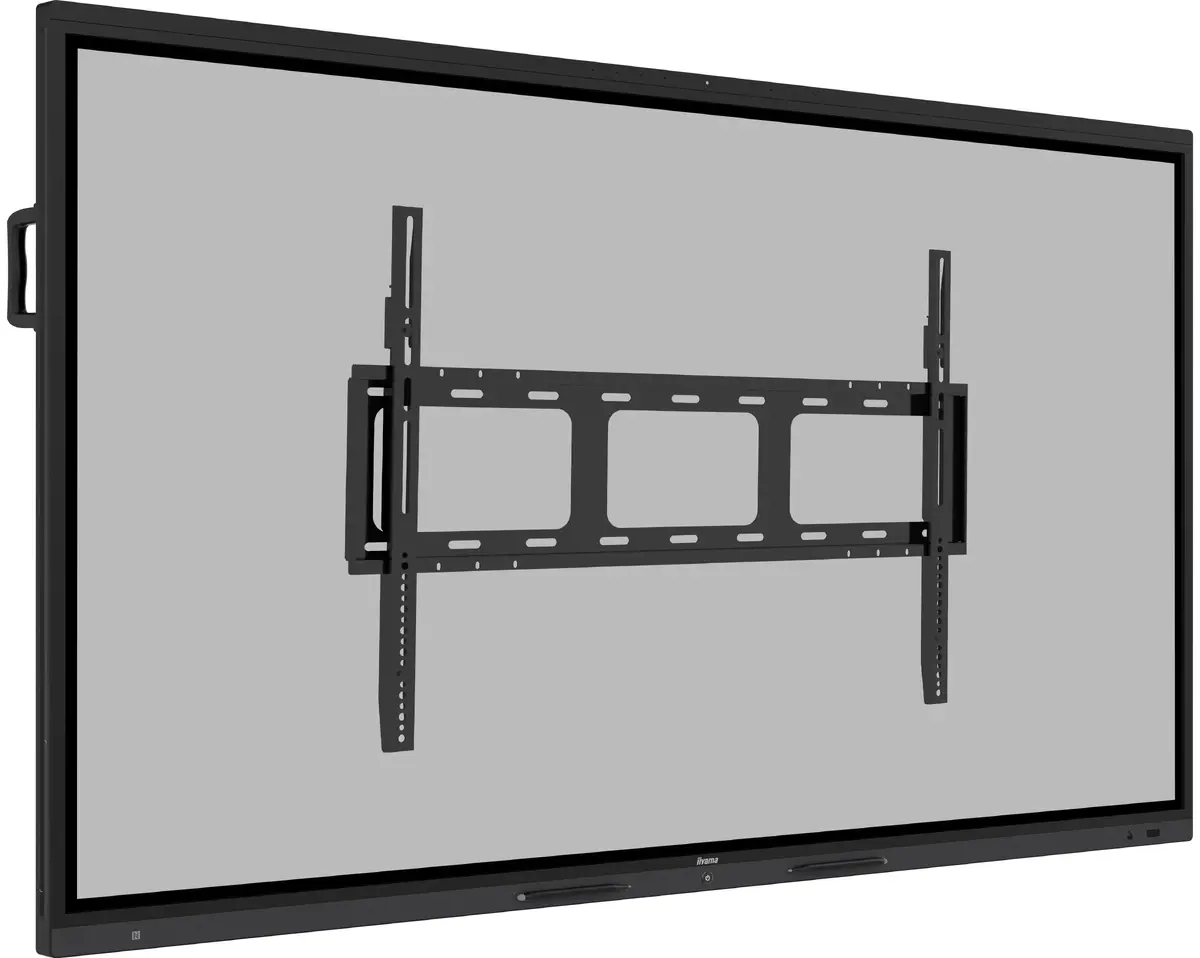

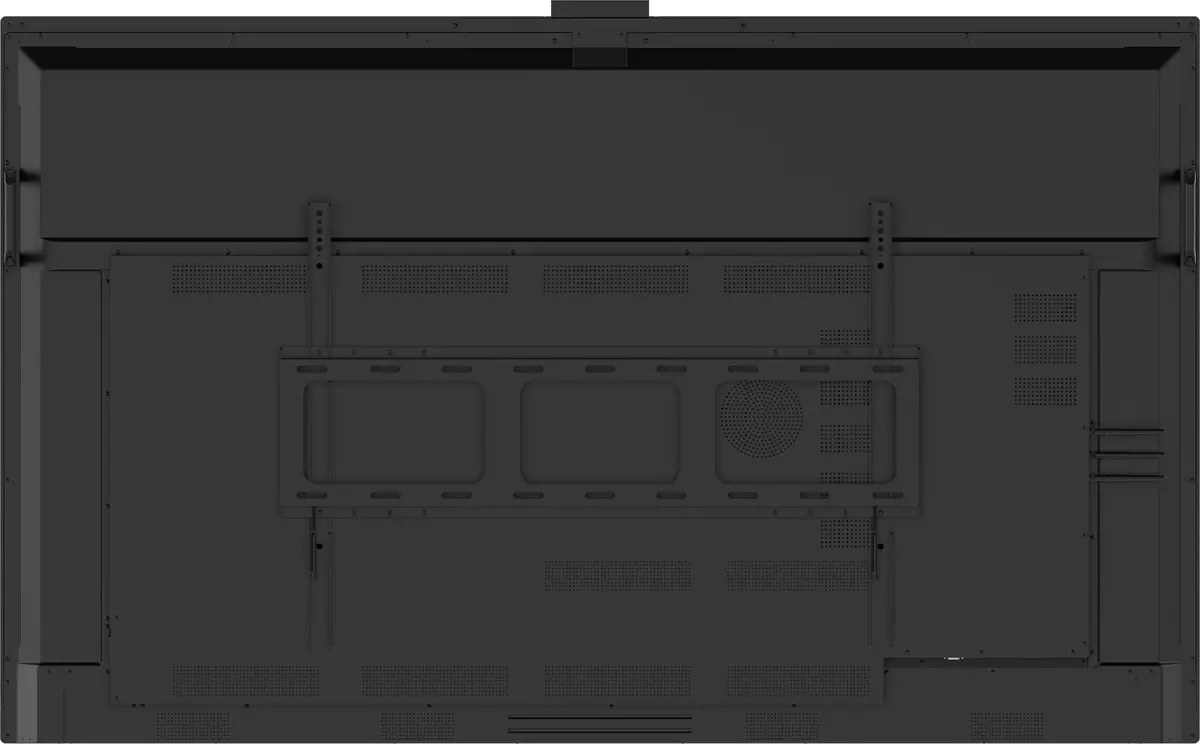

Panel mounting interface:
-
800 x 400
-
Display diagonal (metric):
-
189.3 cm
-
On Screen Display (OSD) languages:
-
CAT, CZE, DAN, DEU, ENG, ESP, FIN, FRE, HUN, ITA, NOR, DUT, POL, RUS, SWE, UKR, EST, LAT, LIT
-
Touchscreen:
-
Yes
-

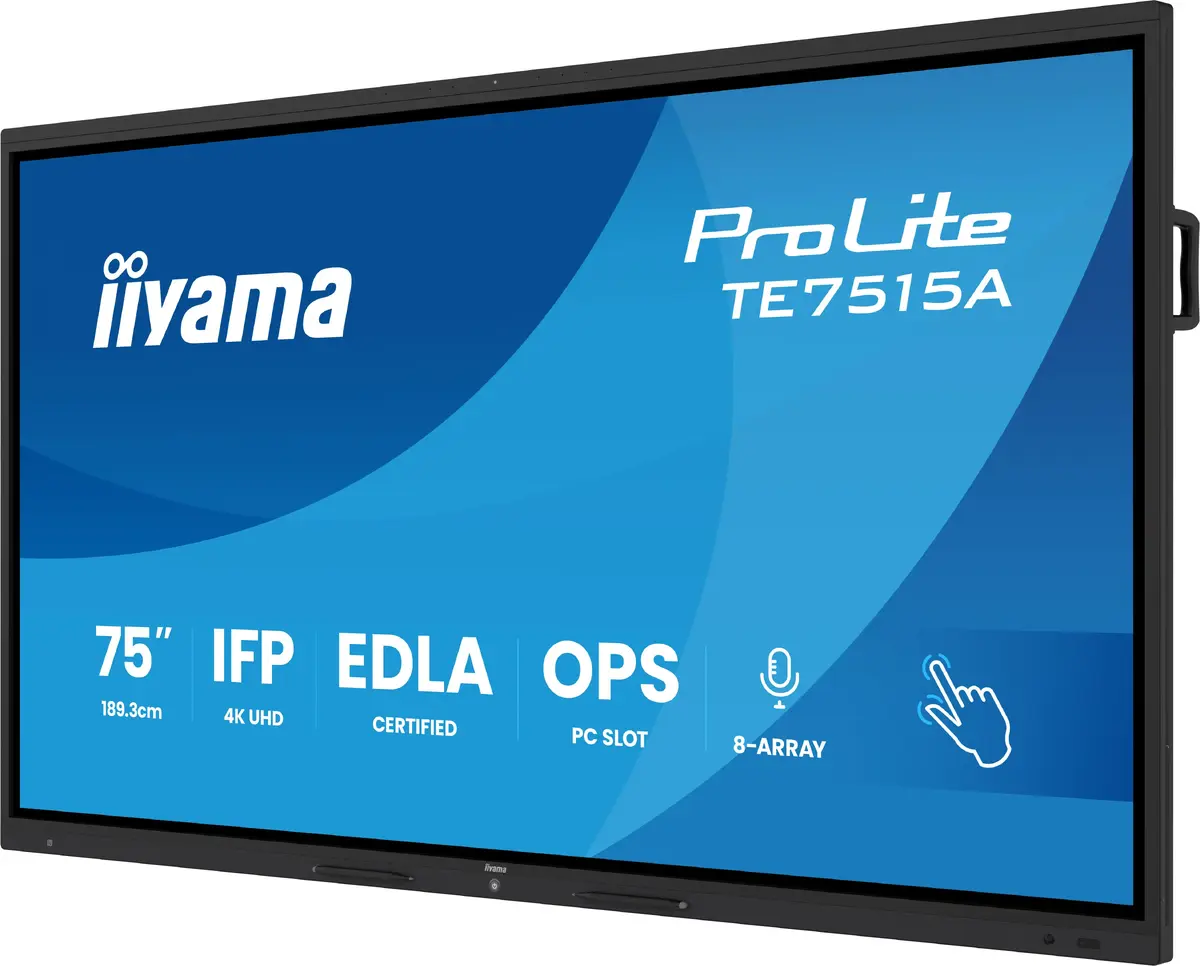

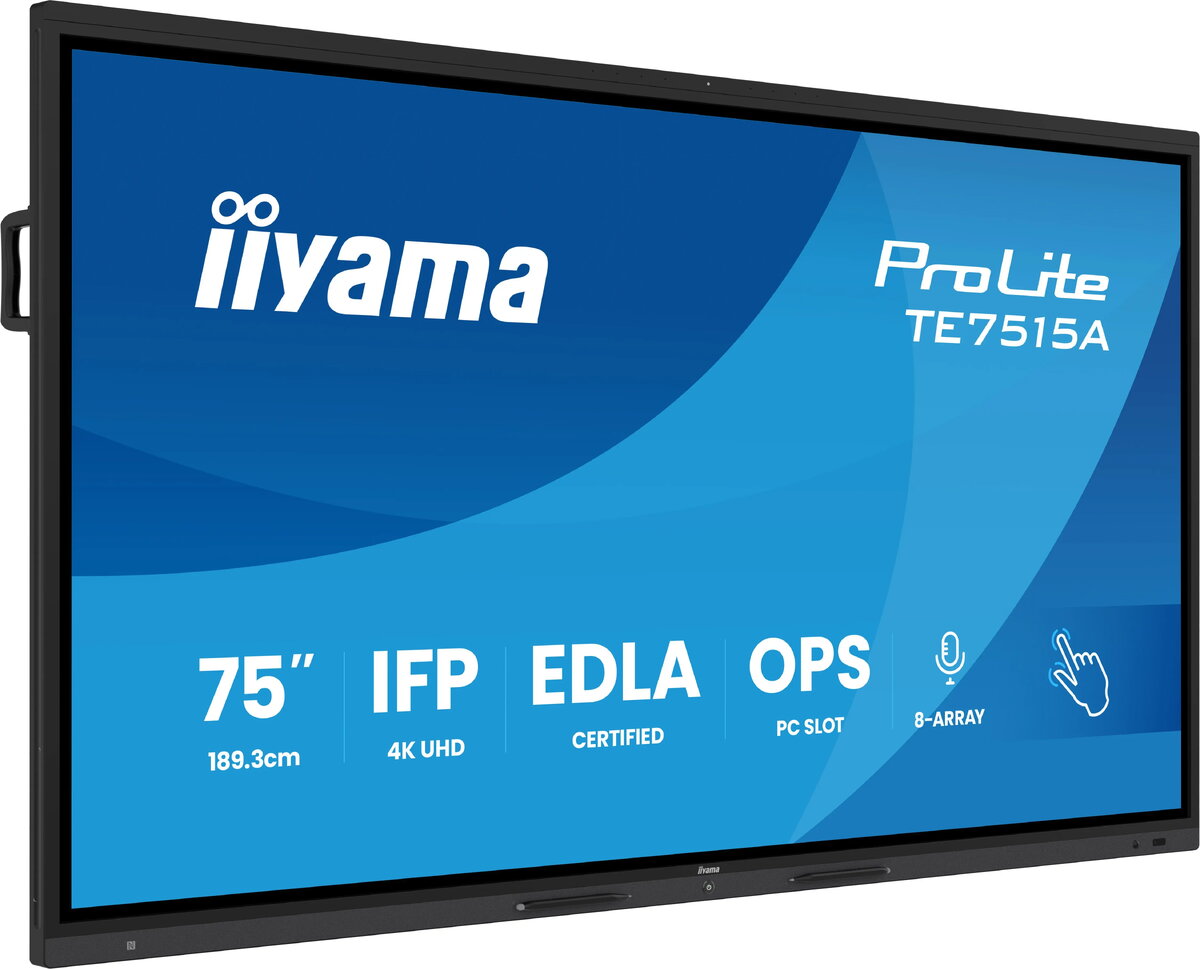

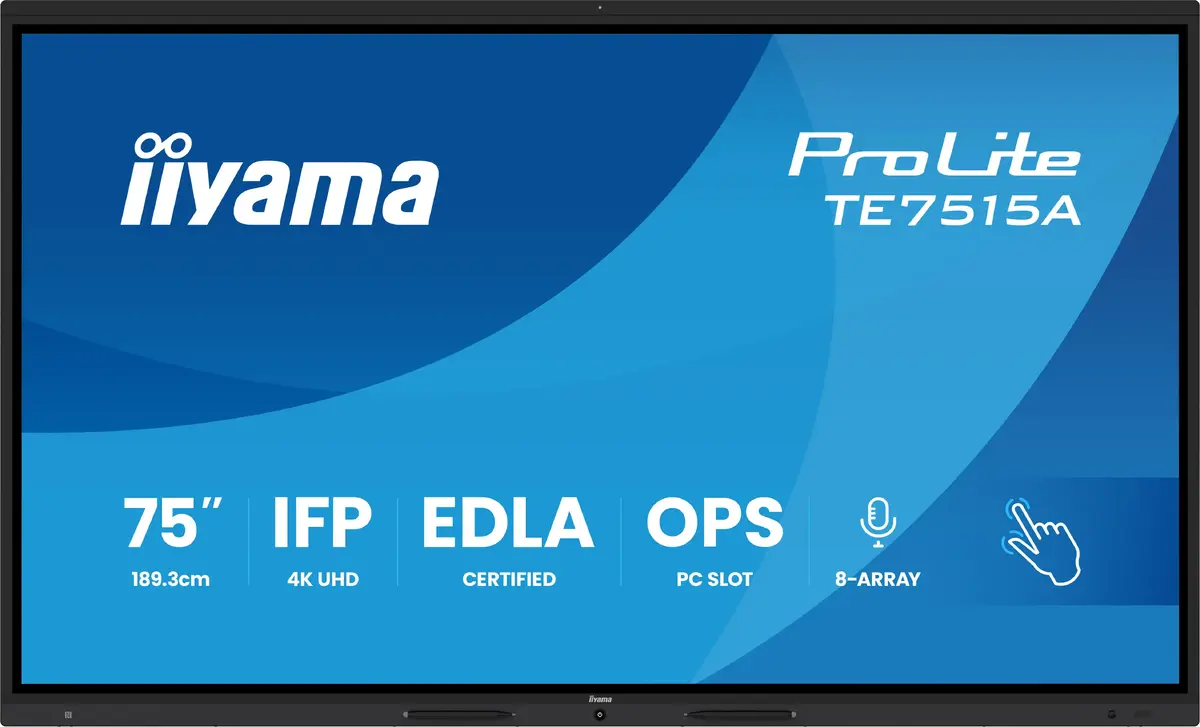

Product design:
-
Interactive flat panel
-
HDMI version:
-
2.0
-
HDCP:
-
Yes
-
DisplayPorts quantity:
-
1
-
Number of OSD languages:
-
13
-
Operating system version:
-
14
-
Built-in processor:
-
Yes
-
Touchscreen technology:
-
Infrared
-
Bezel width (side):
-
16.7 mm
-
Bezel width (top):
-
34.3 mm
-
Bezel width (bottom):
-
46.7 mm
-

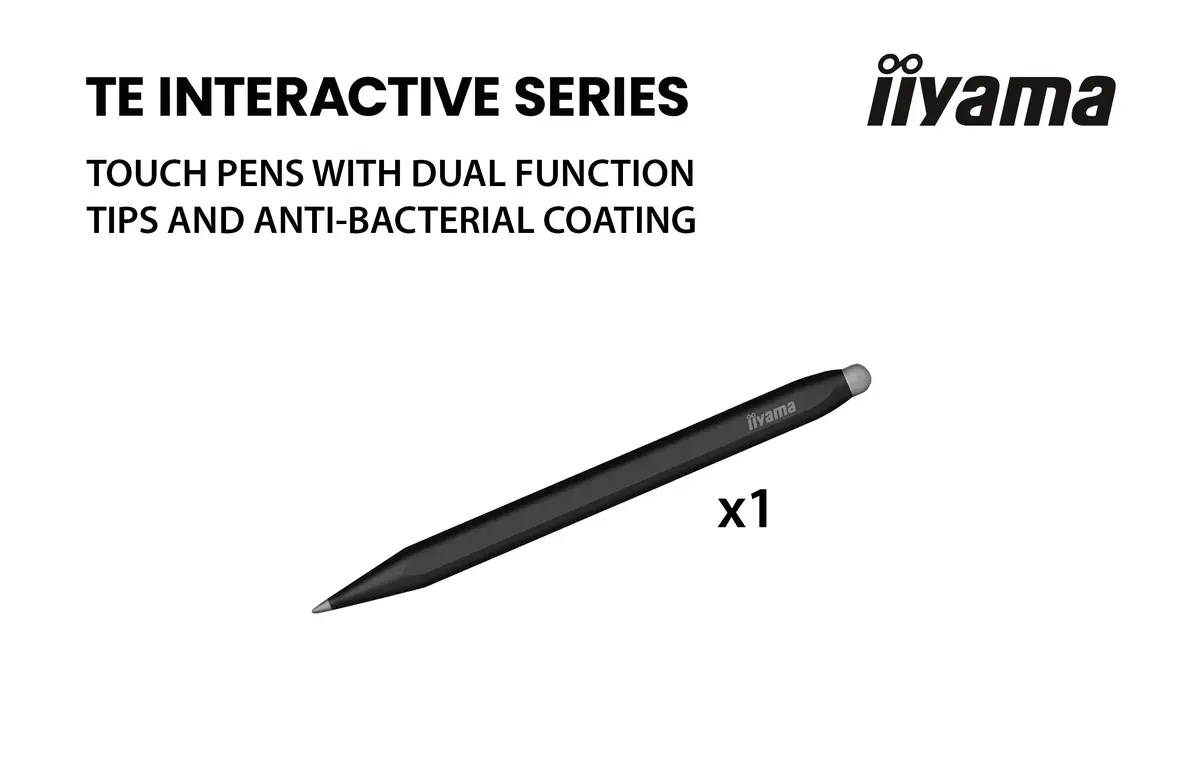

Stylus pen:
-
Yes
-
Glass thickness:
-
3.2 mm
-
Audio Return Channel (ARC):
-
Yes
-
AC input frequency:
-
50/60
-
AC input voltage:
-
100 - 240
-
USB version:
-
2.0/3.2 Gen 1 (3.1 Gen 1)
-
Internal storage capacity:
-
128 GB
-
On-board graphics card model:
-
ARM Mali-G52
-
HDCP version:
-
2.2
-
Processor architecture:
-
ARM Cortex-A53+Cortex-A72
-
Anti-glare screen:
-
Yes
-
Display depth:
-
87.1 mm
-
Display height:
-
1036.3 mm
-
Display weight:
-
54600 g
-
DisplayPort version:
-
1.2
-
Number of simultaneous touchpoints:
-
40
-
Internal memory:
-
8 GB
-
Native aspect ratio:
-
16:9
-
HD type:
-
4K Ultra HD
-
Playback media:
-
Yes
-
USB ports quantity:
-
4
-
RS-232C:
-
Yes
-
Panel type:
-
VA
-
Display width:
-
1710.2 mm
-
Active display area (W x H):
-
1650 x 928
-

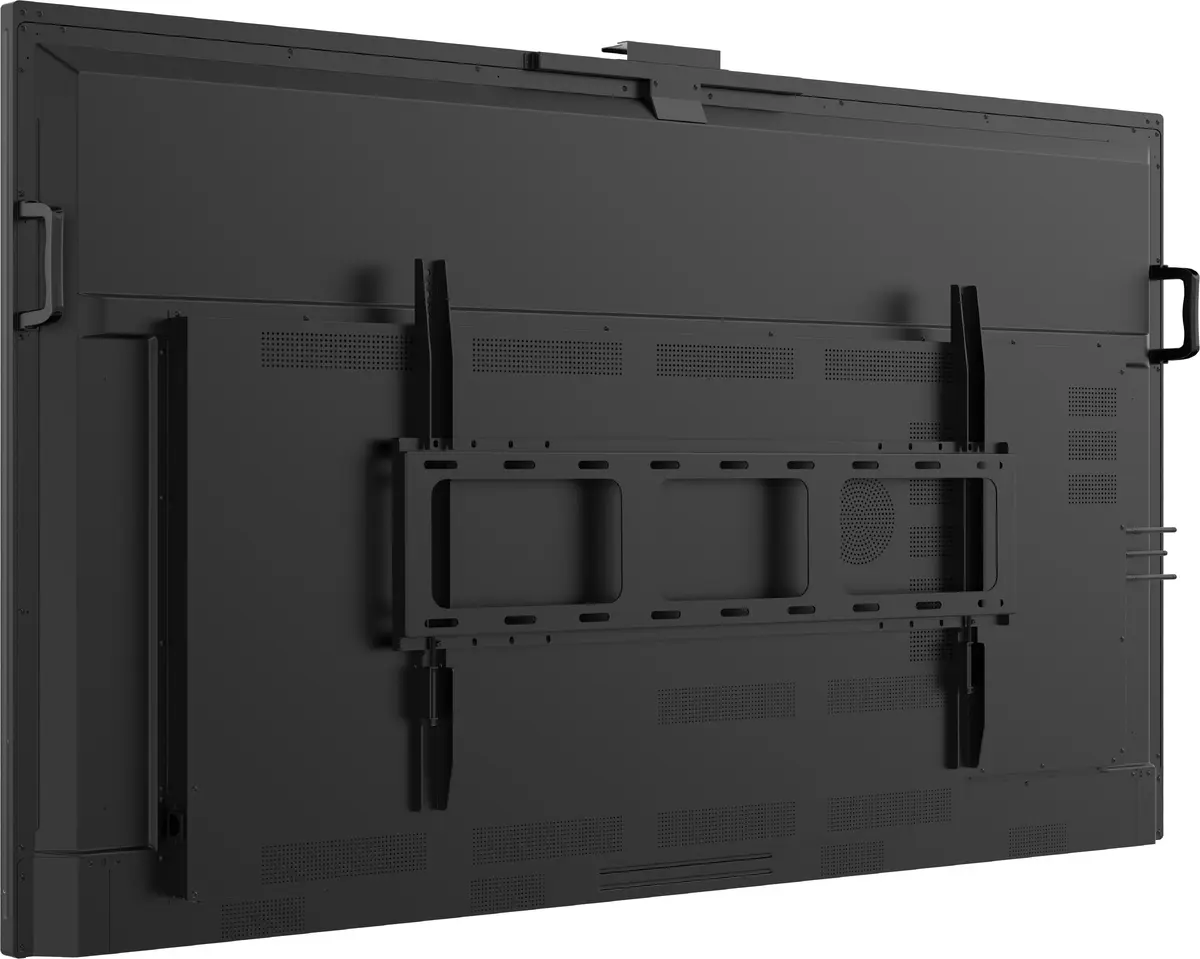

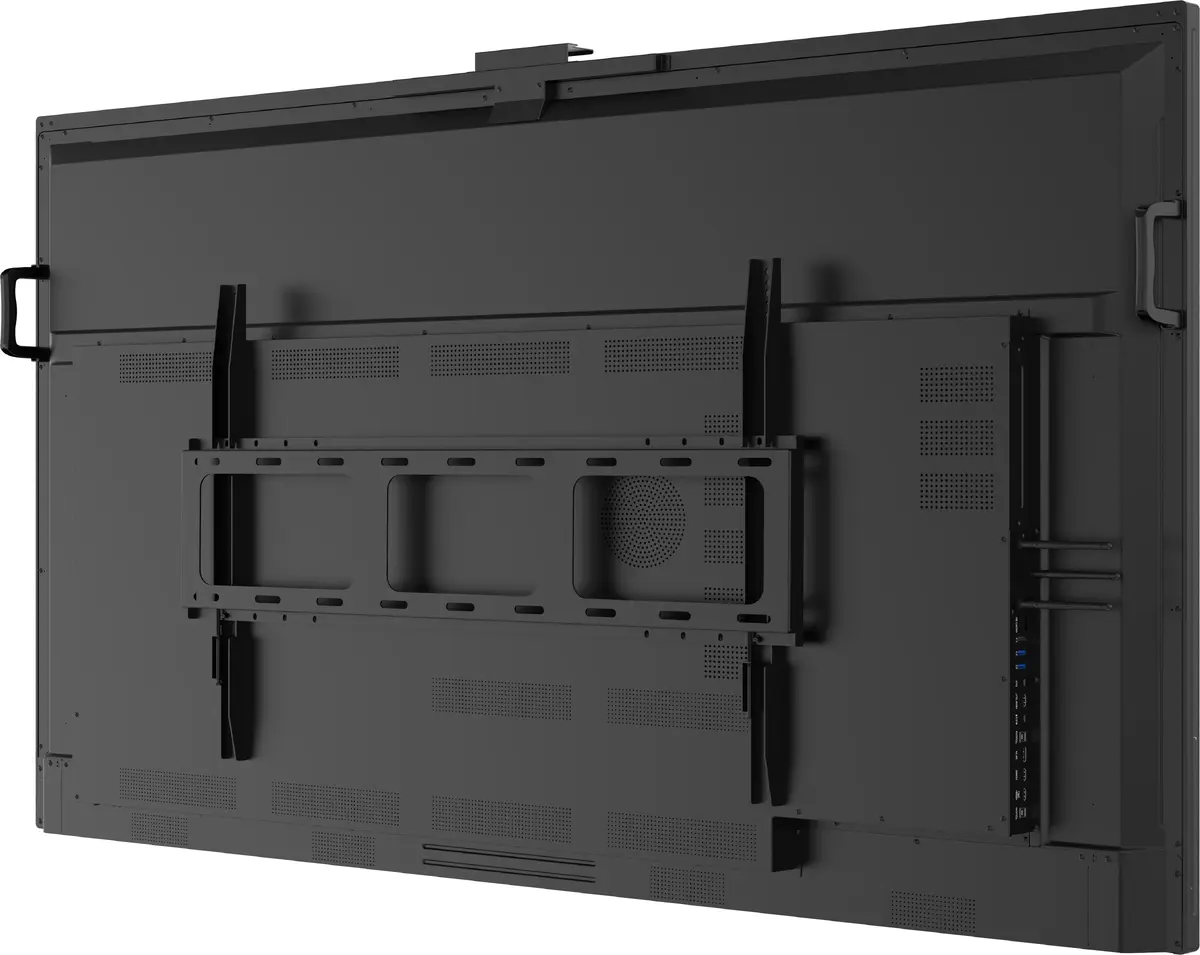

VESA mounting:
-
Yes
-
Audio in (mini jack):
-
Yes
-
Orientation:
-
Horizontal
-
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
-
2
-
OPS slot:
-
1
-
USB port:
-
Yes
-
Operating hours (hours/days):
-
24/7
-
Computer system:
-
Yes
-
Display number of colours:
-
1.07 billion colours
-
Surface hardness:
-
7H
-
Number of stylus pens:
-
4
-
USB 2.0 Type-B ports quantity:
-
2
-
USB Type-C DisplayPort Alternate Mode:
-
Yes
-
USB Power Delivery (USB PD):
-
Yes
-
OPS module slot:
-
Yes
-
HDMI input ports quantity:
-
2
-
HDMI output ports quantity:
-
1
-
USB Power Delivery up to:
-
100 W
-
Energy efficiency scale:
Range of energy efficiency levels classifying devices from most to least energy-efficient.
-
A to G
-
Sustainability certificates:
-
EPEAT, ErP, EPEAT Bronze
-
Energy efficiency class (SDR):
Energy efficiency class is a standard classification that is used all over Europe and which is understandable at first sight. Products can be efficiently compared according to classes, starting from A (the most energy efficient class), and ending with G (the most energy-intensive class). The classification of energy efficiency is based on annual energy consumption which is being calculated on the basis of several different parameters.
-
G
-
Energy efficiency class (HDR):
Energy efficiency class is a standard classification that is used all over Europe and which is understandable at first sight. Products can be efficiently compared according to classes, starting from A (the most energy efficient class), and ending with G (the most energy-intensive class). The classification of energy efficiency is based on annual energy consumption which is being calculated on the basis of several different parameters.
-
Not available
-
Energy consumption (SDR) per 1000 hours:
Power consumption in switched-on state expressed in W.
-
191 kWh
-
Warranty period:
-
5 year(s)
-
Bezel colour:
-
Black
-
Compliance certificates:
-
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
