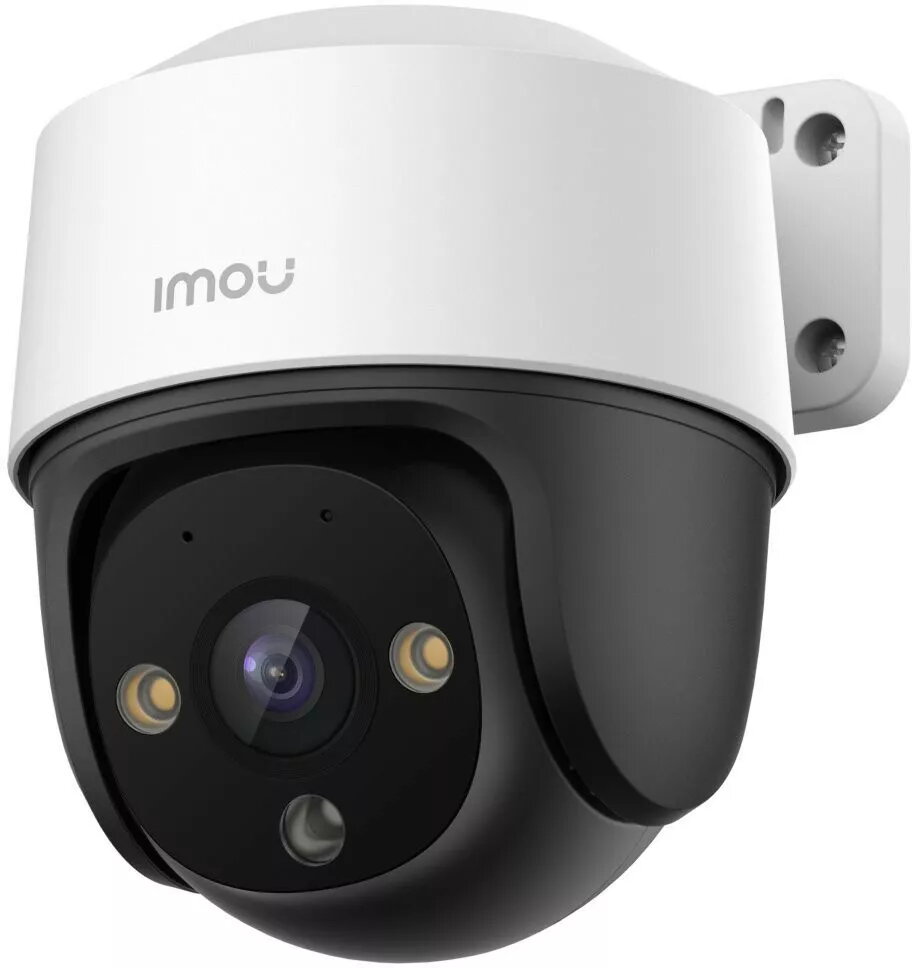

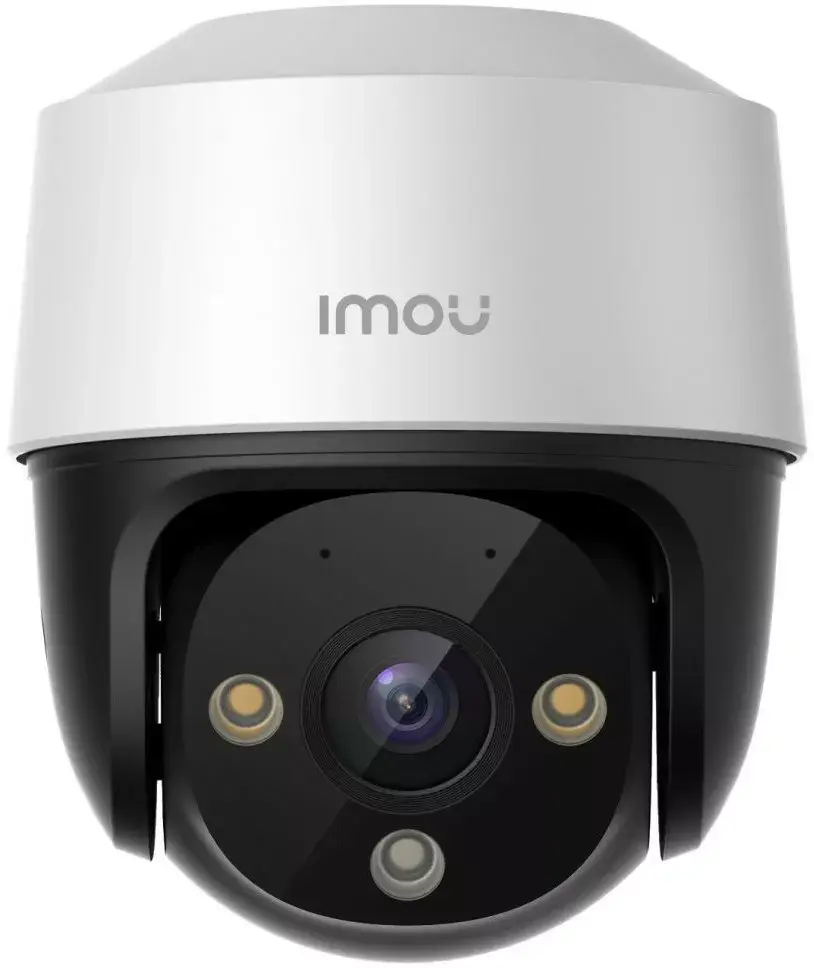

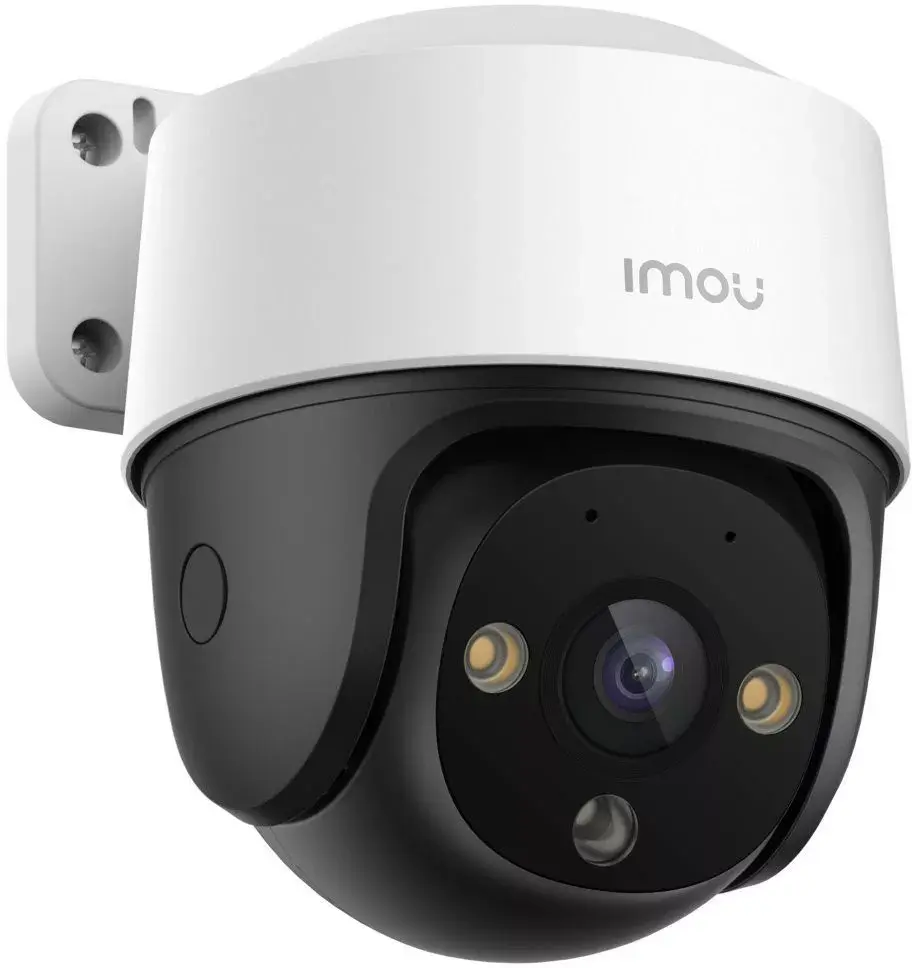

IP security camera IMOU IPC-S41FAP 4MP, 2560×1440, 3.6 mm lens, PoE/DC, Wi‑Fi, IP66, 30 m IR, 16× digital zoom

The S41FA is a 4MP outdoor security camera offering QHD live monitoring with selectable 3.6mm or 6mm lenses. It provides a wide mechanical pan range of 0–355° and tilt of 0–90° to cover large areas, four night vision modes for clear images in low light, an integrated spotlight to deter intruders, IP66 weatherproof protection for outdoor use, and built-in microphone for audio capture. Power is supplied via PoE and the camera supports microSD storage up to 256GB.

Advantages

The camera delivers high-resolution 4MP video for detailed monitoring and flexible field of view options with two lens choices. Pan and tilt mechanics enable near-complete coverage of the monitored area. IP66 rating allows reliable outdoor operation in varied weather. Built-in spotlight and night vision modes improve visibility at night, while PoE simplifies installation and reduces cabling. Integrated microphone provides basic audio monitoring.

Key specifications

• Pixel resolution: 4 Megapixel
• Lens options: 3.6 mm / 6 mm
• Pan range: 0–355°; Tilt range: 0–90°
• Sensor size: 1/3”
• Power options: PoE
• Power consumption: 6.2 Watts
• Network ports: 1 × RJ45
• Environment: Outdoor; IP66
• Operating temperature: -20°C to +50°C
• Supports microSD up to 256GB
• Dimensions: 120.7 × 136.2 × 183.3 mm
• Unit net weight: 0.39 kg; Unit gross weight: 0.64 kg

How to use

Mount the S41FA outdoors in a location with a clear field of view and within reach of PoE network wiring. Choose the lens option (3.6 mm for wider view, 6 mm for narrower/longer reach) before final positioning. Connect the camera to a PoE switch or injector to provide power and network. Adjust pan and tilt to cover the desired area, and configure night vision mode and spotlight behavior in the camera settings. Insert a microSD card up to 256GB if local recording is required and enable audio capture if needed.

Recommendations

For best performance, install the camera where the spotlight and night vision have unobstructed coverage and ensure the PoE source meets required power. Periodically check seals and mounting hardware to maintain IP66 protection, and format the microSD card in the camera before first use.
