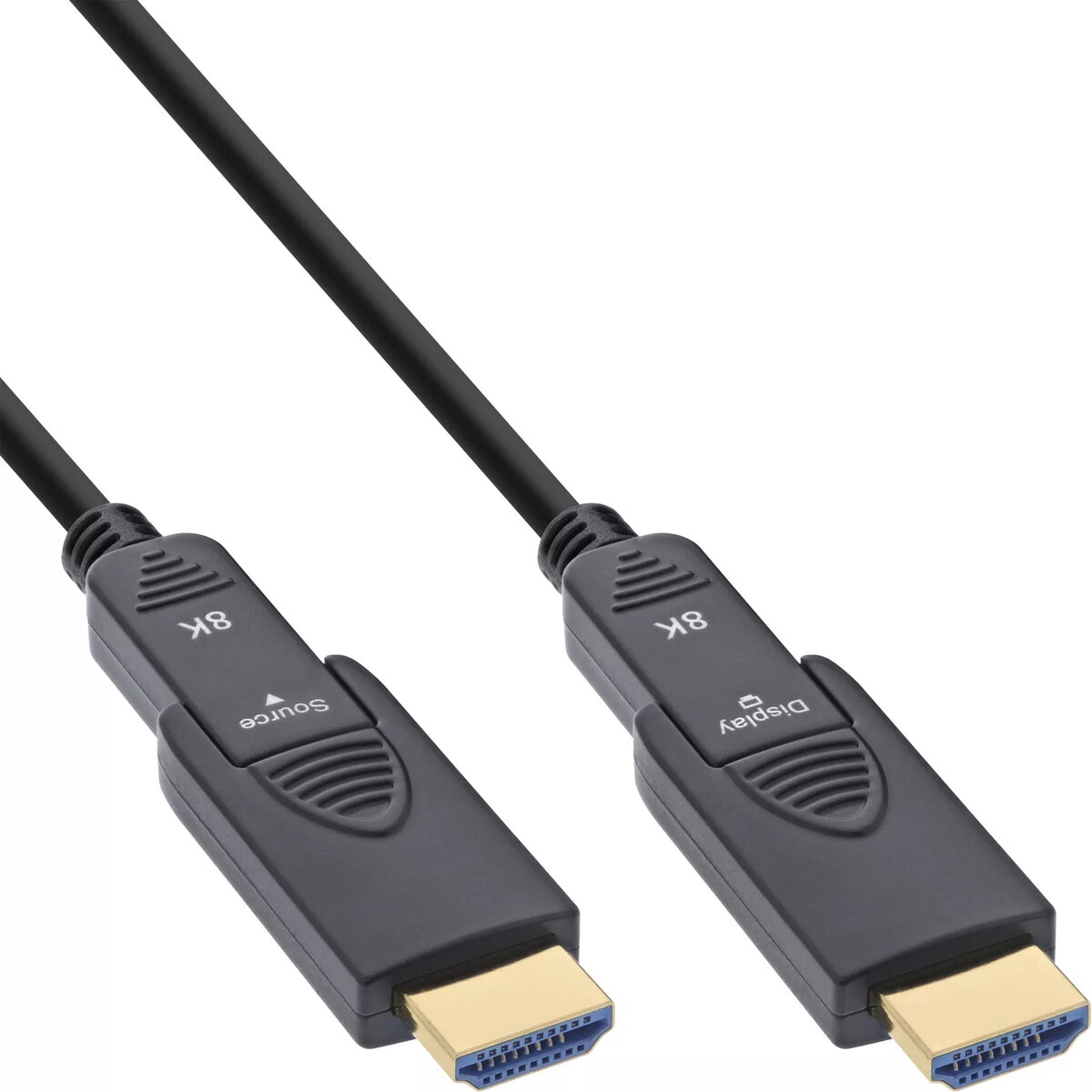

InLine HDMI AOC cable Ultra High Speed HDMI 8K4K detachable plug 80m

InLine® Ultra High Speed HDMI active optical cable (AOC) with HDMI 2.1 support, detachable HDMI A and D plugs and a length of 80 m. The hybrid construction combines four glass fibre strands with seven solid copper conductors to provide a directional signal path from source to display. The cable supports a maximum data transfer rate of 48 Gb/s and gold-plated contacts; the outer jacket is PVC with aramid reinforcement and a compact 4.8 mm diameter for easier routing through conduits.

Advantages

The cable supports resolutions up to 8K (7680x4320@60Hz) and 4K@120Hz, plus features defined in the HDMI 2.1 specification such as Dynamic HDR, eARC/ARC and higher bandwidth for reduced latency and smoother frame delivery. The detachable A and D plugs allow installation through narrow ducts, while the AOC hybrid design offers longer reach with reduced weight and greater flexibility compared with pure copper cables. Gold-plated contacts improve conductivity and corrosion resistance for reliable long-term connections.

Suitable for

• Home cinema systems (projectors, TVs, AV receivers)
• Gaming setups and consoles that support HDMI 2.1 (e.g., PS5, Xbox Series X)
• Professional video and post-production studios
• Digital signage and conference room AV installations
• Streaming devices and media PCs requiring long cable runs

Key specifications

• Length: 80 m
• Standard: HDMI 2.1, Ultra High Speed HDMI
• Max. data rate: 48 Gb/s (12 Gb/s per channel)
• Supported resolutions: up to 7680x4320 (8K@60Hz) and 3840x2160 (4K@120Hz)

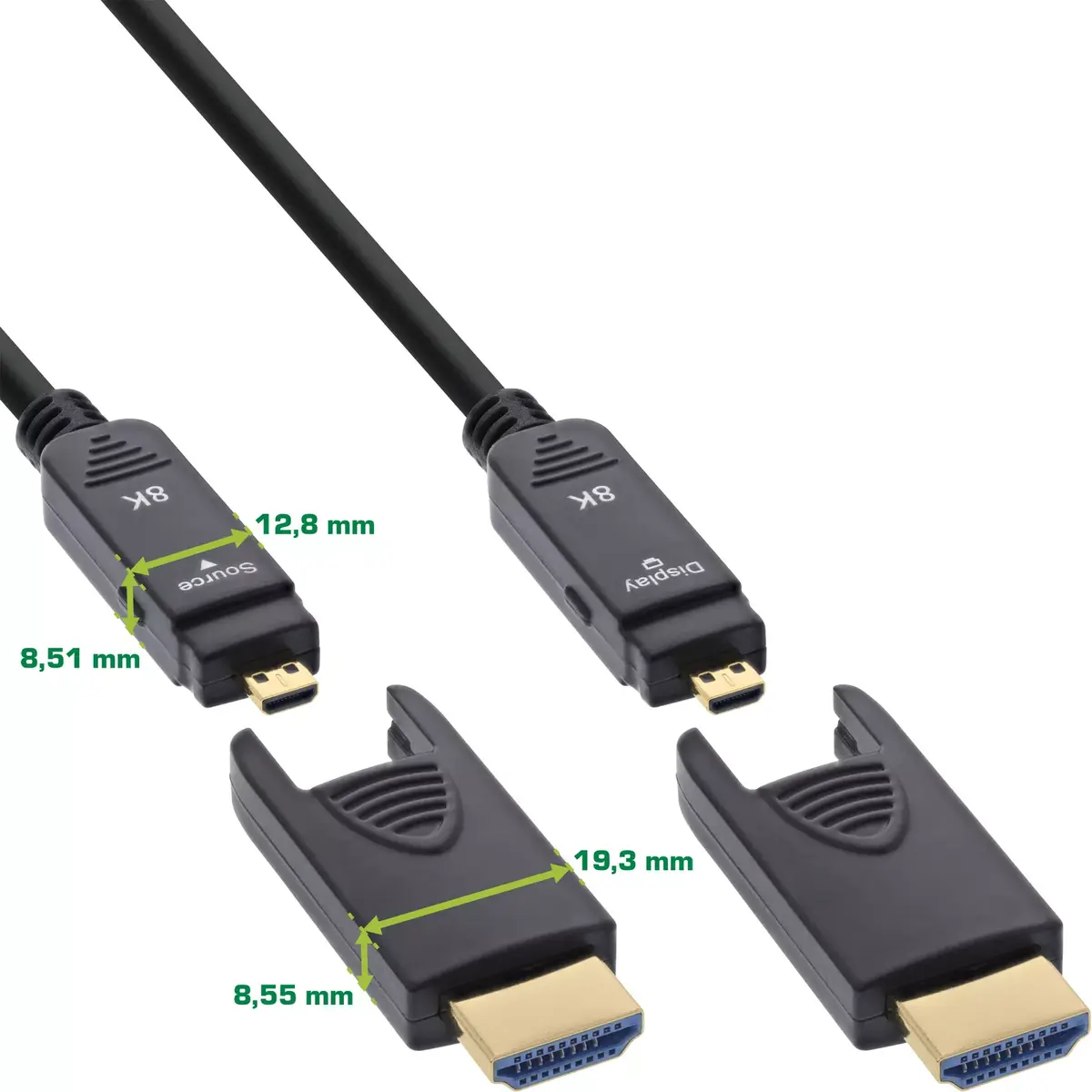

• Connectors: detachable HDMI Type-A and HDMI Type-D (configurable A↔A, A↔D, D↔A, D↔D)
• Cable construction: hybrid – 4 glass fibre strands + 7 solid copper strands
• Cable diameter: 4.8 mm
• Contacts: gold-plated
• Operating temperature: 0°C to +50°C; storage: -20°C to +70°C
• Colour: Black

How to use

Route the InLine HDMI AOC cable between the source device (HDMI output) and the display (HDMI input) following the directional marking from HDMI plug (source) to HDMI plug (display). Use the detachable HDMI A or D plug configuration suitable for your installation to pass the connector through narrow cable ducts and then assemble the plug at both ends. Connectors should be inserted fully into HDMI sockets; ensure devices are powered according to their manufacturer instructions. No external power supply is required for the cable’s active components.

Usage recommendations

For optimal performance, avoid sharp bends and tight kinks in the cable; maintain the recommended minimum bend radius and secure the cable to prevent mechanical stress at connector points. Use the detachable plug option to simplify routing through conduits and confirm source and display support for HDMI 2.1 features (e.g., eARC, 4K@120Hz, 8K@60Hz) to take full advantage of the cable’s capabilities.
