InLine 10" Empty Patch Panel 12-way for Keystone Modules 1U Grey

The InLine 10" Empty Patch Panel 12-way for Keystone Modules 1U Grey is a reliable and flexible networking component designed to help you organize and manage network cables efficiently within compact rack systems. This unpopulated 10-inch patch panel features 12 ports tailored for Keystone modules, allowing for custom configurations using Cat5, Cat6, or Cat6a modules according to your specific networking needs. Built to fit standard 10-inch server racks and enclosures, it occupies a single rack unit (1U) of space, making it an ideal choice for small office environments, home networks, or compact server setups where space is limited.

Advantages

This empty patch panel offers maximum versatility by allowing installers and network administrators to populate the ports individually with the exact Keystone modules required for the installation. The robust metal frame ensures structural stability and durability over time, while the neutral grey finish blends seamlessly into standard server rack environments. The design supports up to twelve modules with a maximum width of 17.2mm, accommodating a wide range of standard snap-in connectors. By using a modular patch panel, maintenance and future upgrades become significantly easier, as individual modules can be replaced or reconfigured without disrupting the entire cabling infrastructure.

Suitable for

• Small office and home network installations
• 10-inch server racks and compact wall-mount enclosures
• Organizing Cat5, Cat6, and Cat6a network cabling
• Custom networking setups utilizing Keystone snap-in modules

This panel may not be suitable for large-scale enterprise data centers or standard 19-inch server racks, as it is specifically engineered in a 10-inch form factor. It is also not suitable if you require a pre-loaded patch panel with integrated cables or fixed ports, as this unit is delivered completely unpopulated without modules.

Key specifications

• Rack capacity: 1U
• Form factor: 10-inch frame
• Capacity: Up to 12 Keystone modules
• Maximum module width: 17.2 mm
• Compatible module categories: Cat5, Cat6, Cat6a
• Product colour: Grey
• Weight: 310 g

How to use

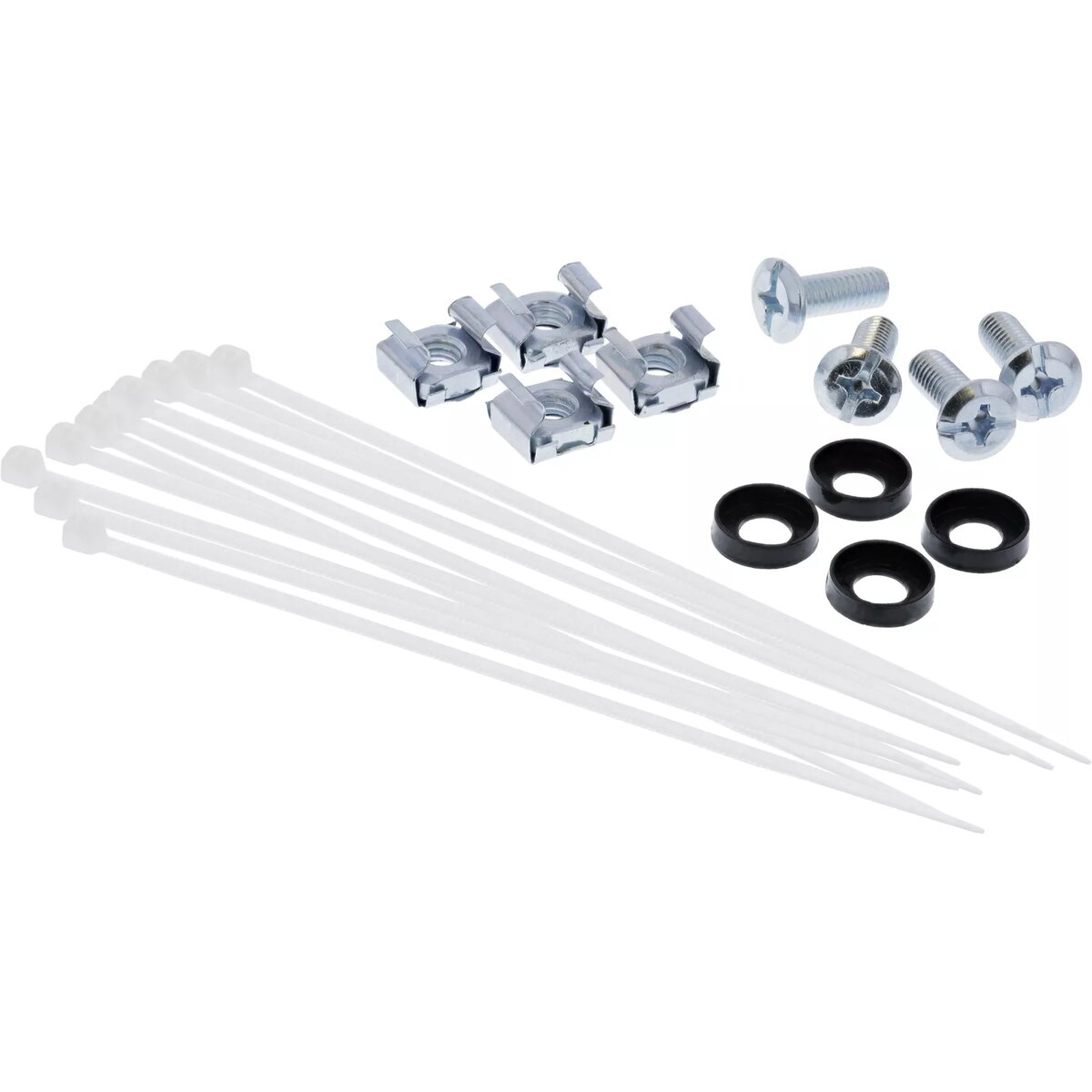

To use the patch panel, start by mounting the 10-inch frame securely into your compatible server rack or enclosure using standard rack screws. Next, prepare your network cables by stripping the outer jackets and terminating the individual wires into your chosen Keystone modules following the correct wiring standard. Once the modules are terminated, simply snap them securely into the designated ports on the empty patch panel from the front or rear, depending on the module design. Finally, route and secure your incoming cables to the rack management bars to reduce tension on the connections and ensure a clean, organized installation.

What to consider before purchase

• Verify that your server rack or enclosure is compatible with 10-inch equipment rather than standard 19-inch hardware
• Ensure you purchase compatible Keystone modules with a maximum width of 17.2mm separately, as they are not included
• Check your current and future network category requirements such as Cat5, Cat6, or Cat6a to select the correct modules
• Confirm that you have sufficient vertical rack space, specifically 1U available for installation

For optimal network performance and longevity, ensure cables are properly supported with strain relief bars to prevent excessive weight and tension on the Keystone modules installed within the patch panel.
