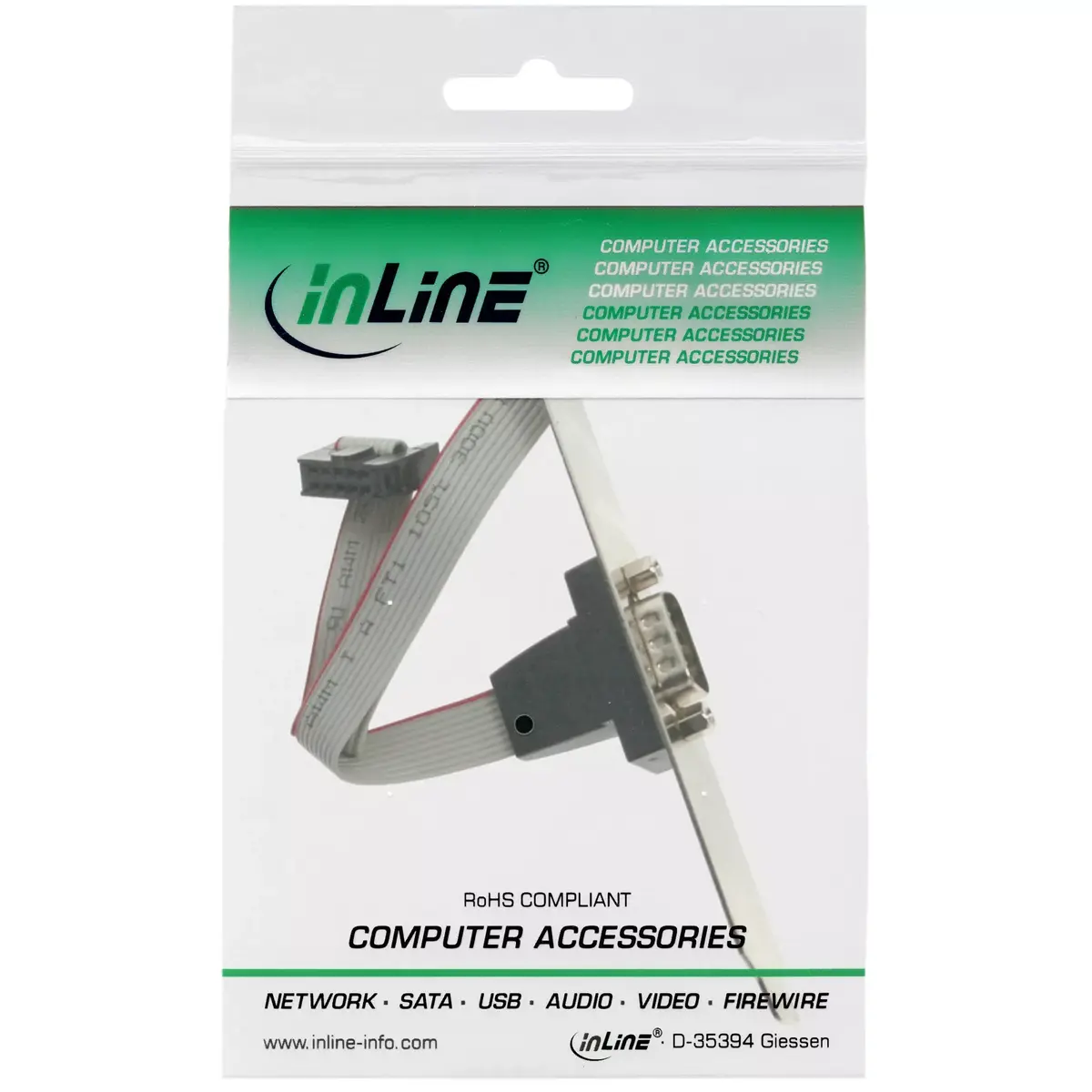

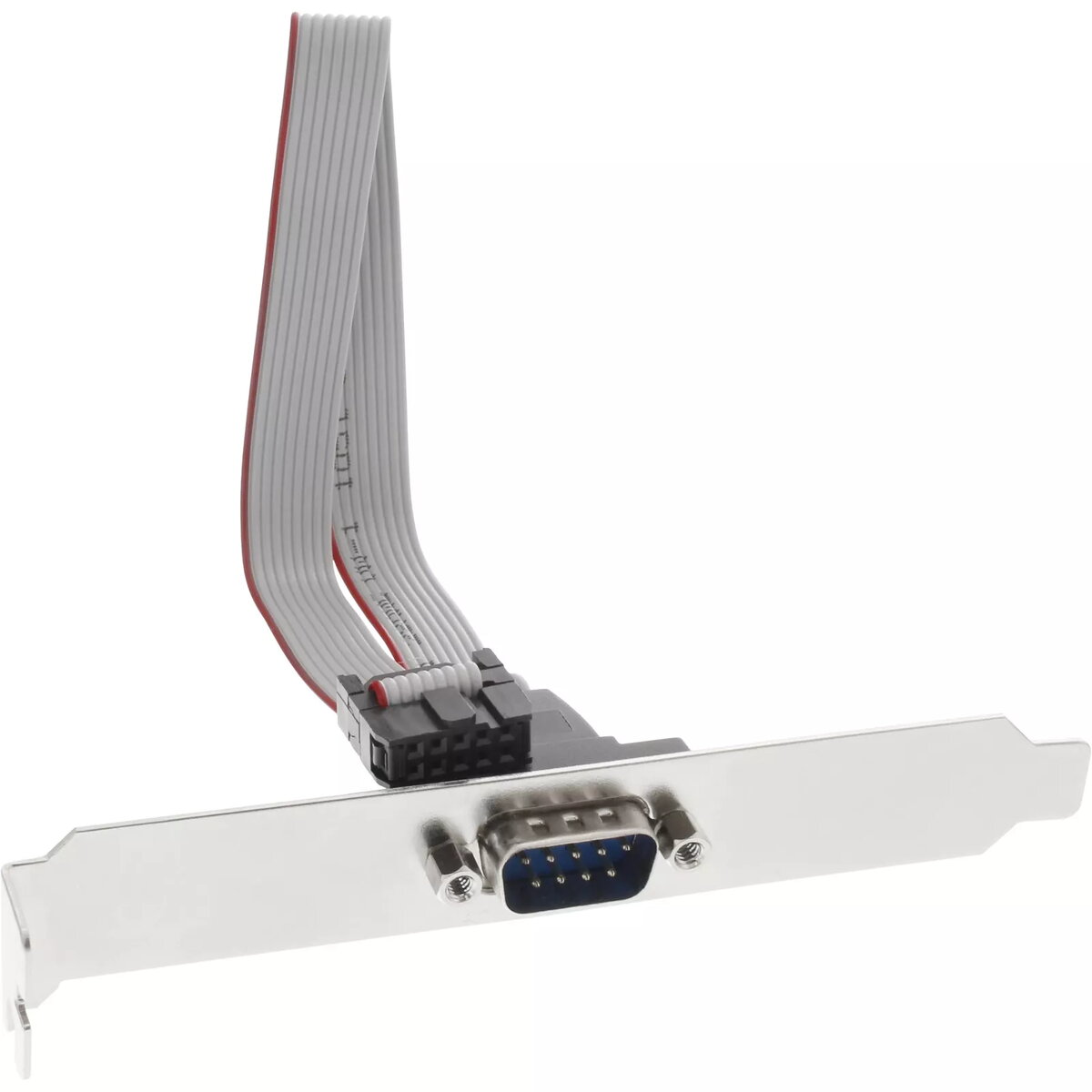

InLine Serial slot bracket 9-pin male to 10-pin internal connector 1:1 0.25m

This InLine Serial slot bracket provides a 9‑pin Sub‑D male plug on a bracket with a 10‑pin internal connector on a 0.25 m cable, enabling connection of serial ports on a motherboard to an external slot. The grey UL‑certified (E336285) cable ensures safe and standardized internal wiring for computers and compatible equipment.

Advantages

The product offers a compact, ready‑to‑install solution for converting a 10‑pin internal serial header to a standard 9‑pin Sub‑D male connector. Its short 0.25 m length minimises cable clutter inside the chassis while the UL certification (E336285) confirms compliance with recognised safety standards. The bracket design allows stable mounting in a standard expansion slot.

Suitable for

• Connecting an internal 10‑pin serial header on a motherboard to an external 9‑pin serial port
• Installing a serial port in a computer chassis via a rear slot
• Legacy device connections that require a 9‑pin Sub‑D interface

Key specifications

• Connector A: 9‑pin Sub‑D male (external, bracket)
• Connector B: 10‑pin internal connector (1:1 wiring)
• Cable length: 0.25 m
• Cable colour: grey
• Certification: UL E336285
• Brand: InLine, MPN: 33208, EAN: 4043718037254

How to use

Mount the slot bracket in a free rear expansion slot of the computer chassis. Connect the 10‑pin internal connector to the matching serial header on the motherboard, ensuring correct orientation to avoid damage. Secure the bracket with the chassis screw and route the cable to prevent strain. The external 9‑pin Sub‑D male connector can then be used to attach serial devices or cables.

Usage recommendations

Use this bracket for internal serial port installations where a short, fixed connection is required; verify header pinout on the motherboard documentation before connecting to ensure correct 1:1 pin mapping.
