header-product Multimeter InLine 43117A pocket-size auto-range, LCD 44x30 mm, AAA battery, 130x62x27 mm
23.99 €

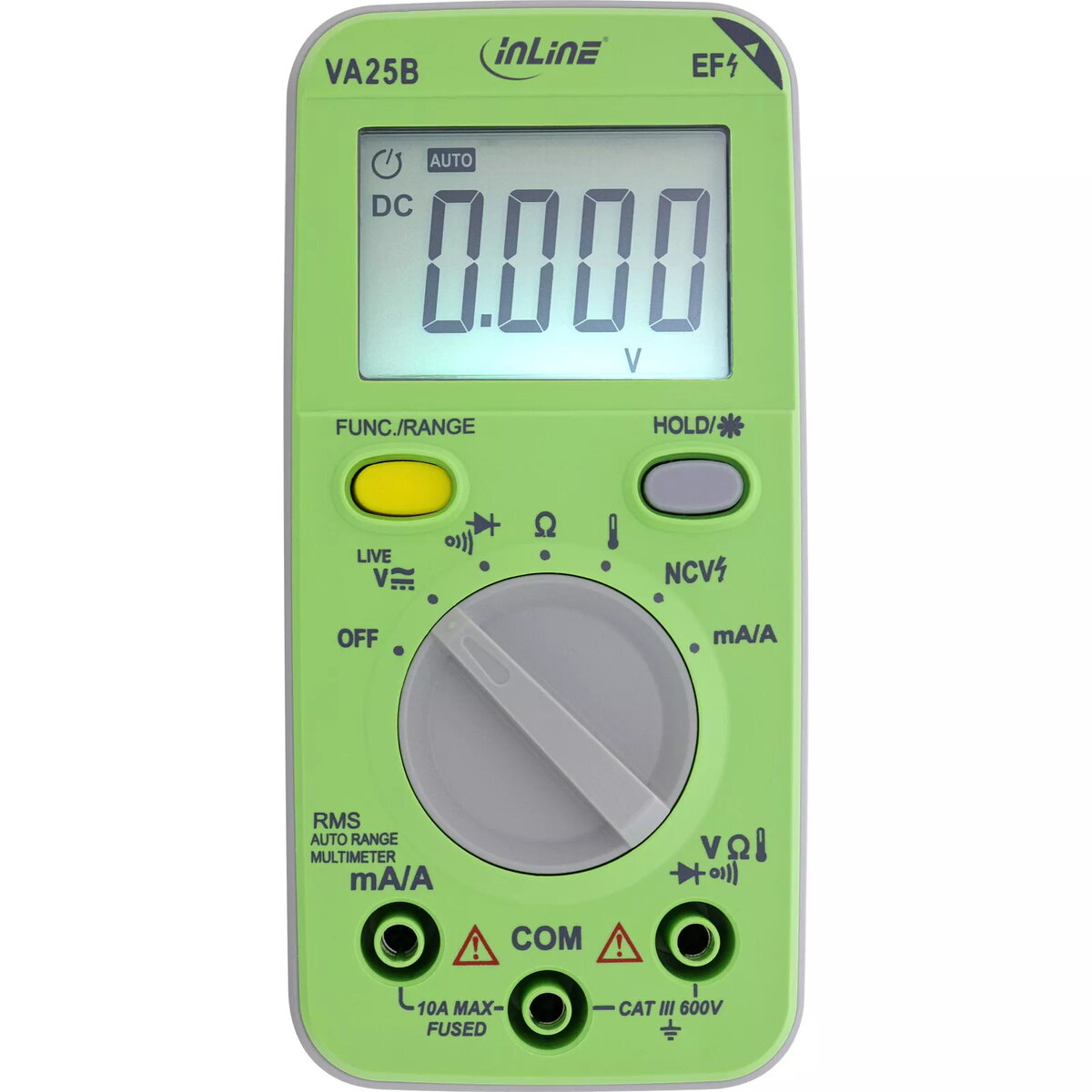

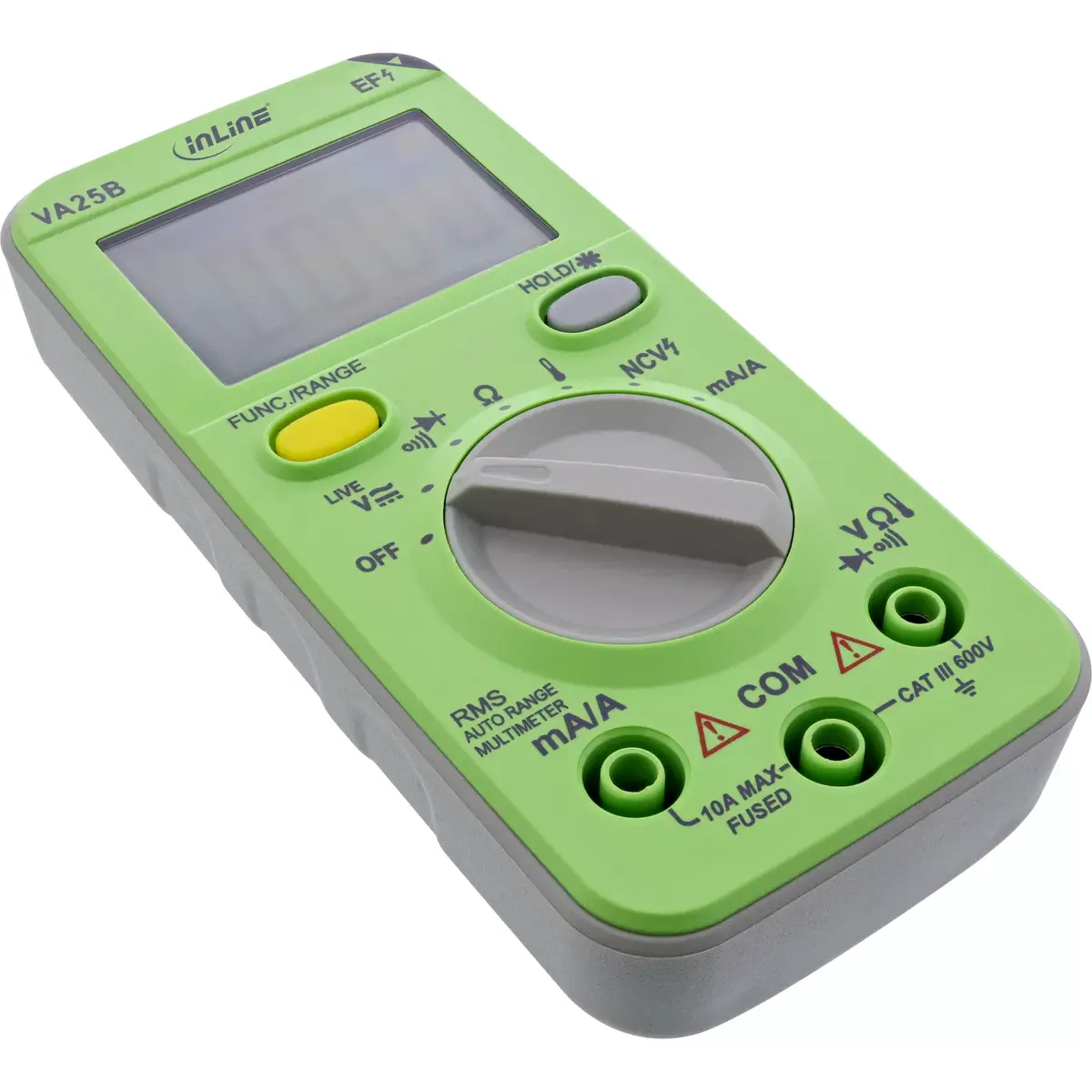

Multimeter InLine 43117A pocket-size auto-range, LCD 44x30 mm, AAA battery, 130x62x27 mm

InLine 43117A pocket multimeter Photo 1
InLine 43117A pocket multimeter Photo 2
InLine 43117A pocket multimeter Photo 3
InLine 43117A pocket multimeter Photo 4
InLine 43117A pocket multimeter Photo 1
InLine 43117A pocket multimeter Photo 2
InLine 43117A pocket multimeter Photo 3
InLine 43117A pocket multimeter Photo 4
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Multimeter InLine 43117A pocket-size auto-range, LCD 44x30 mm, AAA battery, 130x62x27 mm

{{email}}
You keep track of price changes

Multimeter InLine 43117A pocket-size auto-range, LCD 44x30 mm, AAA battery, 130x62x27 mm

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Portable InLine multimeter model 43117A with auto-range functionality and pocket-size dimensions (130 × 62 × 27 mm). Features an LCD display (44 × 30 mm) for clear readings and is powered by a single AAA 1.5 V battery. Designed for basic electrical measurements and quick diagnostic checks in fieldwork, household repairs, and electronics troubleshooting.
Available for order: 351 pcs.
Warranty: 2 Years
SKU: 11354573
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
17.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
20.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.10 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
20.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine 43117A is a pocket-size multimeter with auto-range capability designed for straightforward electrical measurements. Its compact housing measures 130 × 62 × 27 mm and integrates a clear LCD display (44 × 30 mm) that shows measured values with easy readability. The instrument is powered by a single AAA 1.5 V battery and provides essential functions for voltage, current and resistance checks needed in field diagnostics, household repairs and basic electronics troubleshooting.

Advantages

The compact form factor and low weight make the InLine 43117A convenient to carry and use in tight spaces. Auto-range functionality simplifies operation by selecting the appropriate measurement range automatically, reducing user errors. The large 44 × 30 mm LCD enables quick value recognition, while the single AAA battery offers simple replacement and extended portability. The design focuses on essential measurement tasks, offering a practical balance between size and functionality.

Suitable for

  • Quick voltage checks in household circuits and batteries
  • Basic resistance measurements for component and cable testing
  • Simple current checks for low-current diagnostics
  • Field service and on-the-go electronics troubleshooting
  • Hobbyist and educational tasks requiring a compact multimeter

Key specifications

  • Dimensions: 130 × 62 × 27 mm
  • Display size: 44 × 30 mm LCD
  • Power supply: single AAA 1.5 V battery
  • Auto-range measurement capability
  • Measurement functions: voltage, current, resistance (basic set)
  • Form factor: pocket-size handheld unit

How to use

Insert a fresh AAA 1.5 V battery into the battery compartment, switch the meter on and connect the test leads to the appropriate jacks. For the majority of tasks the auto-range function will select the correct measurement range automatically; connect the probes to the circuit or component to obtain readings on the LCD. Observe polarity when measuring DC voltage and avoid exceeding the meter’s input limits. Turn the device off when not in use to conserve battery life.

Usage recommendations

Use the multimeter for basic diagnostic checks and avoid applying voltages or currents beyond the rated ranges. Store the device in a dry environment and replace the AAA battery when display dimming or unreliable readings occur. For measurements on high-energy circuits or where precise laboratory-level accuracy is required, use appropriately rated professional test equipment.

Specifications

Power source: What is providing power for the product e.g. mains electricity.
Battery
Product colour: The colour e.g. red, blue, green, black, white.
Green
All features
Display: The description of display that can includes display type, resolution, size etc.
LCD
Placement supported: Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Handheld multimeter
Display size (HxV):
44 x 30
Backlight: Product has a built-in light source for its illuminating.
Yes
Auto power off: The device switches itself off automatically after a certain activity, or after a certain time of inactivity.
Yes
Temperature measurement range: The minimum and maximum temperatures that can be measured.
-200 - 1200
DC voltage range:
200mV/2V/20V/200V/600V
AC voltage range:
0.2 - 600
AC current range:
2 - 10
DC current range:
2 - 10
Resistance range:
200 - 20000000
Measuring category:
CAT III 600V

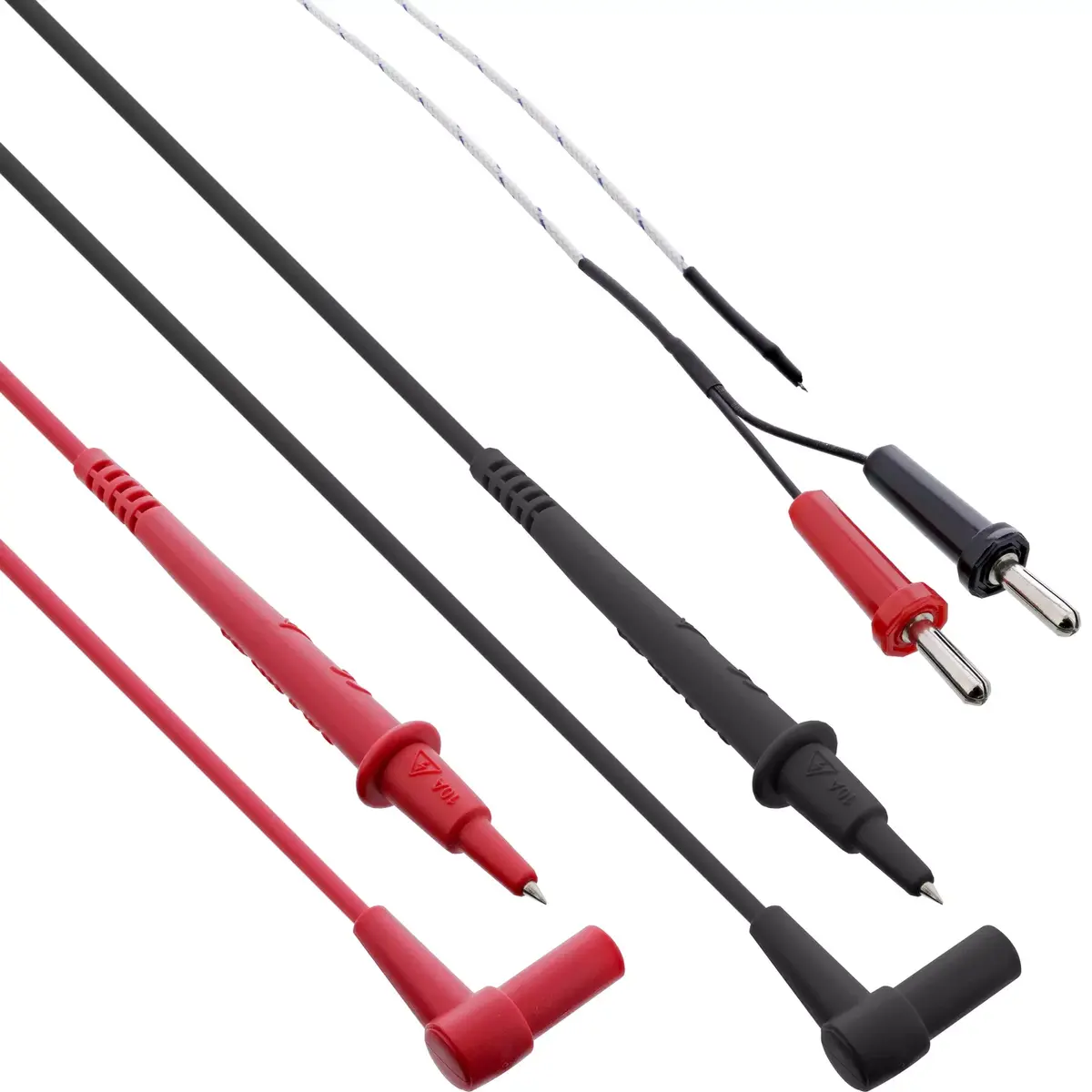

Test leads:
Yes

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).
Taiwan

Technical details

Sustainability compliance:
Yes
Product type: The sub-category of the product.
Digital multimeter
Sustainability certificates:
TÜV mark

Battery

Battery type: Description of battery supplied with the product, such battery form factor (e.g. AA/AAA).
AAA
Number of batteries supported: The number of batteries that can be used with the product.
2

Packaging content

Batteries included:
Yes

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.
130 mm
Depth: The distance from the front to the back of something.
27 mm
Width: The measurement or extent of something from side to side.
62 mm

Power

Battery voltage: The voltage (V) of the battery.
1.5 V
Power source: What is providing power for the product e.g. mains electricity.
Battery

Features

Product colour: The colour e.g. red, blue, green, black, white.
Green

Description

Machine translation. Load original

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}

Customer reviews

Customer questions

FAQ

How much does the InLine 43117A pocket multimeter cost, and is it available for purchase?

The price is 23.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 351 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 17.08.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All InLine products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized InLine service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: power source, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
