Internal Ethernet Network Card InLine 51125P 1000 Mbit/s PCI Express

Internal Ethernet Card InLine 51125P Photo 1

Internal Ethernet Card InLine 51125P Photo 2

Internal Ethernet Card InLine 51125P Photo 3

Internal Ethernet Card InLine 51125P Photo 4

Internal Ethernet Card InLine 51125P Photo 5

Internal Ethernet Card InLine 51125P Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The InLine 51125P is an internal Ethernet network card that provides a maximum data transfer rate of 1000 Mbit/s. It connects via PCI Express and is designed for wired connectivity, ensuring stable and fast internet access for your computer. Ideal for gaming and streaming applications.

Available for order: 17 pcs.

Warranty: 2 Years

SKU: 11431712

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

13.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

13.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

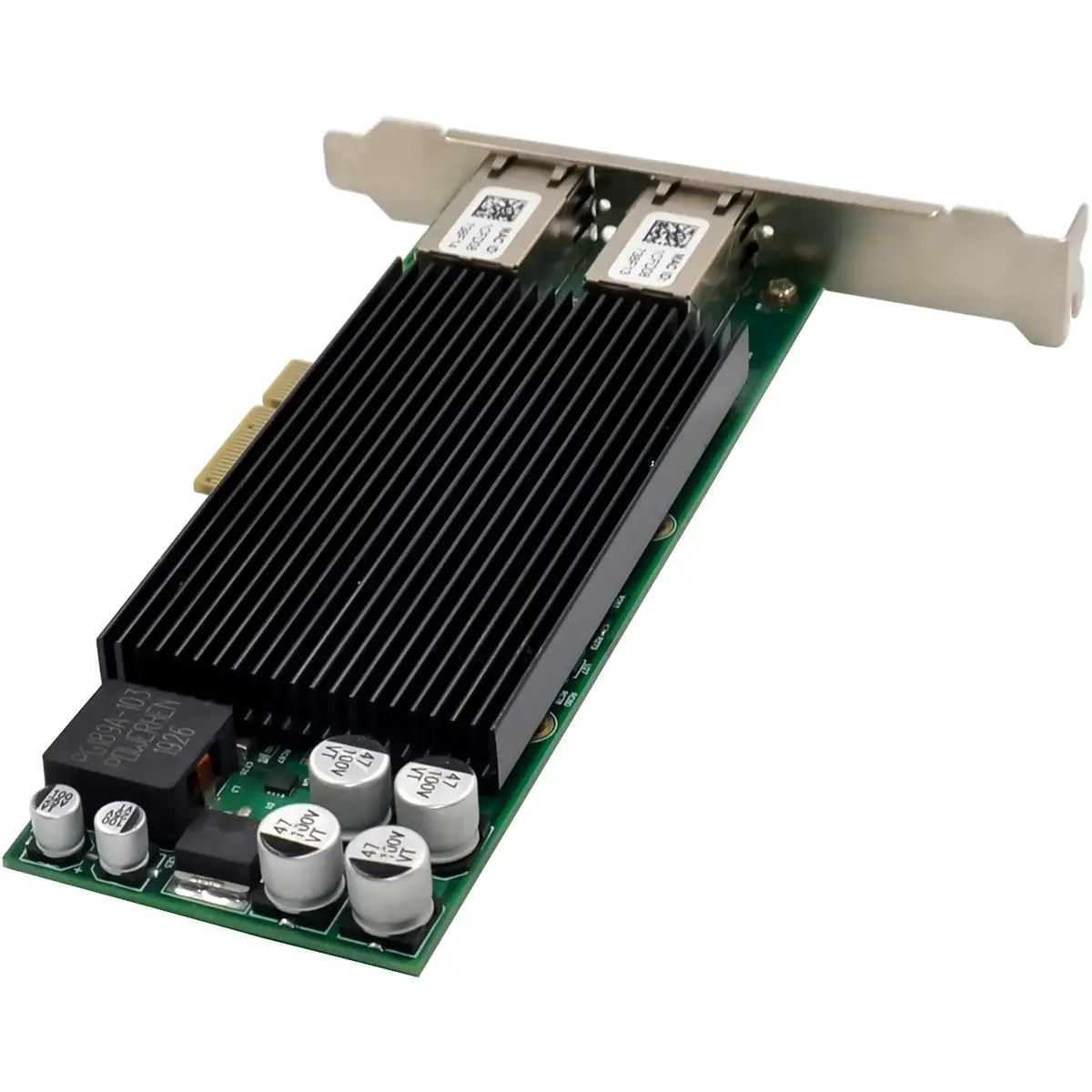

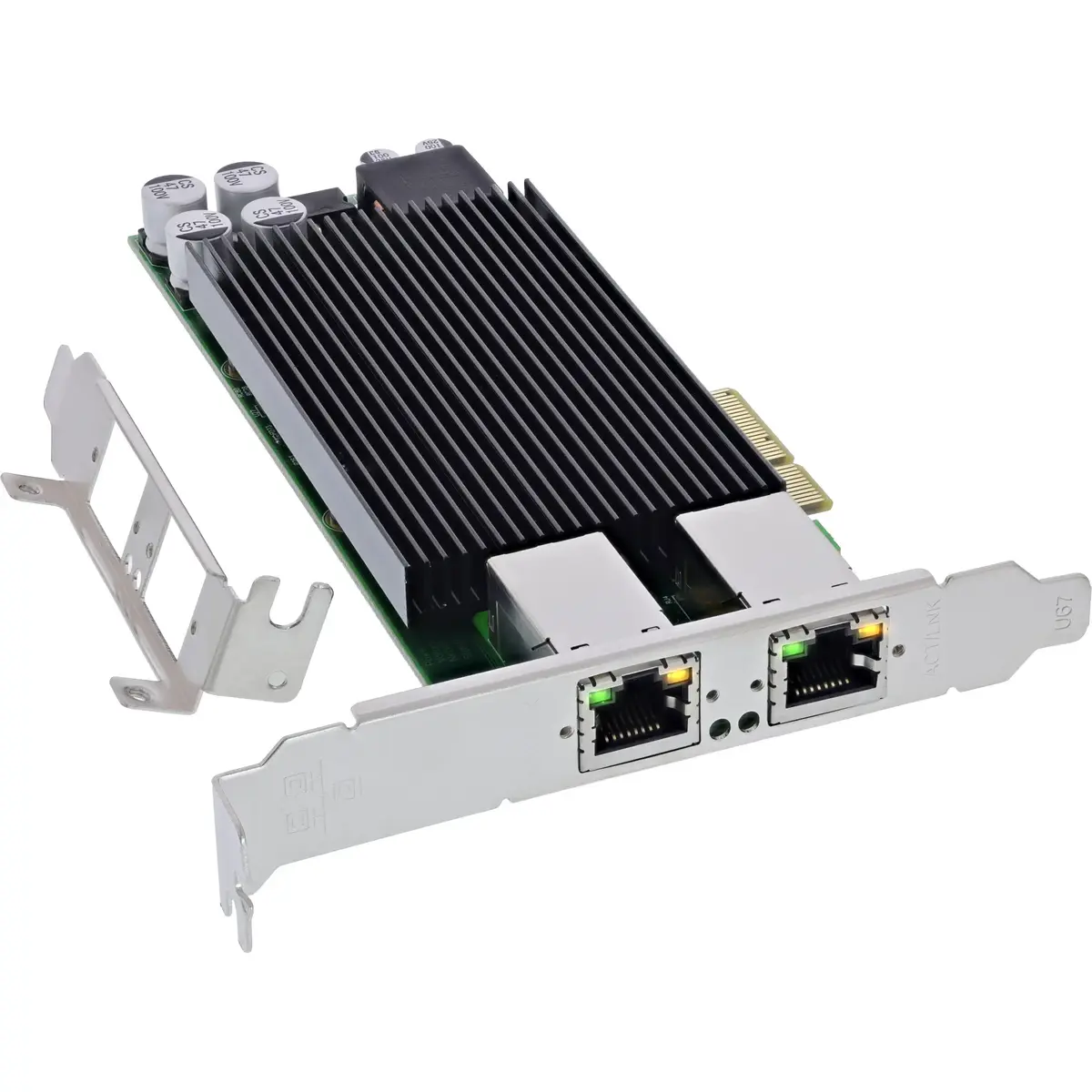

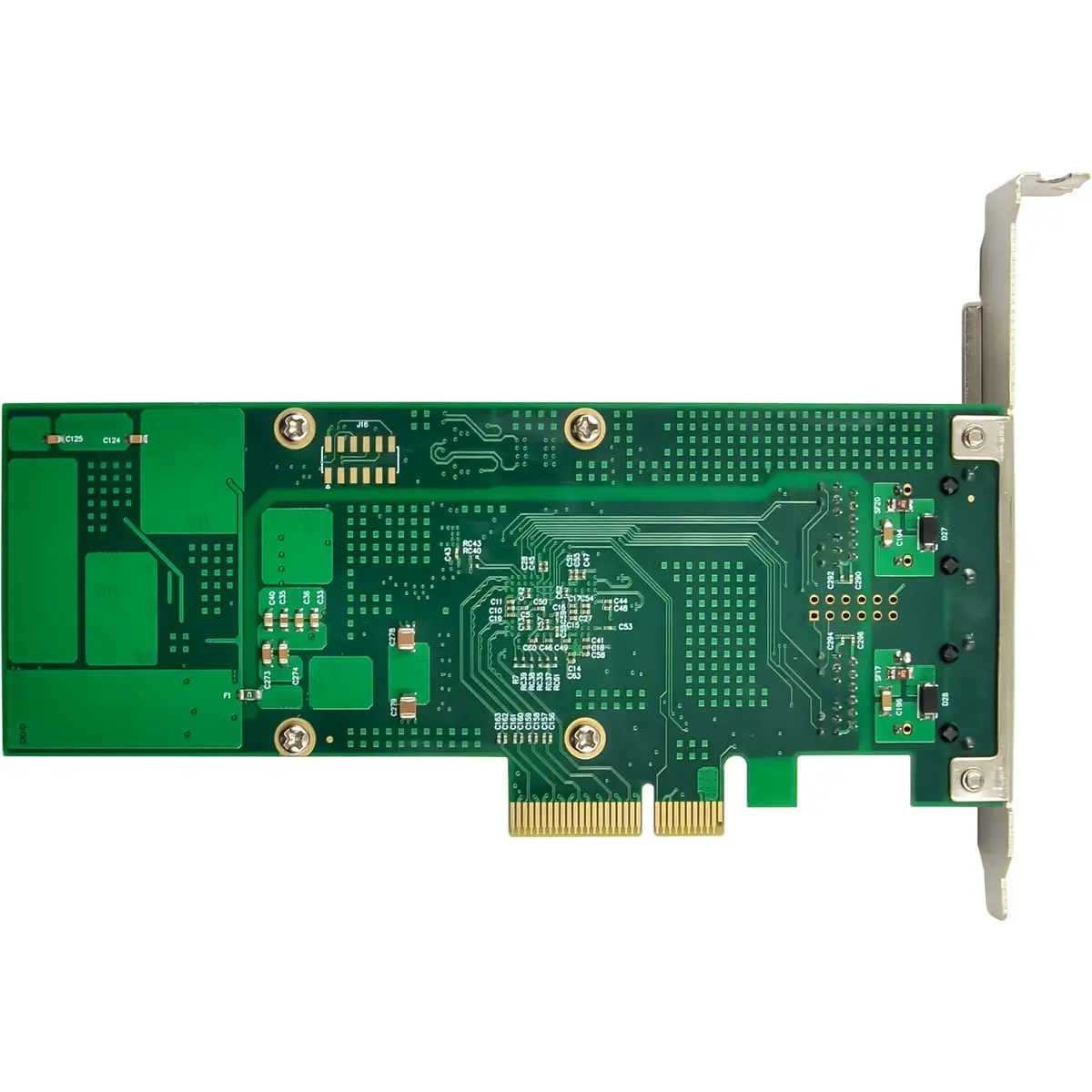

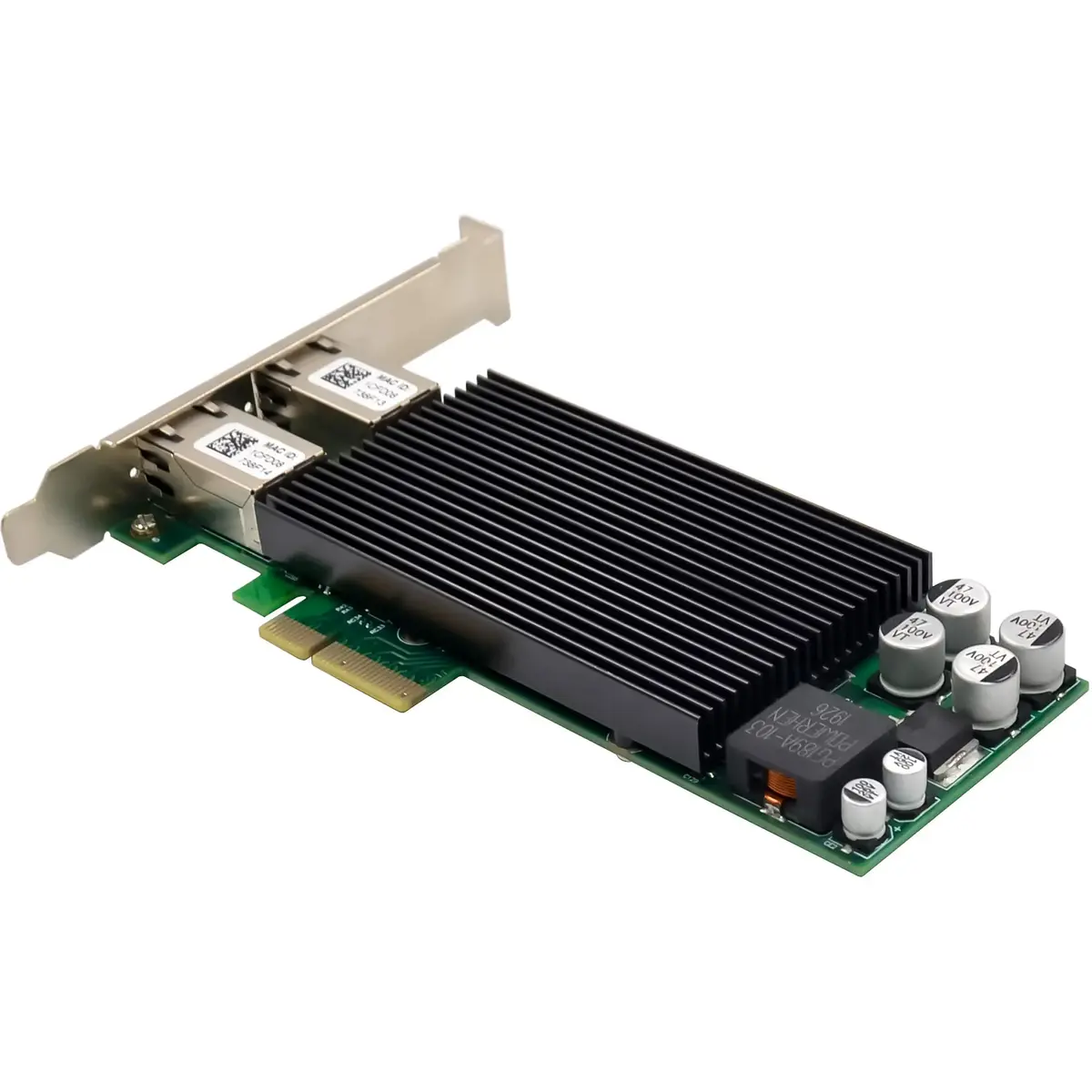

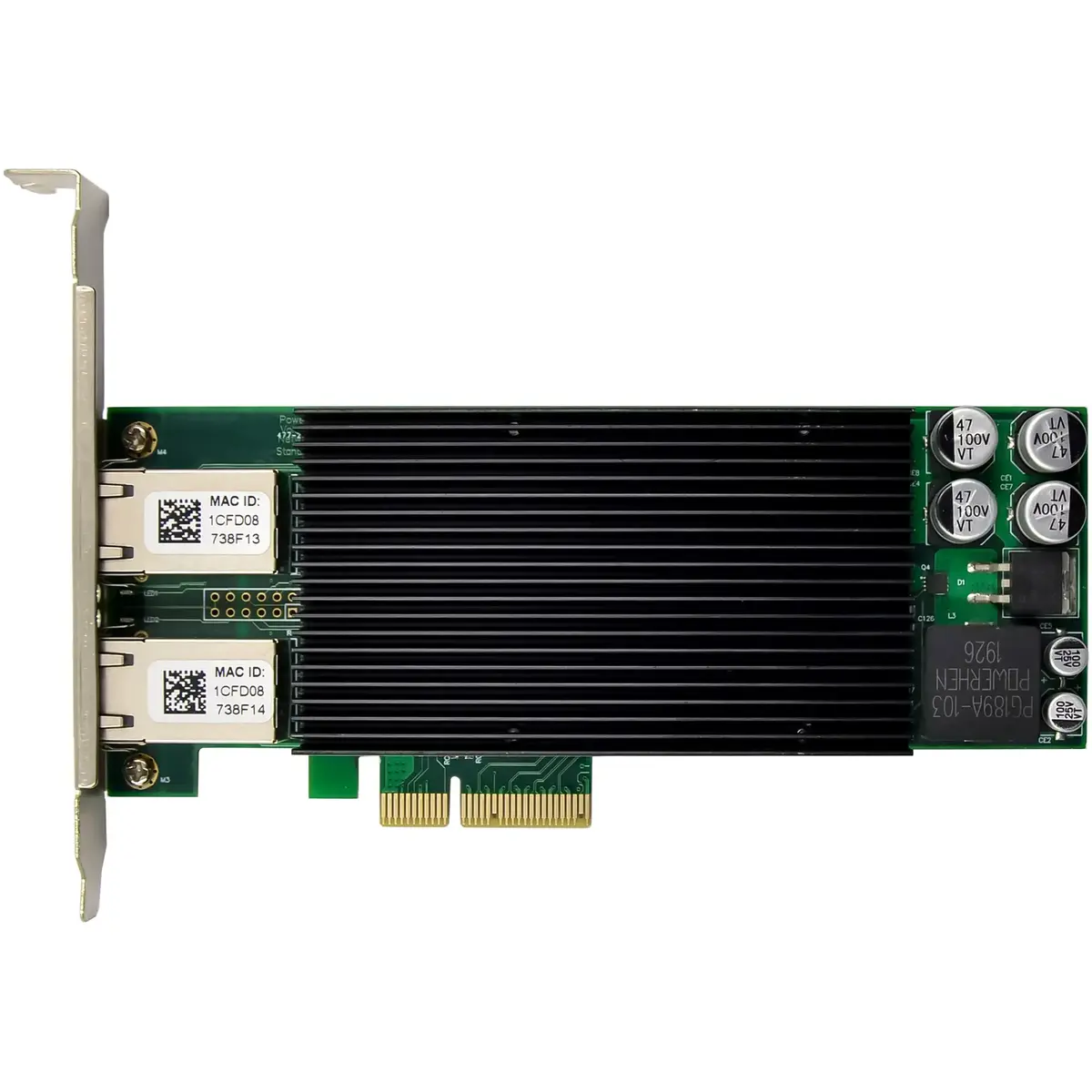

The InLine Dual Gigabit Network Card PoE+ (model 51125P) is an internal PCIe network adapter with two RJ45 Gigabit ports and integrated PoE+ support. It uses the Intel NHI350AM2 chipset and a PCIe x4 interface to provide reliable 10/100/1000 Mb/s connectivity, up to 30 W power per port, and features for optimized performance and energy efficiency suitable for servers, workstations and AV systems.

Advantages

This network card combines dual Gigabit Ethernet ports with Power over Ethernet Plus (IEEE 802.3af/at) delivering up to 30 W per port, reducing the need for separate power supplies for connected devices. The Intel NHI350AM2 chipset, VLAN and Jumbo Frame support (up to 9K), flow control and VMDq for virtual machines enable stable throughput, efficient CPU utilization and compatibility with modern network infrastructures.

Suitable for

Supplying power and network to IP cameras
Access points and wireless AP backhaul
VoIP telephony and SIP endpoints
Servers and workstations requiring dual Gigabit ports
AV installations and virtualization hosts

Key specifications

Bus type: PCIe v2.1 x4 (5.0 GT/s)
Ports: 2 x RJ45 (copper), 10/100/1000 Mb/s
Chipset: Intel NHI350AM2
PoE: IEEE 802.3af / IEEE 802.3at (PoE+), up to 30 W per port, 44–57 V DC per port
Supported protocols: IPv4, IPv6; IEEE standards including 802.3, 802.3u, 802.3ab, 802.3x, 802.1Q, 802.1Qav, 1588 / 802.1AS
Jumbo frames: up to 9K
Dimensions: 160 mm x 69 mm (PCIe board)
Operating temperature: 0 °C to 55 °C; storage: -40 °C to 70 °C; max humidity 90%

How to use

Install the card into an available PCIe x4 (or larger) slot on the host motherboard and secure it with the supplied standard or low-profile bracket. Connect network devices to the RJ45 ports using appropriate Ethernet cables (Cat5e or higher for Gigabit). If using PoE, ensure the connected devices support PoE/PoE+ and verify the host system and cabling deliver the required voltage (44–57 V DC). Install drivers from the supplied CD or download up-to-date drivers for your operating system (Windows, Windows Server, Linux kernel ≥2.6.30, FreeBSD, virtualization platforms).

Usage recommendations

For stable Gigabit operation and PoE+ delivery use Cat5e or better cabling and keep cable runs ≤100 m. Verify power budget per port and overall system power requirements before connecting multiple PoE devices. For virtualized environments enable VMDq and RSS in the driver to improve performance across multiple VMs.

Specifications

Connectivity technology:: Wired
Interface:: Ethernet
Host interface:: PCI Express
Maximum data transfer rate:: 1000 Mbit/s
Networking standards:: IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3ab, IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Q, IEEE 1588

All features

VLAN support:: Yes
Component for:: Server/workstation
Resource CD:: Yes
Compliance certificates:: CE, TÜV mark

Ports & interfaces

Connectivity technology:: Wired
Interface:: Ethernet
Host interface:: PCI Express
Internal:: Yes
Ethernet LAN (RJ-45) ports:: 2

Bandwidth

Maximum data transfer rate:: 1000 Mbit/s
Full duplex:: Yes

Network

Networking standards:: IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3ab, IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Q, IEEE 1588
Cabling technology:: 10/100/1000BaseT(X)
Chipset:: Intel NHI350AM2
Ethernet LAN:: Yes
Jumbo frames support:: Yes
Ethernet LAN data rates:: 1000, 100, 10
Ethernet interface type:: Gigabit Ethernet, Fast Ethernet

Protocols

Supported network protocols:: IPv4, IPv6

Performance

Wake-on-LAN ready:: Yes
Windows operating systems supported:: Windows 8, Windows 7, Windows 11, Windows 10
Linux operating systems supported:: Kernel 4.6.4, Kernel 3.3, Kernel 3.12, Kernel 2.6.33, Kernel 2.6.31, Kernel 3.17
Server operating systems supported:: Windows Server 2019, Windows Server 2016, Windows Server 2008 R2
Other operating systems supported:: FreeBSD
Auto-negotiation:: Yes

Design

LED indicators:: Y
Country of origin:: Taiwan

Weight & dimensions

Width:: 160 mm
Depth:: 69 mm

Operational conditions

Operating relative humidity (H-H):: 0 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 55

Packaging content

Manual:: Yes
Mounting brackets included:: Yes
