Internal Ethernet Network Card InLine 51127B 1000 Mbit/s PCI Express

Internal Ethernet Card InLine 51127B Photo 1

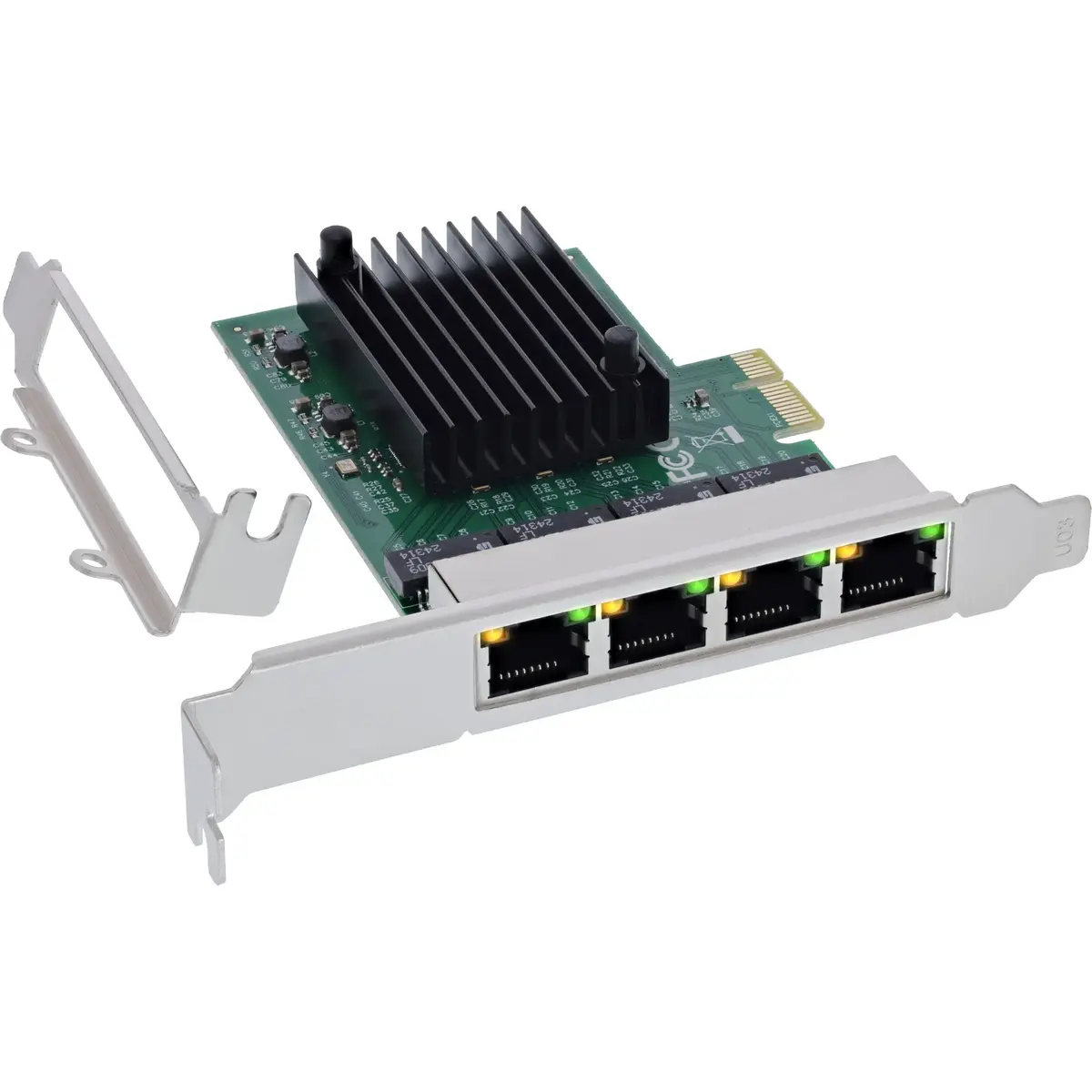

Internal Ethernet Card InLine 51127B Photo 2

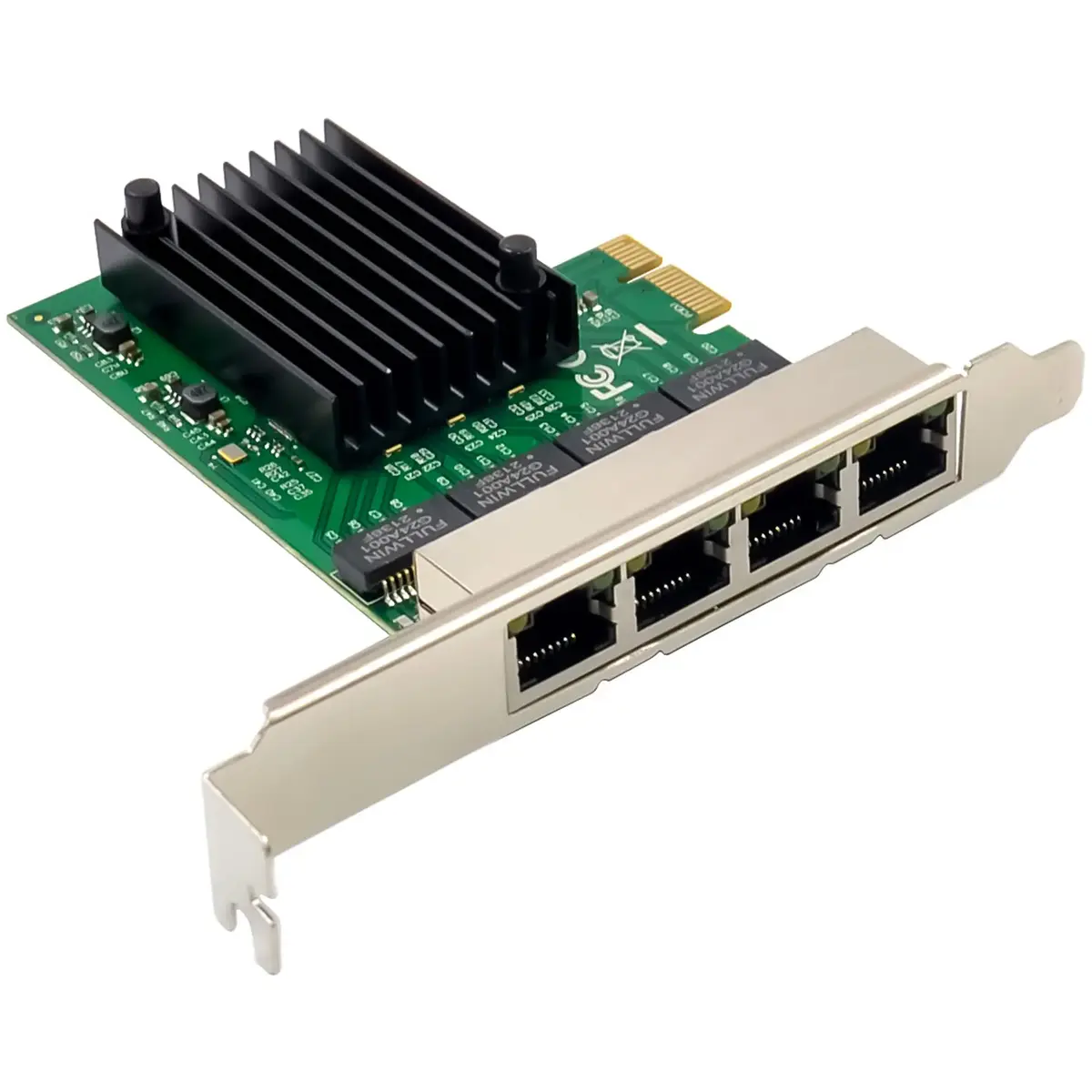

Internal Ethernet Card InLine 51127B Photo 3

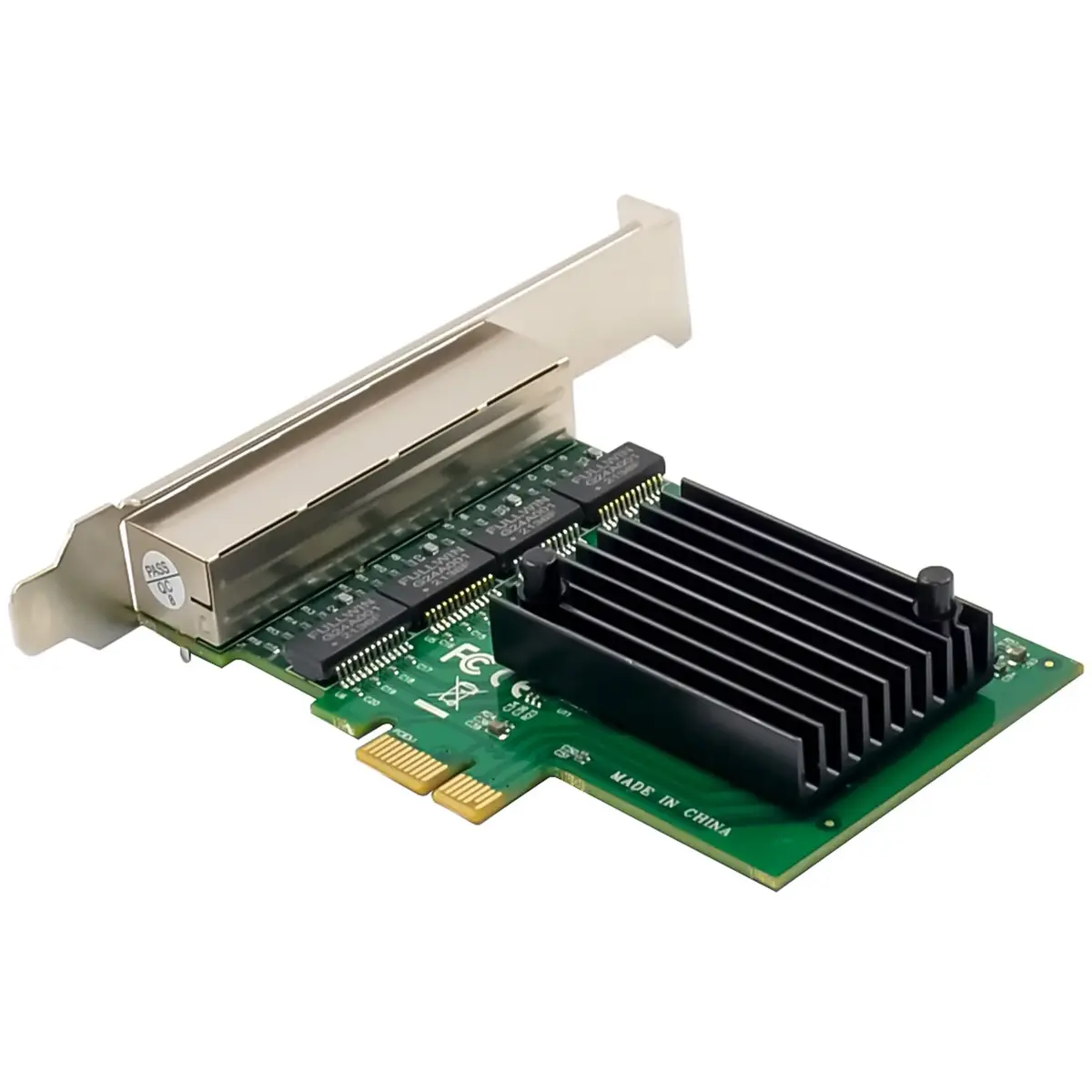

Internal Ethernet Card InLine 51127B Photo 4

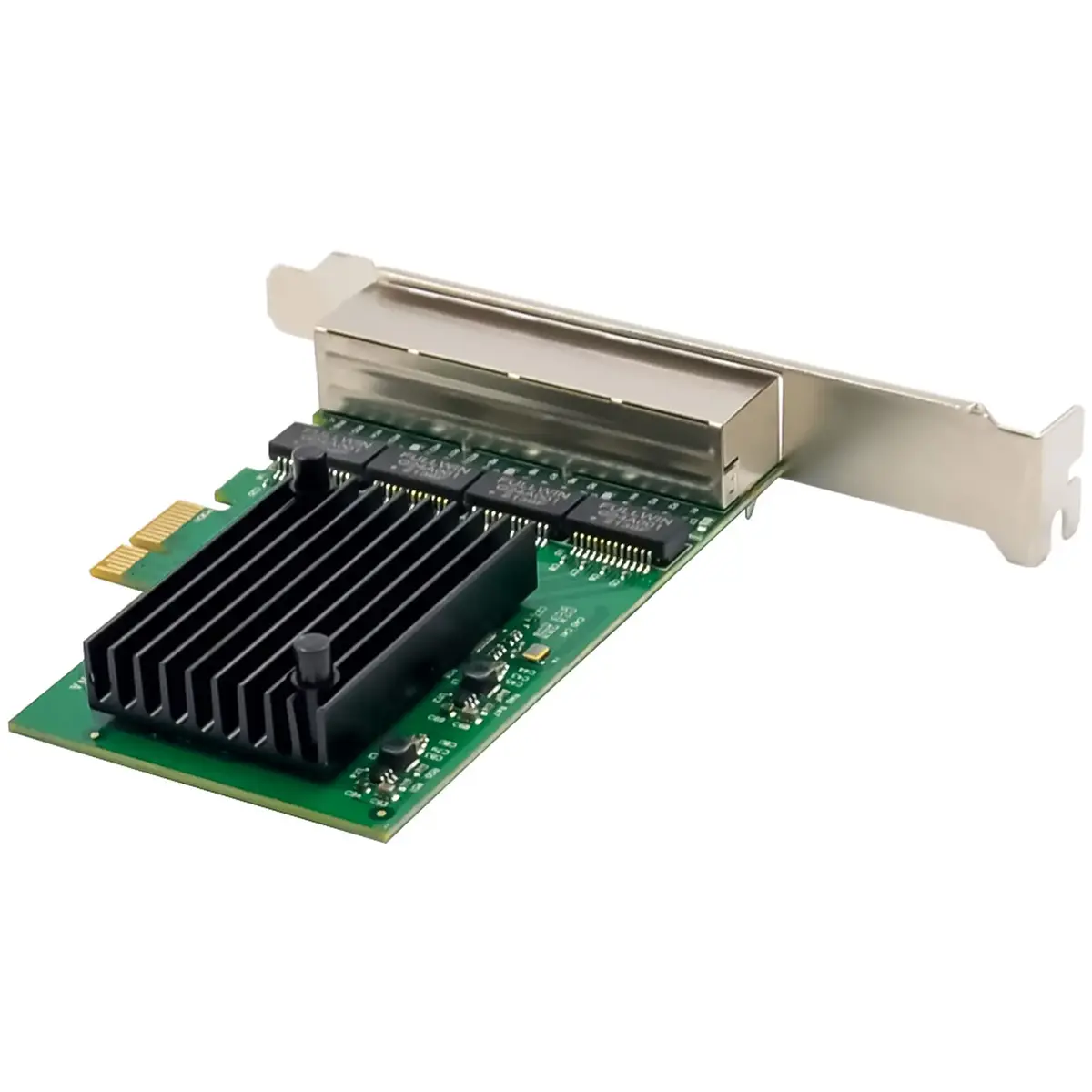

Internal Ethernet Card InLine 51127B Photo 5

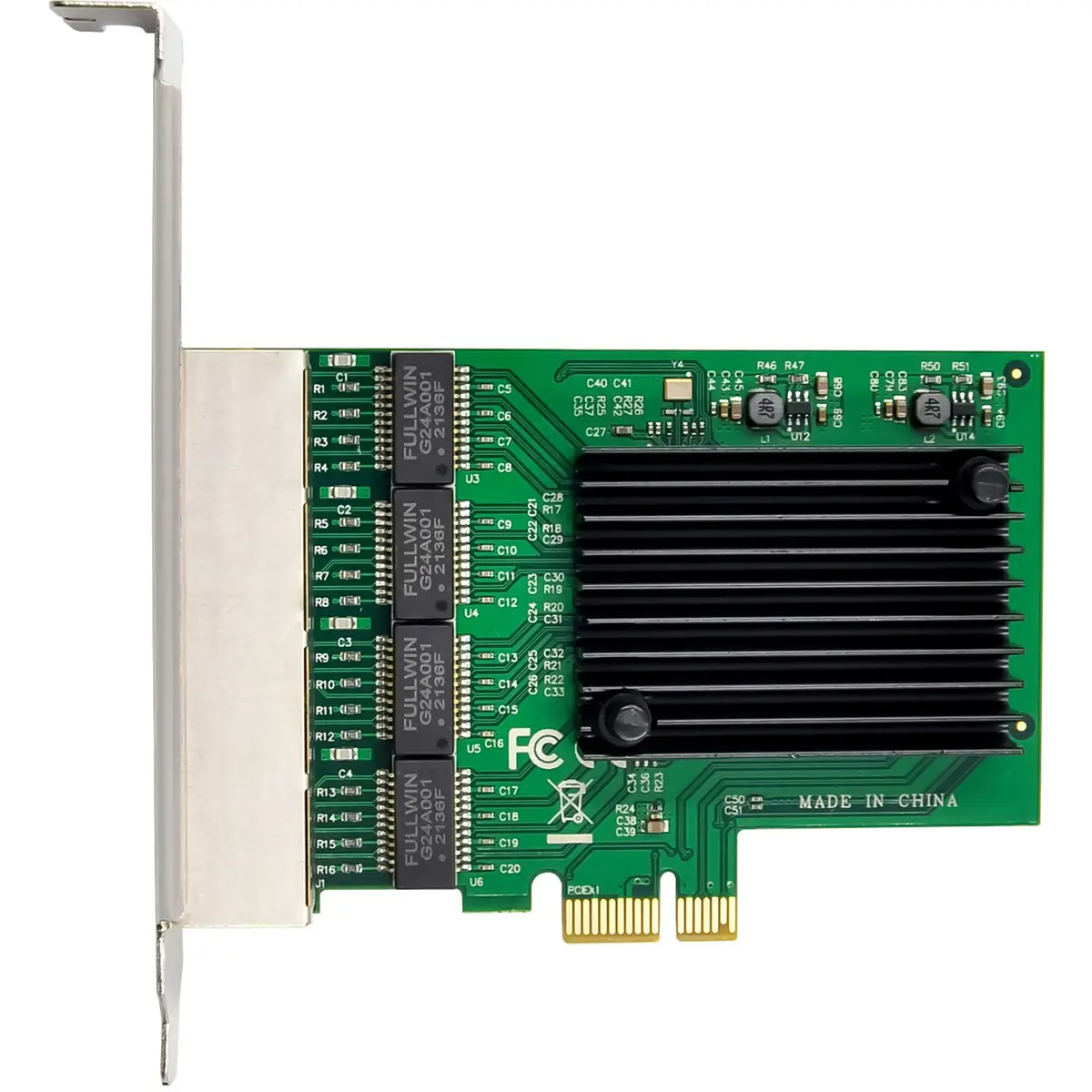

Internal Ethernet Card InLine 51127B Photo 6

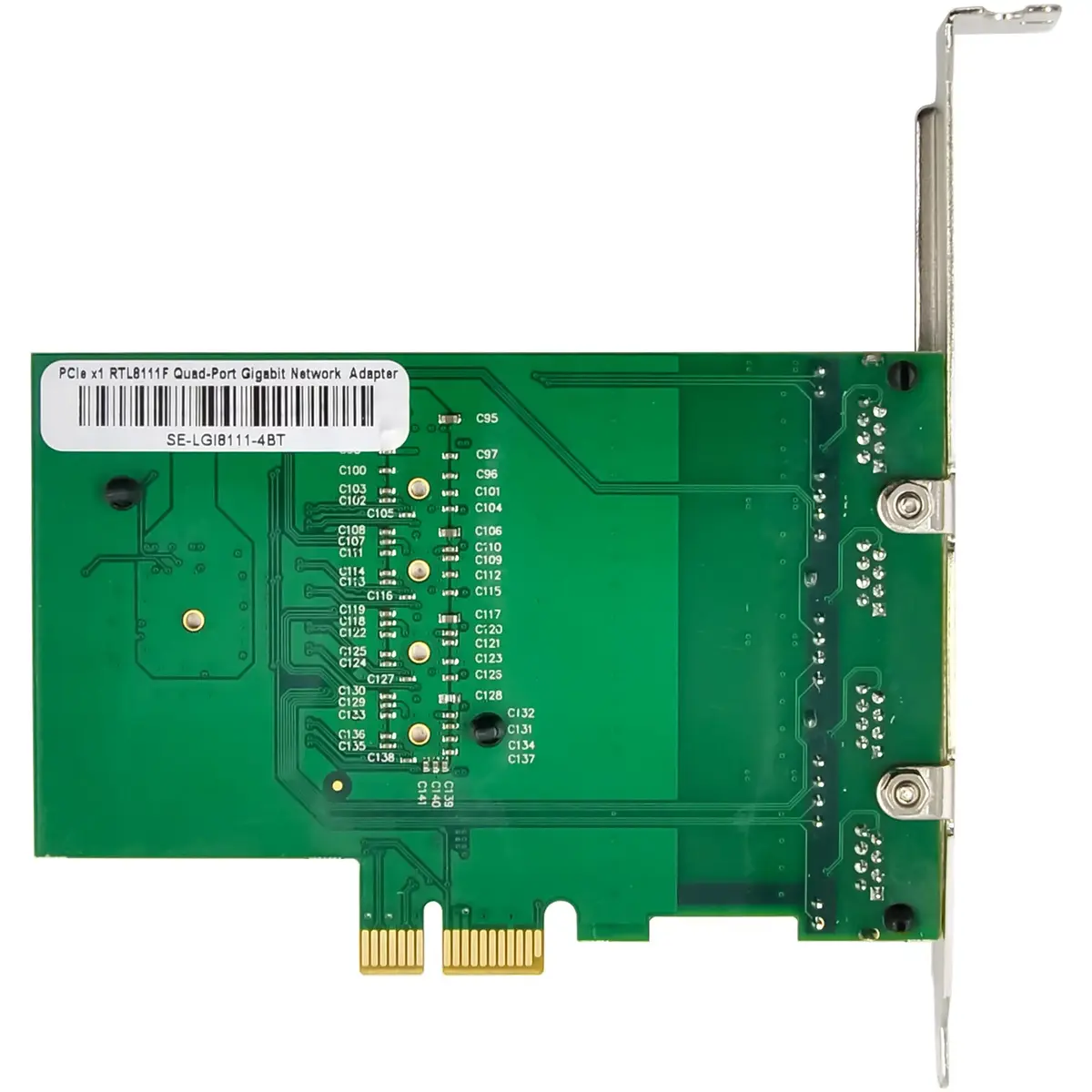

Internal Ethernet Card InLine 51127B Photo 7

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The InLine 51127B is an internal Ethernet network card designed for high-speed wired connectivity. It features a PCI Express host interface and supports a maximum data transfer rate of 1000 Mbit/s, making it ideal for demanding network environments. This card enhances your PC's networking capabilities, ensuring reliable and fast connections for gaming, streaming, and data transfer.

Available for order: 39 pcs.

Warranty: 2 Years

SKU: 11431710

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

10.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

10.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine® Quad Gigabit network card adds four RJ45 Gigabit Ethernet ports to systems via a PCIe x1 interface, offering stable 1 Gb/s connections per port for servers, workstations and AV applications. It supports VLAN (802.1Q), jumbo frames up to 9K, Wake-on-LAN and flow control. The card uses the Realtek RTL8111F chipset with ASM1184e and includes a low-profile slot bracket for installation in compact housings.

Advantages

Provides four independent Gigabit Ethernet ports for increased network connectivity. Compatible with a wide range of systems through the PCIe x1 (PCIe v1.1) interface. Supports modern network features such as VLAN tagging (802.1Q), jumbo frames (up to 9K), Wake-on-LAN and flow control for reliable and efficient operation. Low-profile bracket included for easy integration into small form-factor cases.

Key specifications

Bus type: PCIe v1.1 (2.5 GT/s) x1 lane
Connectors: 4 × RJ45 (copper)
Data rate: 10/100/1000 Mb/s per port
Supported speeds: 10/100 Mb/s (half-duplex), 10/100/1000 Mb/s (full-duplex)
Maximum cable length: up to 100 m (10BASE-T Cat3+, 100BASE-TX Cat5+, 1000BASE-T Cat5e+)
Chipset: Realtek RTL8111F + ASM1184e
Supported protocols: IPv4, IPv6; IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1Q, 802.1P
Dimensions: 100 mm × 69 mm (PCIe board)
Operating systems: Windows 11/10/8/7, Windows Server 2008 R2/2016/2019/2021, Linux kernel ≥ 2.6.30
Operating temperature: 0 °C to 55 °C; storage: -40 °C to 70 °C; max humidity: 90 %
Scope of delivery: 1 × InLine® Quad Gigabit network card (4 × RJ45 1 Gb/s), 1 × low-profile slot bracket, 1 × driver CD, 1 × instruction manual (German/English)

How to use

Install the card into an available PCIe x1 slot on the motherboard and secure it with the standard or low-profile bracket according to the case type. Connect network cables to the RJ45 ports and ensure proper cabling category for the required speed. Install drivers from the supplied CD or download the latest drivers from the manufacturer if necessary. Configure network settings in the operating system, enable VLANs or jumbo frames where required, and activate Wake-on-LAN in BIOS and OS if needed.

Recommendations

Use appropriate Ethernet cables (Cat5e or higher for Gigabit) and keep firmware/drivers up to date. Ensure the host system provides sufficient cooling and that BIOS settings allow PCIe device operation and Wake-on-LAN if used.

Specifications

Connectivity technology:: Wired
Interface:: Ethernet
Host interface:: PCI Express
Maximum data transfer rate:: 1000 Mbit/s
Networking standards:: IEEE 802.3x, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab

All features

VLAN support:: Yes
Component for:: Server/workstation
Resource CD:: Yes
Compliance certificates:: TÜV mark, CE

Ports & interfaces

Connectivity technology:: Wired
Interface:: Ethernet
Host interface:: PCI Express
Internal:: Yes
Ethernet LAN (RJ-45) ports:: 4

Bandwidth

Maximum data transfer rate:: 1000 Mbit/s

Network

Networking standards:: IEEE 802.3x, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab
Cabling technology:: 10/100/1000BaseT(X)
Chipset:: Realtek RTL8111F
Ethernet LAN:: Yes
Jumbo frames support:: Yes
Ethernet LAN data rates:: 10, 100, 1000
Ethernet interface type:: Fast Ethernet, Gigabit Ethernet

Protocols

Supported network protocols:: IPv4, IPv6

Performance

Wake-on-LAN ready:: Yes
Windows operating systems supported:: Windows 8, Windows 7, Windows 11, Windows 10
Linux operating systems supported:: Kernel 2.6.33, Kernel 4.6.4, Kernel 3.3, Kernel 3.17, Kernel 3.12, Kernel 2.6.31
Server operating systems supported:: Windows Server 2019, Windows Server 2016, Windows Server 2008 R2
Auto-negotiation:: Yes

Design

LED indicators:: Y
Country of origin:: Taiwan

Weight & dimensions

Width:: 100 mm
Depth:: 69 mm

Operational conditions

Operating relative humidity (H-H):: 0 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 55

Packaging content

Manual:: Yes
Mounting brackets included:: Yes
