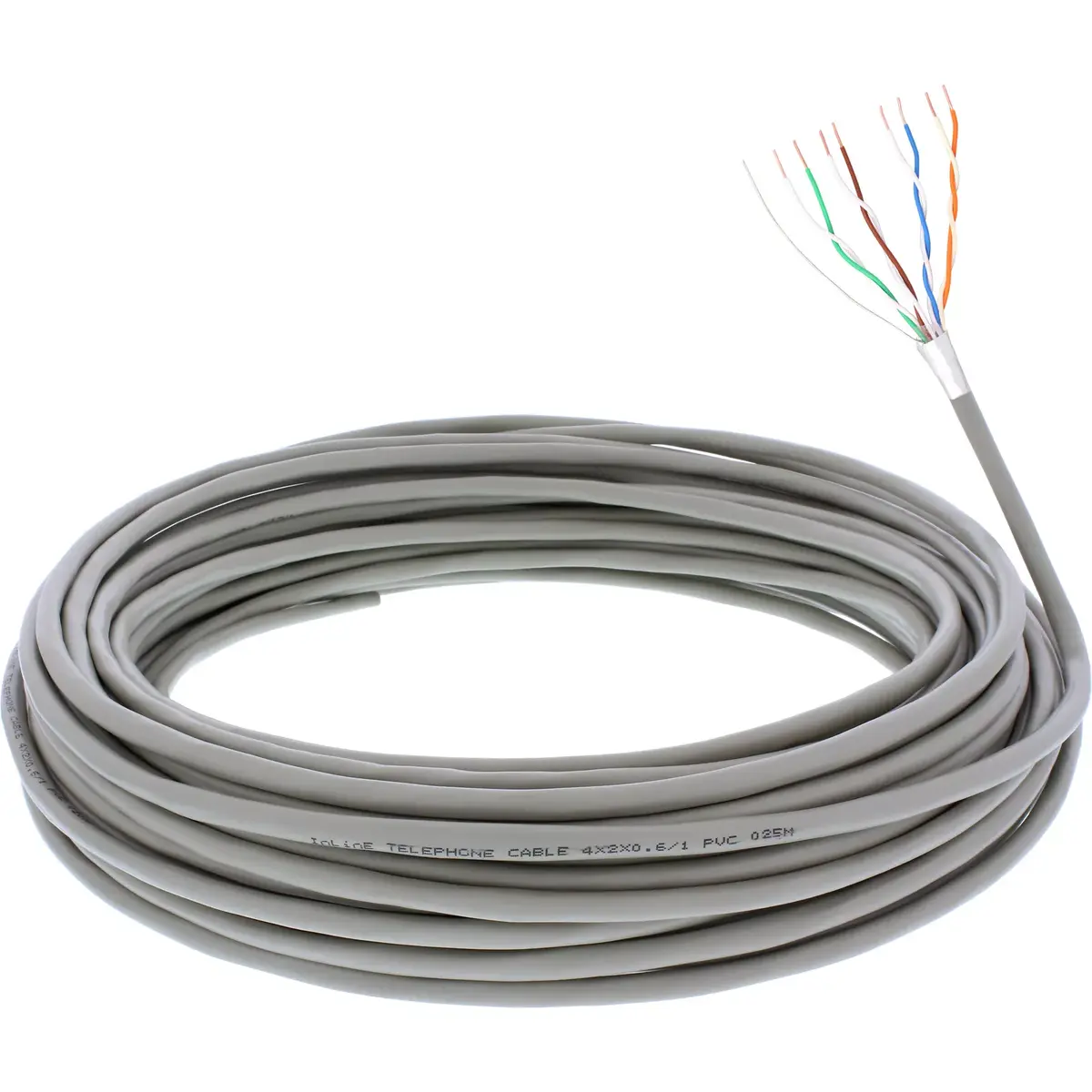

InLine Telephone Cable 8 wire solid installation 4x2x06mm shielded 25m

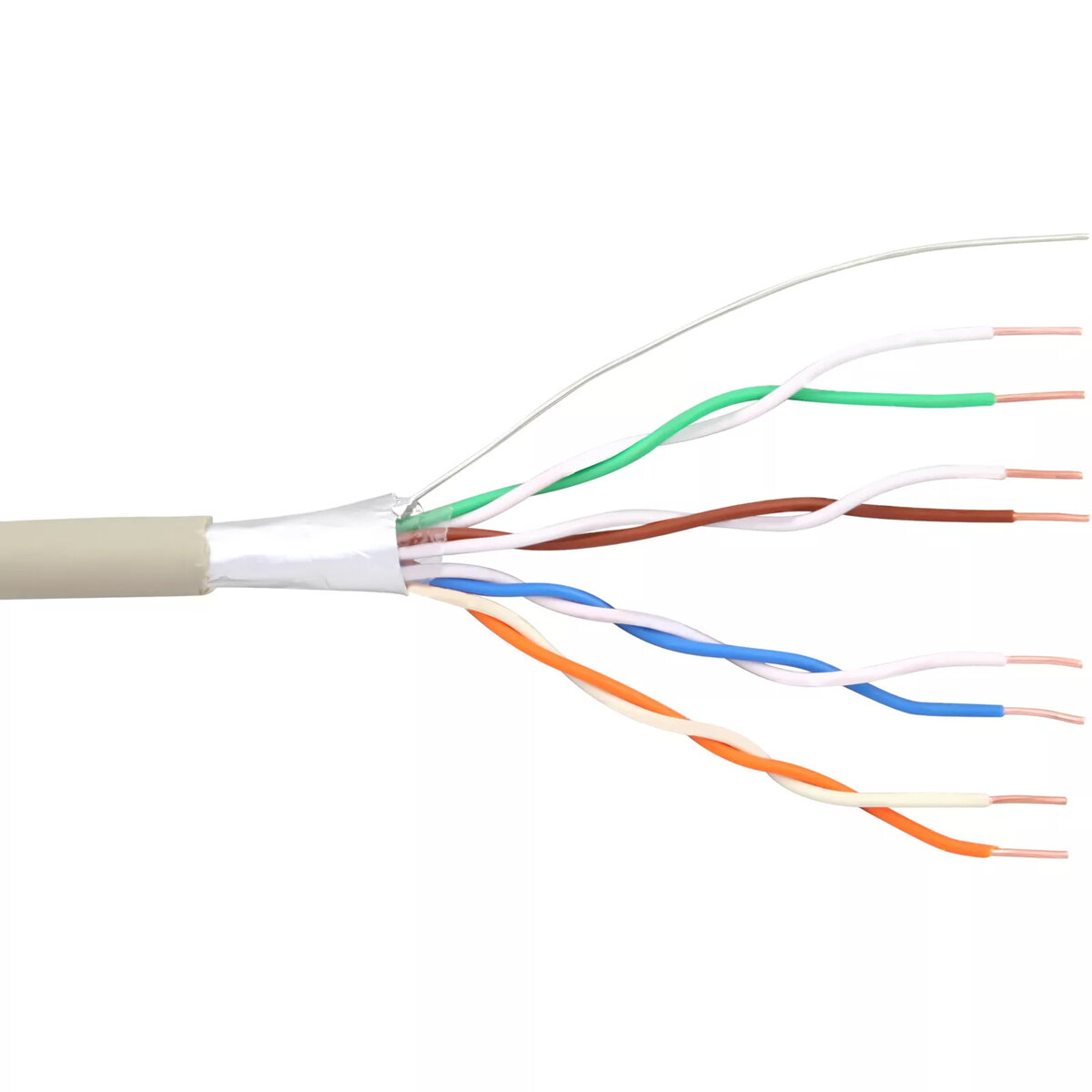

The InLine Telephone Cable is an 8-wire solid installation cable arranged as 4 pairs (4x2x0.6 mm) and supplied on a 25 m length. Conductors are made of CCA (Copper Cladded Aluminum) to provide a cost-effective alternative to pure copper while maintaining electrical continuity. The cable includes an overall foil shield with a drain wire and a 0.5 mm PVC outer jacket in beige, designed for telephone and low-voltage voice installations where screened protection is required.

Advantages

Solid 0.6 mm conductors in a 4-pair configuration ensure stable connections for fixed telephone wiring. CCA cores offer a lower-cost option with acceptable conductivity for telephony. The overall foil shield with drain wire reduces external electromagnetic interference. A 0.5 mm PVC jacket provides mechanical protection and easy handling during installation.

Suitable for

• Fixed telephone line installations in homes and offices
• Internal low-voltage voice wiring and extensions
• Environments where basic shielding is needed to limit interference
• Wall and conduit installations requiring solid-core cable

Key specifications

• Configuration: 4 pairs (8 solid conductors), 4x2x0.6 mm
• Conductor material: CCA (Copper Cladded Aluminum)
• Shielding: overall foil shield with drain wire
• Outer jacket: 0.5 mm PVC, beige
• Length: 25 m
• Brand / MPN / EAN: InLine / 69987C / 4043718198597

How to use

Run the cable through walls, conduits, or raceways to the desired telephone sockets or equipment. Strip the outer PVC jacket carefully to expose the foil shield and drain wire; remove or fold back the foil and use the drain wire to connect shielding to ground as required. Terminate each pair onto the appropriate telephone jack or distribution block following standard color codes and wiring conventions for reliable connections. Avoid sharp bends and excessive pulling force during installation.

Usage recommendations

Use this shielded solid telephone cable for permanent in-building telephone wiring. For long outdoor runs or critical high-speed data applications, consider using dedicated copper or data-rated cables designed for those purposes.
