Interface adapter InLine 76619F — serial/parallel connectivity accessory

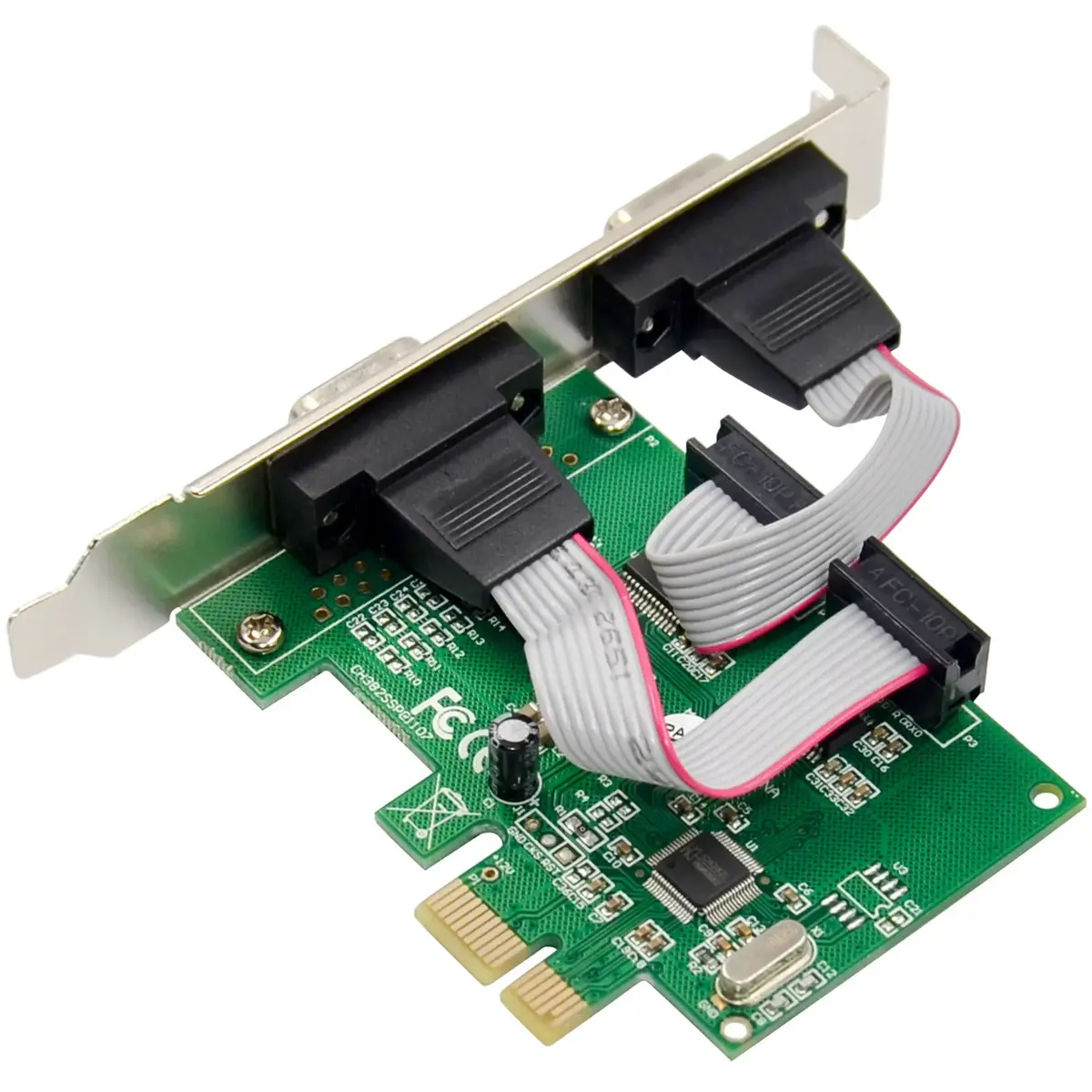

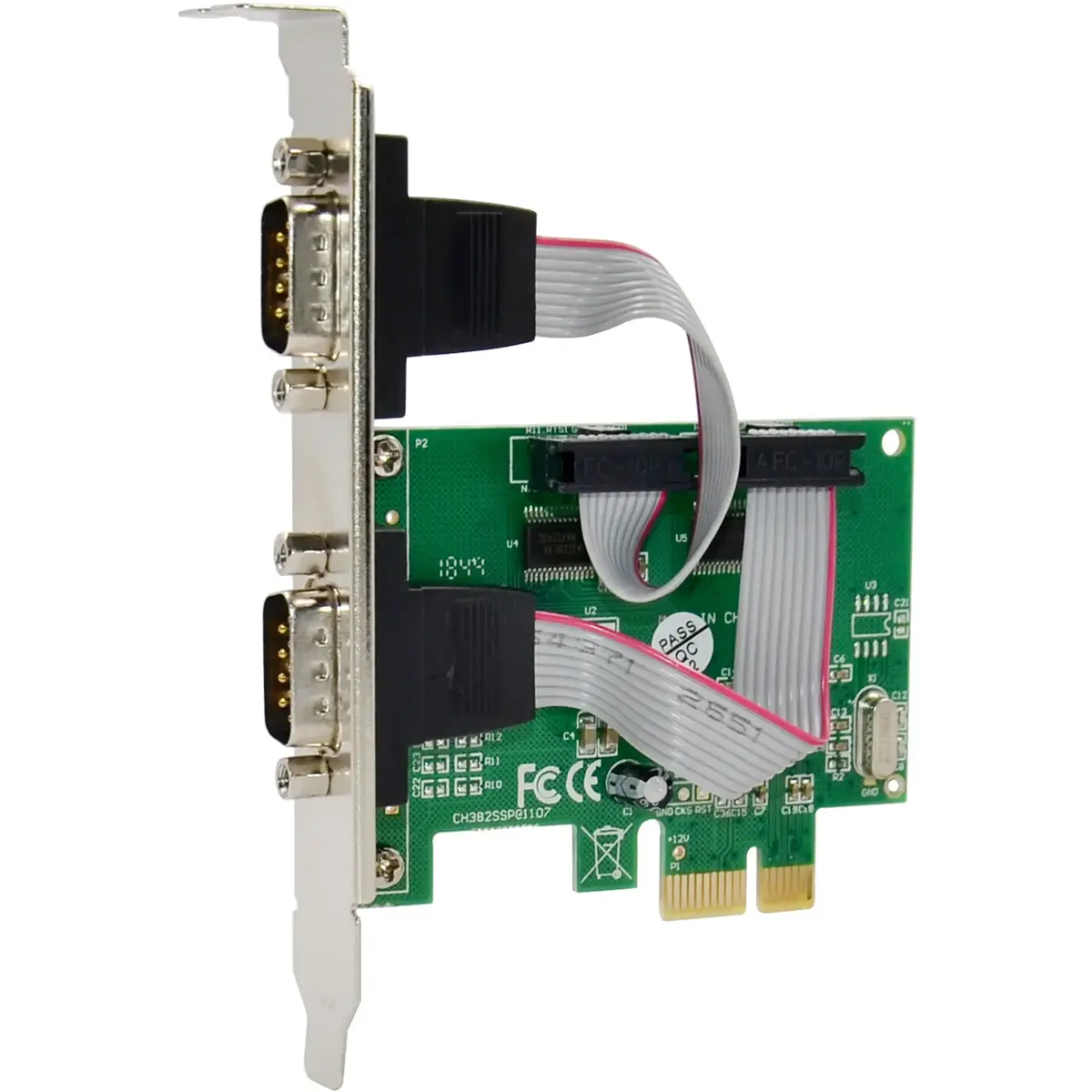

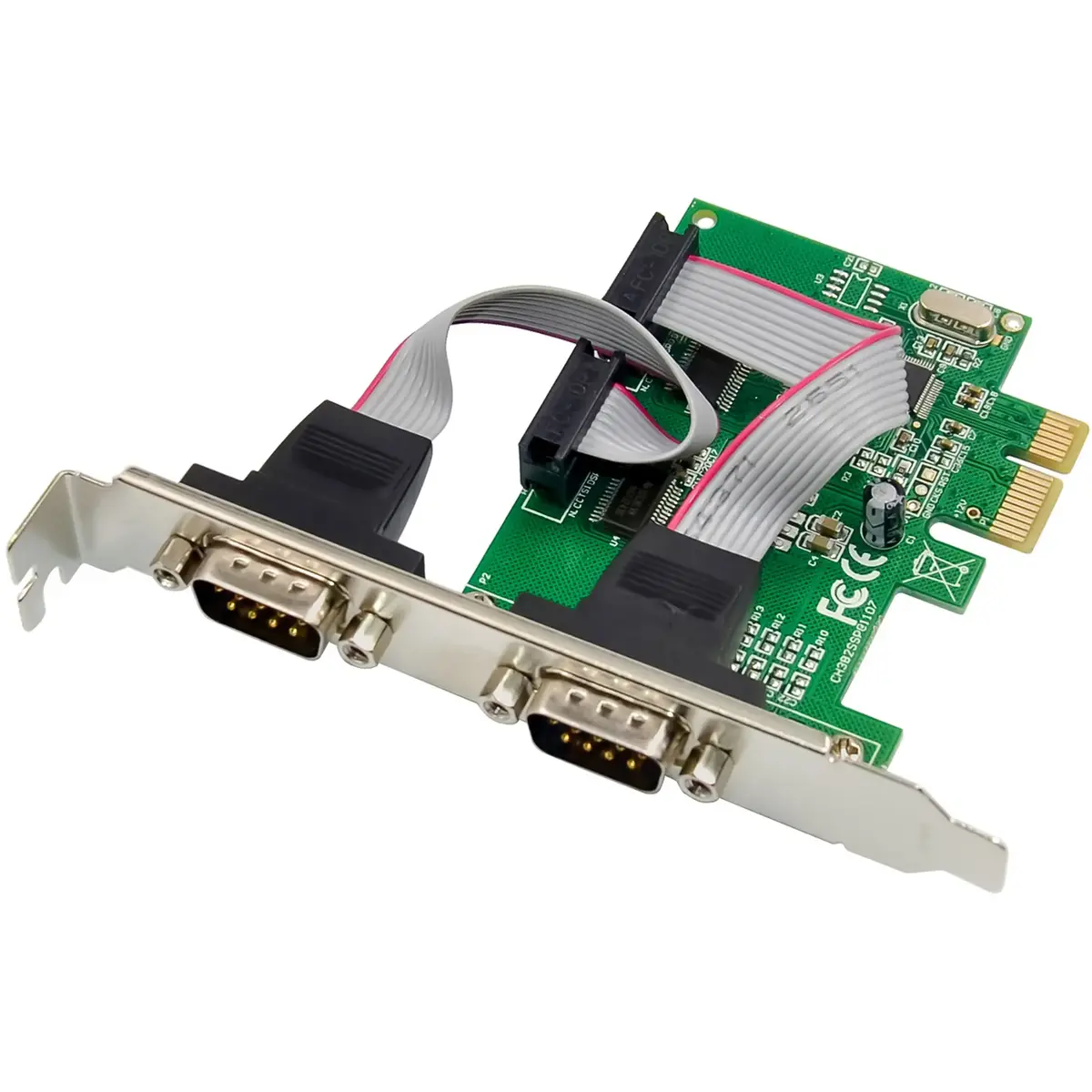

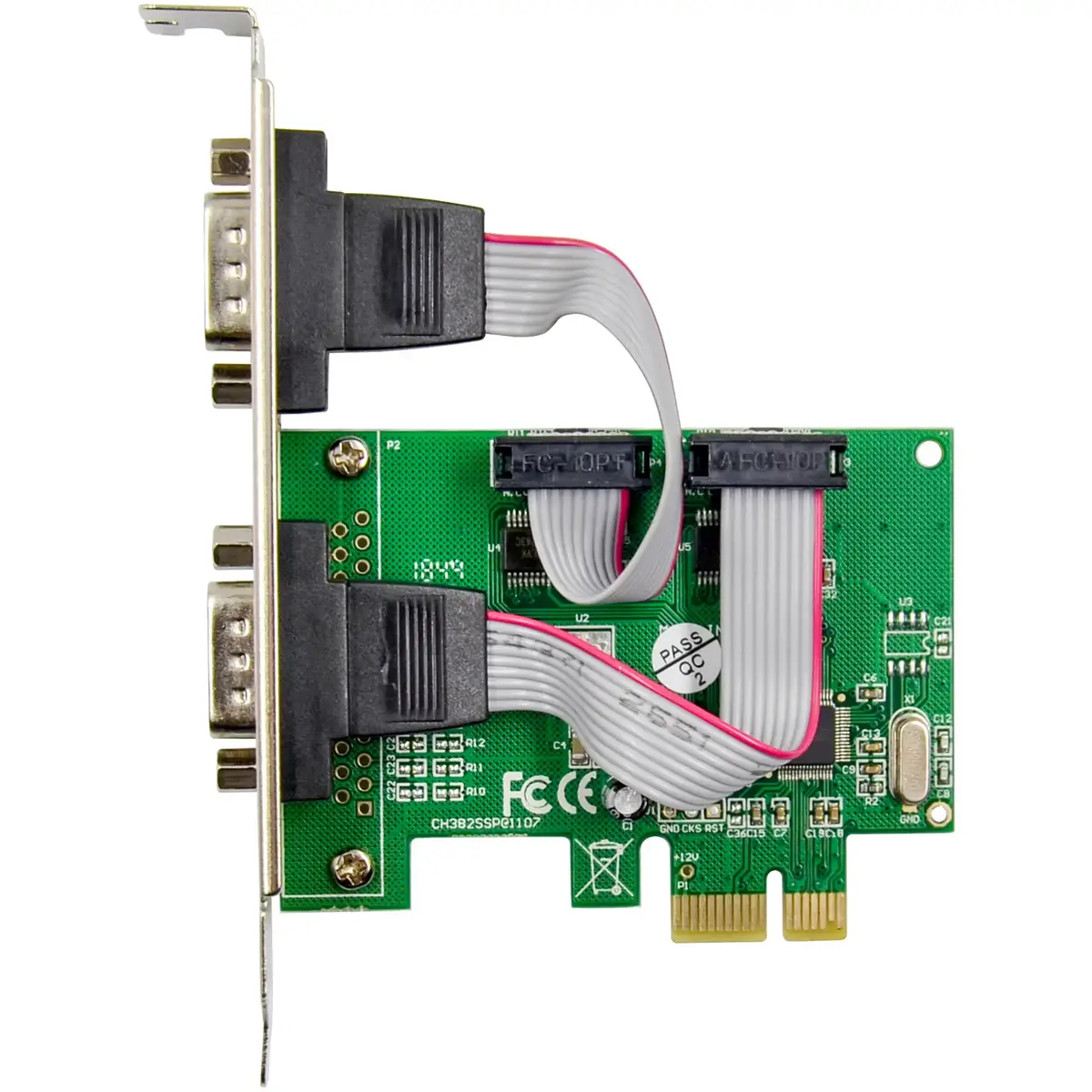

The InLine PCIe 2-Port RS-232 card expands modern computers with two reliable RS-232 serial interfaces. Fitted with two D-Sub 9 connectors and a CH382L controller, the card provides stable, full-duplex serial communication with adjustable baud rates up to 921,600 bps and comprehensive signal support for industry and control technology applications.

Advantages

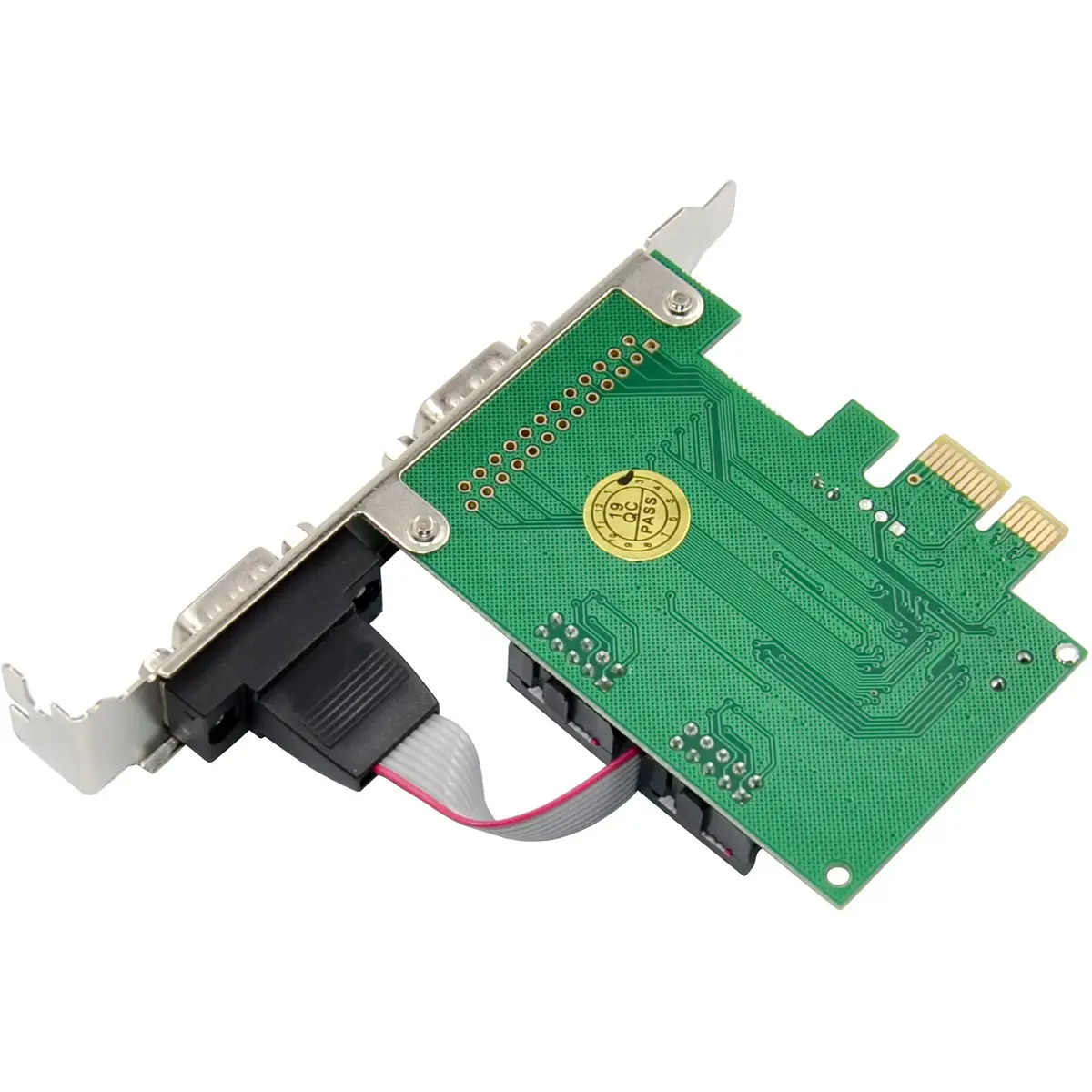

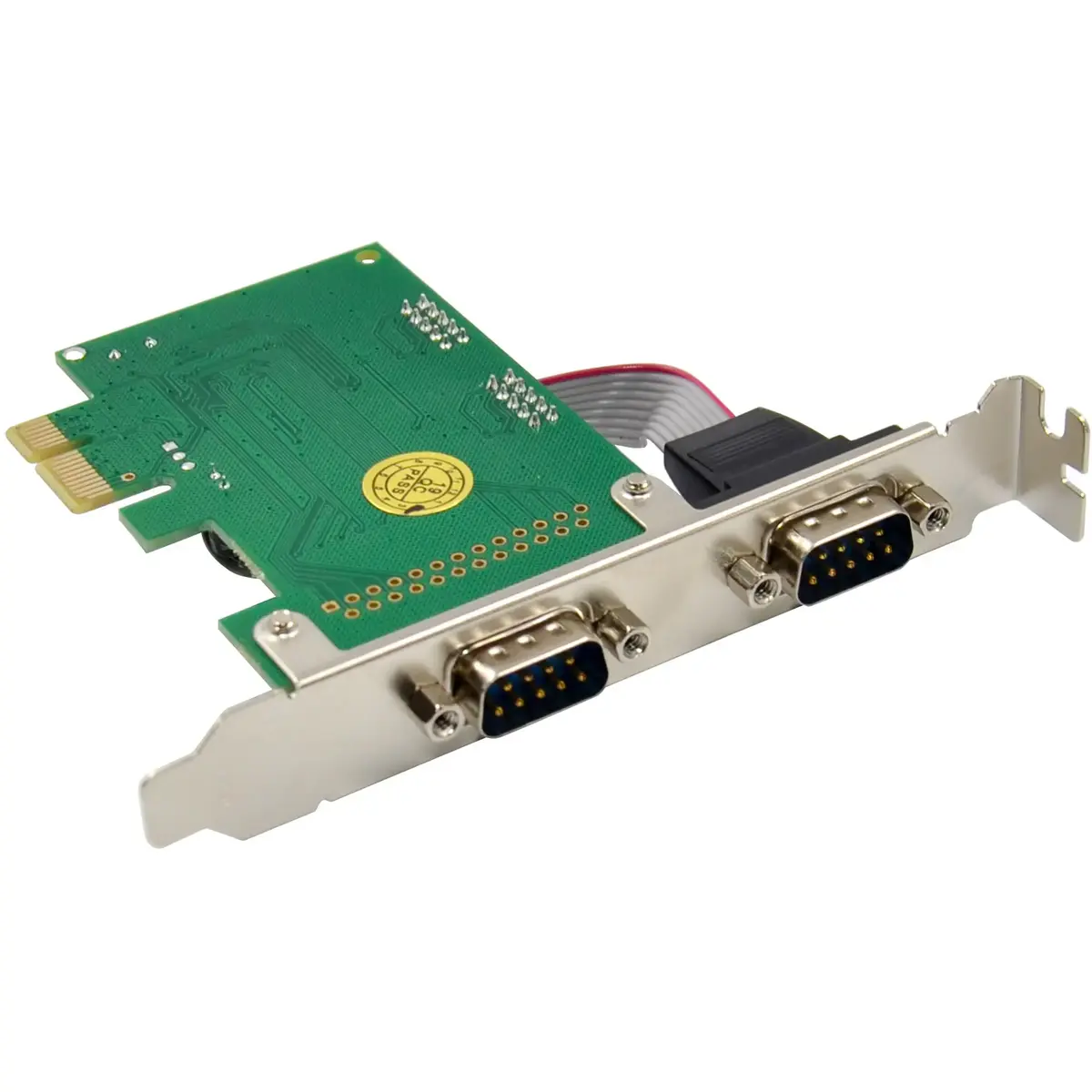

The card includes 256-byte FIFO buffers for transmit and receive paths to maintain continuous data flow under high load. It supports a wide range of signal lines (TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI) and offers ESD protection up to ±15 kV. The PCIe x1 interface is backward compatible with newer and older PCIe versions, and both standard and low-profile slot brackets are included for flexible installation. Drivers for Windows and Linux are provided.

Suitable for

• Industrial automation and control systems
• Machine tools and manufacturing equipment
• Measuring and test devices requiring serial connections
• Legacy peripherals and serial printers
• PC systems where two RS-232 ports are needed

Key specifications

• Interface: PCIe x1 (backward compatible)
• Connectors: 2 × D-Sub 9 (RS-232)
• Controller: CH382L
• Baud rate range: 50 to 921,600 bps
• FIFO buffer: 256 bytes transmit / 256 bytes receive
• Supported signals: TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI
• Transmission mode: Full duplex
• Data bits: 5, 6, 7, or 8
• Stop bits: 1 or 2
• Parity options: None, even, odd, mark, space
• ESD protection: up to ±15 kV
• Operating temperature: 0 °C to 55 °C
• Storage temperature: -40 °C to 70 °C
• Maximum humidity: 90% non-condensing

How to use

Install the card into an available PCIe x1 slot (or compatible larger slot) inside the PC chassis and secure the appropriate bracket for standard or low-profile enclosures. Connect serial devices using standard DB9 cables to the two D-Sub 9 connectors. Install drivers supplied on the included CD or download current drivers for Windows (7 and newer, Server 2008 R2 and later) or a Linux kernel from 2.6.30 onward. Configure serial port parameters (baud rate, data bits, stop bits, parity, flow control) in the operating system or application to match the connected device.

Usage recommendations

Use shielded DB9 cables and enable hardware flow control (RTS/CTS) when working at high baud rates or with continuous data streams. Verify parity and stop bit settings to match legacy equipment and ensure ESD precautions when connecting or disconnecting devices.
