header-product InLine 76622V Internal Network Card Mini-PCIe Wired Ethernet 1000 Mbit/s RJ45 Half-Size
28.99 €

InLine 76622V Internal Network Card Mini-PCIe Wired Ethernet 1000 Mbit/s RJ45 Half-Size

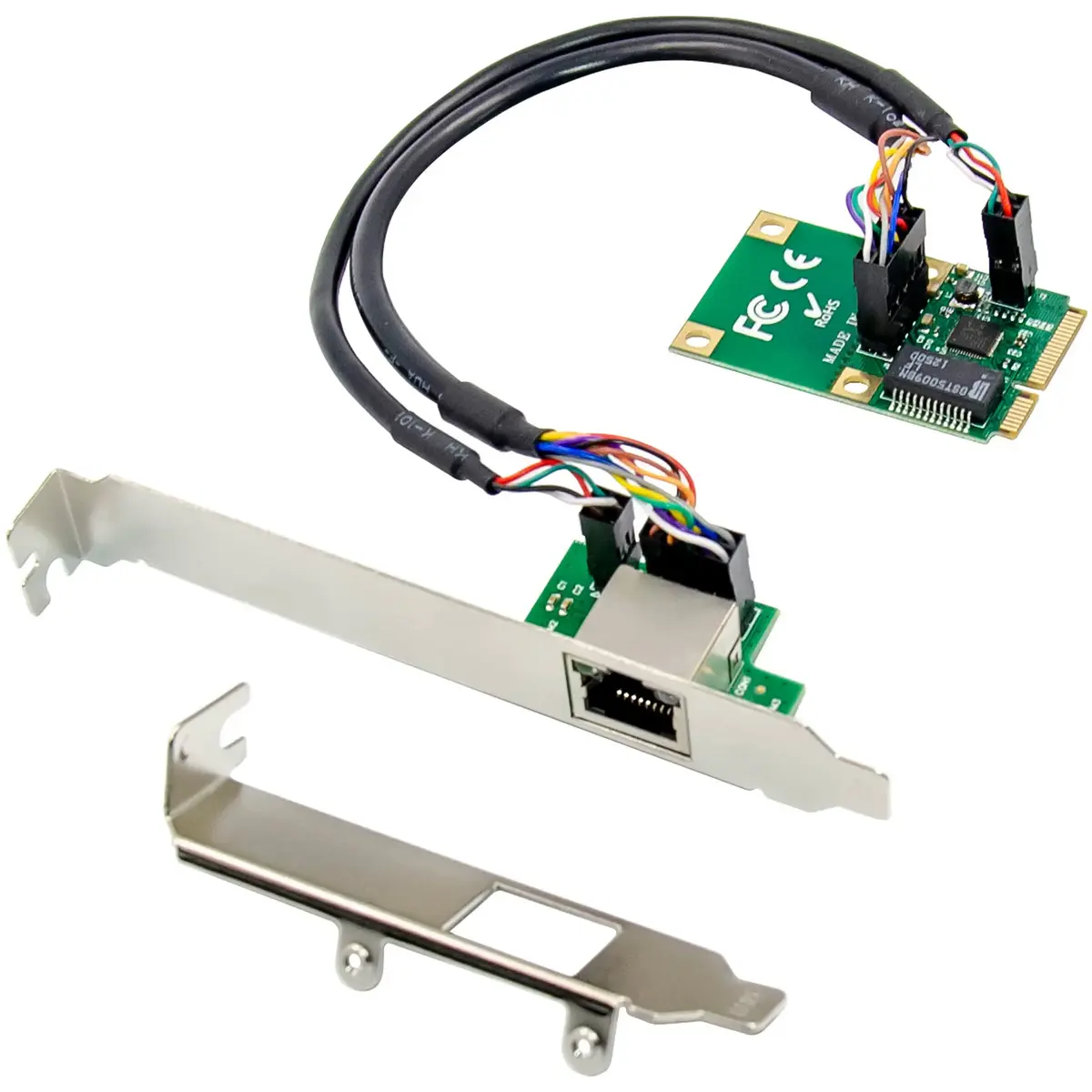

InLine 76622V Internal Network Card Photo 1

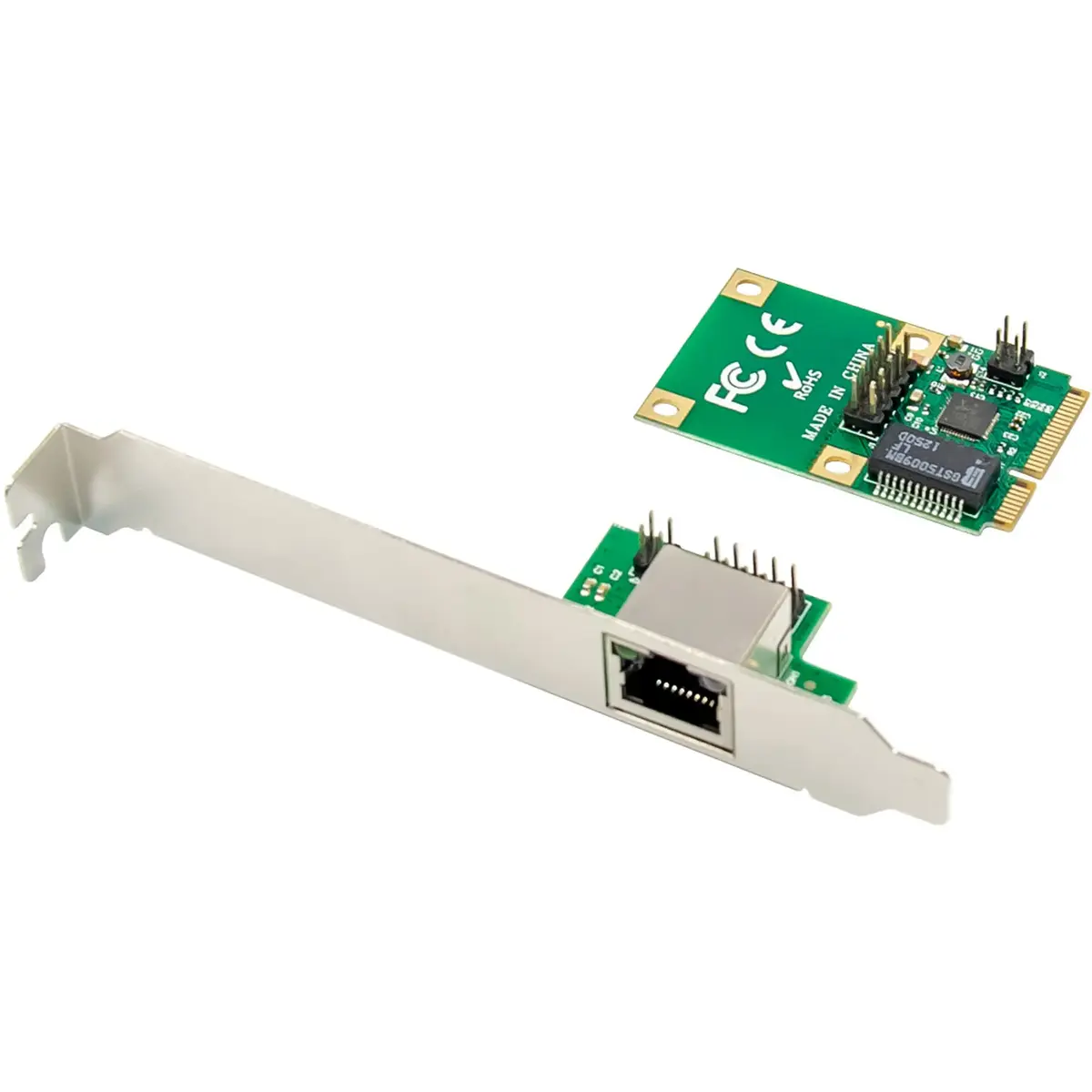

InLine 76622V Internal Network Card Photo 2

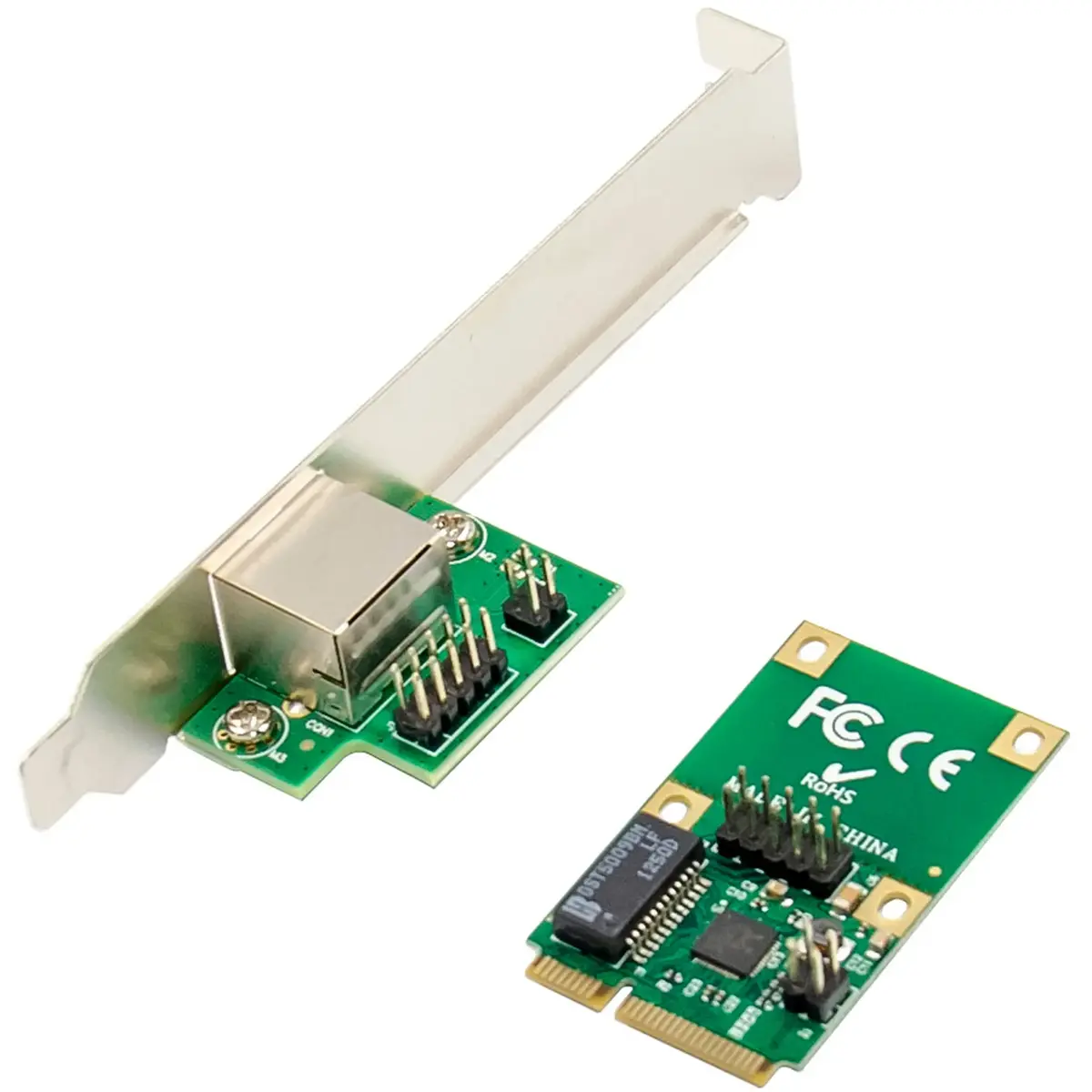

InLine 76622V Internal Network Card Photo 3

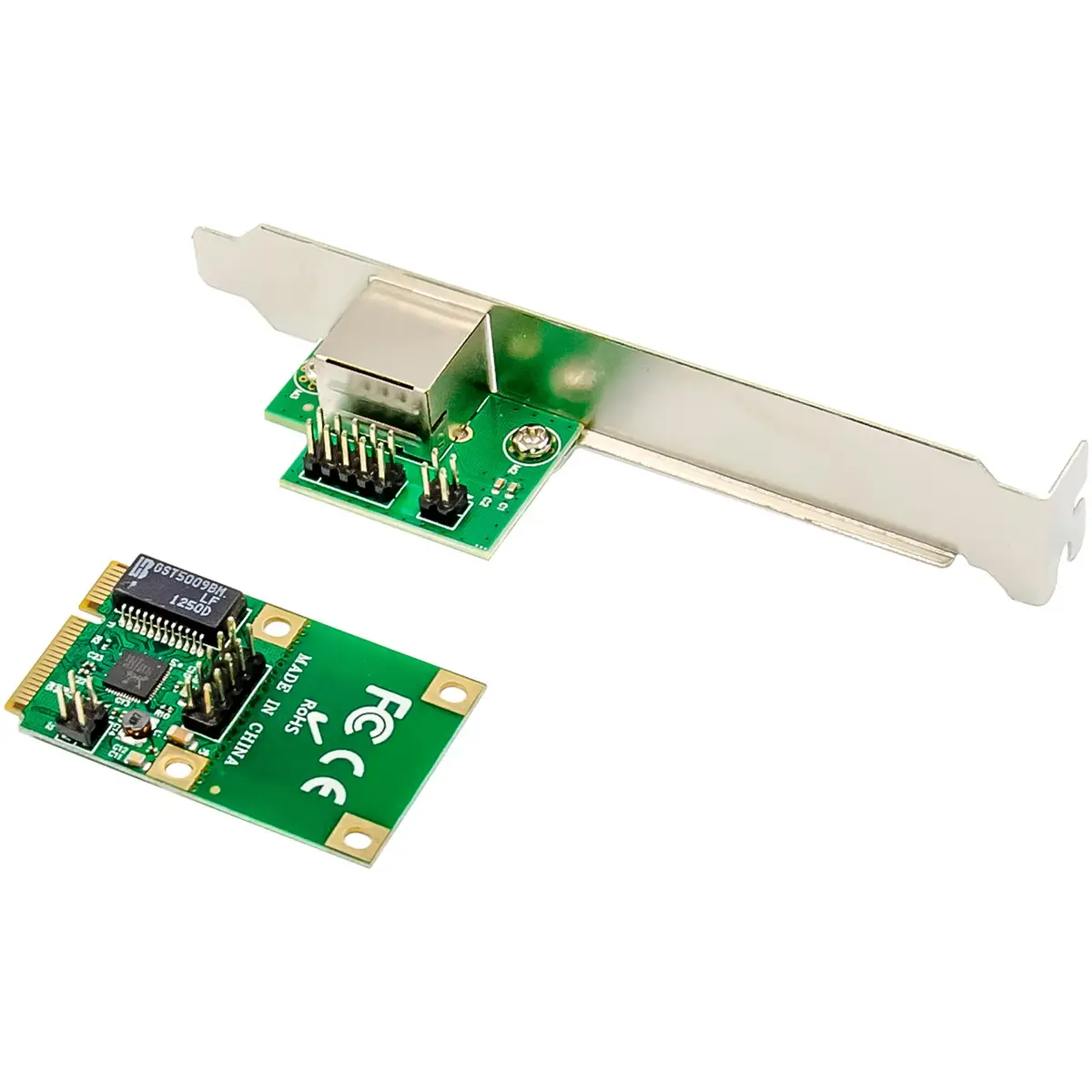

InLine 76622V Internal Network Card Photo 4

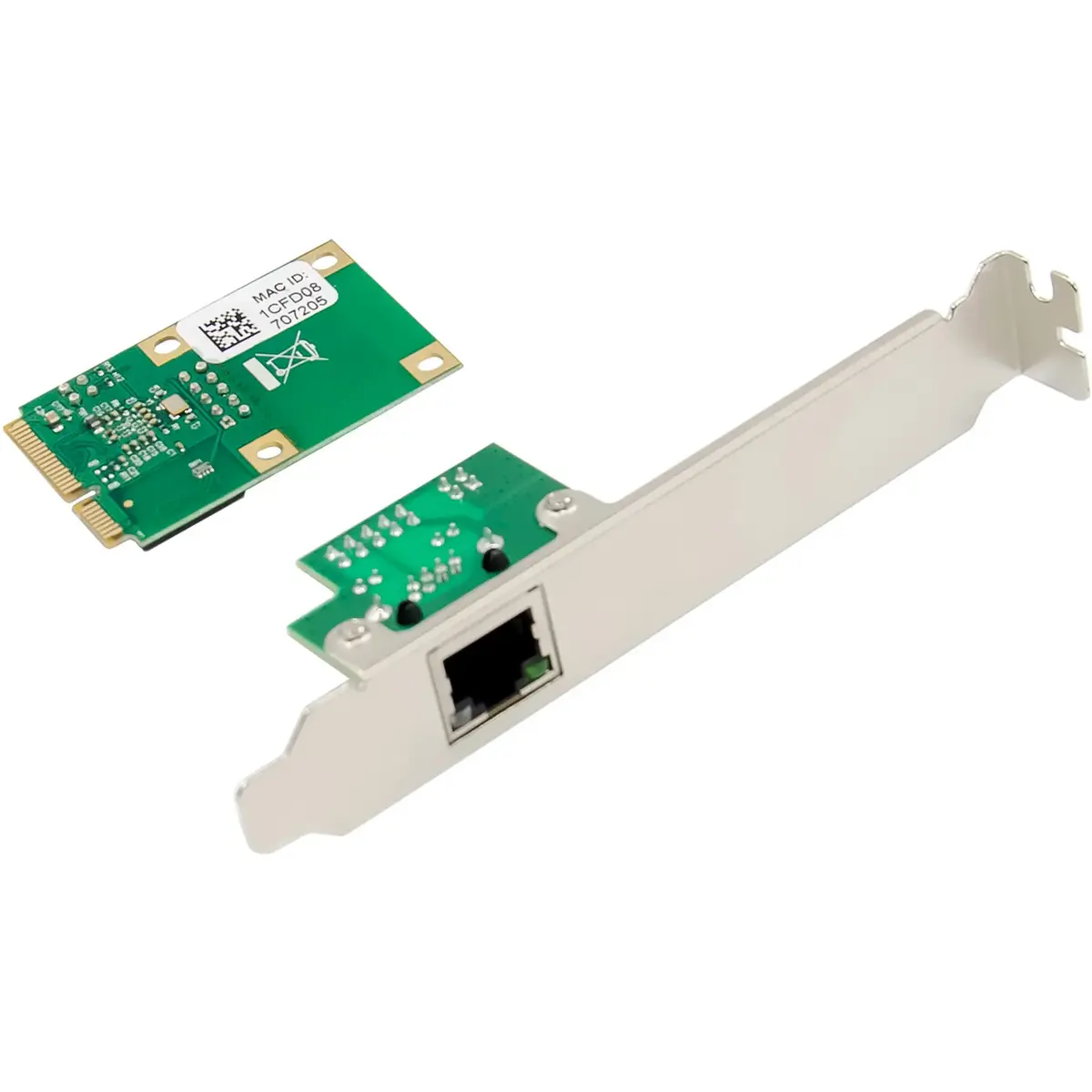

InLine 76622V Internal Network Card Photo 5
InLine 76622V Internal Network Card Photo 6
InLine 76622V Internal Network Card Photo 7
InLine 76622V Internal Network Card Photo 1
InLine 76622V Internal Network Card Photo 2
InLine 76622V Internal Network Card Photo 3
InLine 76622V Internal Network Card Photo 4
InLine 76622V Internal Network Card Photo 5
InLine 76622V Internal Network Card Photo 6
InLine 76622V Internal Network Card Photo 7
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine 76622V Internal Network Card Mini-PCIe Wired Ethernet 1000 Mbit/s RJ45 Half-Size

{{email}}
You keep track of price changes

InLine 76622V Internal Network Card Mini-PCIe Wired Ethernet 1000 Mbit/s RJ45 Half-Size

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The InLine 76622V is an internal wired network card featuring a Mini-PCIe host interface and an Ethernet RJ45 port. Designed for reliable desktop and system connections, it delivers a maximum data transfer rate of 1000 Mbit/s and supports networking standards including IEEE 802.3, IEEE 802.3ab, IEEE 802.1Q, and IEEE 802.3u. Ideal for upgrading or adding high-speed wired network connectivity to compatible computer systems.
Available for order: 91 pcs.
Warranty: 2 Years
SKU: 11677901
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
04.11.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
09.11.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.04 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
09.11.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine 76622V is an internal wired network card featuring a Mini-PCIe host interface and an Ethernet RJ45 port. Designed for reliable desktop and system connections, it delivers a maximum data transfer rate of 1000 Mbit/s and supports networking standards including IEEE 802.3, IEEE 802.3ab, IEEE 802.1Q, and IEEE 802.3u. This internal network card is engineered to provide stable, high-speed wired connectivity for compatible computer systems, industrial PCs, embedded devices, and custom setups requiring dependable Ethernet access.

Advantages

This internal network card offers a reliable wired connection with a maximum data transfer rate of 1000 Mbit/s, ensuring fast and stable network performance for demanding applications. Its Mini-PCIe host interface allows direct integration into compatible motherboards and compact systems. Support for multiple networking standards ensures seamless compatibility with a wide range of existing network infrastructures and routers. The included Ethernet RJ45 port provides a secure and physical network link, minimizing interference and signal dropouts often associated with wireless alternatives.

Suitable for

  • Upgrading desktop computers with a gigabit ethernet port
  • Integrating wired network connectivity into industrial PCs
  • Adding high-speed networking to embedded systems and custom builds
  • Establishing stable local area network connections in office environments

This product may not be suitable if your computer or motherboard lacks an available Mini-PCIe expansion slot or if you strictly require wireless Wi-Fi connectivity. It is also not designed for standard full-size PCIe desktop expansion slots without a proper host adapter.

Key specifications

  • Wired connectivity technology
  • PCI Express host interface
  • Ethernet interface
  • Maximum data transfer rate of 1000 Mbit/s
  • Supports IEEE 802.3, IEEE 802.3ab, IEEE 802.1Q, and IEEE 802.3u networking standards

How to use

To install the network card, power down your computer, unplug it from the electrical outlet, and open the system casing. Locate an available Mini-PCIe slot on your motherboard and carefully insert the internal network card, securing it according to your system's design. Connect the external RJ45 module using the provided cabling if applicable. Close the casing, reconnect the power, and turn on the computer. Install the appropriate network drivers for your operating system to enable full functionality and achieve the maximum data transfer rate of 1000 Mbit/s.

What to consider before purchase

  • Verify that your motherboard or system features a compatible Mini-PCIe host interface
  • Confirm that you have physical space inside your chassis for the internal card and RJ45 module
  • Check operating system compatibility with your specific computer configuration
  • Ensure you have the necessary tools and technical knowledge to install internal hardware components
Usage recommendations: Handle the internal network card by its edges to avoid touching sensitive electronic components. Ensure your system is completely powered off and disconnected from power before attempting installation. Always use certified Ethernet cables, such as CAT-5 or higher, to maintain optimal network speeds and prevent signal degradation.

Specifications

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.
Ethernet
Host interface: Interface that enables a host controller to communicate with a driver.
PCI Express
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.
1000 Mbit/s
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2 kg
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p
All features
VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Yes
Component for: What this product is used as a part of (component for).
PC
Resource CD:
Yes
Package volume:
1000 cm³
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
TÜV mark, Federal Communications Commission (FCC), CE

Ports & interfaces

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.
Ethernet
Host interface: Interface that enables a host controller to communicate with a driver.
PCI Express
Internal: The product is built in.
Yes
Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
PCI version:
1.1

Bandwidth

Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.
1000 Mbit/s

Network

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p
Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Realtek RTL8111F
Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Yes
Jumbo frames support:
Yes
Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.
10, 100, 1000
Ethernet interface type:
Fast Ethernet, Gigabit Ethernet
Jumbo frames:
9000

Performance

Windows operating systems supported: Windows vesions wich can be used with the device.
Windows 10, Windows XP, Windows Vista, Windows ME, Windows 98SE, Windows 8, Windows 7, Windows 2000, Windows 10 x64
Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.
Mac OS X 12.0 Monterey, Mac OS X 11.0 Big Sur, Mac OS X 10.9 Mavericks, Mac OS X 10.8 Mountain Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.7 Lion, Mac OS X 10.6 Snow Leopard, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Y
Server operating systems supported:
Windows Server 2003, Windows Server 2012, Windows Server 2008

Design

Country of origin: Country where the device is made. Aka Country of manufacture (COM).
Taiwan

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2 kg
Package weight: Weight of the packaged product.
44 g
Height: The measurement of the product from head to foot or from base to top.
120 mm
Width: The measurement or extent of something from side to side.
25 mm
Depth: The distance from the front to the back of something.
1.1 mm
Package depth: The distance from the front to the back of the packaging.
150 mm
Package height: The distance from the top to the bottom of the packaging.
30 mm
Package width: The distance from one side of the packaging to the other.
145 mm

Packaging content

Manual:
Yes
Mounting brackets included:
Yes

Other features

Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).
25 x 1.1 x 120
