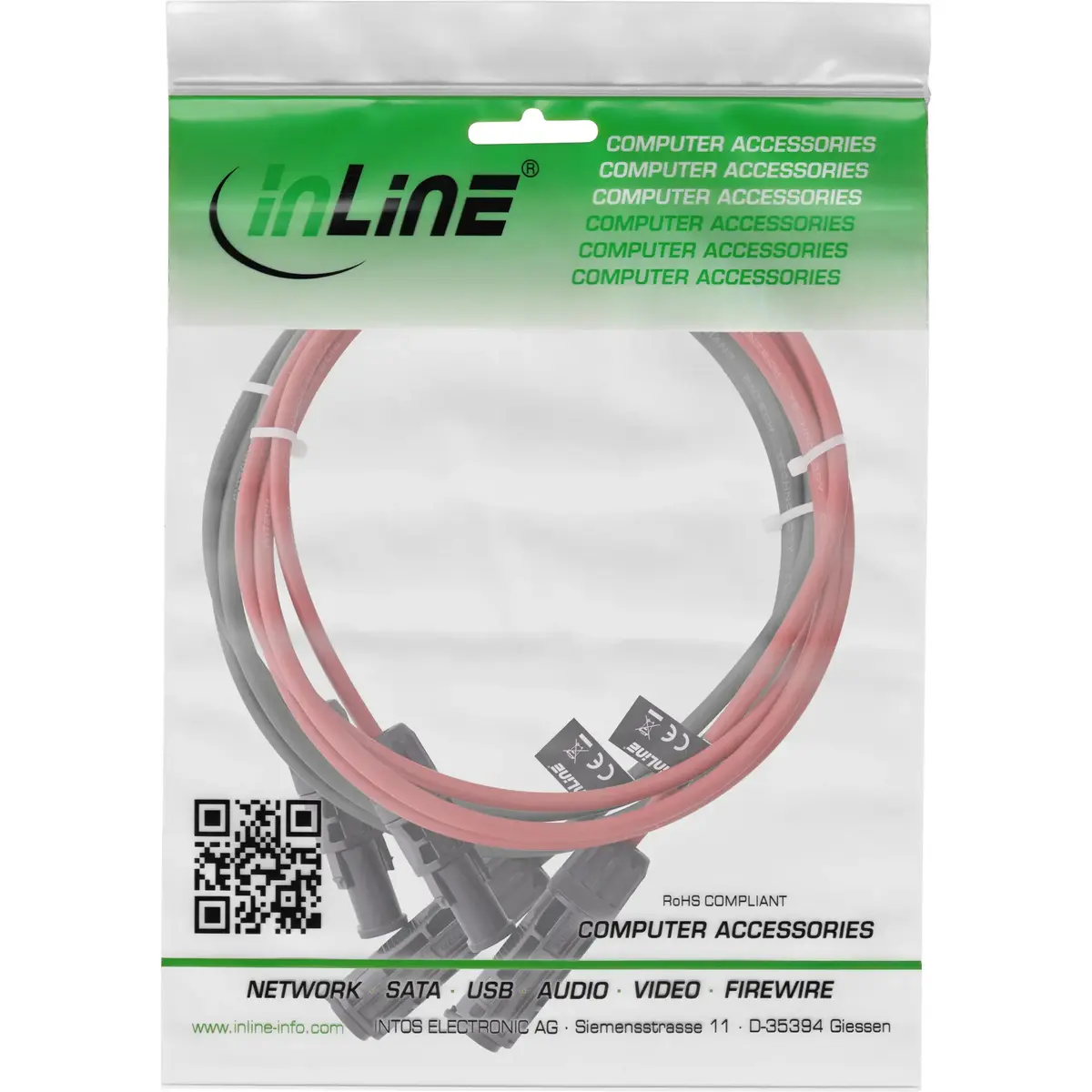

InLine 95402 Medium Voltage Cable Red Black 2 m 1500 V

The InLine 95402 is a 2-meter medium voltage solar cable set featuring red and black insulation designed for reliable power transmission in photovoltaic and electrical applications. It offers a maximum operating voltage of 1500 V DC and includes pre-mounted solar plugs for secure connections. Constructed with high-quality materials, this cable ensures efficient performance and safety in various setups.

Advantages

This medium voltage cable is built with a robust and durable construction, utilizing fine-wired tinned copper conductors for optimal conductivity. It provides excellent resistance to ozone, weathering, and UV radiation, making it suitable for demanding outdoor environments. The halogen-free, low-smoke, cross-linked polyolefin insulation enhances safety by complying with flame resistance standards. Additionally, it operates reliably across a wide ambient temperature range from -40 degrees Celsius to +90 degrees Celsius.

Suitable for

• Wiring photovoltaic systems and solar panels
• Connecting solar generators and inverters
• Outdoor and indoor electrical installations requiring high voltage tolerance
• Power transmission in renewable energy setups

When it may not be suitable

This cable may not be suitable for applications requiring a wire cross-section other than 4 square millimeters without proper load calculation. It is also not intended for permanent underwater immersion or direct burial without additional protective conduit.

Key specifications

• Medium voltage cable type H1Z2Z2-K
• Length: 2 meters
• Maximum operating voltage: 1500 V DC
• Conductor cross-section: 4 square millimeters
• Conductor material: Tinned copper
• Insulation thickness: 0.7 millimeters
• External diameter: 5.5 millimeters
• Ambient temperature range: -40°C to +90°C
• Flame resistance: EN 60332-1-2, Low Smoke Zero Halogen

How to use

To use the InLine 95402 solar cable, first verify that the 4 square millimeter cross-section matches the current and distance requirements of your electrical setup. Connect the included solar plugs securely to the corresponding terminals of your photovoltaic components, ensuring correct polarity indicated by the red and black insulation. Route the cable carefully, maintaining at least the minimum bending radius of 22 millimeters to prevent mechanical stress on the conductor.

What to consider before purchase

• Verify the required cable length for your installation setup
• Check if the 4 square millimeter conductor cross-section is adequate for your current load
• Ensure compatibility with your existing solar connectors and system components
• Evaluate environmental conditions to utilize the specified temperature and weather resistance properties

Usage recommendations

Always consult a qualified solar technician to calculate the required wire cross-section based on your specific current and distance requirements before installation. Inspect the cable periodically for physical damage or wear to maintain long-term operational safety.
