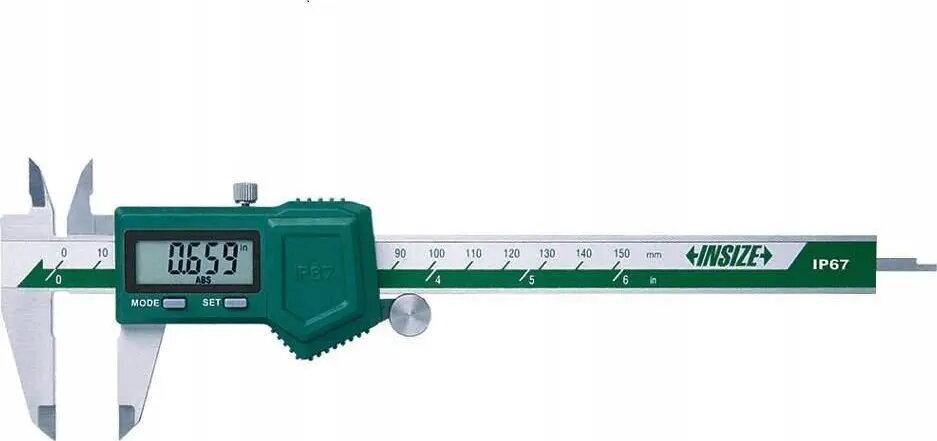

Caliper INSIZE 1118-200B digital 200 mm, IP67, ABS display, 3V battery, square beam, stainless roll

Digital caliper INSIZE 1118-200B provides precise linear measurements across a 0–200 mm range with an ABS-type electronic display and IP67-rated protection. The instrument is built with a square beam for enhanced rigidity and stable sliding, and a stainless roll contact surface that resists wear. Its sealed design shields the electronics from dust and splash water, while the 3V battery supplies the display and measurement electronics for extended use in workshop, production and inspection environments.

Advantages

The caliper combines a full 200 mm measuring range with IP67 ingress protection, making it suitable for use where dust and splashes are present. The ABS electronic display gives clear digital readout of measurements in millimetres or inches, while the square beam construction reduces play and improves repeatability. A stainless roll on the measuring jaw increases durability at contact points. Low power consumption and a replaceable 3V battery simplify maintenance.

Suitable for

• External dimension measurement of parts and components
• Internal diameter and slot measurements inside assemblies
• Depth measurements of steps, holes and recesses
• Workshop inspection, quality control and production setup

Key specifications

• Measuring range: 0–200 mm
• Display type: ABS electronic digital display
• Protection class: IP67 (dustproof and splashproof)
• Beam type: square beam for improved rigidity
• Contact surface: stainless roll on measuring jaw
• Power supply: 3V battery

How to use

Before measuring, clean mating surfaces of the caliper and the workpiece to remove chips and debris. Switch on the display, zero the caliper at the fully closed position and select the desired unit (mm or inch). For external measurements, close the jaws gently around the component; for internal measurements, insert the inner jaws into the bore and open until they contact the walls; for depth measurements, use the depth blade at the end of the caliper and rest the beam squarely on the reference surface. Read the value on the ABS display and record as required. After use, wipe the caliper clean, retract the jaws slightly, switch off if needed and store in a protective case to maintain accuracy.

Usage recommendations

The caliper is designed for precision measuring tasks in environments where dust and light splashing may occur; avoid prolonged immersion in water despite the IP67 rating, and do not expose the instrument to strong magnetic fields or chemical solvents. Periodically check zero accuracy and replace the 3V battery when display dimming is observed. Handle the square beam and measuring faces with care to prevent dents and preserve measurement accuracy.
