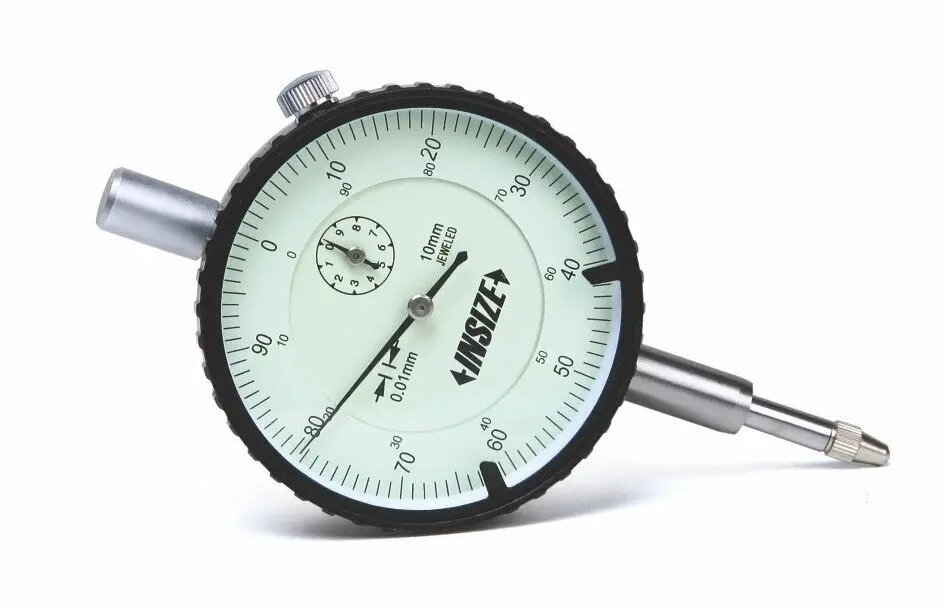

Dial Indicator INSIZE 2308-10A — 10 mm range, 0.01 mm resolution, with lug

Dial Indicator INSIZE 2308-10A is a precision mechanical indicator with a 10 mm measuring range and 0.01 mm resolution. The instrument includes a lug (mounting ear) for secure attachment to stands or fixtures, making it suitable for runout, alignment and comparative measurement tasks in workshops, inspection stations and machine setup applications. Constructed for routine shop-floor measurement, the INSIZE 2308-10A provides reliable repeatability for quality control and setup verification.

Advantages

The lug-equipped design allows easy and stable mounting on magnetic bases, stands or custom fixtures, reducing measurement variability. Fine 0.01 mm resolution gives clear, detailed readings for small deviations and runout checks. The 10 mm measuring range covers common inspection and alignment needs without frequent repositioning. Robust mechanical construction and a clear dial face support long-term use in workshop environments.

Suitable for

• Checking shaft runout and concentricity
• Alignment of machine components during setup
• Comparative thickness and height measurement
• Quality control inspections on production or service benches

Key specifications

• Measuring range: 10 mm
• Resolution: 0.01 mm
• Display type: mechanical dial
• Mounting: lug (mounting ear) for attachment to stands and bases
• Application environment: workshop and inspection station use

How to use

Secure the indicator by its lug to a compatible stand or magnetic base, ensuring the probe contacts the measured surface at a right angle. Zero the dial at a reference position before taking comparative or runout measurements. Move the workpiece or indicator slowly while observing the dial to record maximum deviation. For repeated checks, verify the zero setting periodically and confirm consistent seating of the lug on the mounting accessory.

Usage recommendations

Handle the indicator carefully to avoid shocks to the mechanism, store it in a protective case when not in use, and keep the tip and dial face clean. Use appropriate stands or magnetic bases for stable mounting and verify calibration regularly to maintain measurement accuracy.
